Atlas Equipment 9KBPX 2-Post+Lawn Mower Adapter Combo (WILL CALL)

Features and Benefits:

• Combo includes 9KBPX 9,000 lb. capacity lift and Lawn Mower Adapter

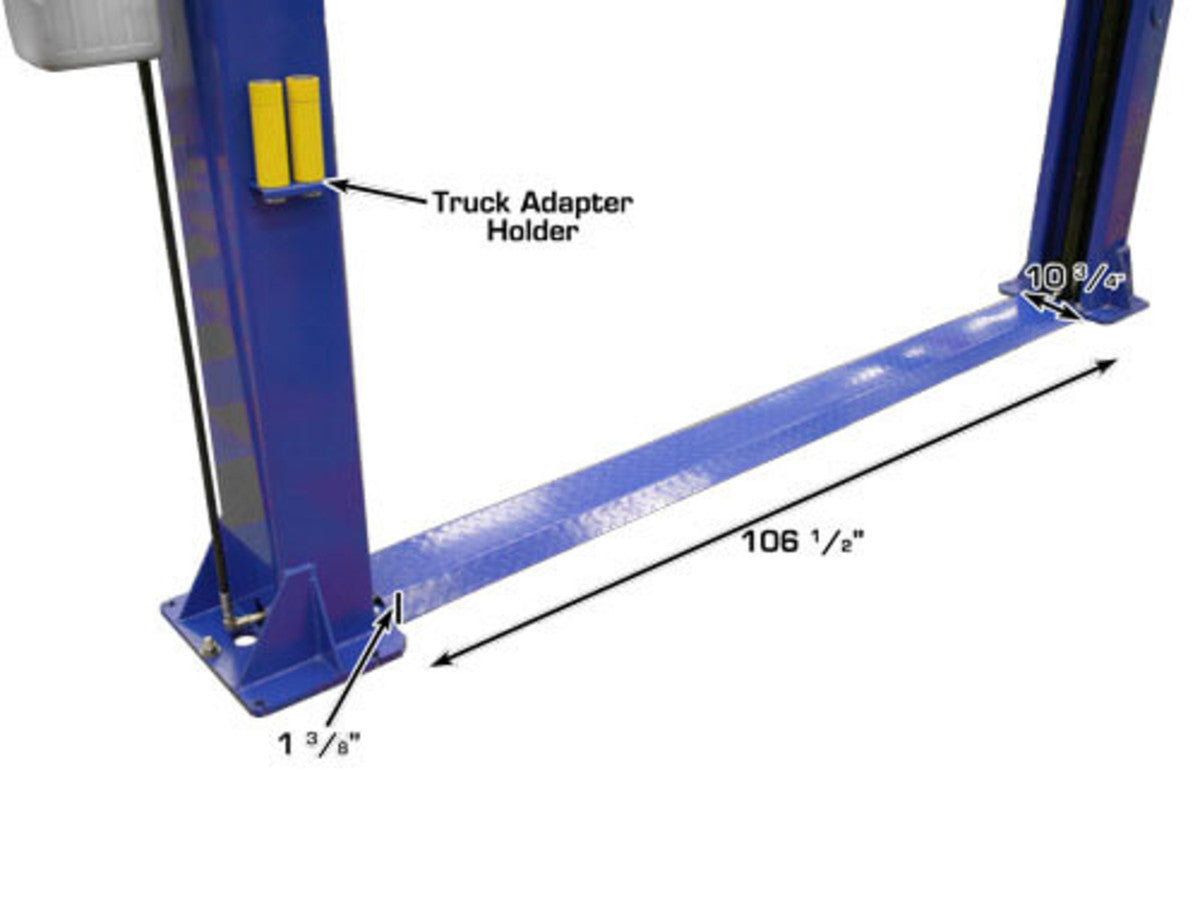

• Baseplate, Open-Top Style Lift
• Designed For Low Ceiling Clearance ‐ 9' 3” Columns

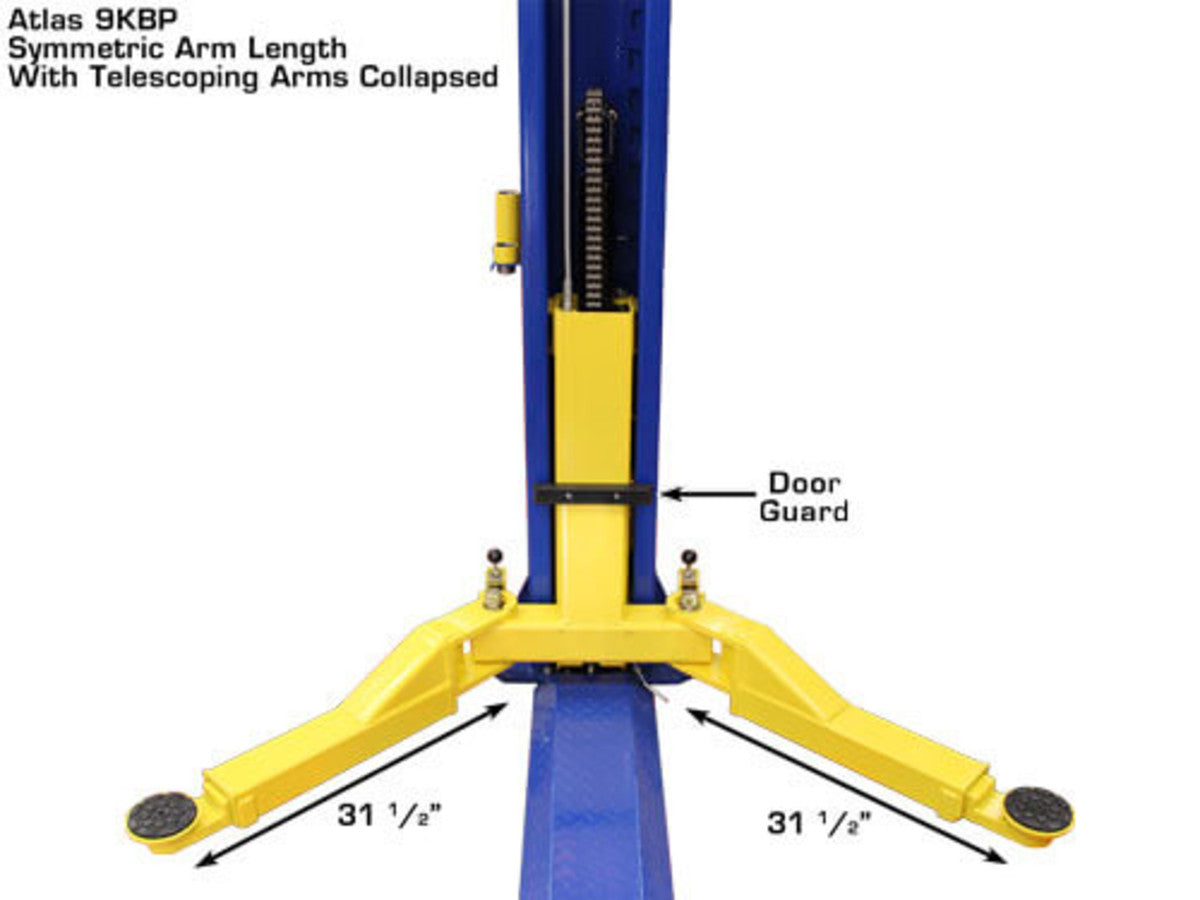

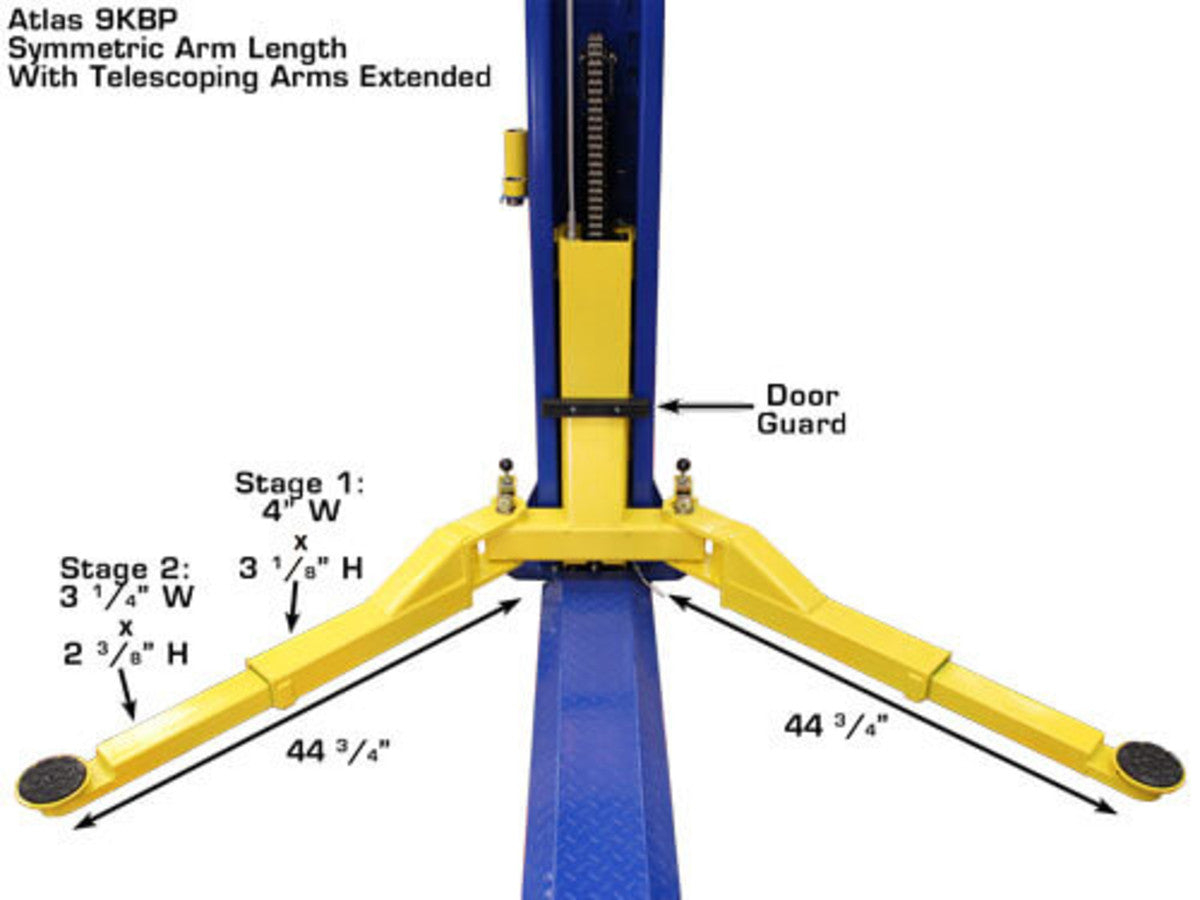

• Symmetric Arms

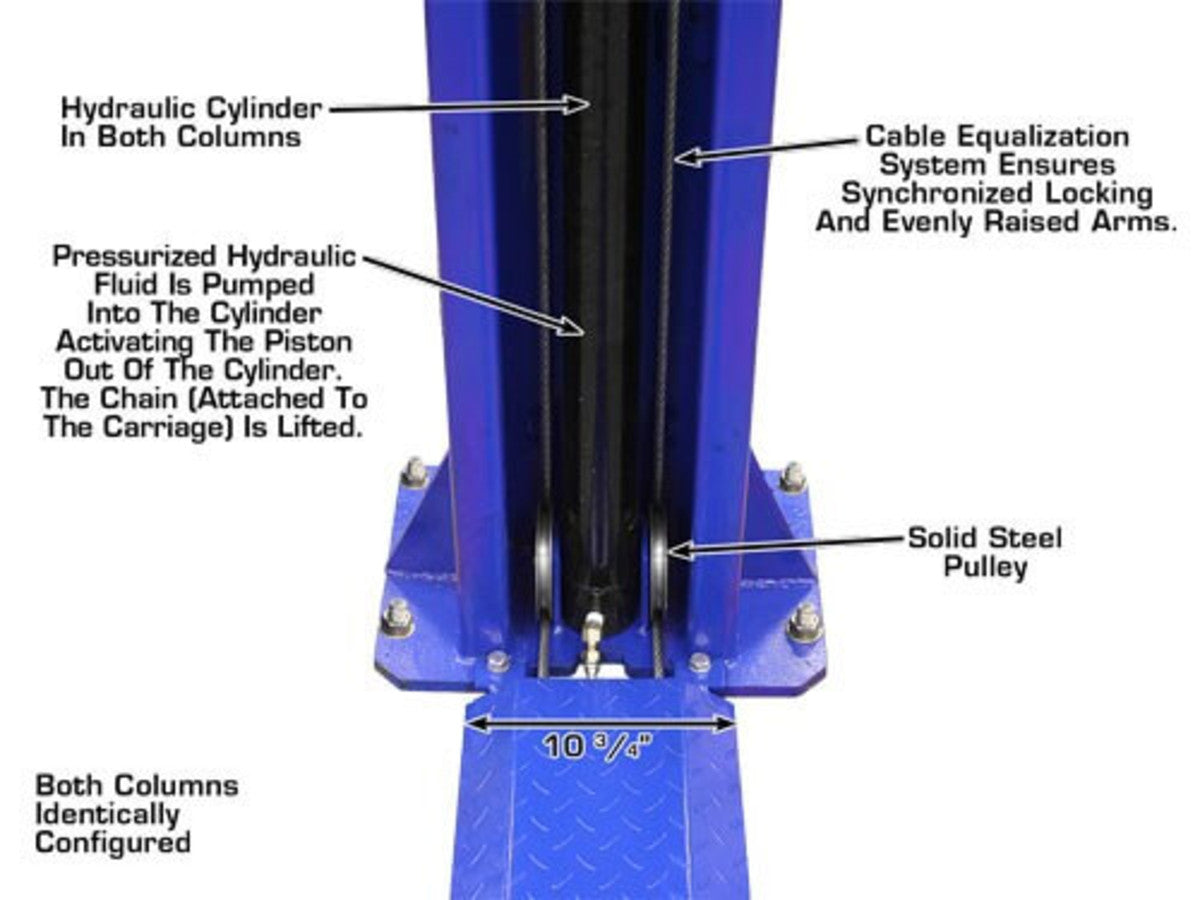

• Dual Hydraulic Chain-Drive Cylinders
• Secondary Lock System (SLS)

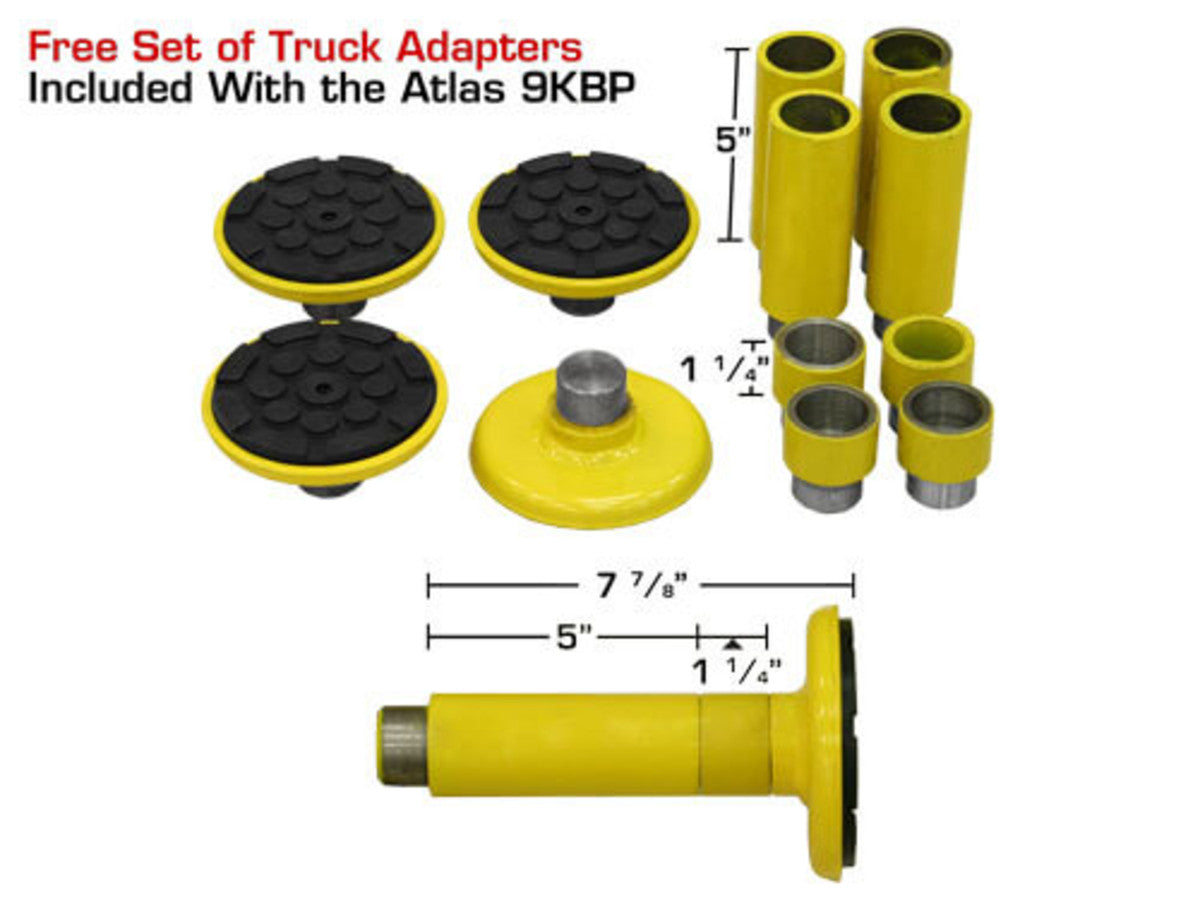

• Free 8 Piece Truck Adapter Set
• Automatic Arm Restraints

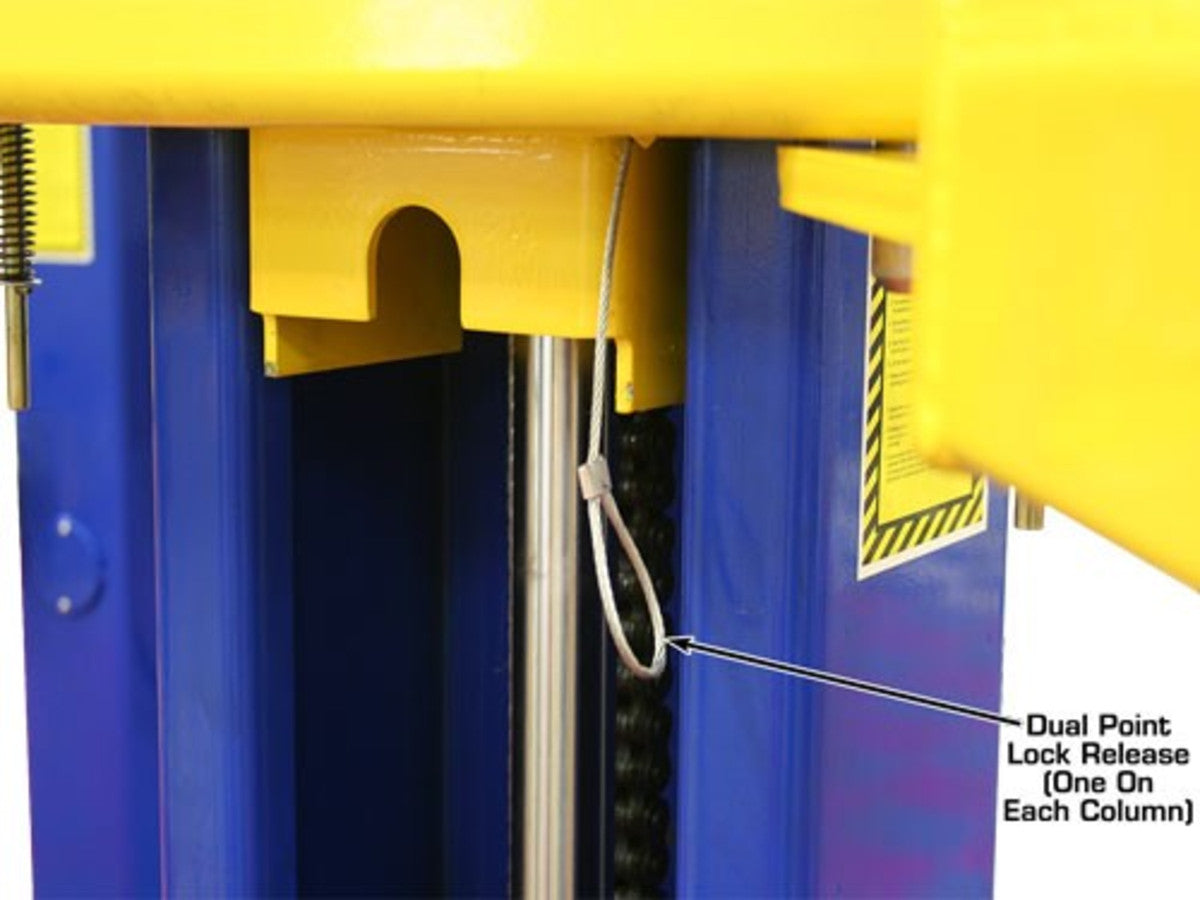

• Dual Point Lock Release
• Mounting Hardware Included
• This part number WILL CALL ONLY

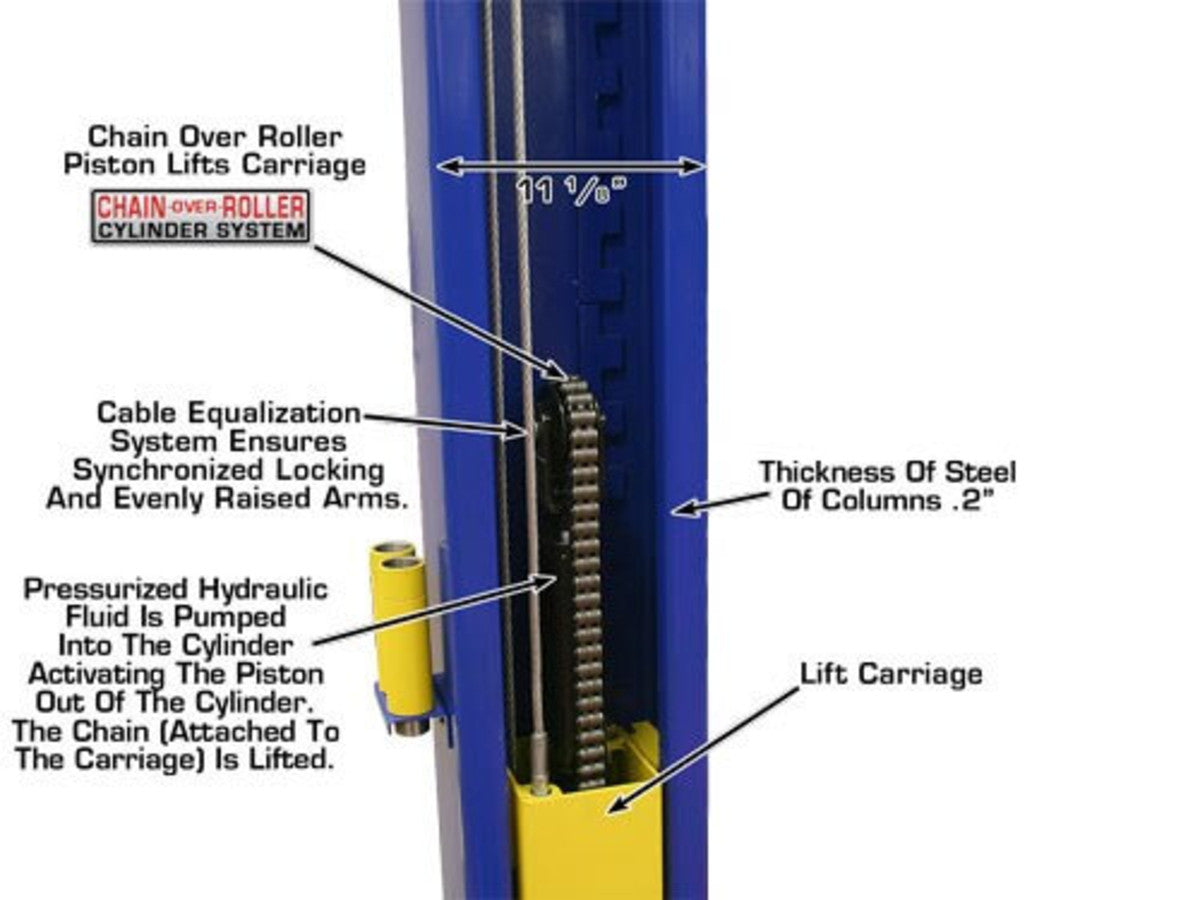

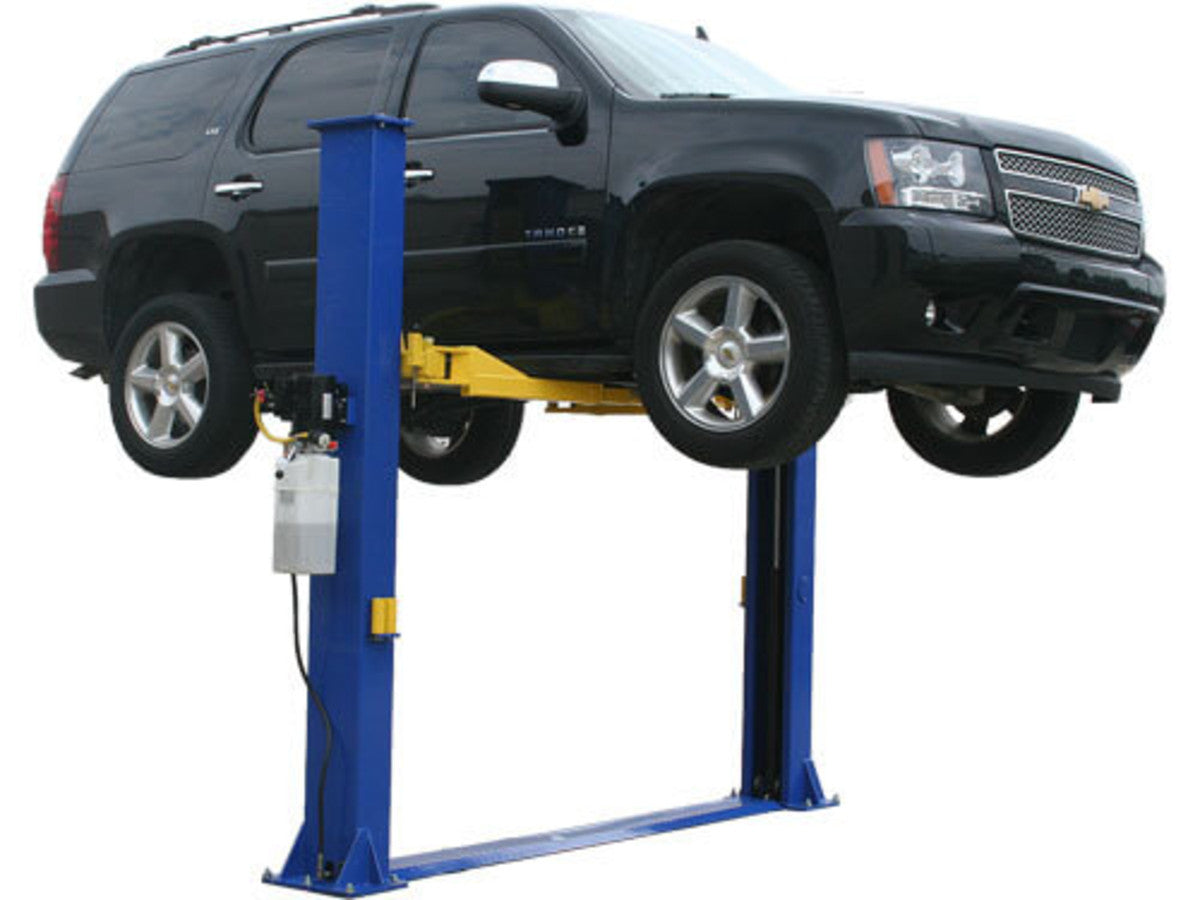

The Atlas® 9KBPX is an economically designed baseplate two-post lift great for low ceiling garages. The total column height of 111” (9 feet 3 inches) allows this lift to be installed in almost any professional or home garage with a ceiling as low as 9 feet 6 inches. The Atlas® 9KBPX “chain over roller” lift features a spring loaded Secondary Lock System (SLS) that automatically engages in the event of a slack or broken chain. The reliable dual chain-drive cylinders, symmetric arms, and automatic arm restraints make this the perfect choice for “Mr. Homeowner” or small commercial shop looking to service cars, SUV's and light duty trucks (not recommended to lift Diesel Dually or other large truck

This combo includes the Atlas® Lawn Mower Adapter or LMA. The LMA allows the user to raise lawn tractors, ATV's, UTV's, golf carts, and other small vechicles. NOTE: the capacity of the adapter when used on the 9KBPX is less then 9,000 lbs. If you have questions about the LMA and it's capabilities please contact a sales rep.

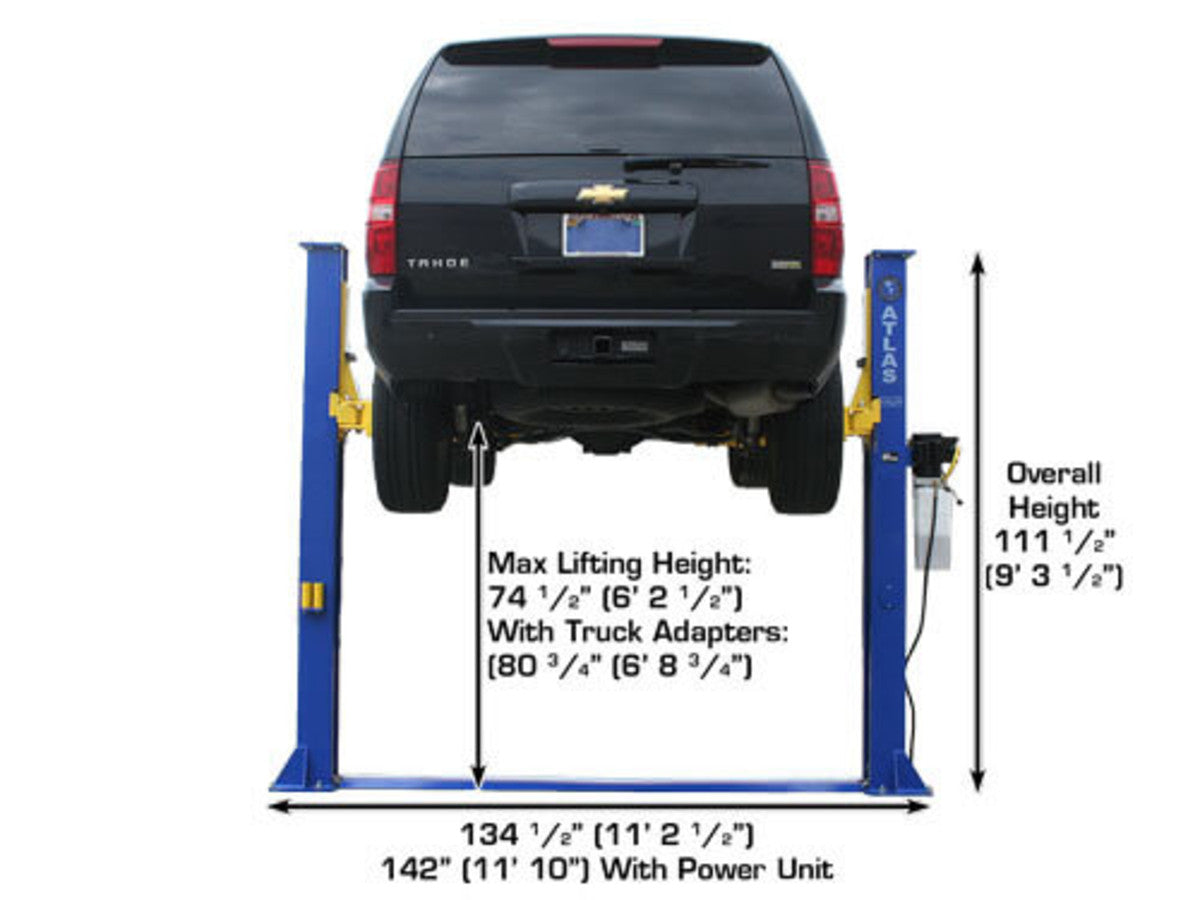

Atlas® XH-9KBPX Specifications

• Capacity 9,000 LB.

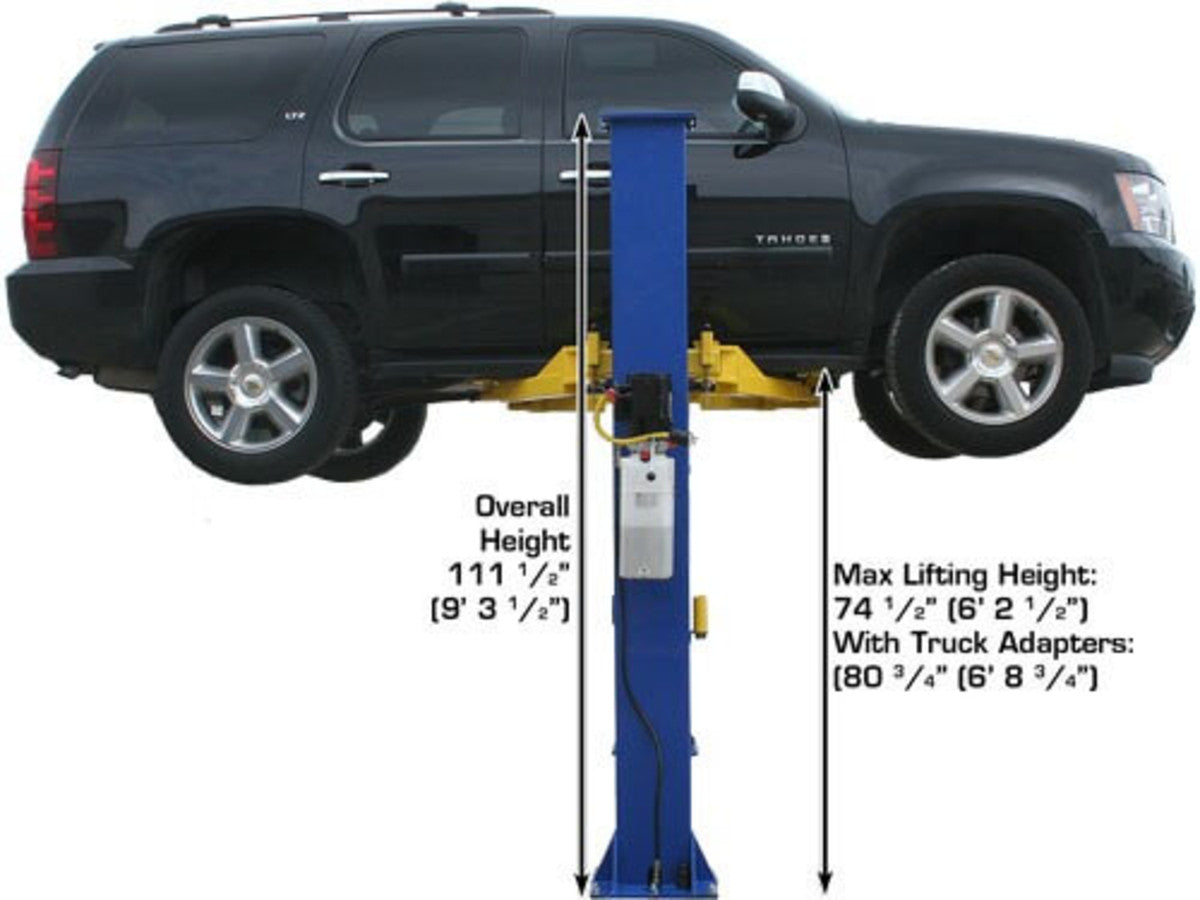

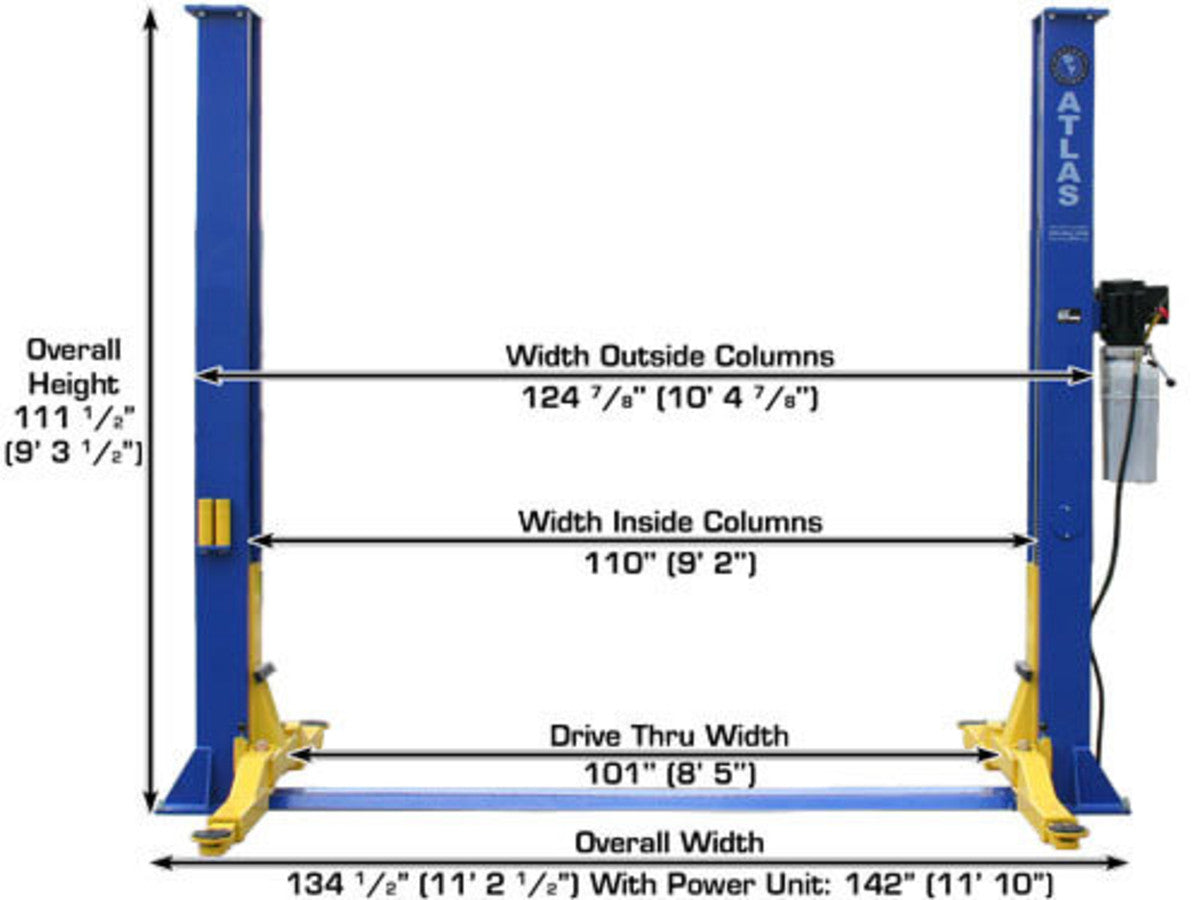

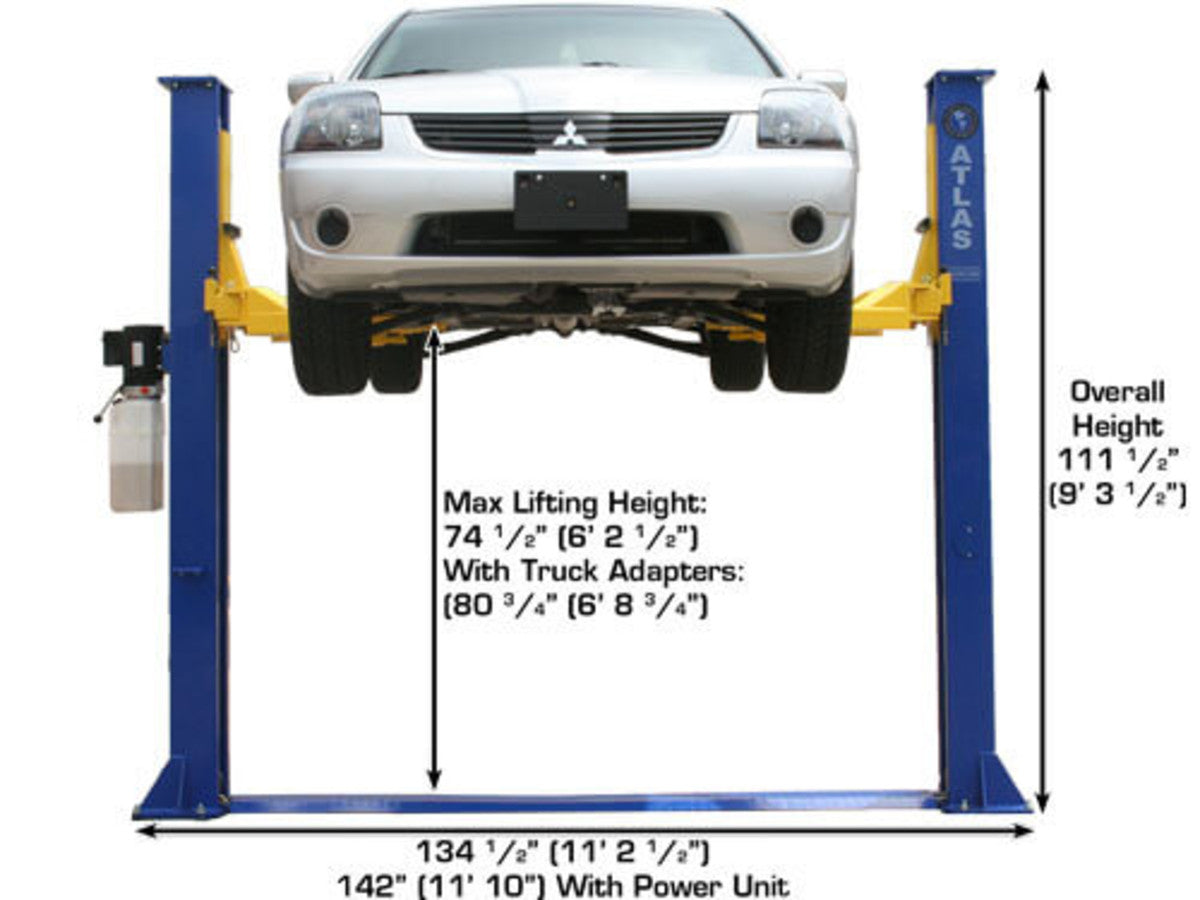

• Overall Height 111 1/2" (9' 3 1/2")
• Overall Floor Width 134 1/2" (11' 2 1/2")
• Outside Column to Outside Column 124 7/8" (10' 4 7/8")

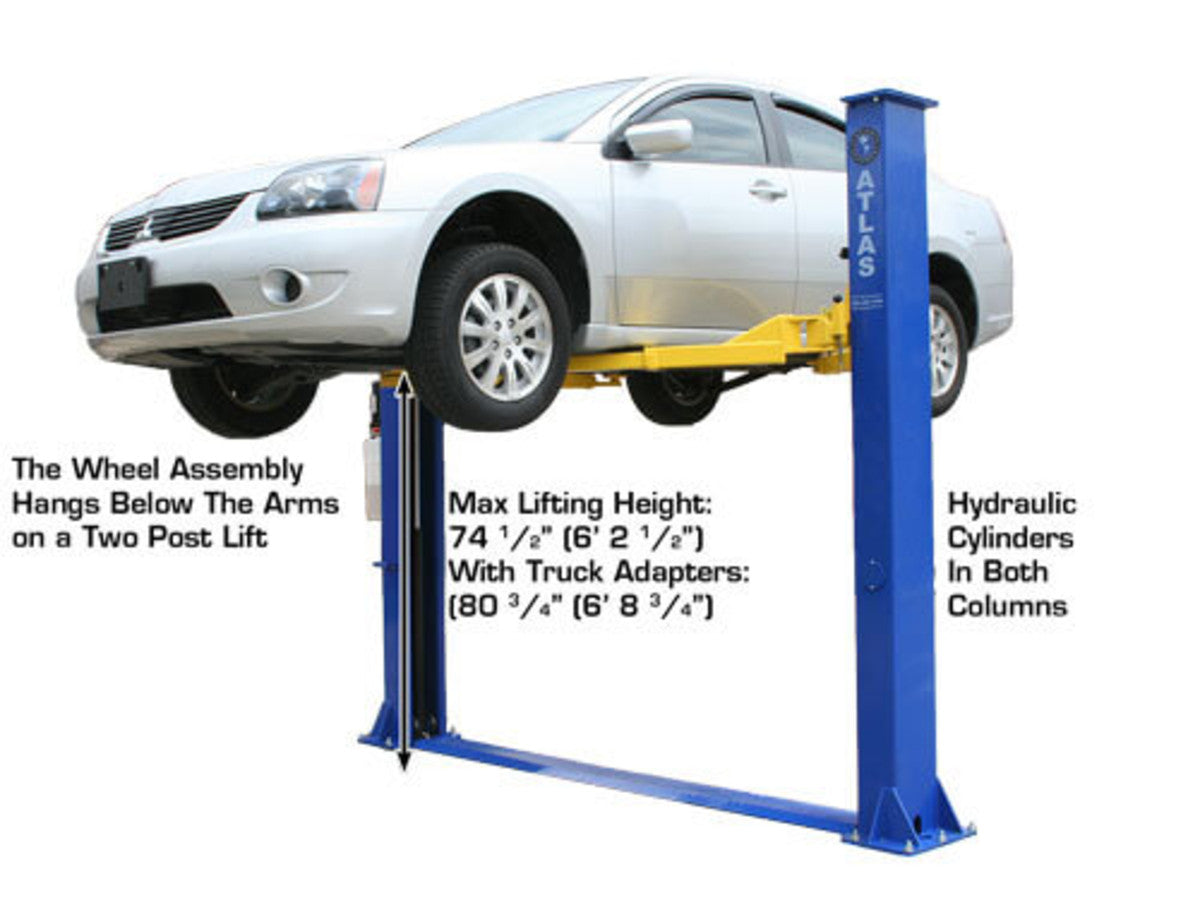

• Maximum Lift Height (Without Adapters) 74 1/2"
• Maximum Lift Height (With Adapters) 81"
• Minimum Arm Height 4"
• Inside Column 110” (9' 2”)
• Drive Thru 101” (8' 5”)

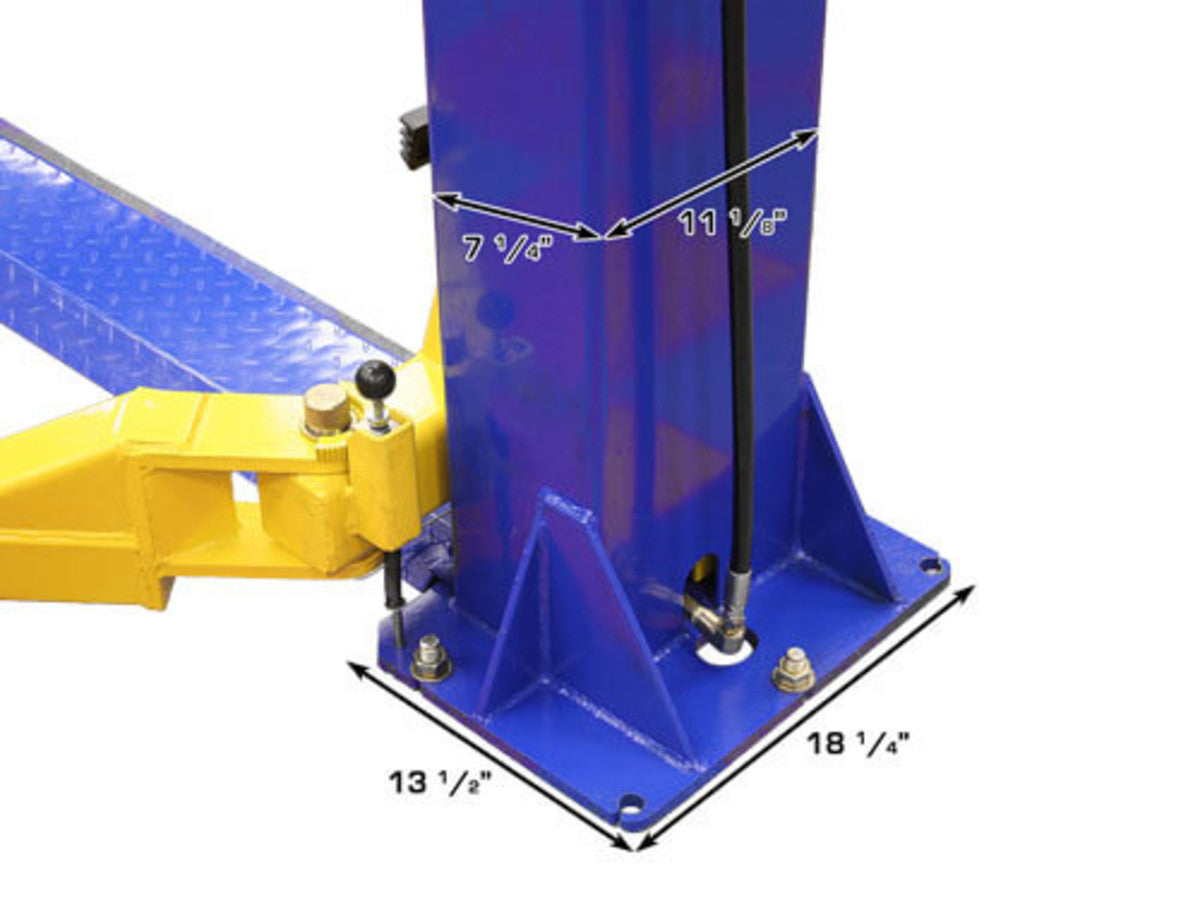

• Column Size 7 1/4" x 11"
• Column Thickness of Steel 5mm
• Base Of Lift 14 1/4" x 18 1/4"

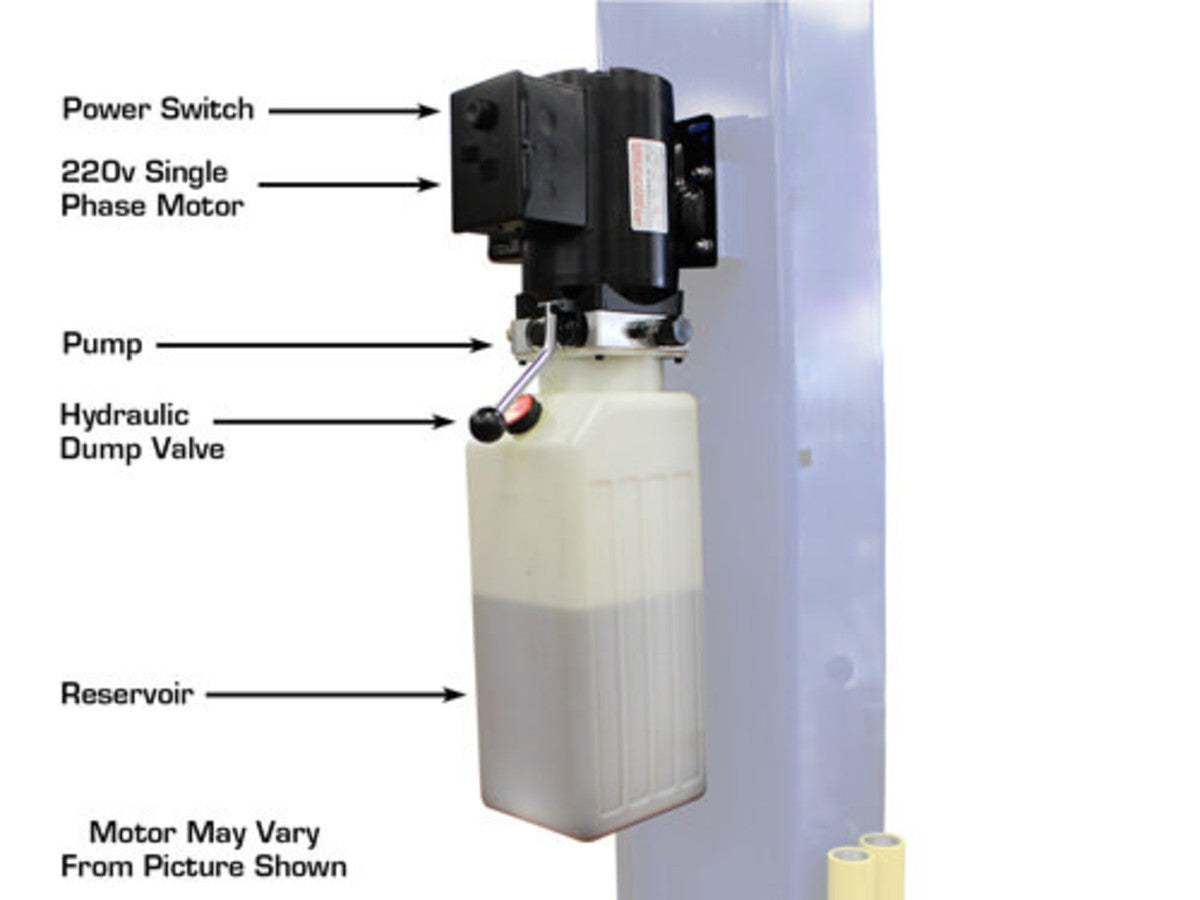

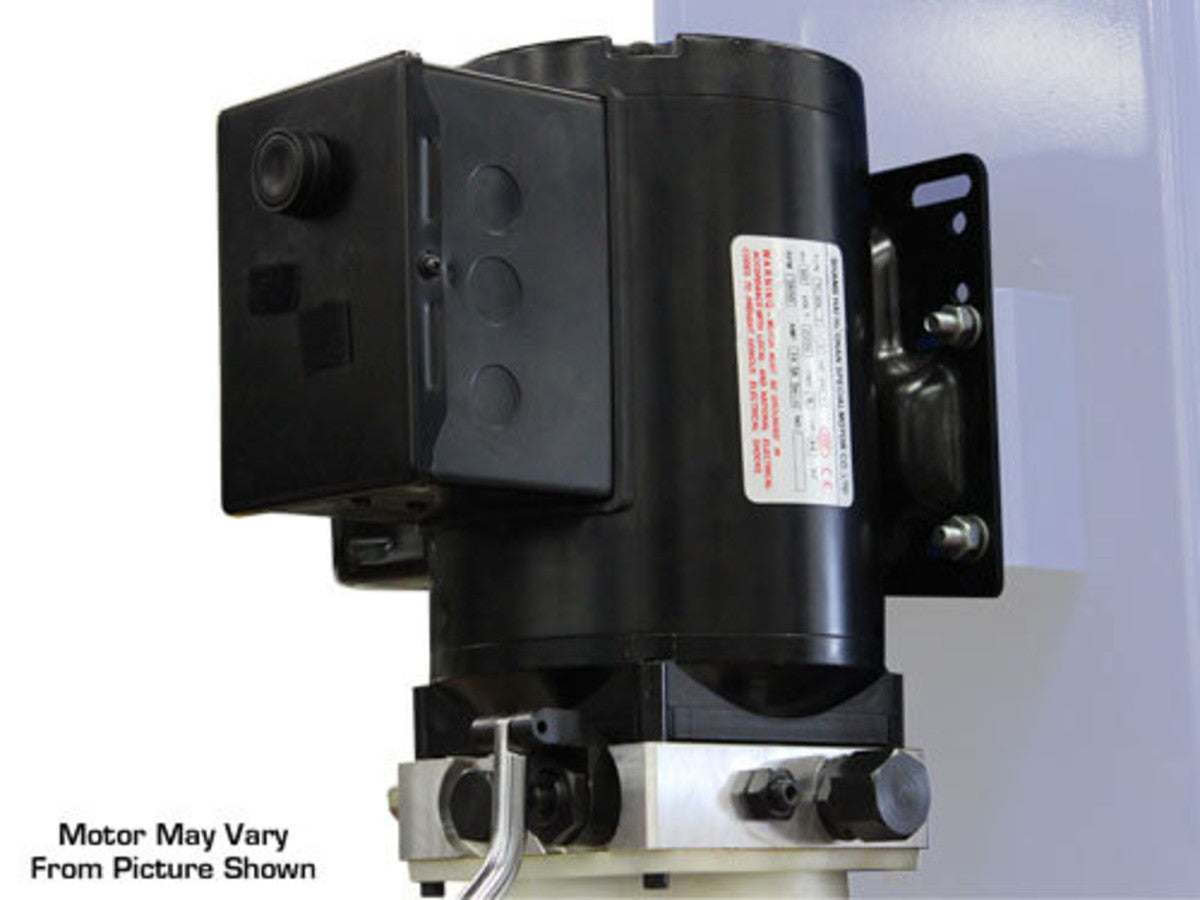

• Motor/Electrical Requirement 220 volt single (1) phase (A 30 amp breaker is recommended)
• Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)

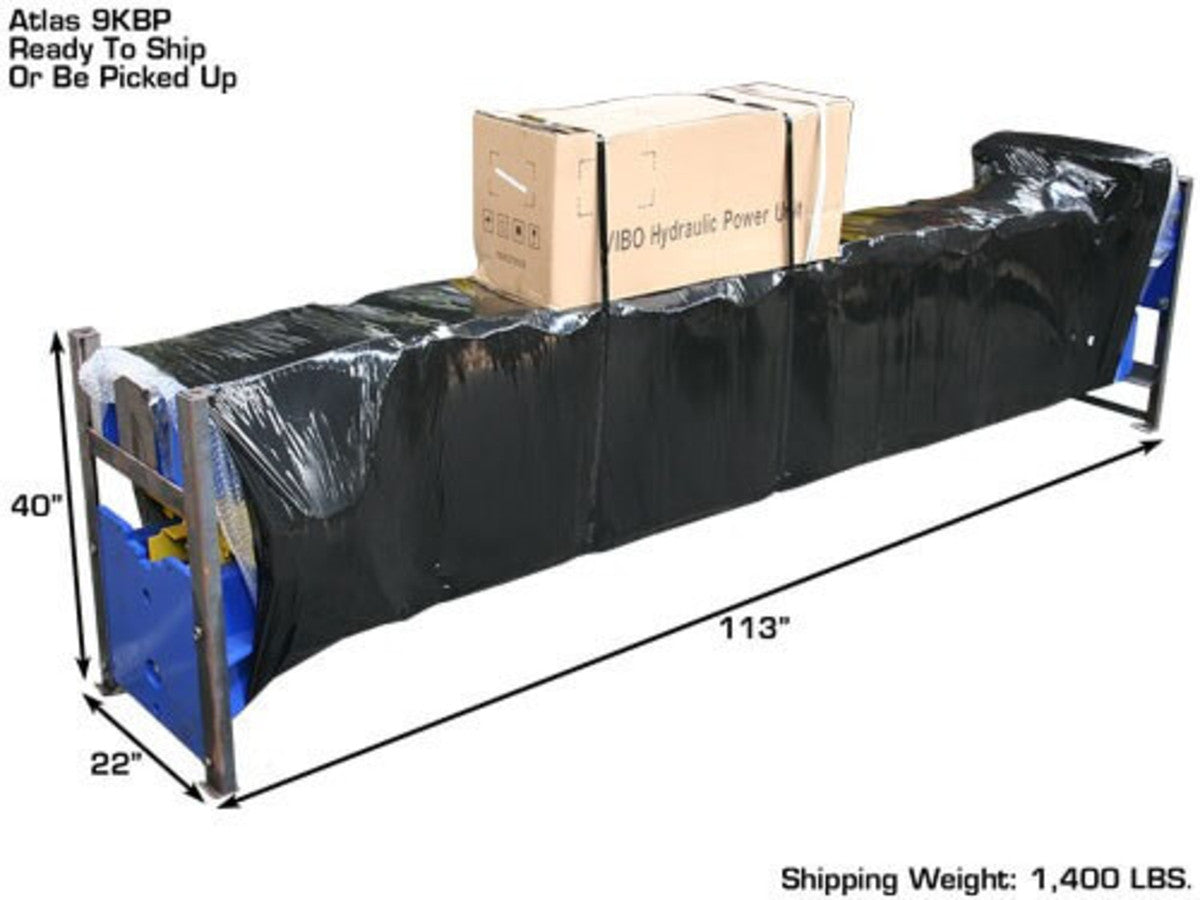

• Shipping Weight 1,400 LBS.

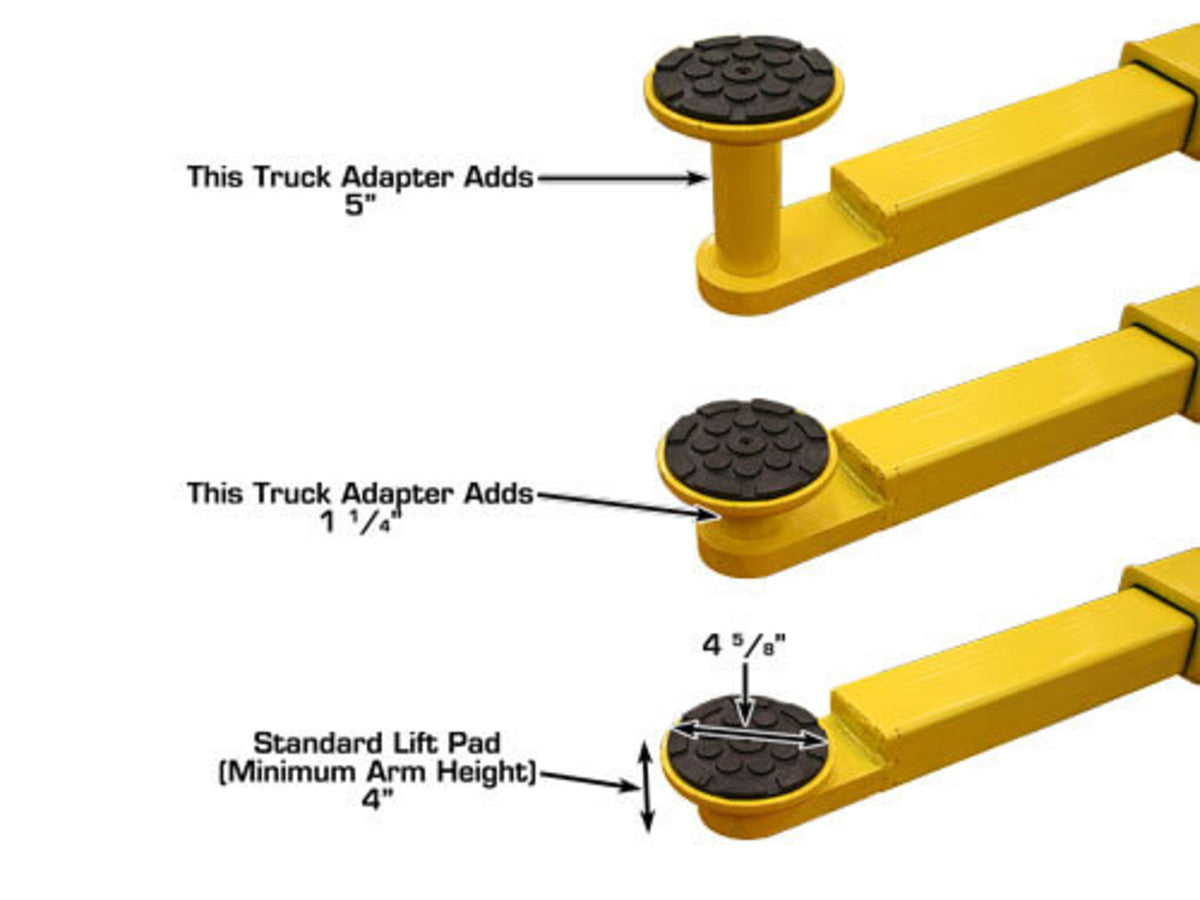

• Adapter Heights 4 Each 1.5”, 5”
• Arm Hole/Adapter Peg Size 1.5”
• Requires a minimum of 4" of concrete with a 3000 psi. rating



  The Atlas® LMA Specifications (VARY BY LIFT AND WHEELBASE):

  • Capacity: Up to 5,000 lbs
  • Adjusts in Width: 8' to 11'
  • Wheel Base: 32" to 90"
  • Wheel Well Width: 12"
  • Thickness of Steel: 3/16"
  • Shipping Weight: 600 lbs.
  • Will fit lift arms up to 5 1/2" wide
