Atlas Equipment 9KBPX Lift + Lawnmower Adapter Combo

Features and Benefits:

• Combo includes 9KBPX 9,000 lb. capacity lift and Lawn Mower Adapter

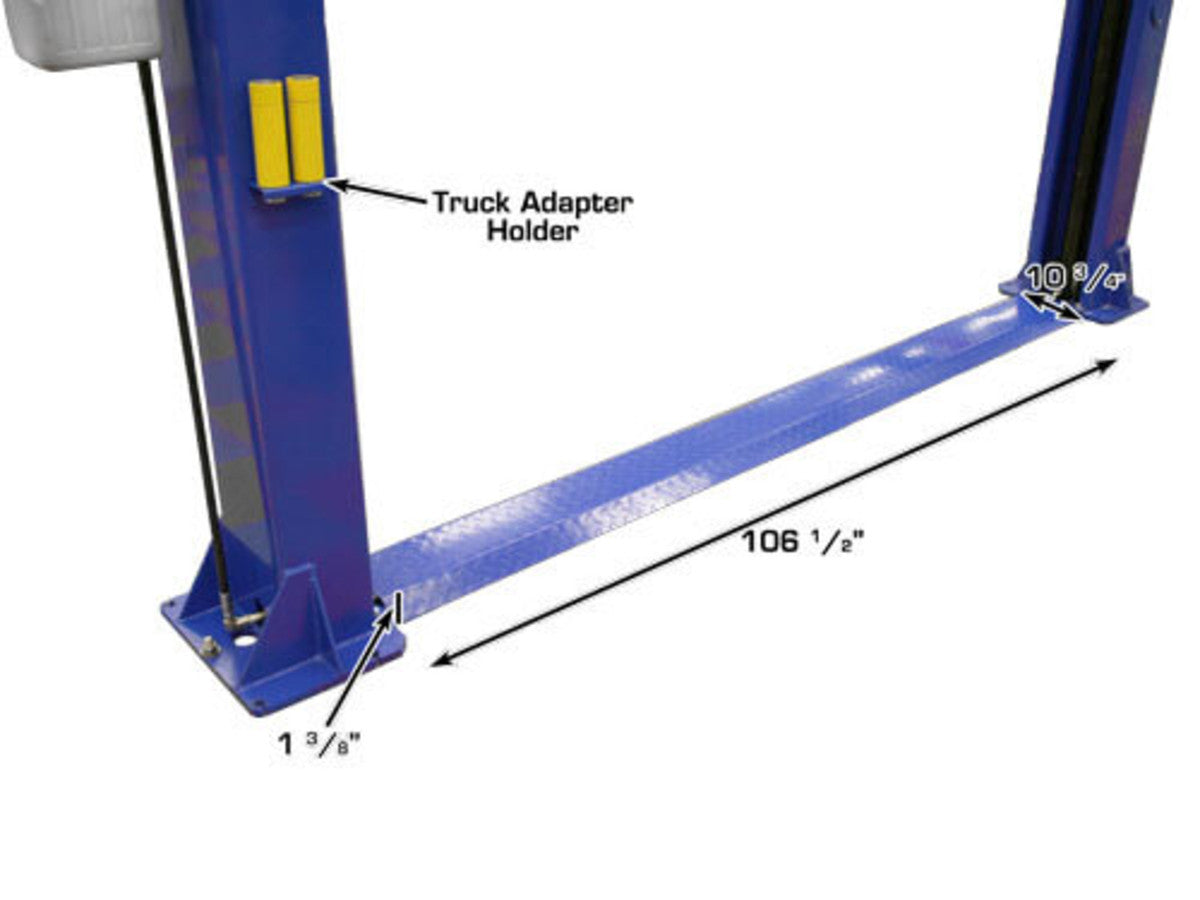

• Baseplate, Open-Top Style Lift
• Designed For Low Ceiling Clearance ‐ 9? 3 �” Columns

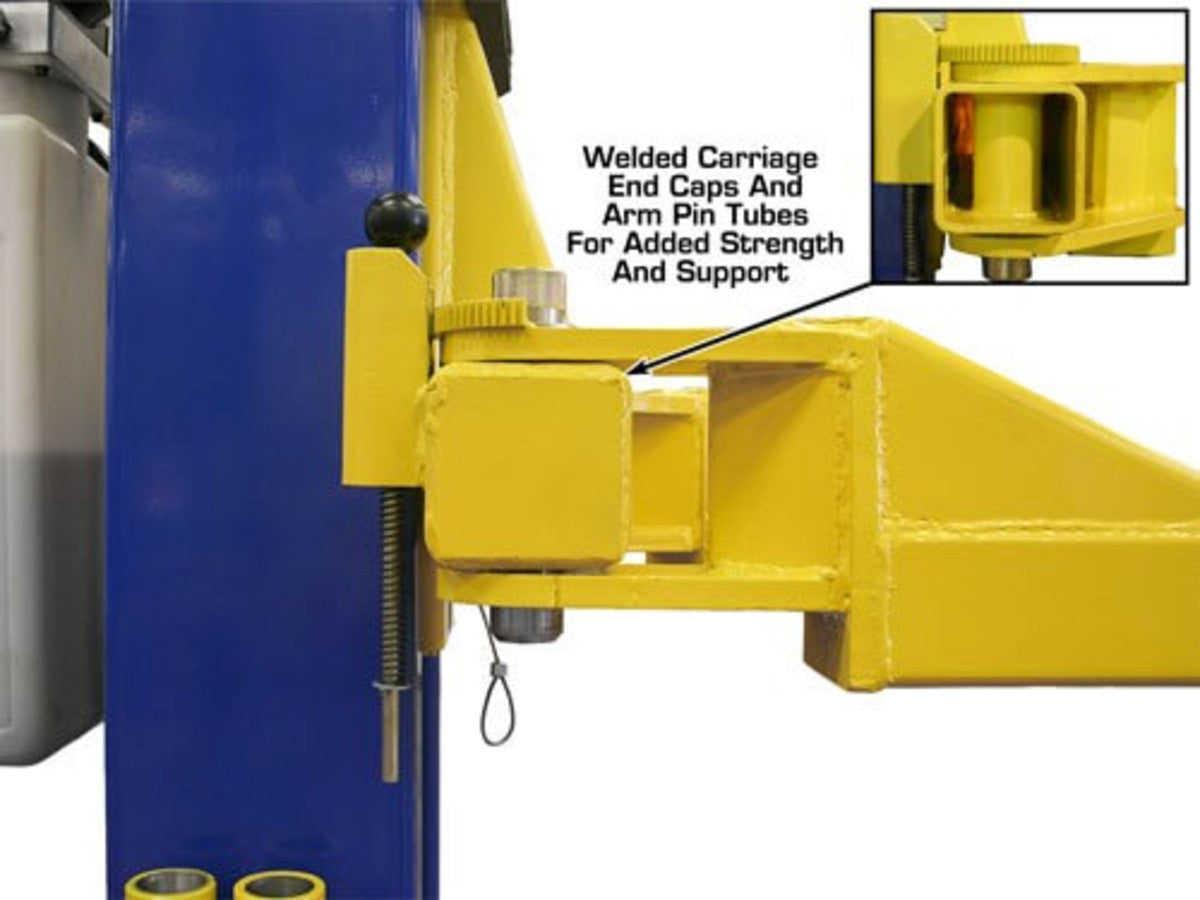

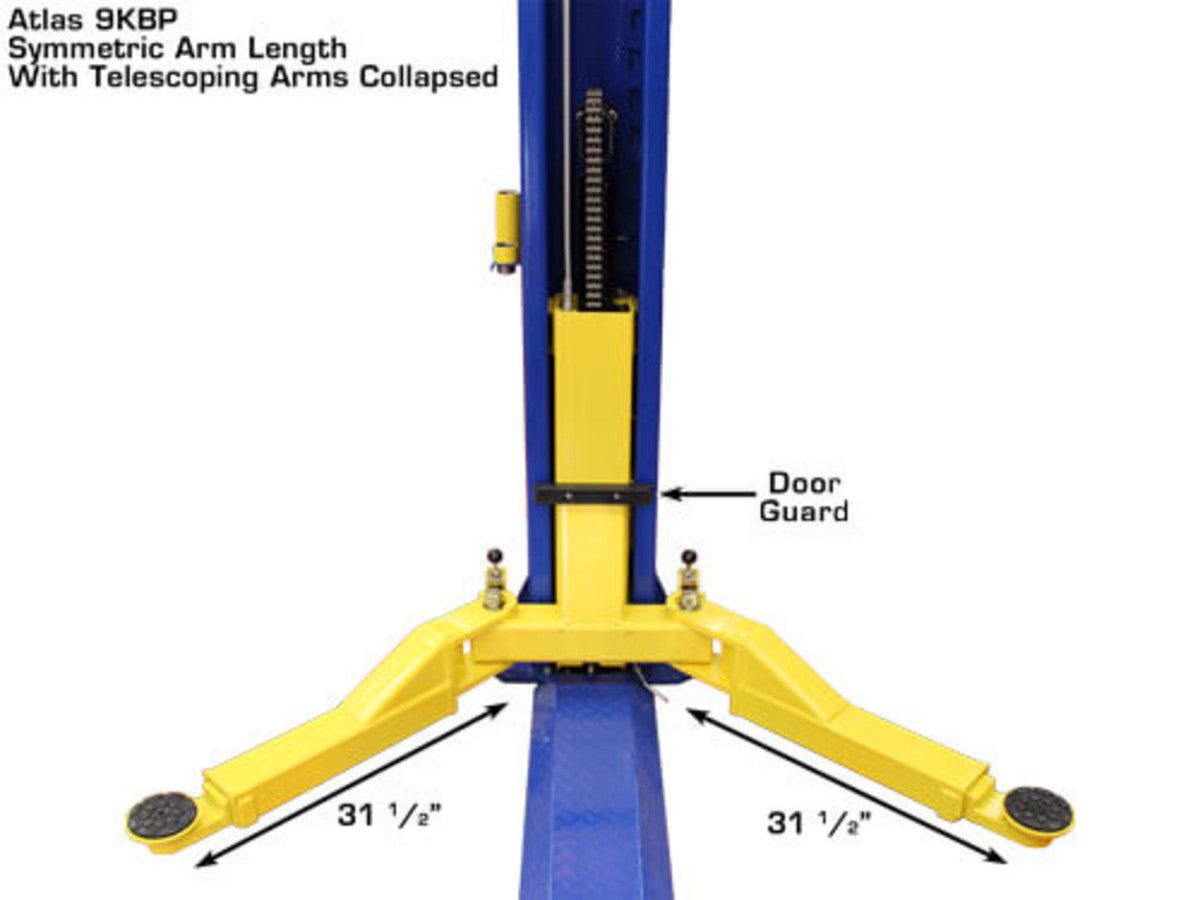

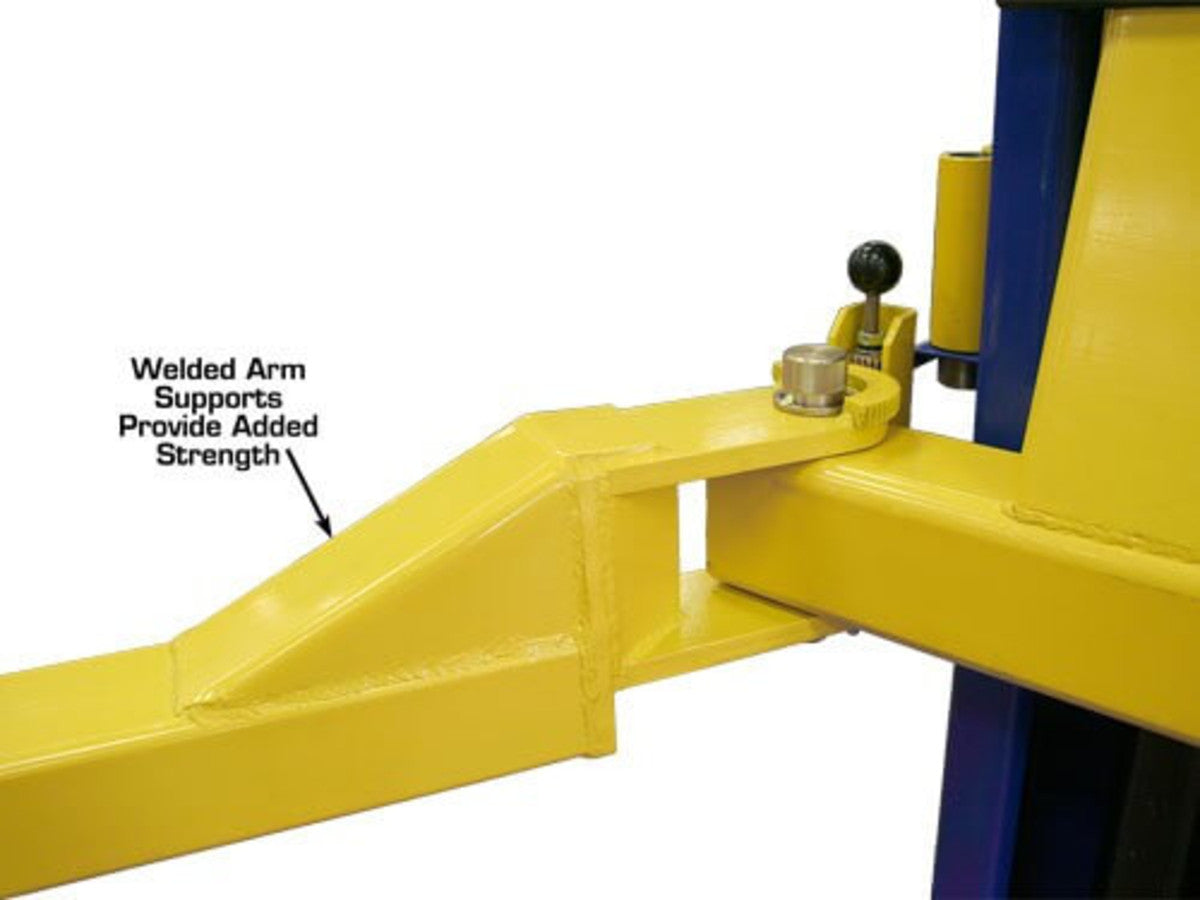

• Symmetric Arms

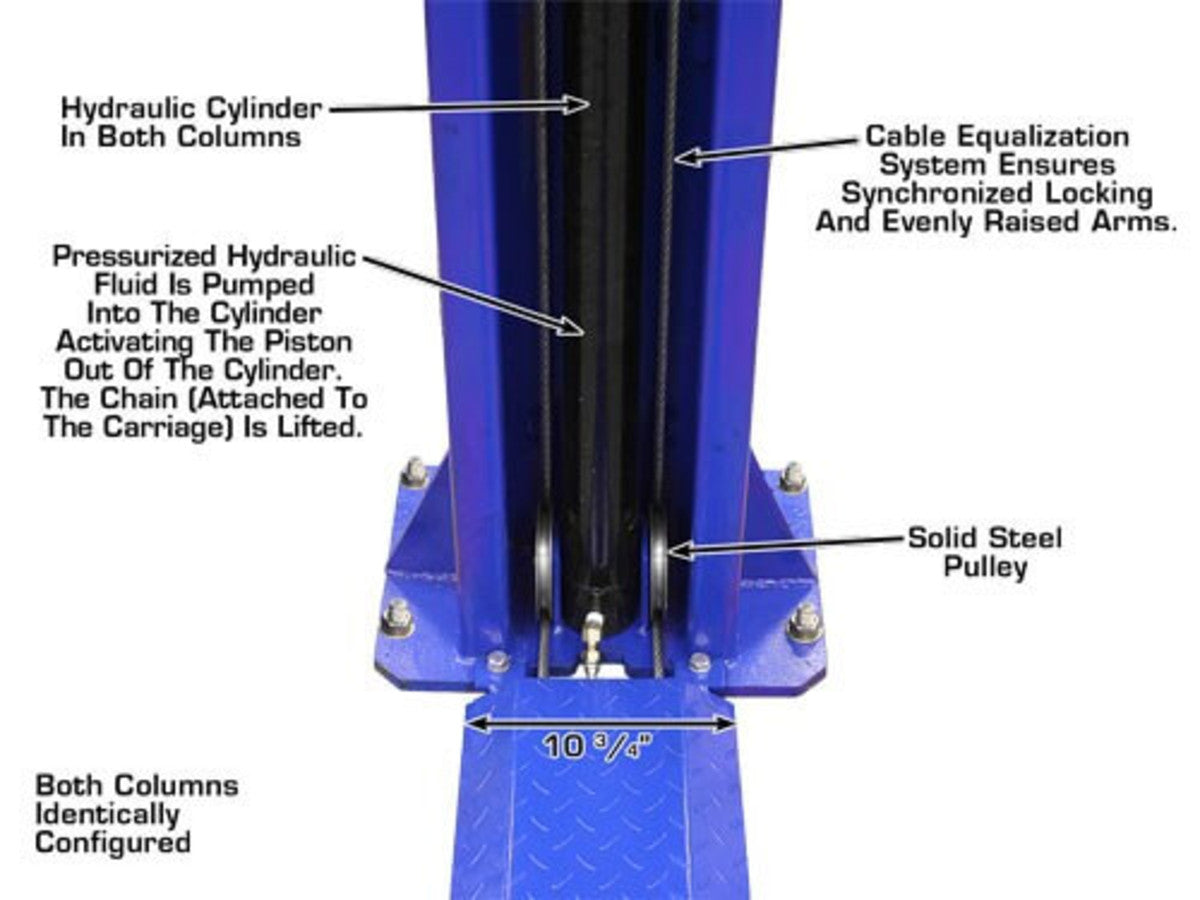

• Dual Hydraulic Chain-Drive Cylinders
• Secondary Lock System (SLS)

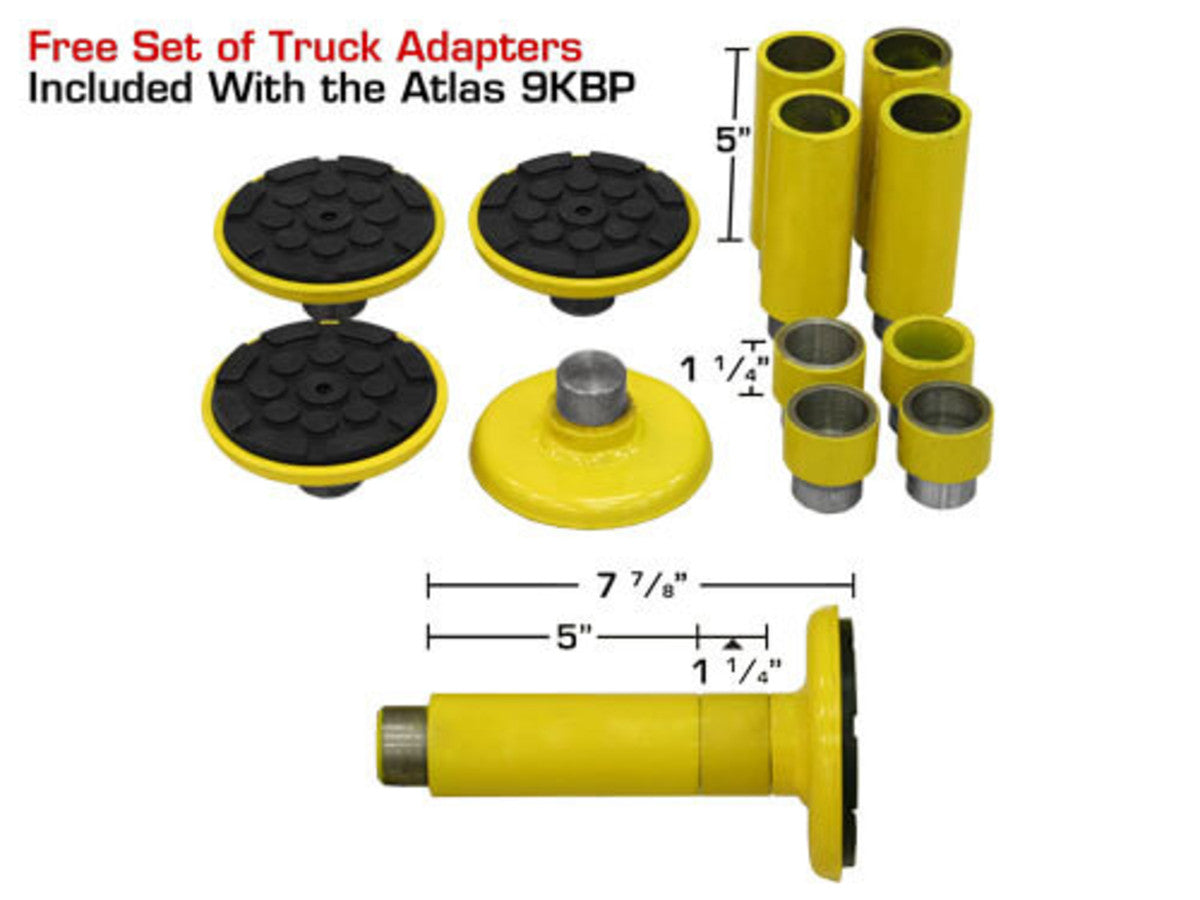

• Free 8 Piece Truck Adapter Set

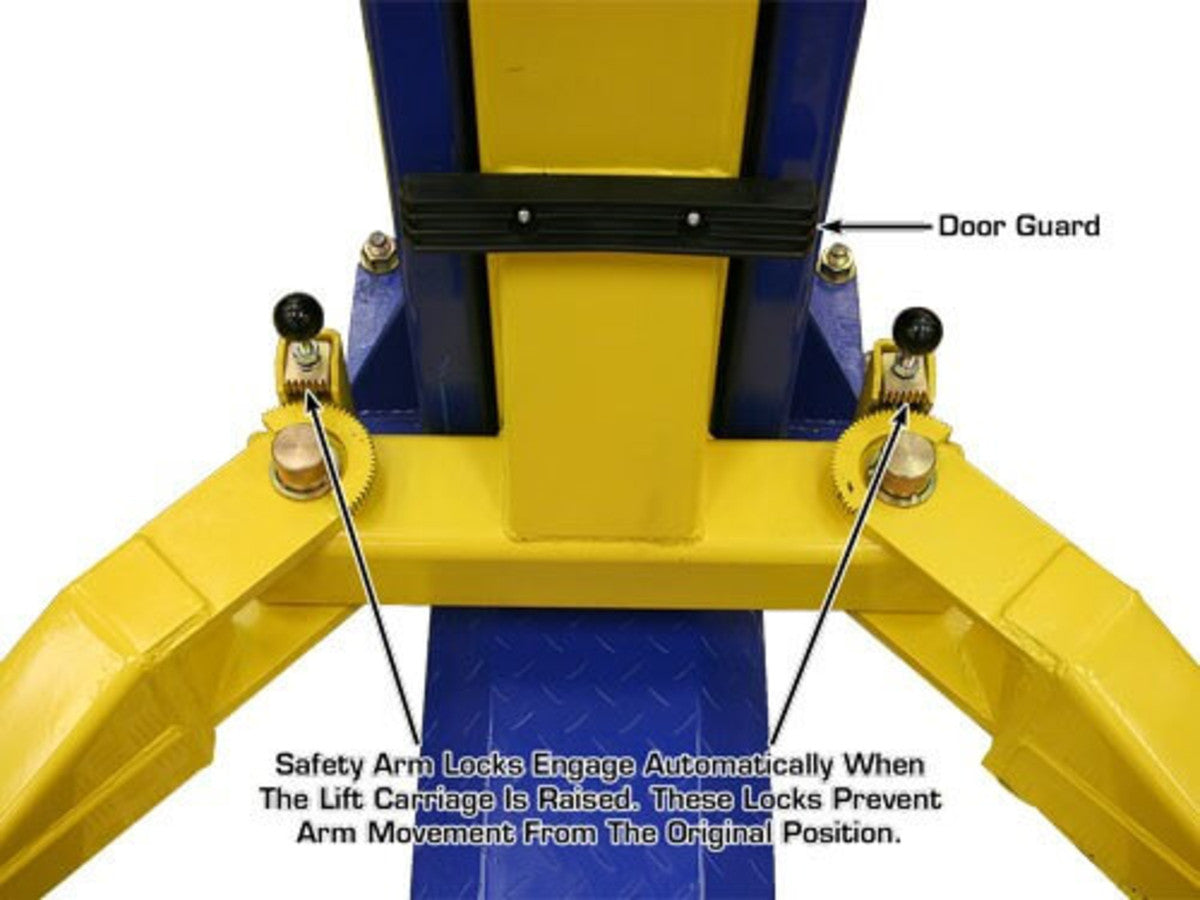

• Automatic Arm Restraints

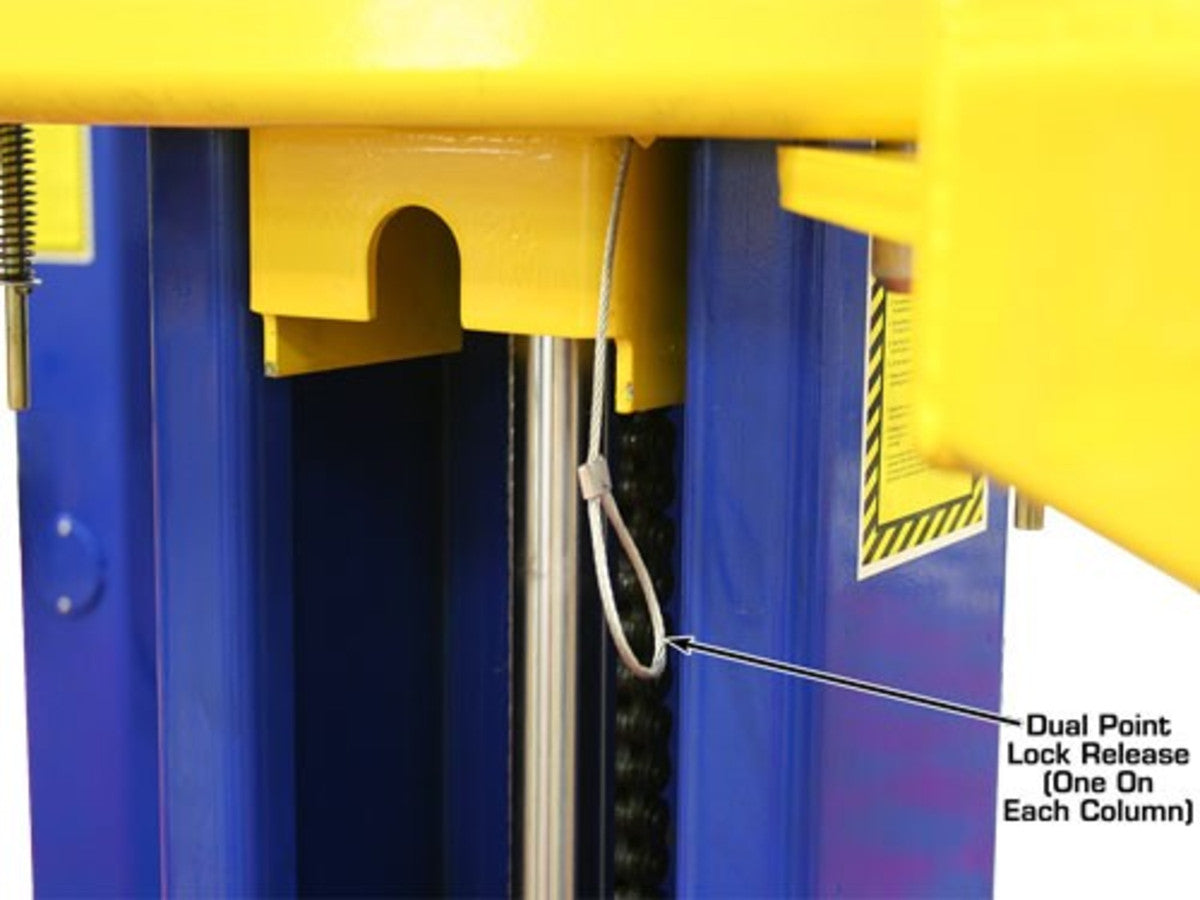

• Dual Point Lock Release

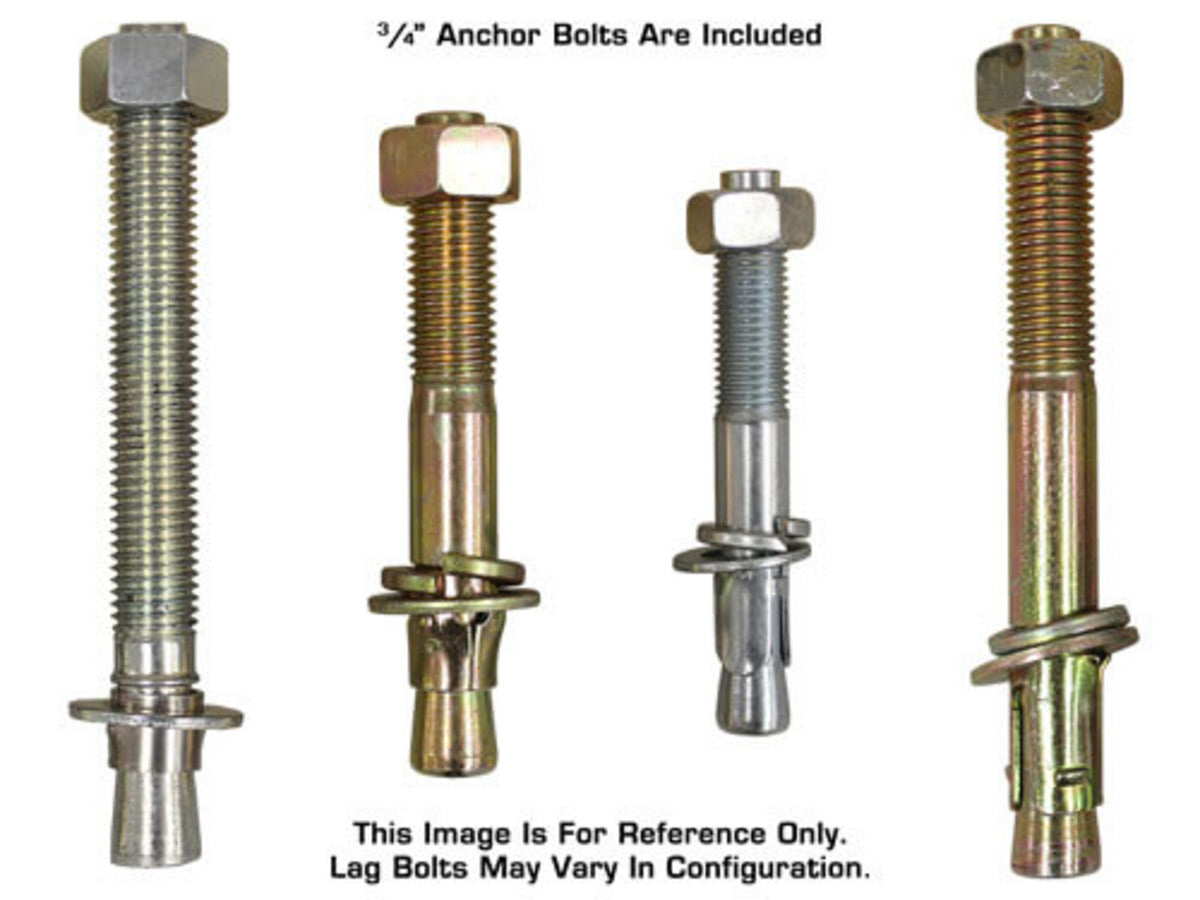

• Mounting Hardware Included
• This part number FREIGHT PREPAID

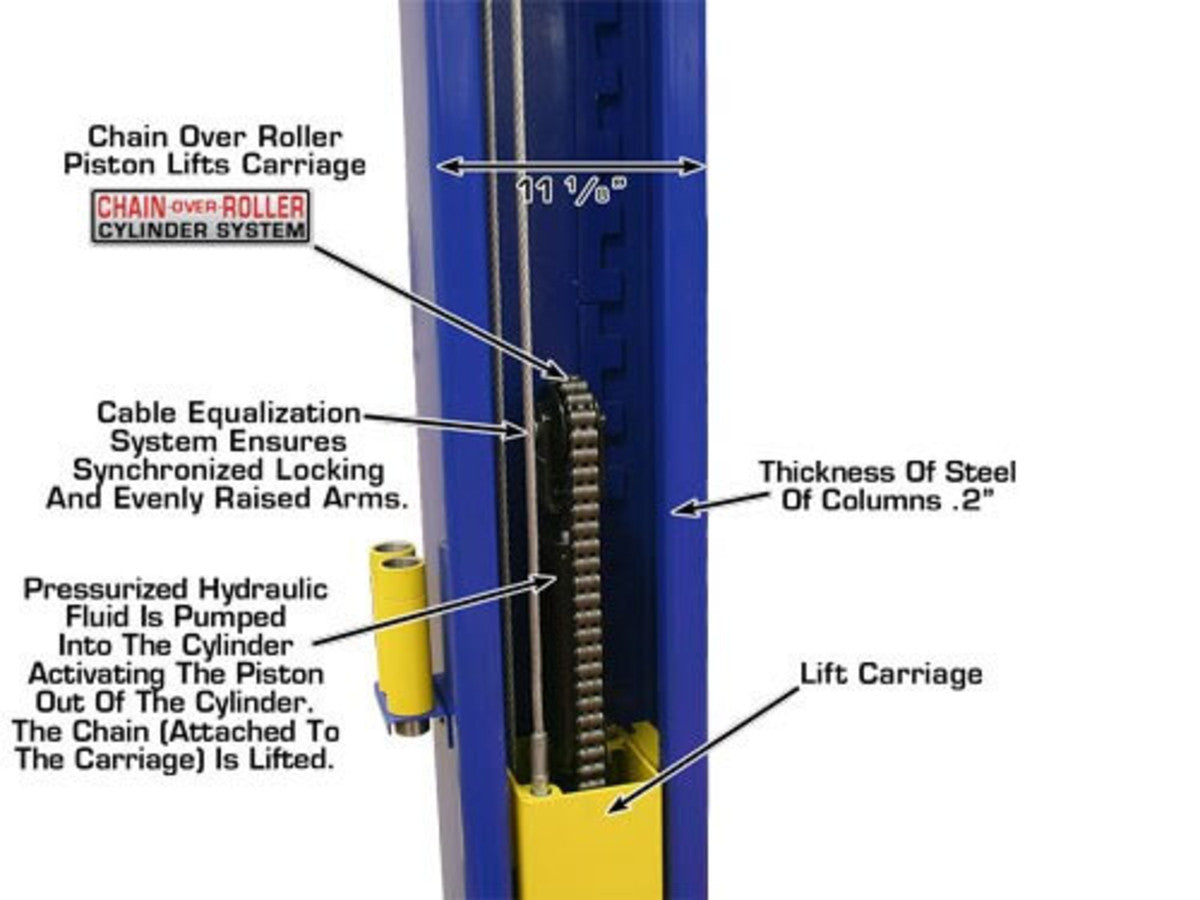

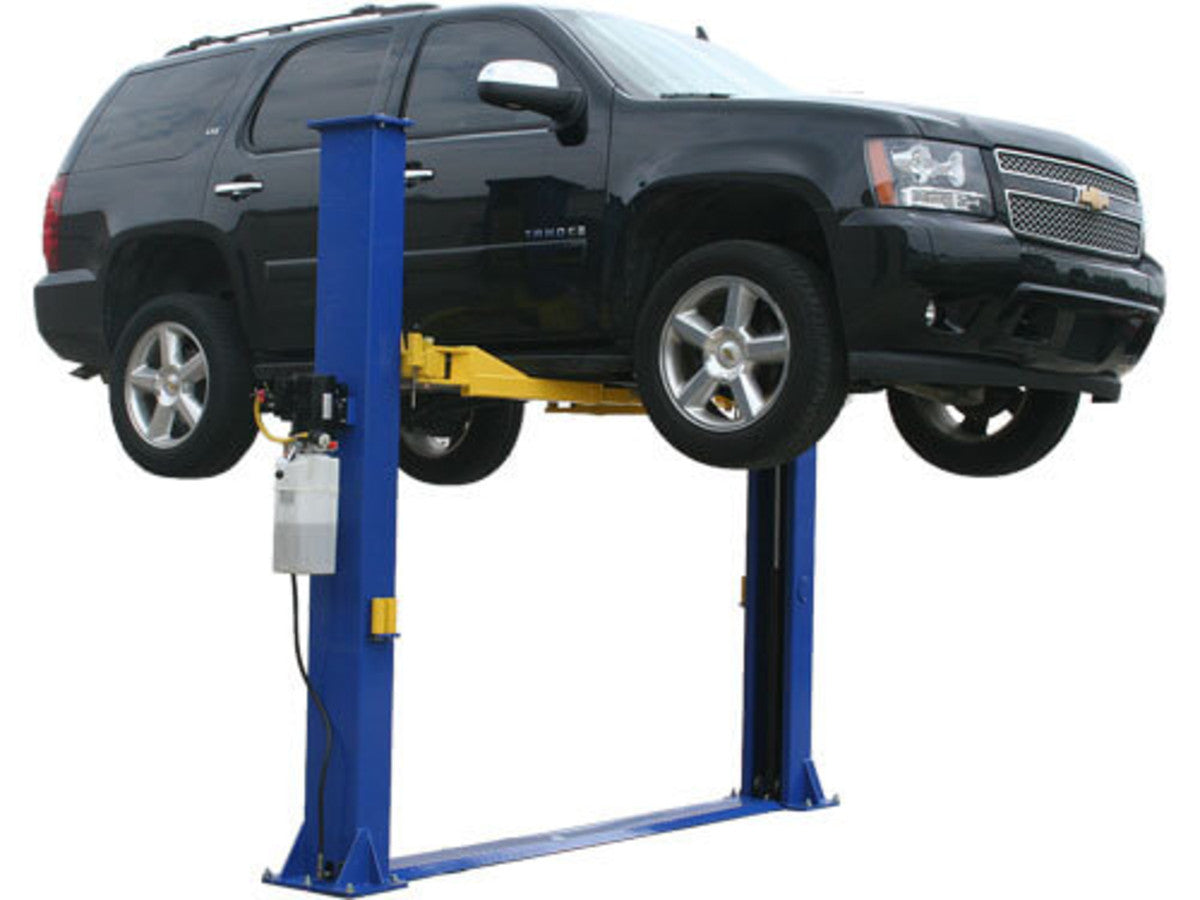

The Atlas® 9KBPX is an economically designed baseplate two-post lift great for low ceiling garages. The total column height of 111 �” (9 feet 3 � inches) allows this lift to be installed in almost any professional or home garage with a ceiling as low as 9 feet 6 inches. The Atlas® 9KBPX “chain over roller” lift features a spring loaded Secondary Lock System (SLS) that automatically engages in the event of a slack or broken chain. The reliable dual chain-drive cylinders, symmetric arms, and automatic arm restraints make this the perfect choice for “Mr. Homeowner” or small commercial shop looking to service cars, SUV�s and light duty trucks (not recommended to lift Diesel Dually or other large truck

This combo includes the Atlas® Lawn Mower Adapter or LMA. The LMA allows the user to raise lawn tractors, ATV's, UTV's, golf carts, and other small vechicles. NOTE: the capacity of the adapter when used on the 9KBPX is less then 9,000 lbs. If you have questions about the LMA and it's capabilities please contact a sales rep.

Atlas® XH-9KBPX Specifications

• Capacity 9,000 LB.

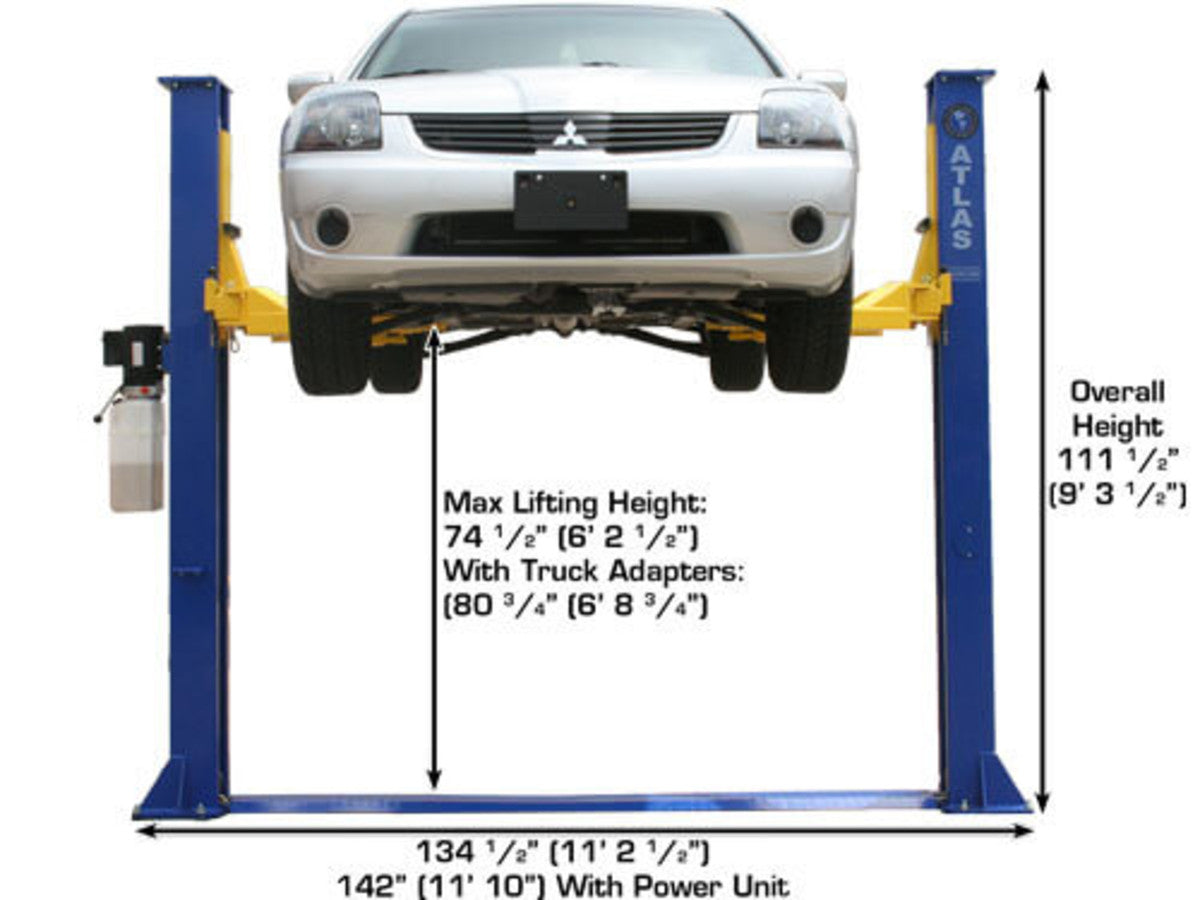

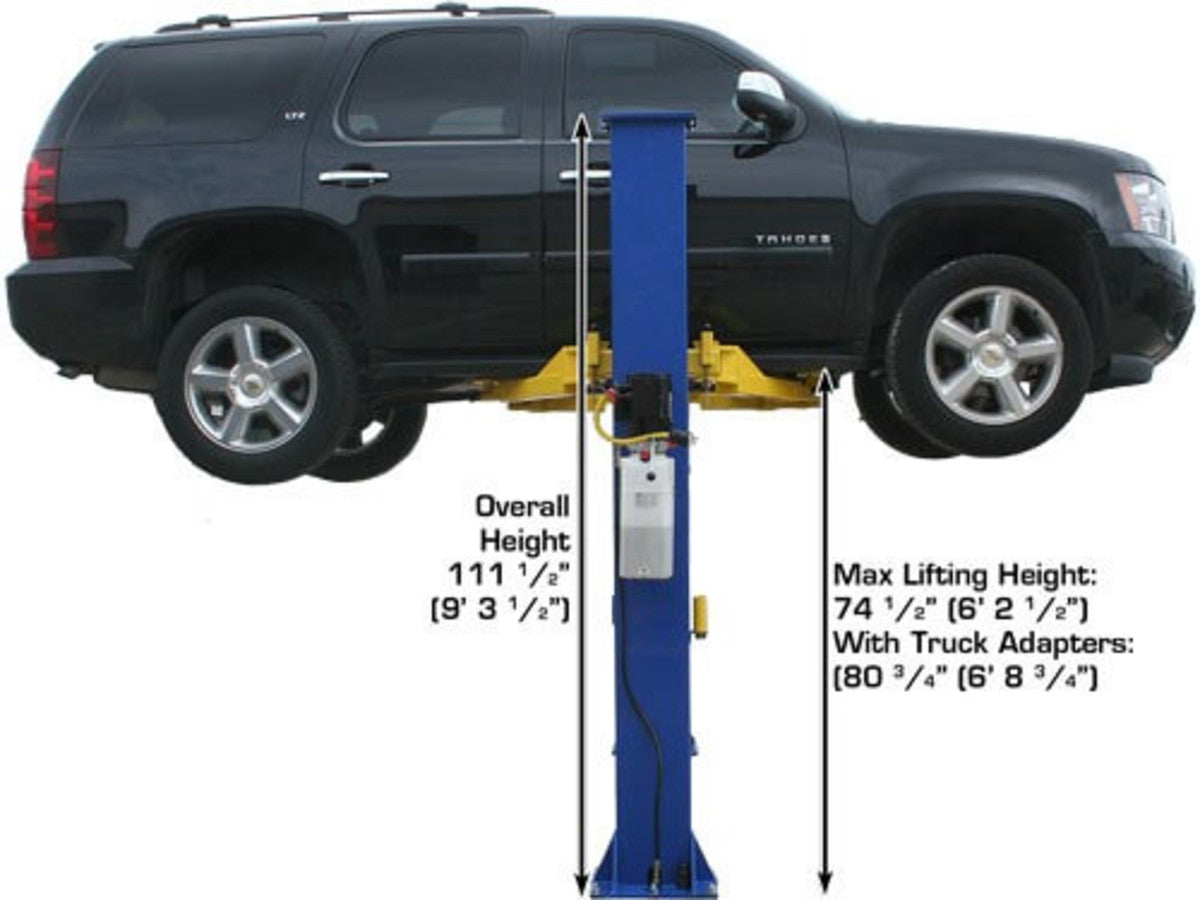

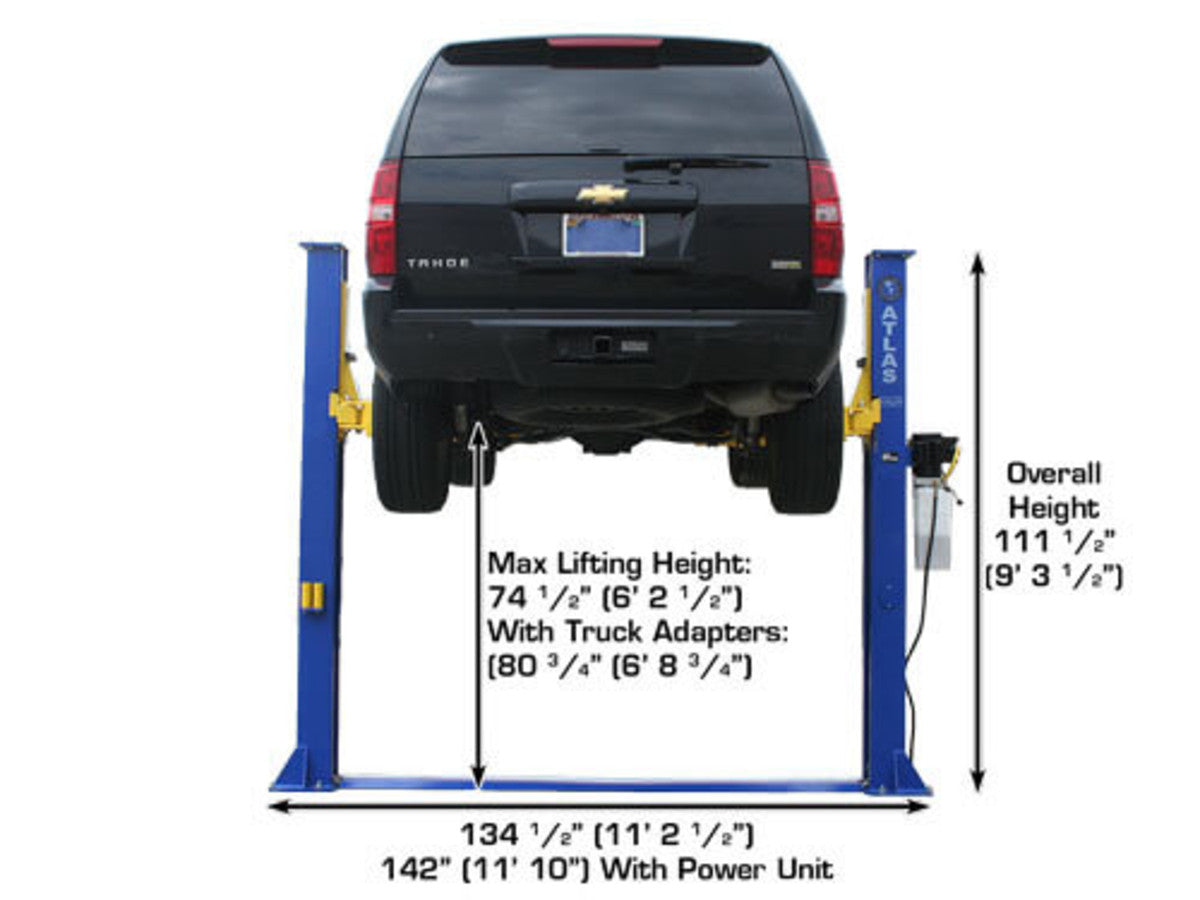

• Overall Height 111 1/2" (9� 3 1/2")

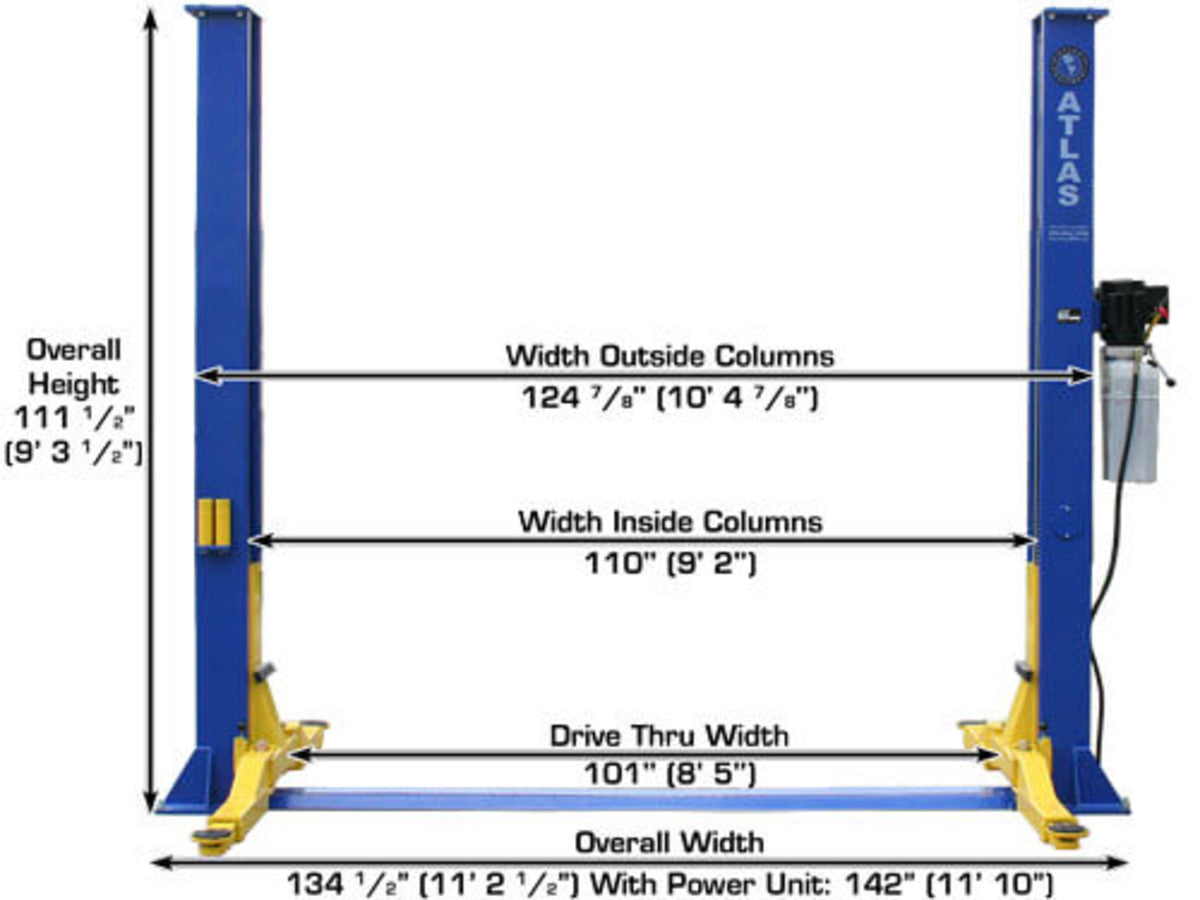

• Overall Floor Width 134 1/2" (11� 2 1/2")
• Outside Column to Outside Column 124 7/8" (10� 4 7/8")

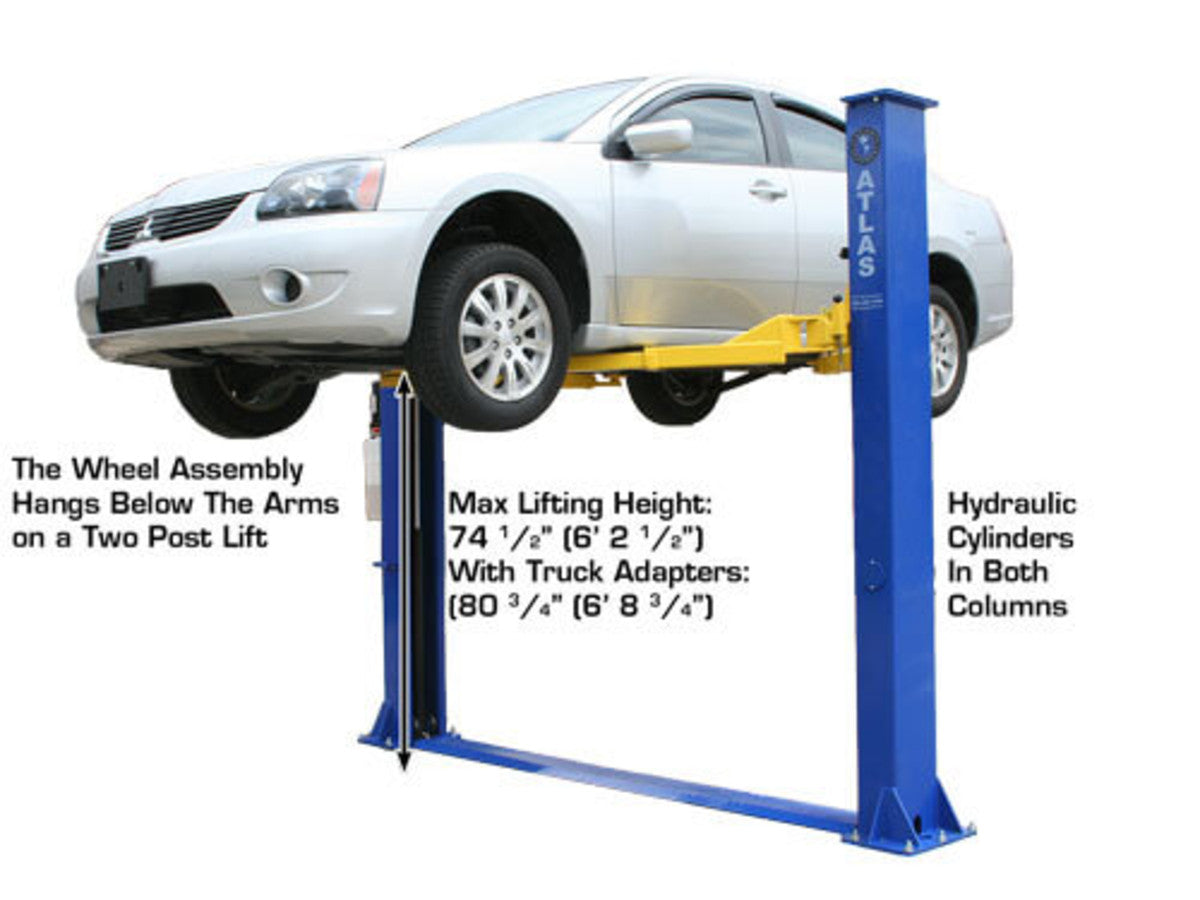

• Maximum Lift Height (Without Adapters) 74 1/2"
• Maximum Lift Height (With Adapters) 81"
• Minimum Arm Height 4"
• Inside Column 110” (9� 2”)
• Drive Thru 101” (8� 5”)

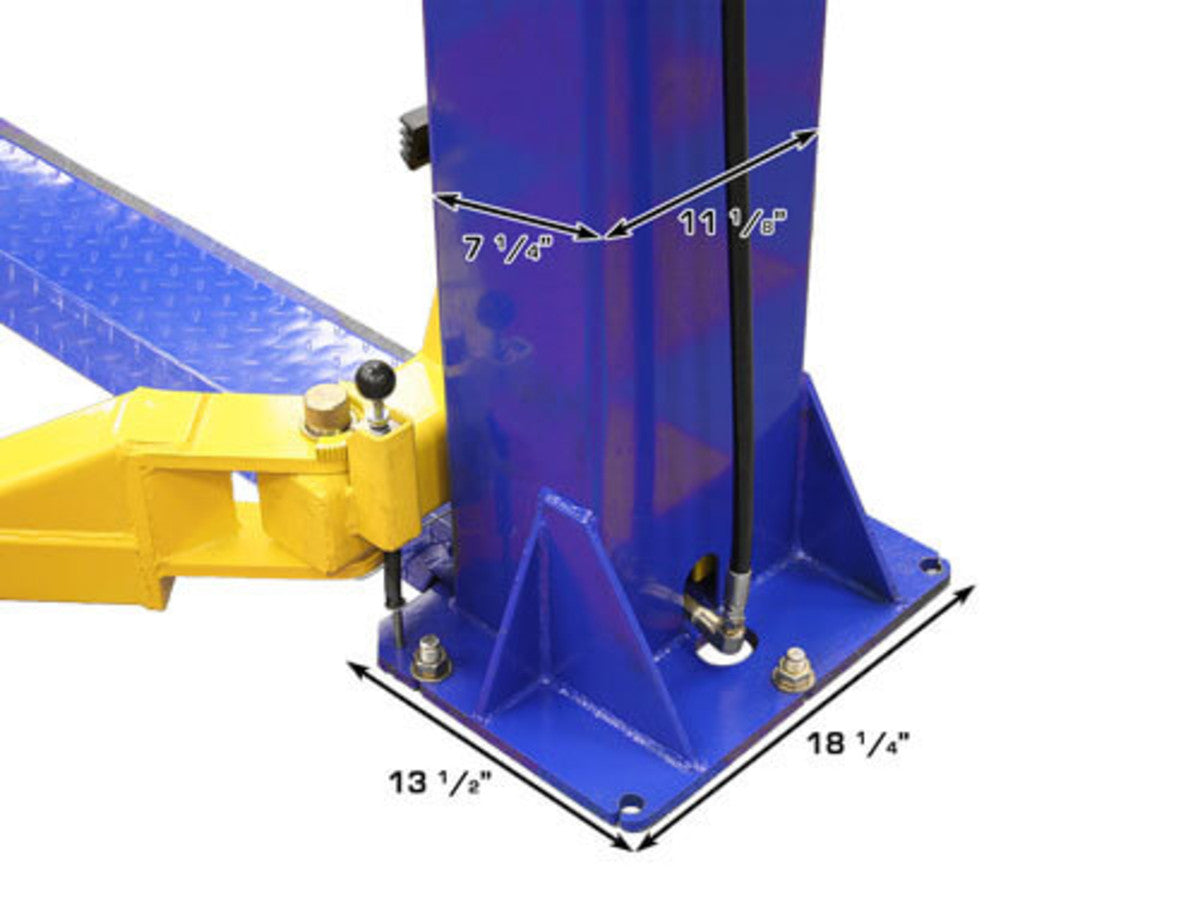

• Column Size 7 1/4" x 11"
• Column Thickness of Steel 5mm
• Base Of Lift 14 1/4" x 18 1/4"

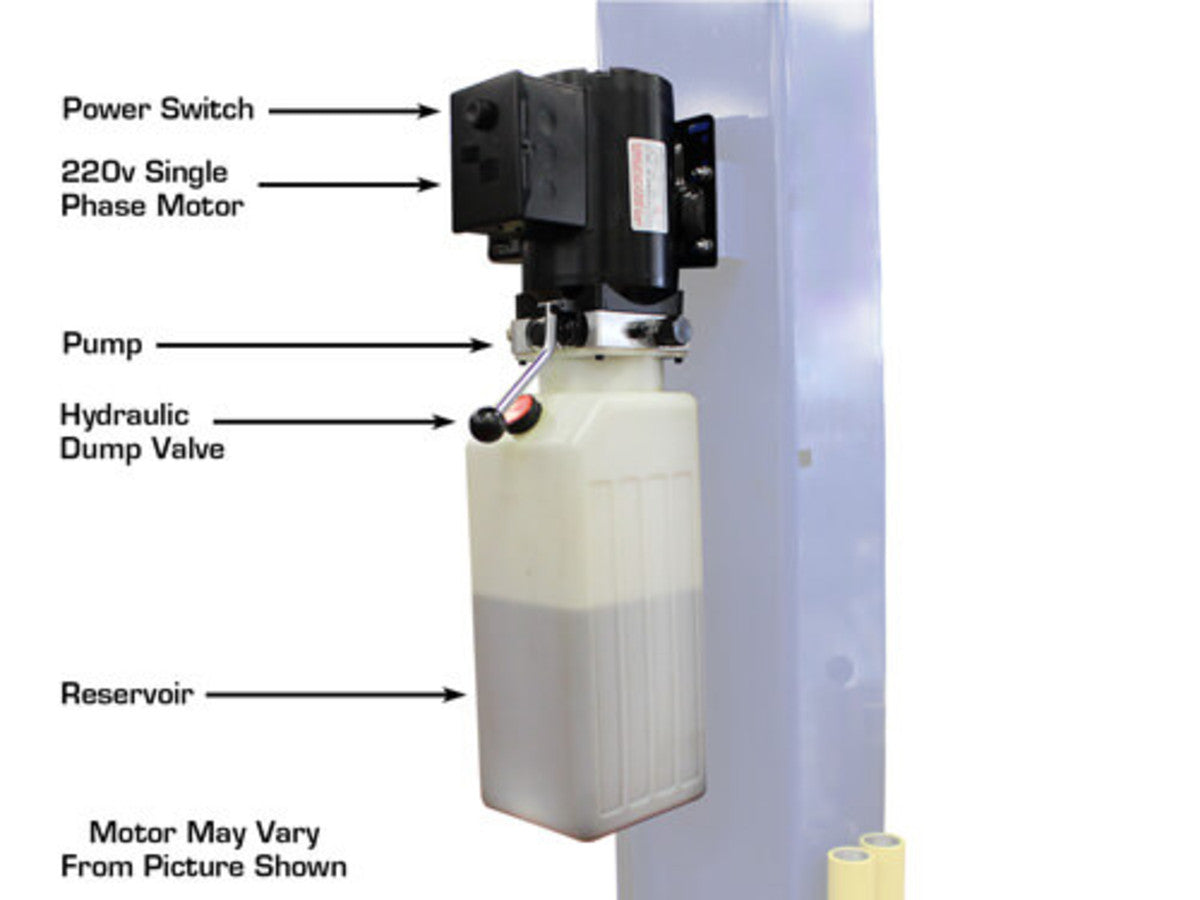

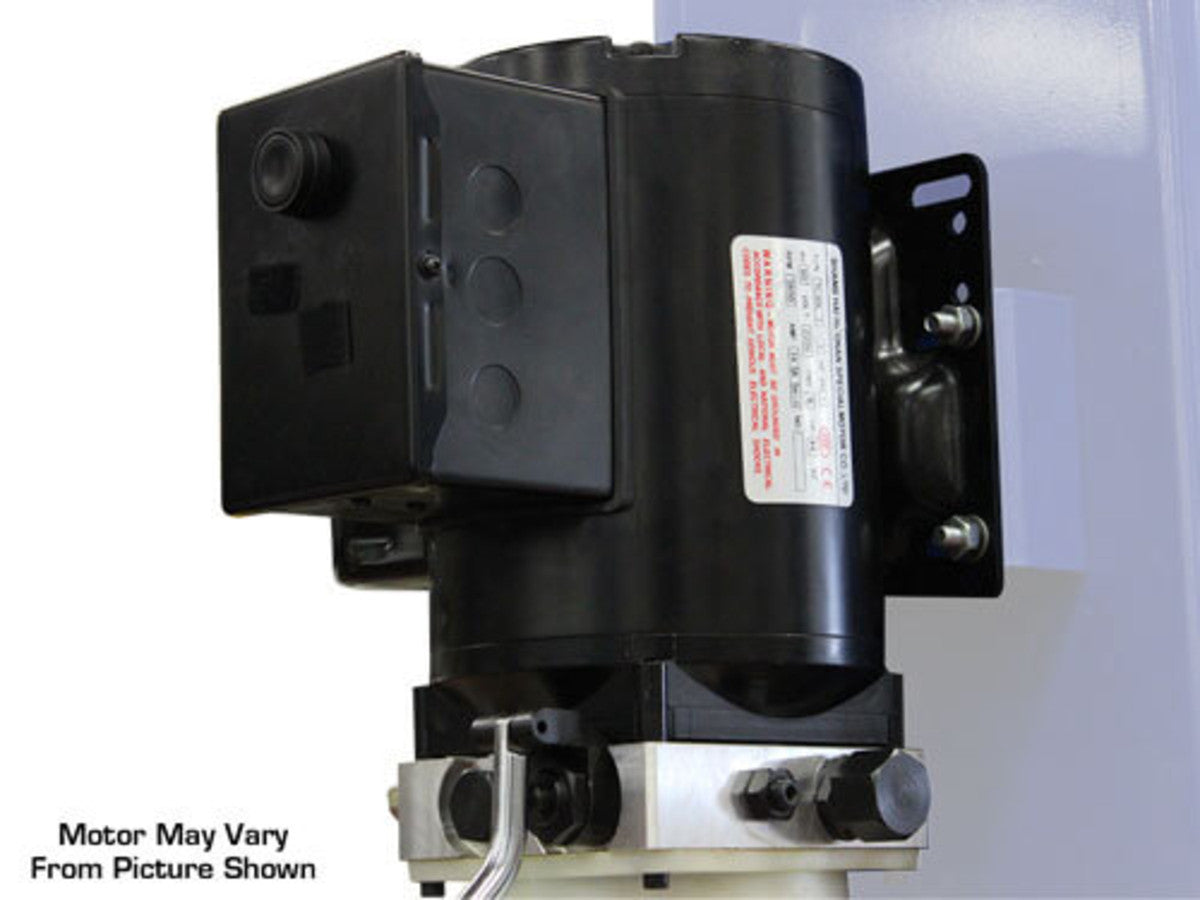

• Motor/Electrical Requirement 220 volt single (1) phase (A 30 amp breaker is recommended)
• Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)

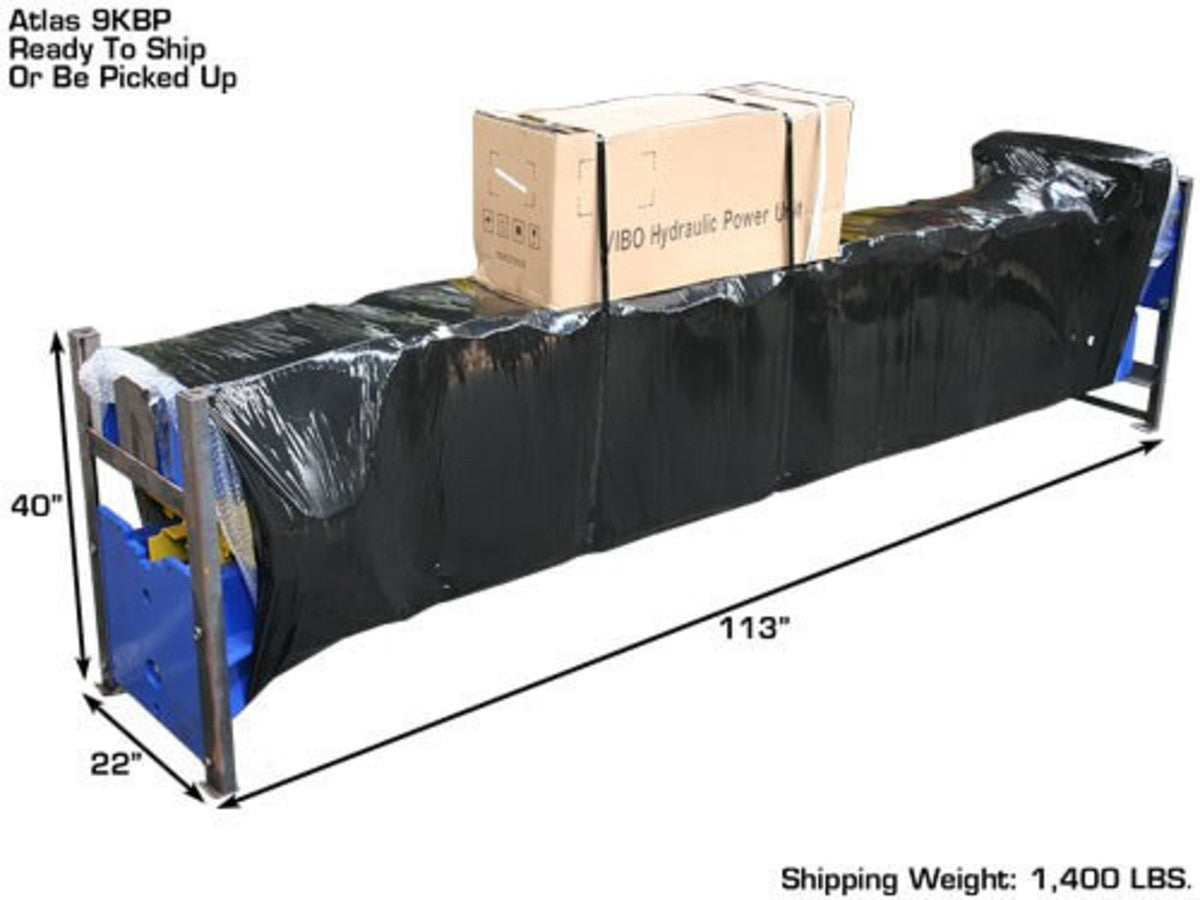

• Shipping Weight 1,400 LBS.

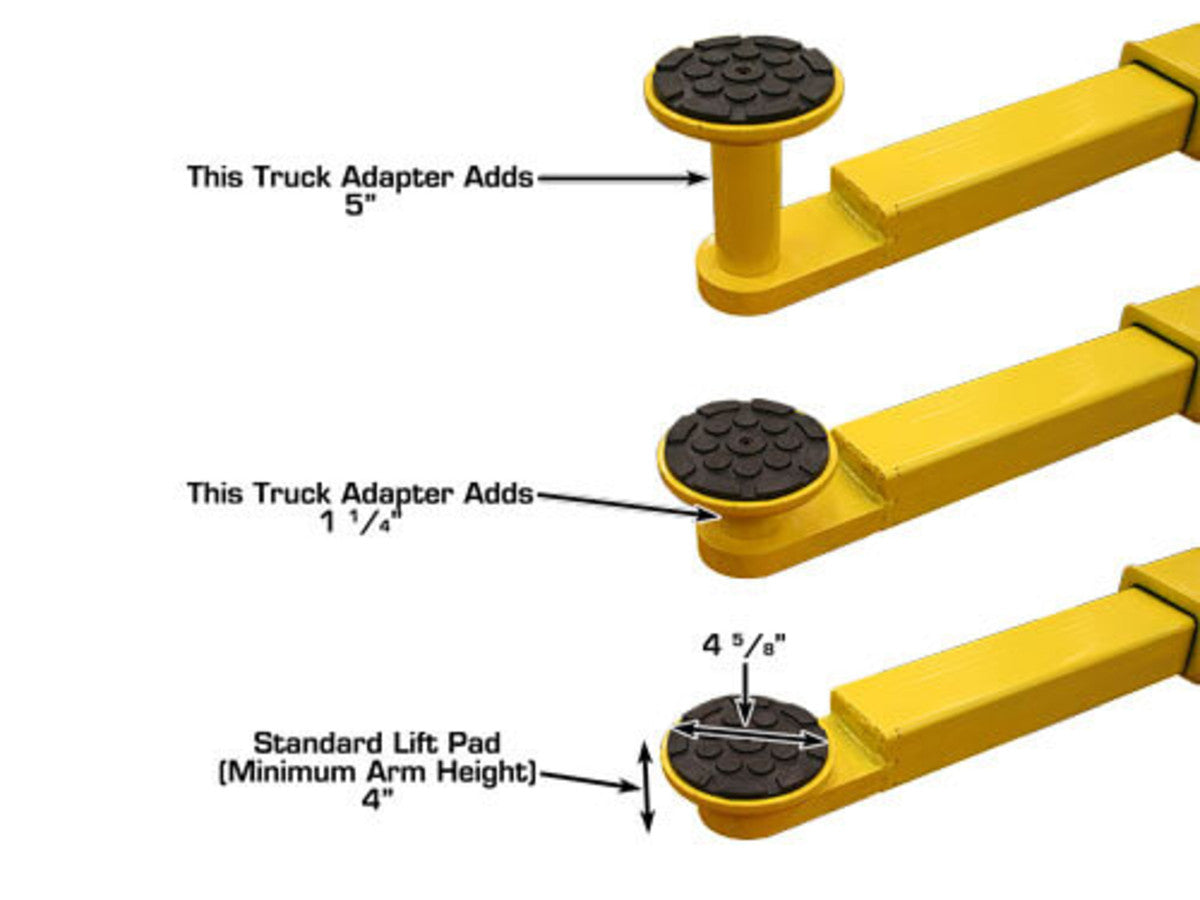

• Adapter Heights 4 Each 1.5”, 5”
• Arm Hole/Adapter Peg Size 1.5”
• Requires a minimum of 4" of concrete with a 3000 psi. rating

  The Atlas® LMA Specifications (VARY BY LIFT AND WHEELBASE):

  • Capacity: Up to 5,000 lbs
  • Adjusts in Width: 8' to 11'
  • Wheel Base: 32" to 90"
  • Wheel Well Width: 12"
  • Thickness of Steel: 3/16"
  • Shipping Weight: 600 lbs.
  • Will fit lift arms up to 5 1/2" wide
