Atlas Equipment 9KOHX + Lawnmower Adapter Combo

Features and Benefits:

• Combo includes 9KOHX 9,000 lb. capacity lift and Lawn Mower Adapter
• Overhead, Open-Floor design
• Overall Height: 138" (11' 6") or 142" (11' 10")

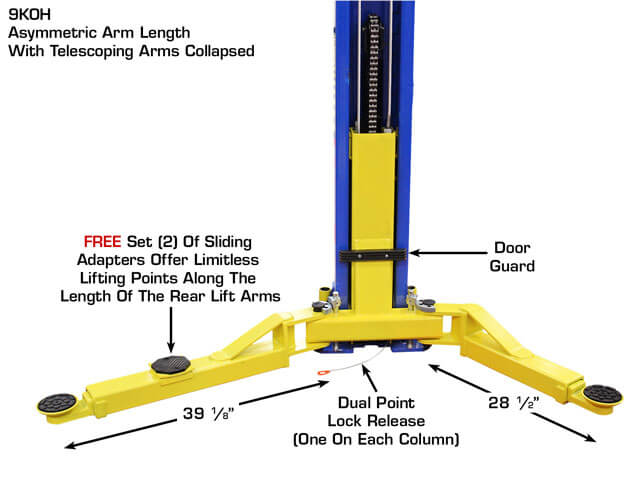

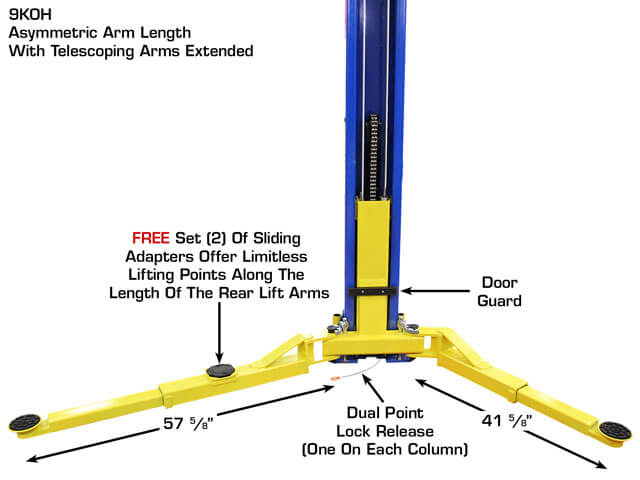

• Asymmetric/Symmetric Arms

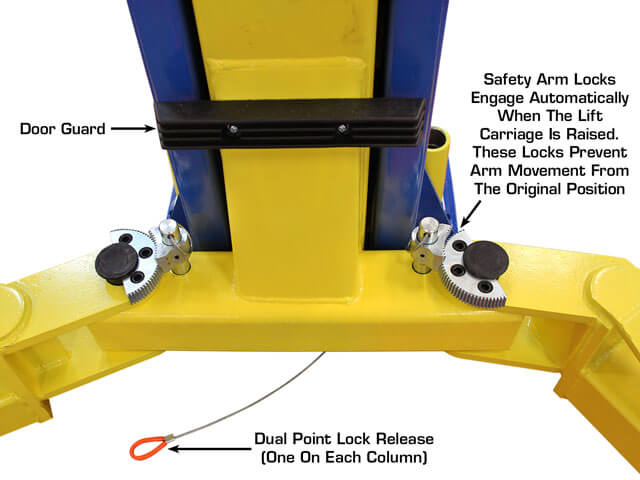

• Automatic Arm Restraints
• Dual-Point Lock Release

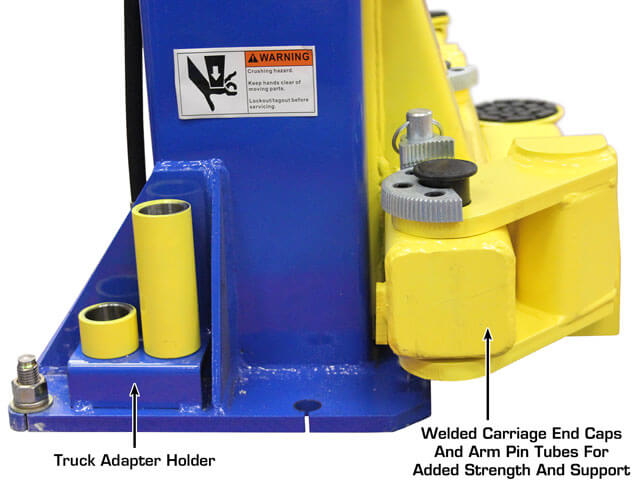

• Rubber Guards on Carriages

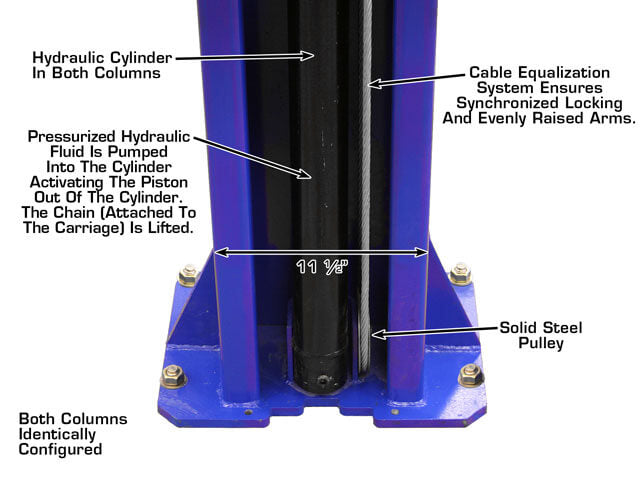

• Dual Hydraulic Chain-Drive Cylinders
• Secondary Lock System

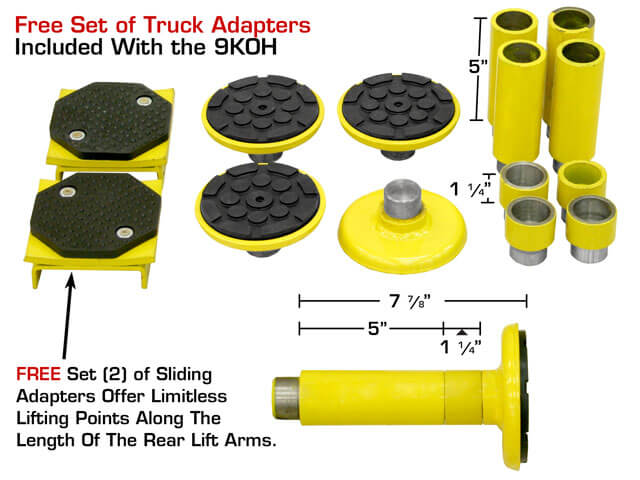

• Free 8 Piece Truck Adapter Set
• Free set of Sliding Arm Adapters
• Mounting Hardware Included
• This part number FREIGHT PREPAID

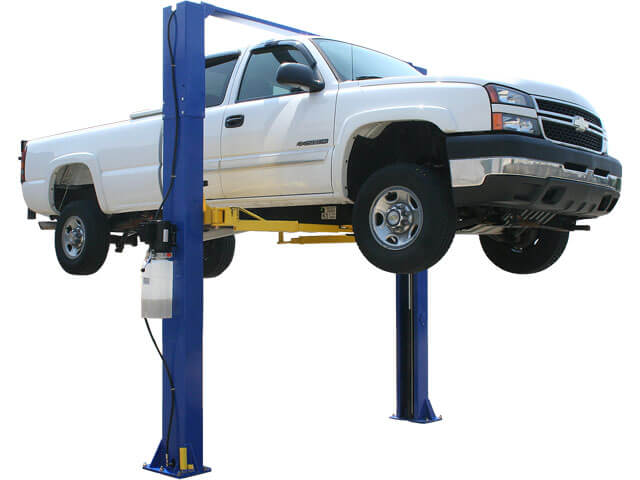

The light duty Atlas® 9KOHX lift is an economy designed overhead, clear-floor 2-post lift. The reliable chain-drive cylinders and dual safety system make this the perfect choice for “Mr. Homeowner” or small commercial shops looking to service cars, SUV's and light duty trucks. The 9KOHX can be adjusted to two different height settings, either 11' 6" or 11' 10", allowing it to fit in almost any standard garage.

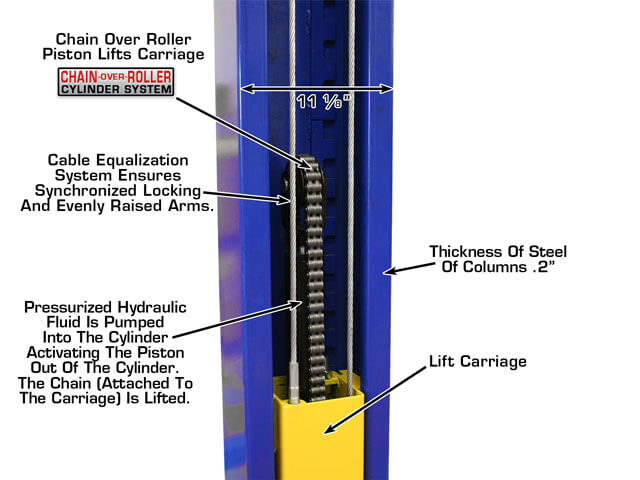

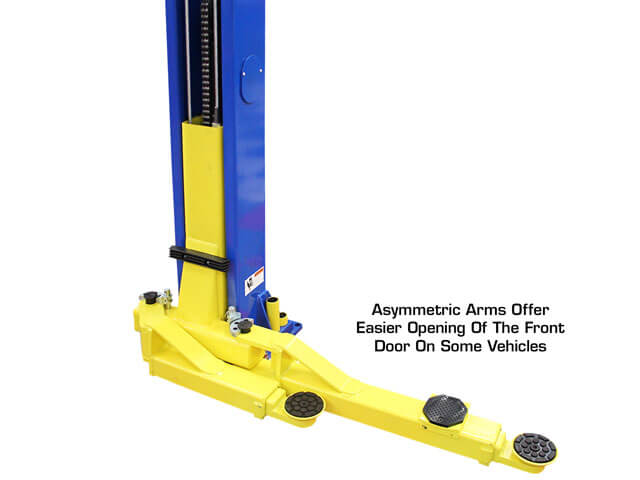

The Atlas® 9KOHX has symmetric columns and specially designed arms that can be set in either the symmetric or asymmetric position. The asymmetric/symmetric arm design offers an extremely low lift pad position on the EZ-metric lift arm configuration. This low pad height will allow the operator to position the lift arms under most small cars (with low pick up points) and heavier pick up trucks. The Atlas® 9KOHX two post “chain over roller” lifts have a spring loaded Secondary Lock System (SLS) that automatically engages in the event of a slack or broken chain.

This combo includes the Atlas® Lawn Mower Adapter or LMA. The LMA allows the user to raise lawn tractors, ATV's, UTV's, golf carts, and other small vechicles. NOTE: the capacity of the adapter when used on the 9KOHX is less then 9,000 lbs. If you have questions about the LMA and it's capabilities please contact a sales rep.

The 9KOHX is the perfect choice for those who demand the most lifting capacity at the lowest possible price.

Atlas® 9KOHX Specifications

• Capacity 9,000 LB.

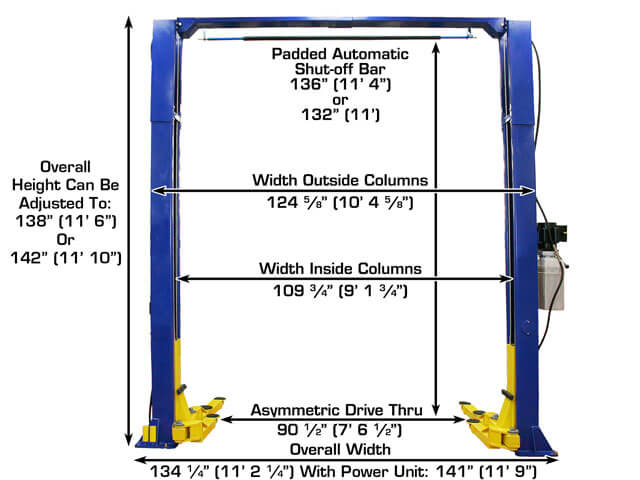

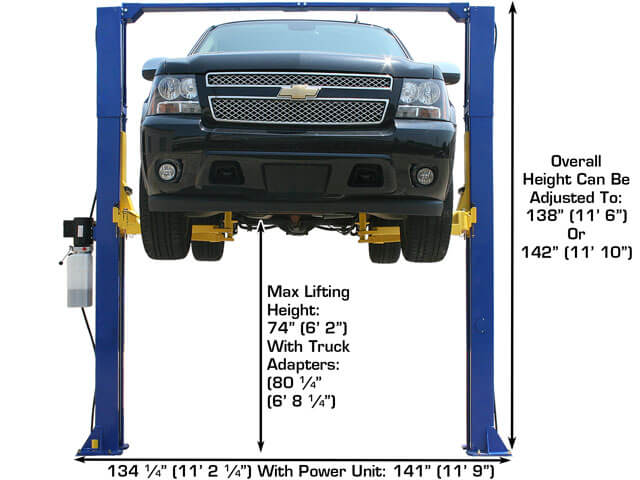

• Overall Height 138" (11' 6") or 142” (11' 10”)
• Overall Floor Width 134 1/2" (11' 2 1/2")
• Outside Column to Outside Column 124 7/8" (10' 4 7/8")

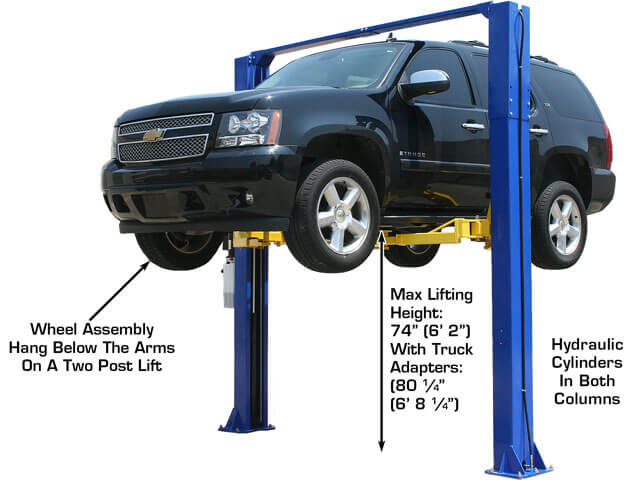

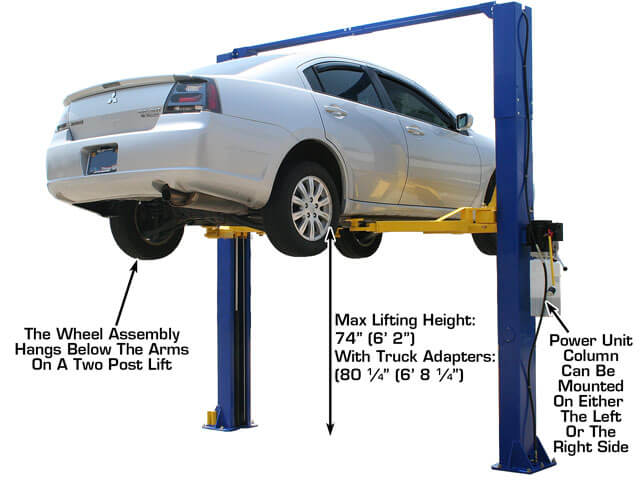

• Maximum Lift Height (Without Adapters) 74 1/2"
• Maximum Lift Height (With Adapters) 81"
• Minimum Arm Height 4"
• Inside Column 110” (9' 2”)

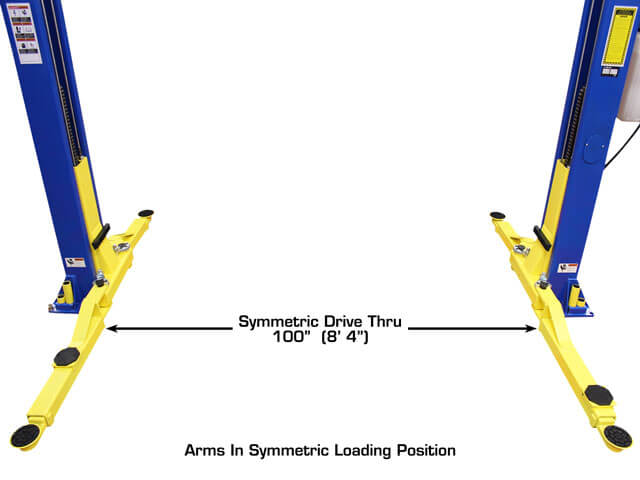

• Drive Thru 100” (8' 4”) Symmetric/ 90 1/2" (7' 6 1/2”) Asymmetric

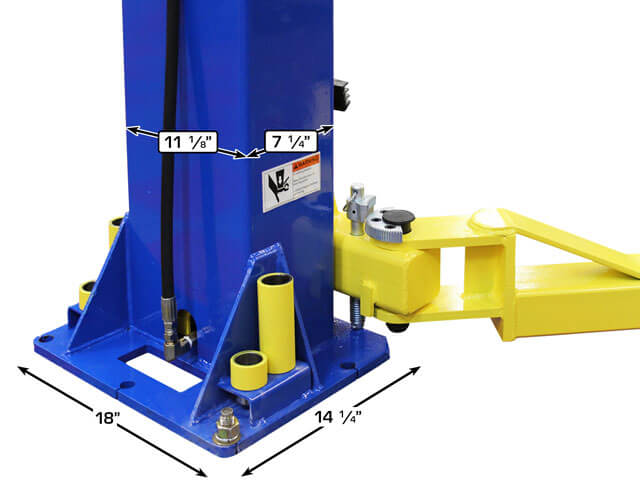

• Column Size 7 1/4" x 11"
• Column Thickness of Steel 5mm
• Base Of Lift 14 1/4" x 18"

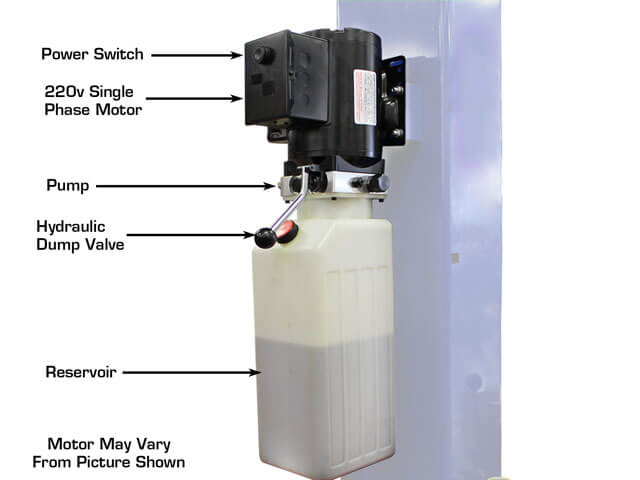

• Motor/Electrical Requirement 220 volt single (1) phase. (A 30 amp breaker is recommended)
• Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)

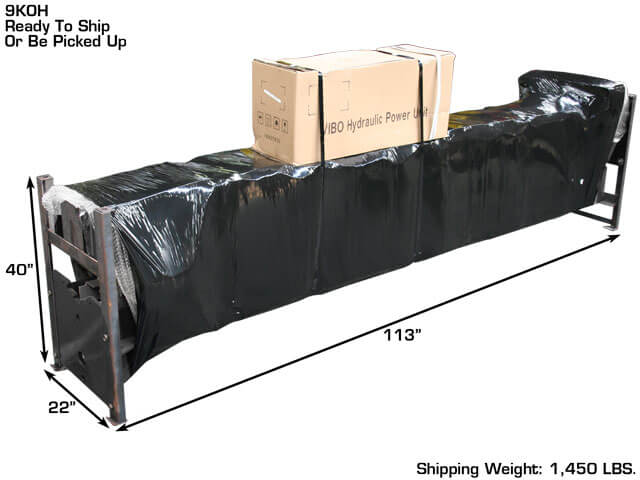

• Shipping Weight 1,450 LBS.

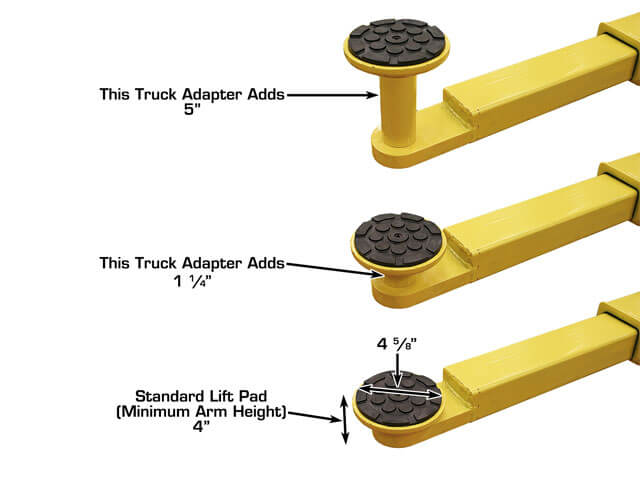

• Adapter Heights 4 Each 1.5”, 5”
• Arm Hole/Adapter Peg Size 1.5”
• Requires a minimum of 4" of concrete with a 3000 psi. rating

  The Atlas® LMA Specifications (VARY BY LIFT AND WHEELBASE):

  • Capacity: Up to 5,000 lbs
  • Adjusts in Width: 8' to 11'
  • Wheel Base: 32" to 90"
  • Wheel Well Width: 12"
  • Thickness of Steel: 3/16"
  • Shipping Weight: 600 lbs.
  • Will fit lift arms up to 5 1/2" wide
