Atlas Automotive Equipment Platinum PVL15 ALI Certified Commercial Grade Overhead 2-Post Lift 15,000 lb. Capacity (WILL CALL)

Features and Benefits:

• ALI Certified Lift
• 15,000 lb. Capacity
• Heavy Duty, Commercial Grade
• Extra Tall & Extra Wide
• Overall Height 174 1/2" (14? 6 1/2")

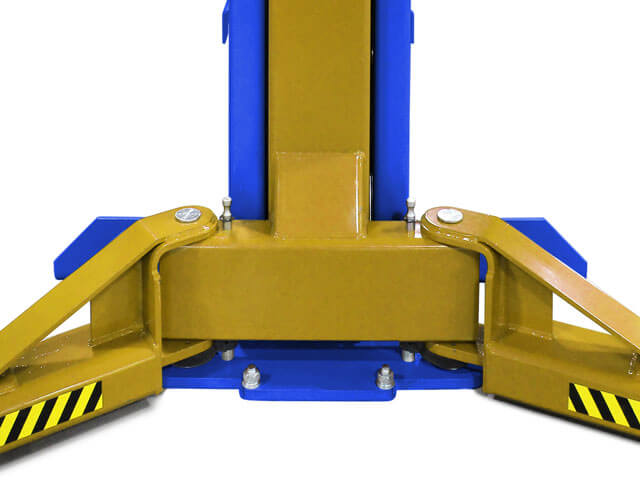

• Padded Carriages

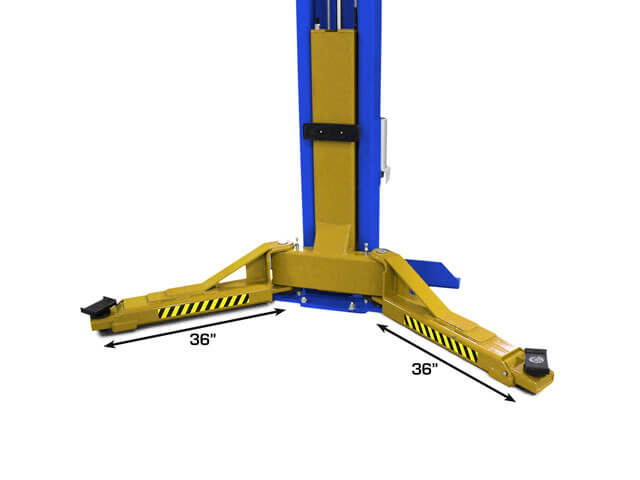

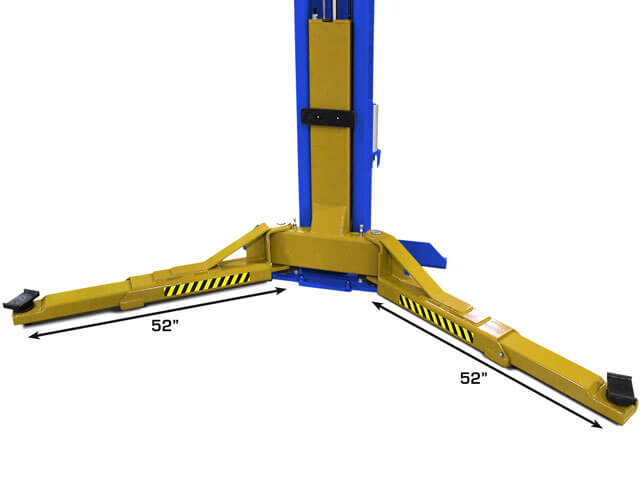

• Symmetric Arms
• Professional Grade Arm Lock Restraint System

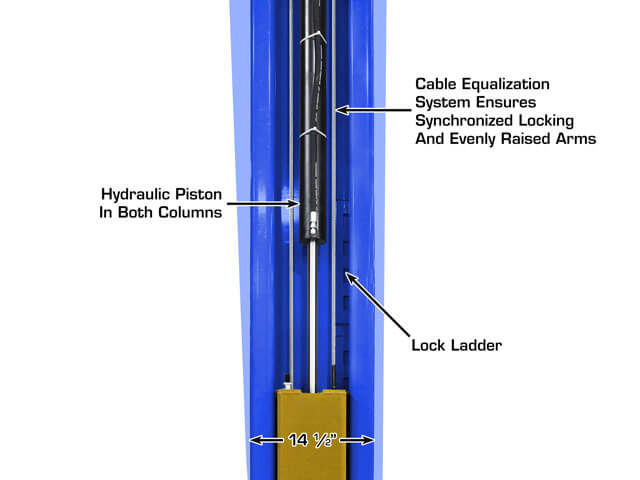

• Dual Direct-Drive Hydraulic Cylinders

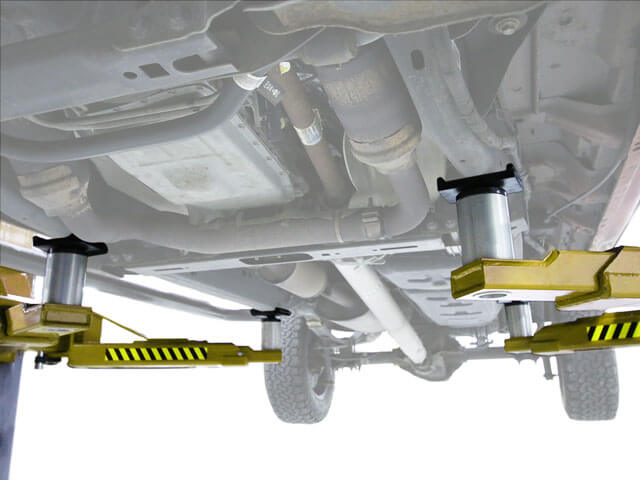

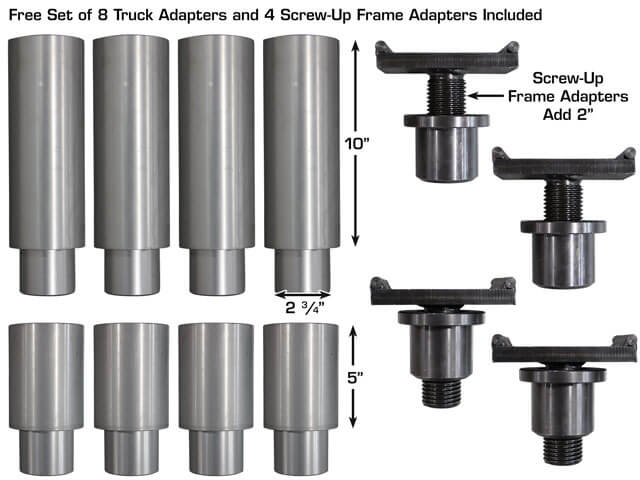

• Free 8 Piece Truck Adapter Set and 4 Screw-Up Frame Adapters
• Heavy Duty 3/8" Equalization Cables
• Mounting Hardware Included
• Standard with Premium ALLY Powerunit

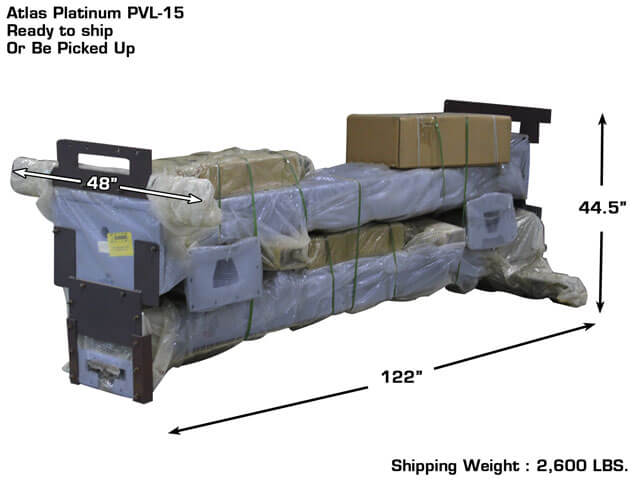

• Shipping Weight: 2,600 lbs.
• 5 yr Structural ‐ 2 yr Hydraulic ‐ 2 yr Powerunit Warranty

Atlas Platinum PVL15 Specifications

• Capacity: 15,000 LB.

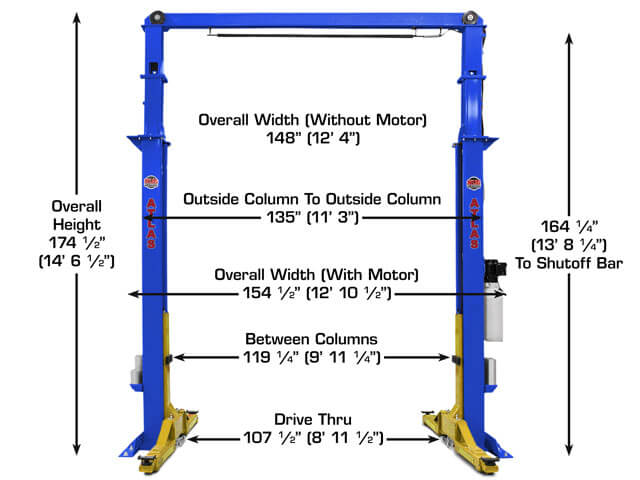

• Overall Height: 174 1/2" (14' 6 1/2”)
• Overall Floor Width: 148" (12' 4”)
• Outside Column to Outside Column: 135" (11' 3")

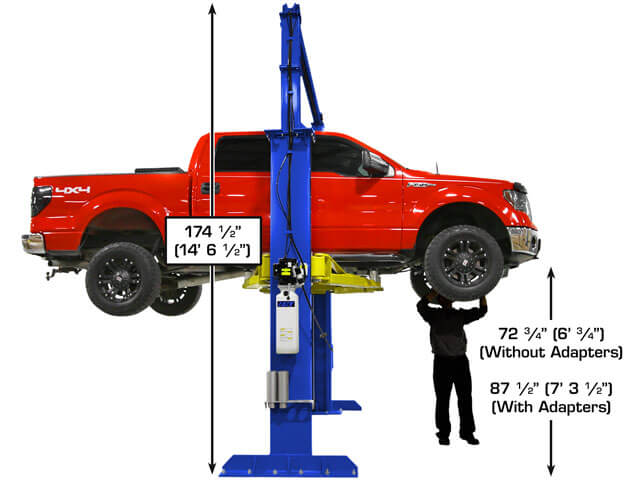

• Maximum Lift Height (Without Adapters): 72 3/4"
• Maximum Lift Height (With Adapters): 87 1/2"
• Minimum Arm Height: 6"
• Inside Column: 119 1/4” (9' 11 1/4”)
• Drive Thru: 107 1/2” (8' 11 1/2”)
• Column Size: 8" x 14 1/2"

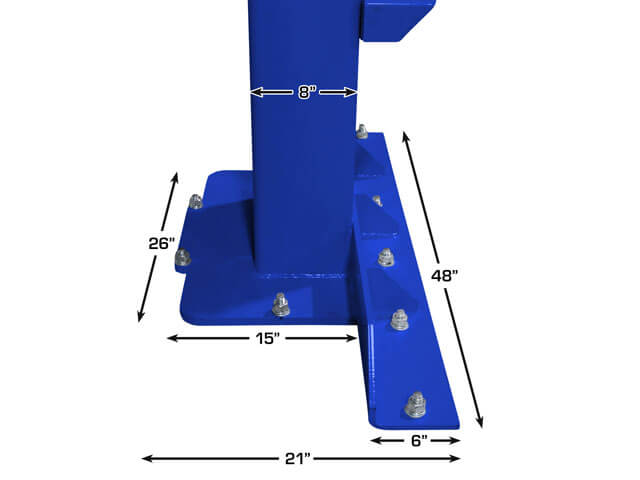

• Base Of Lift: 21" x 48"
• Motor/Electrical Requirement: 220 volt single (1) phase.A 30 amp breaker is recommended
• Oil Requirement: 3-5 Gallons AW32/AW46 (NOT INCLUDED)
• Shipping Weight: 2,600 LBS.
• Adapter Heights: 4 Each 5”, 10”
• Arm Hole/Adapter Peg Size: 2.75”
• Requires a minimum of 6" of concrete with a 3000 psi. rating

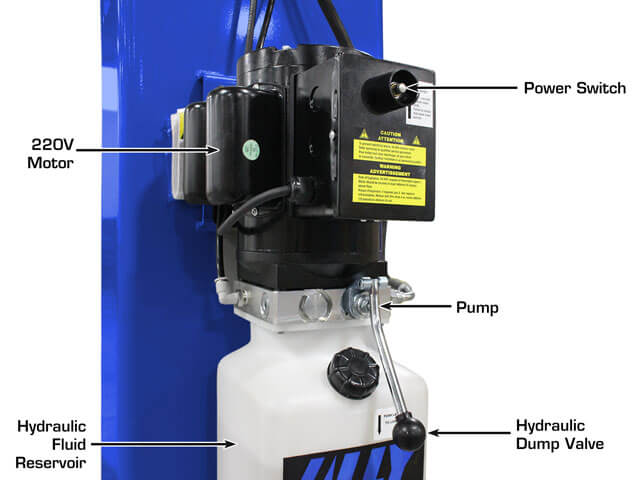

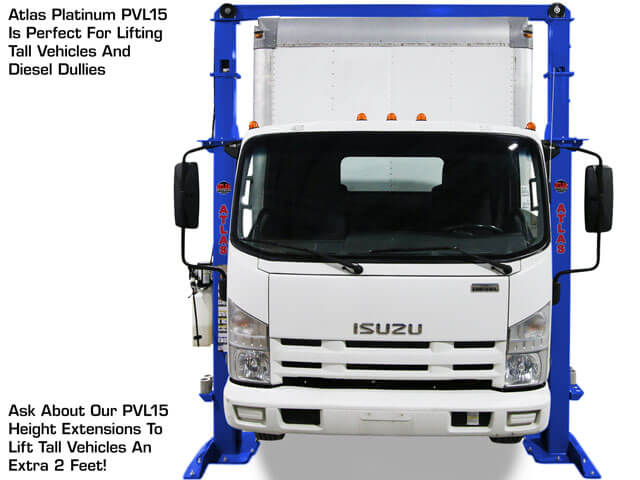

The Atlas Platinum PVL15 is an ALI CERTIFIED, commercial grade, 15,000 lb. capacity overhead two-post lift designed to accommodate both long wheel base trucks and service trucks. The Platinum PVL15 has an overall height of 174 1/2" (14? 6 1/2"), but can be extended by an extra 2 feet to accommodate taller vehicles with the Height Extension Kit. This product features an ALLY Hydraulic AL2300 Power Unit. This premium power unit is certified by MET Laboratories Inc. for electrical compliance in the United States and Canada. Extra heavy-duty armatures and more motor windings with increased silver metal included in the wires and connections create far less heat generation and allow ALLY Hydraulic power units to maintain constant torque through the lifting process. This power unit also carries an industry leading two-year limited warranty.
