Atlas Automotive Equipment BP10000X Commercial Grade Baseplate 2-Post Lift 10,000 lb. Capacity (WILL CALL)
SKU Number:
ATEATTD-BP10000X
Regular price
$4,599.00
Pickup currently unavailable
Features and Benefits:
- 10,000 lb. Capacity
- Commercial Grade
- Baseplate, Open-Top Style Lift
- Overall Height: 111 7/8" (9? 3 7/8")

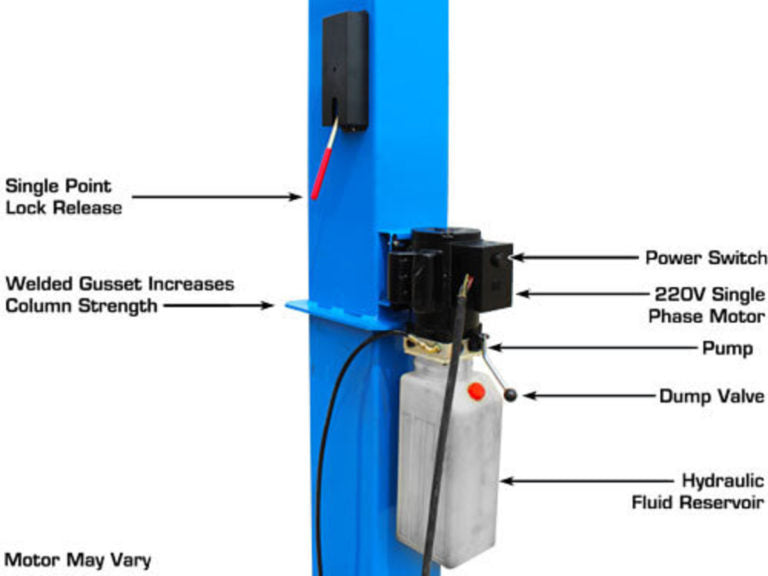

- Single-Point Lock Release Allows Both Columns To Be Disengaged Simultaneously

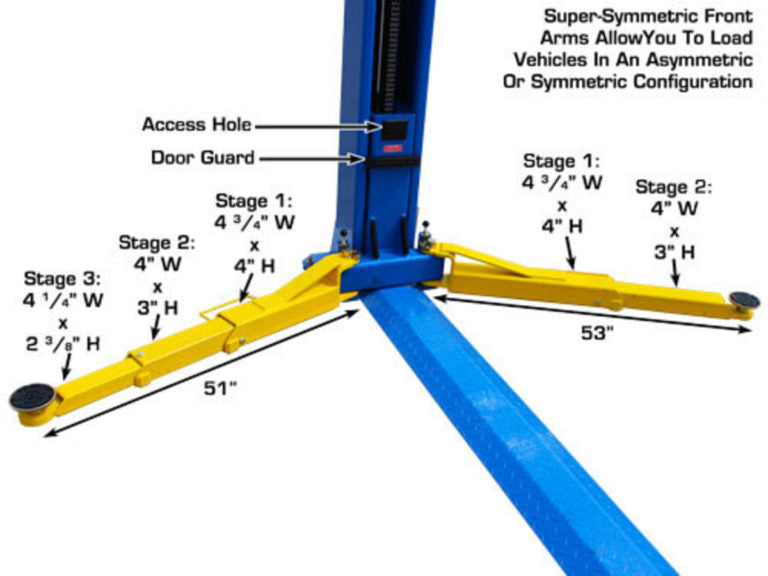

- Super-Symmetric Arms

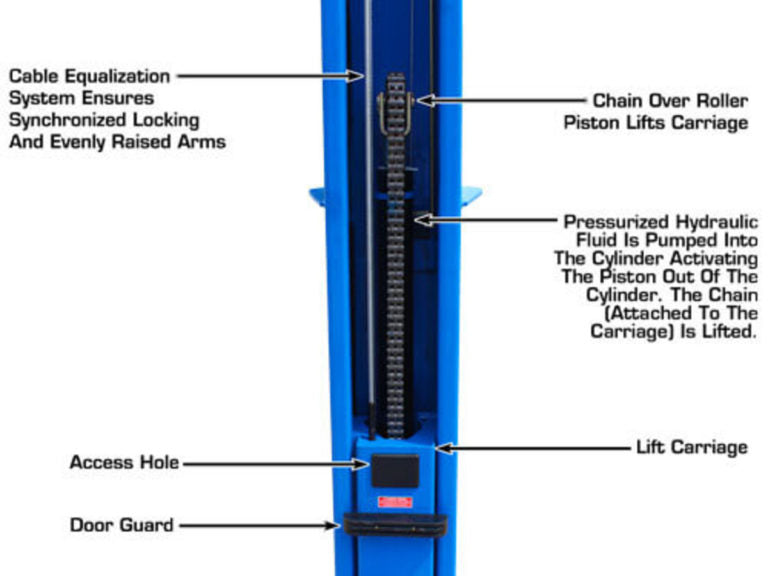

- Dual Hydraulic Chain-Drive Cylinders Made to ANSI Standard
- Welded Support Gussets Increase Column Strength.

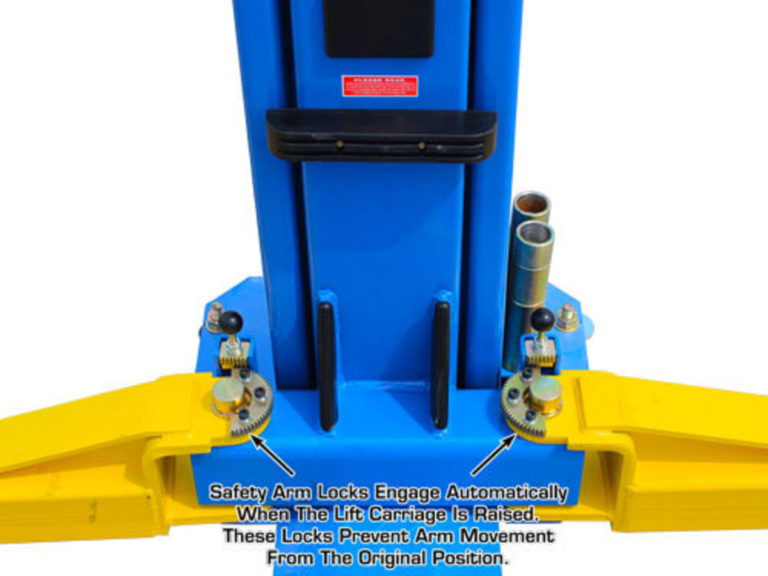

- Automatic Arm Restraints
- Powder Coat Finish

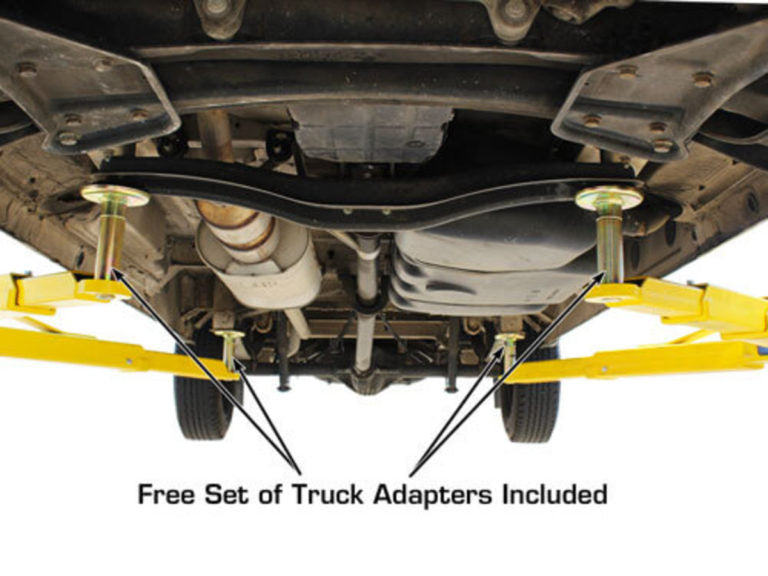

- Free 12 Piece Truck Adapter Set

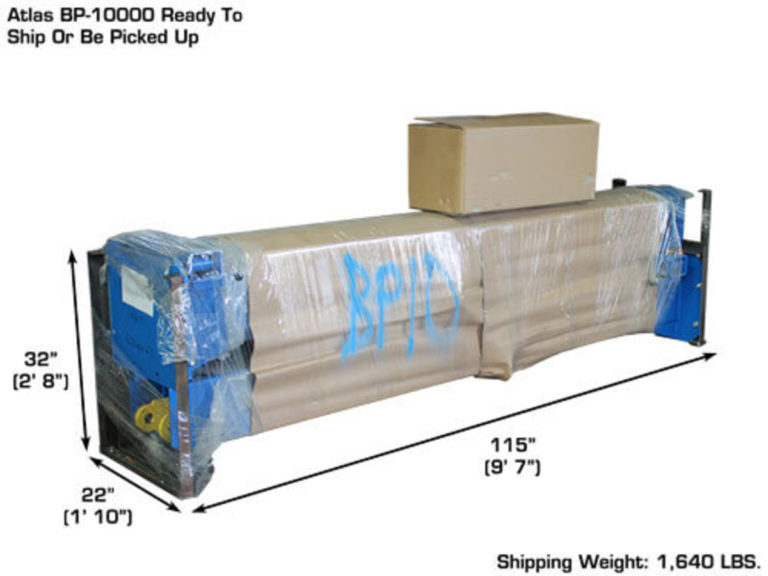

- Shipping Weight: 1,640 LBS.
- 5 yr Structural ‐ 2 yr Hydraulic Warranty ‐ Parts Only
Atlas ATTD-BP10000X Specifications
- Capacity: 10,000 LB.

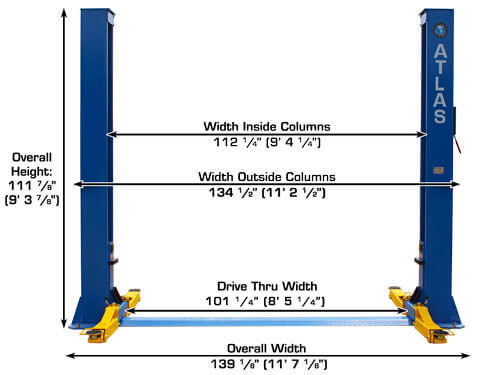

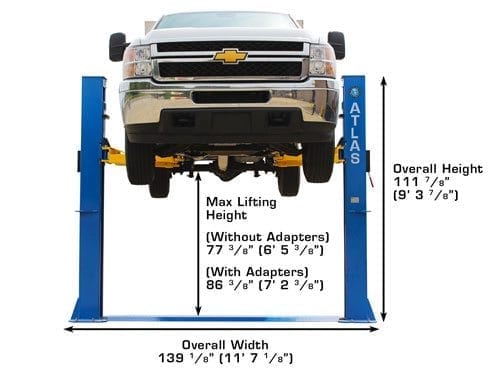

- Overall Height: 111 7/8" (9' 3 7/8")

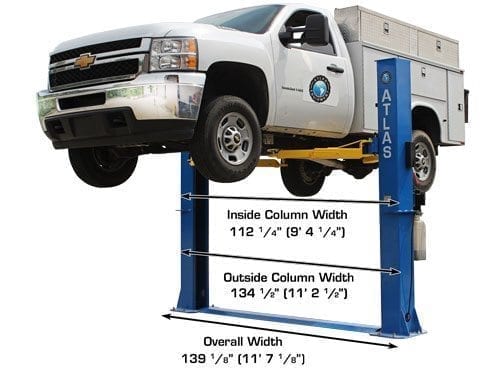

- Overall Floor Width: 139 1/8" (11' 7 1/8")
- Outside Column to Outside Column: 134 1/2" (11' 2 1/2")

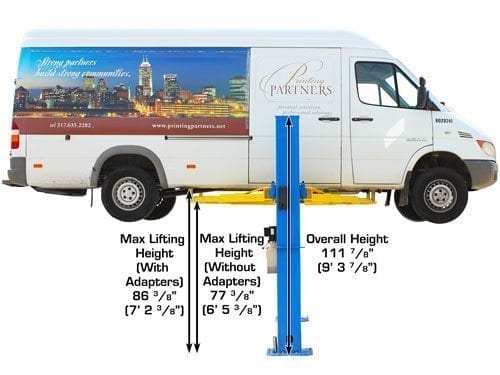

- Maximum Lift Height (Without Adapters): 77 3/8"

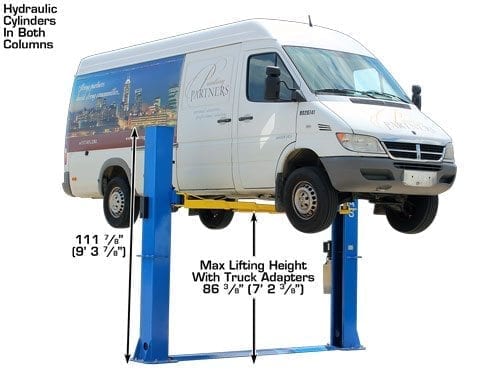

- Maximum Lift Height (With Adapters): 86 3/8"
- Minimum Arm Height: 4"
- Inside Column: 112 1/4” (9' 4 1/4”)

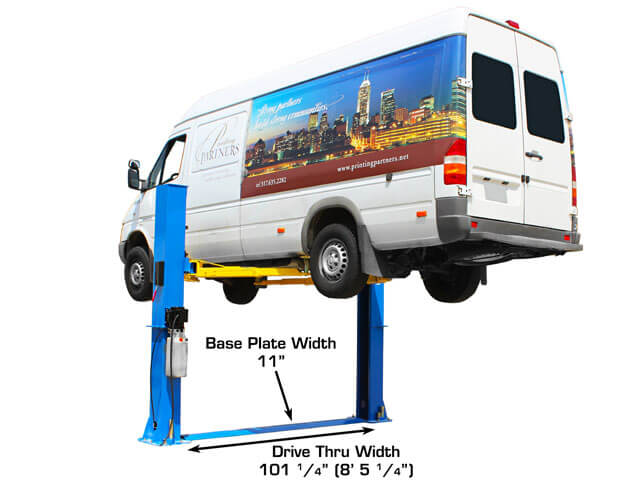

- Drive Thru: 101 1/4” (8' 5 1/4”)

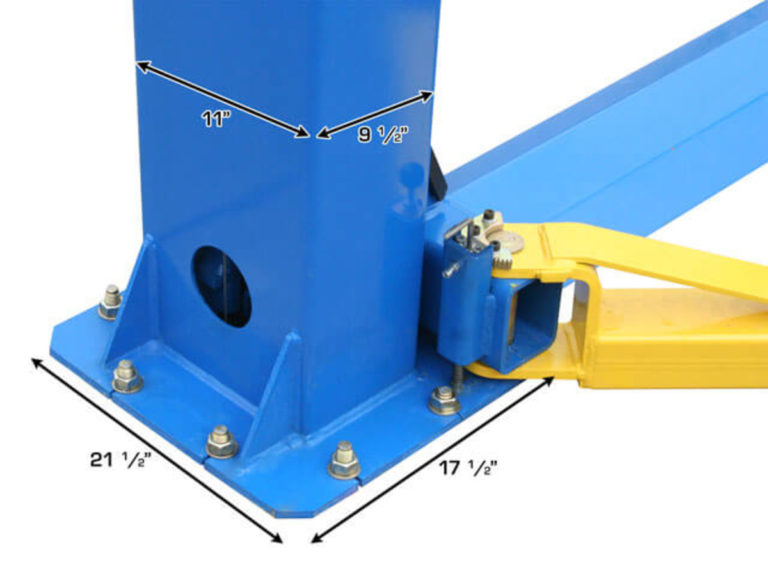

- Column Size: 9 1/2" x 11"
- Base Of Lift: 17 1/2" x 21 1/2"
- Motor/Electrical Requirement: 220 volt single (1) phase. A 30 amp breaker is recommended
- Oil Requirement: 3-5 Gallons AW32/AW46 (NOT INCLUDED)
- Shipping Weight: 1,640 LBS.

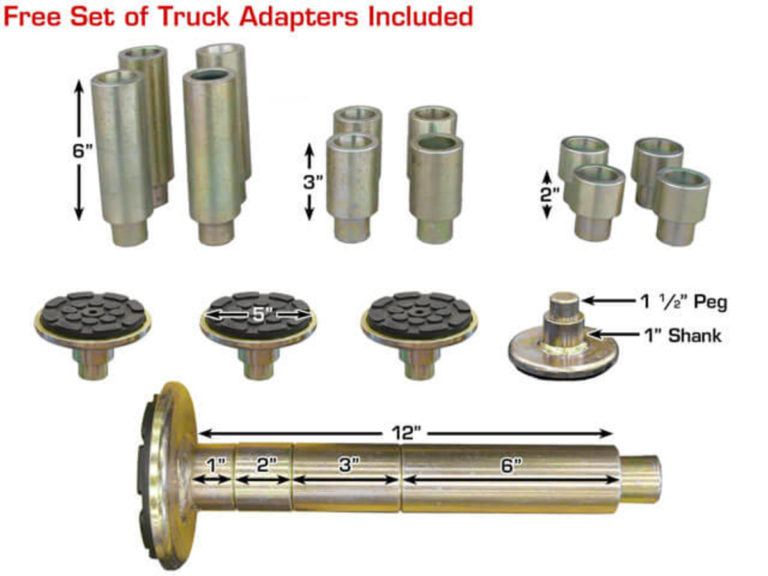

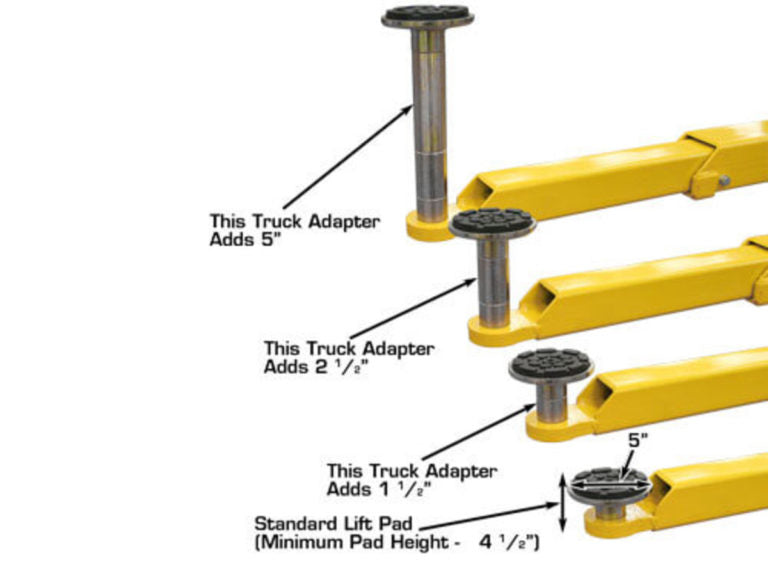

- Adapter Heights: 4 Each 2”, 3”, 6”
- Arm Hole/Adapter Peg Size: 1.5”

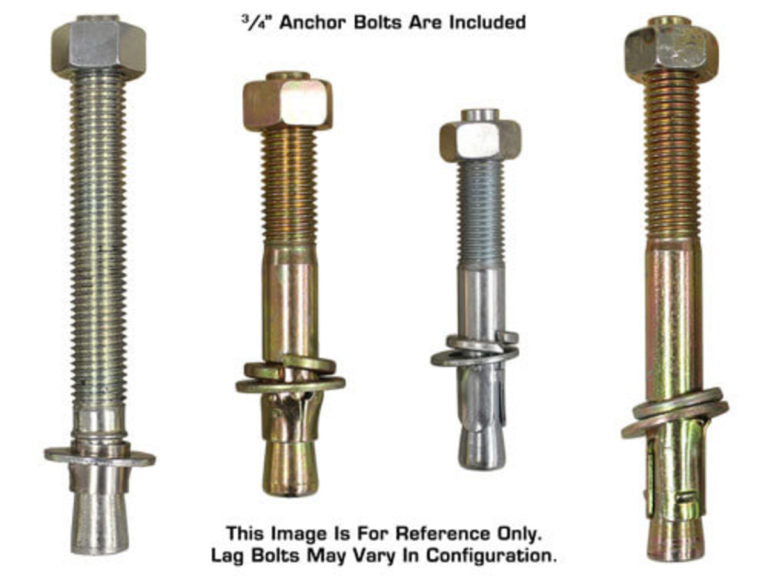

- Requires a minimum of 4" of concrete with a 3000 psi. rating
The Atlas BP10000X commercial grade 2 post baseplate lift is built for those customers who want to lift heavy vehicles in a low ceiling garage. The Atlas BP10000X incorporates the popular single point lock release columns have a middle welded support gusset that adds extra strength to the oversized columns. If you need to lift a one ton dually or a Smart Car and only have an 11 foot ceiling, this is the lift for your shop.
Document. Atlas BP10000X ManualDelivery is by pallet at a minimum of $70. If ordering before 2pm we can delivery next day for $50 otherwise orders are 3-5 working days.
We only deliver within a 10mile radius of our site.
