FLASHSALE
Atlas Automotive Equipment BP12000X Commercial Grade Baseplate 2-Post Lift 12,000 lb. Capacity (WILL CALL)
SKU Number:
ATEATTD-BP12000X
Regular price
$5,599.00
Pickup currently unavailable
Features and Benefits:
- 12,000 lb. Capacity
- Heavy Duty, Commercial Grade
- Baseplate, Open-Top Style Lift
- Overall Height: 122 1/2" (10? 2 1/2")
- Adjustable Width

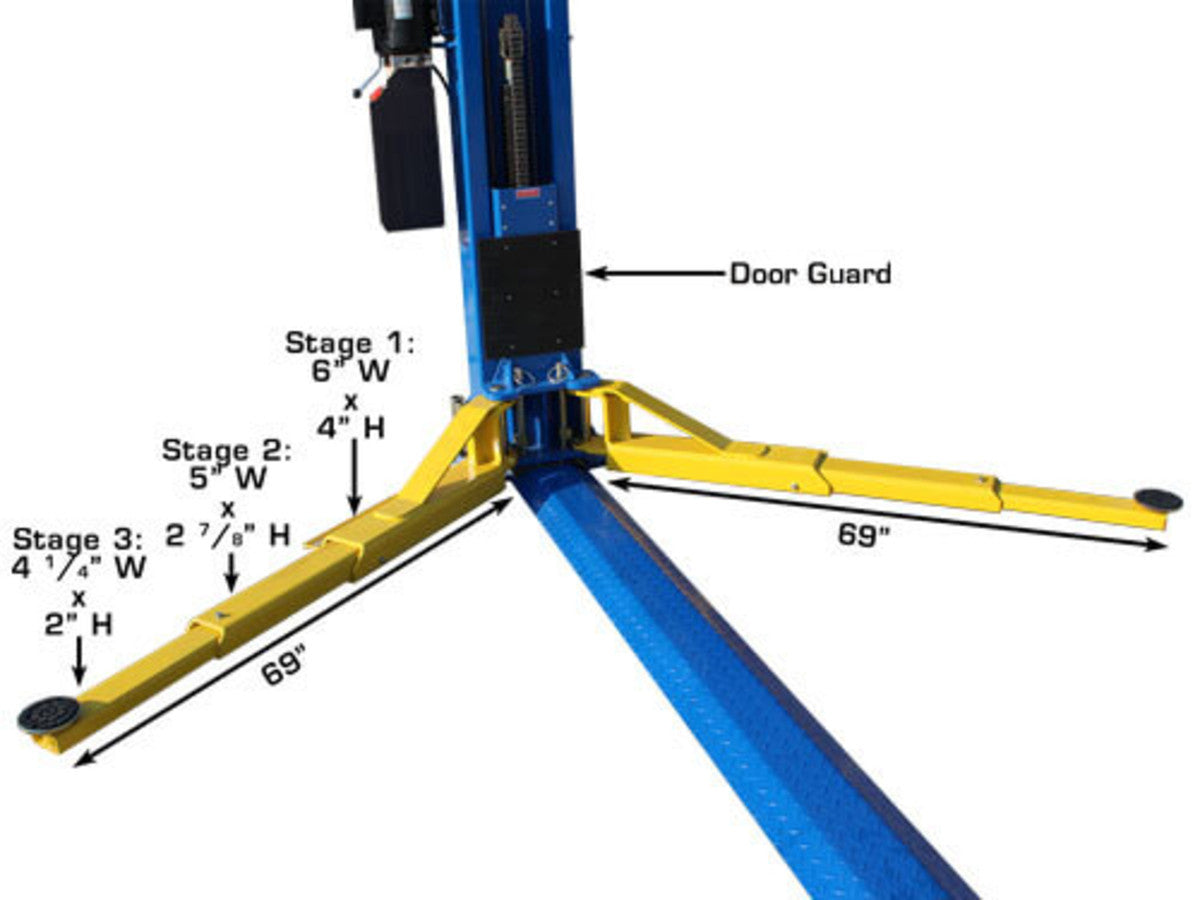

- 3-Stage Symmetric Arms

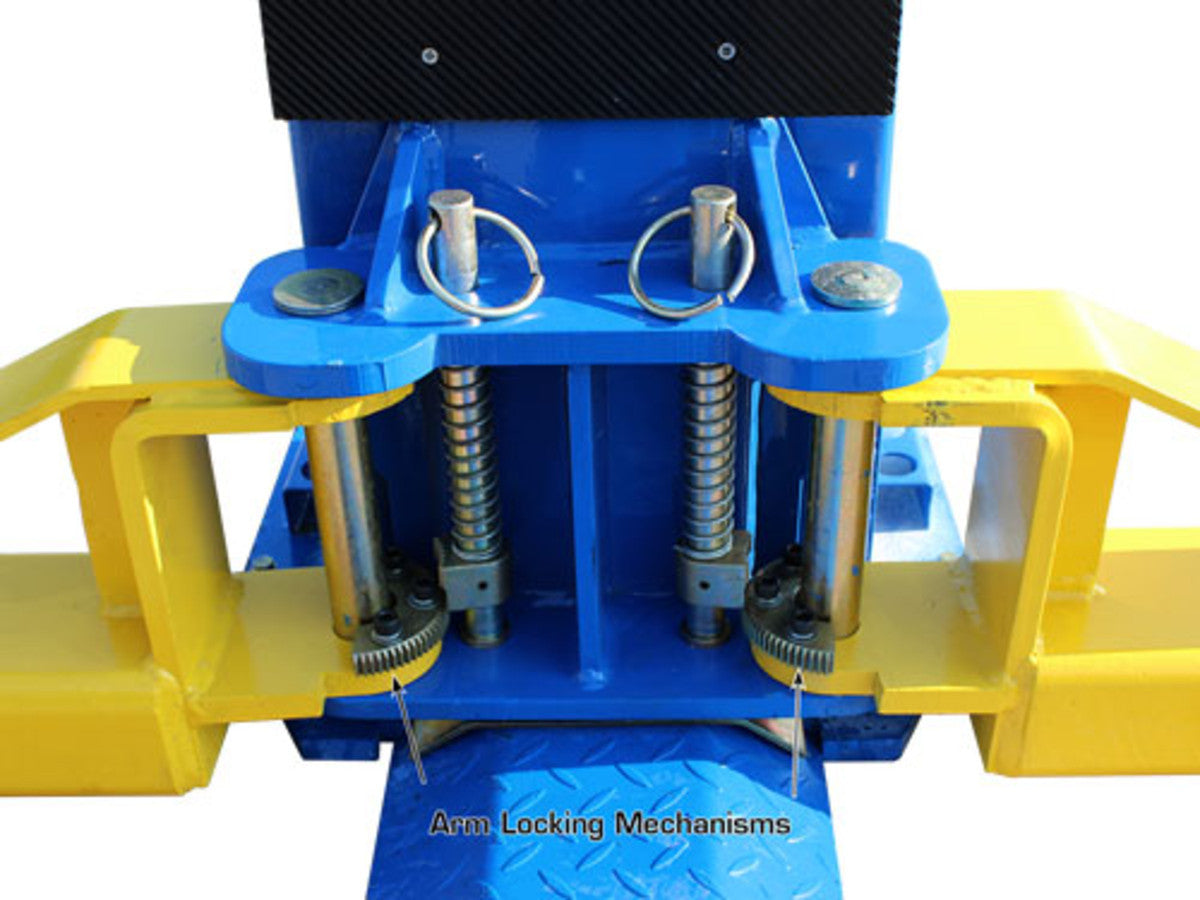

- Automatic Arm Restraints

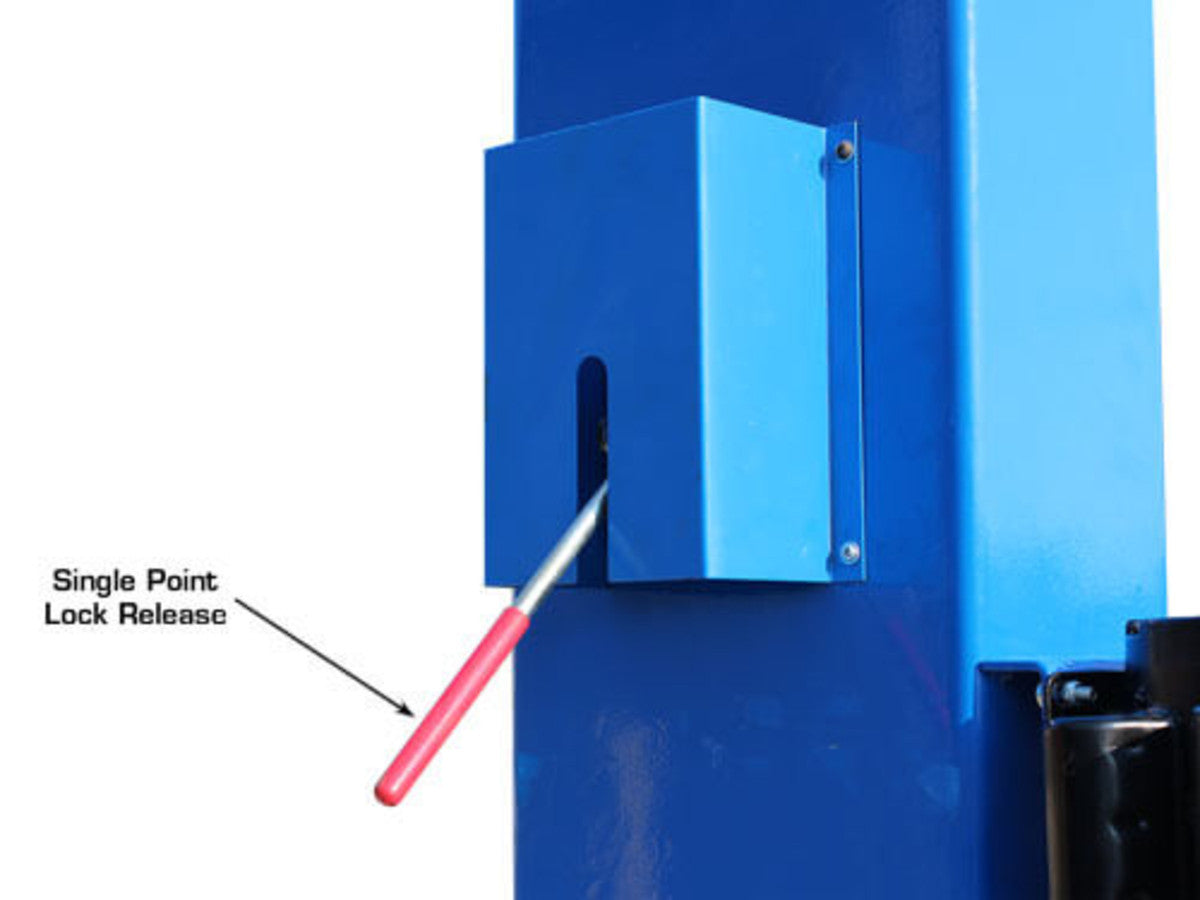

- Single-Point Lock Release

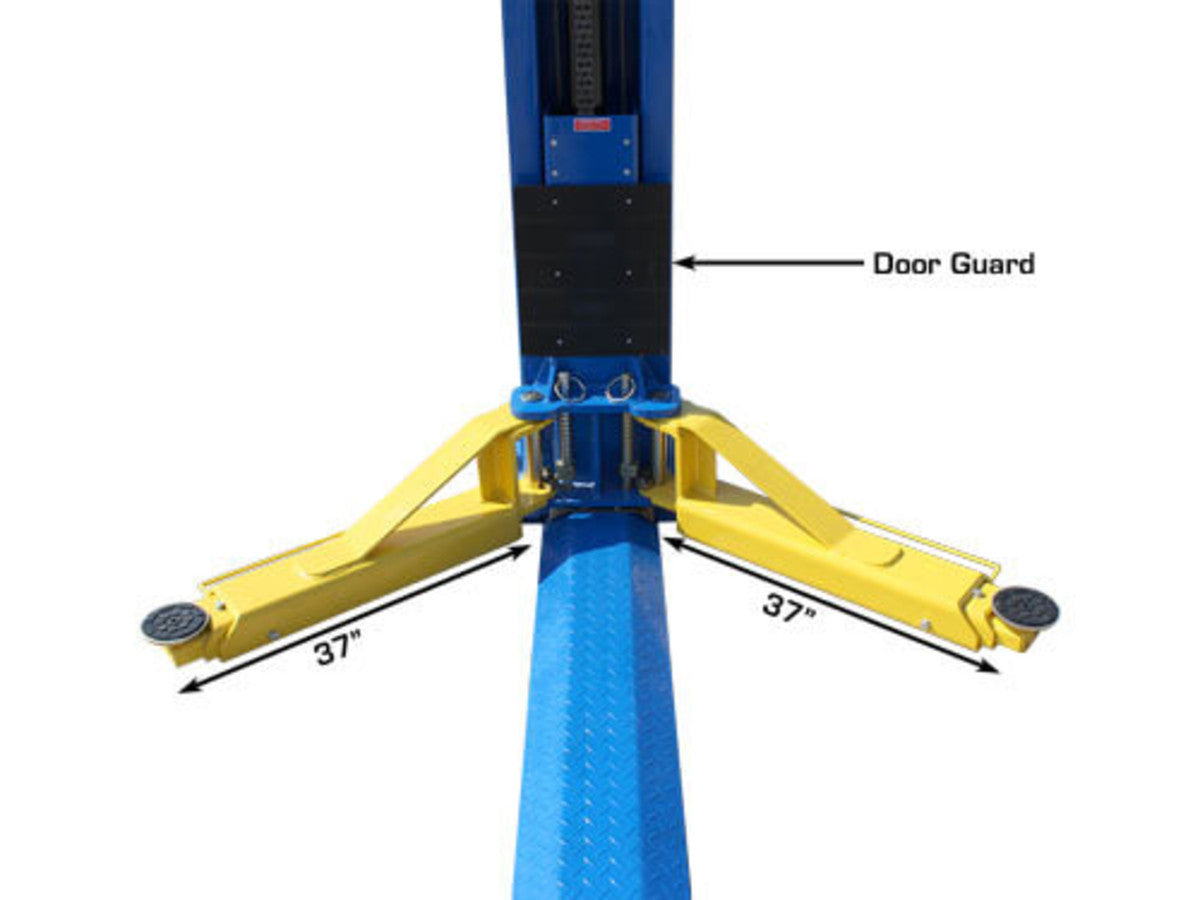

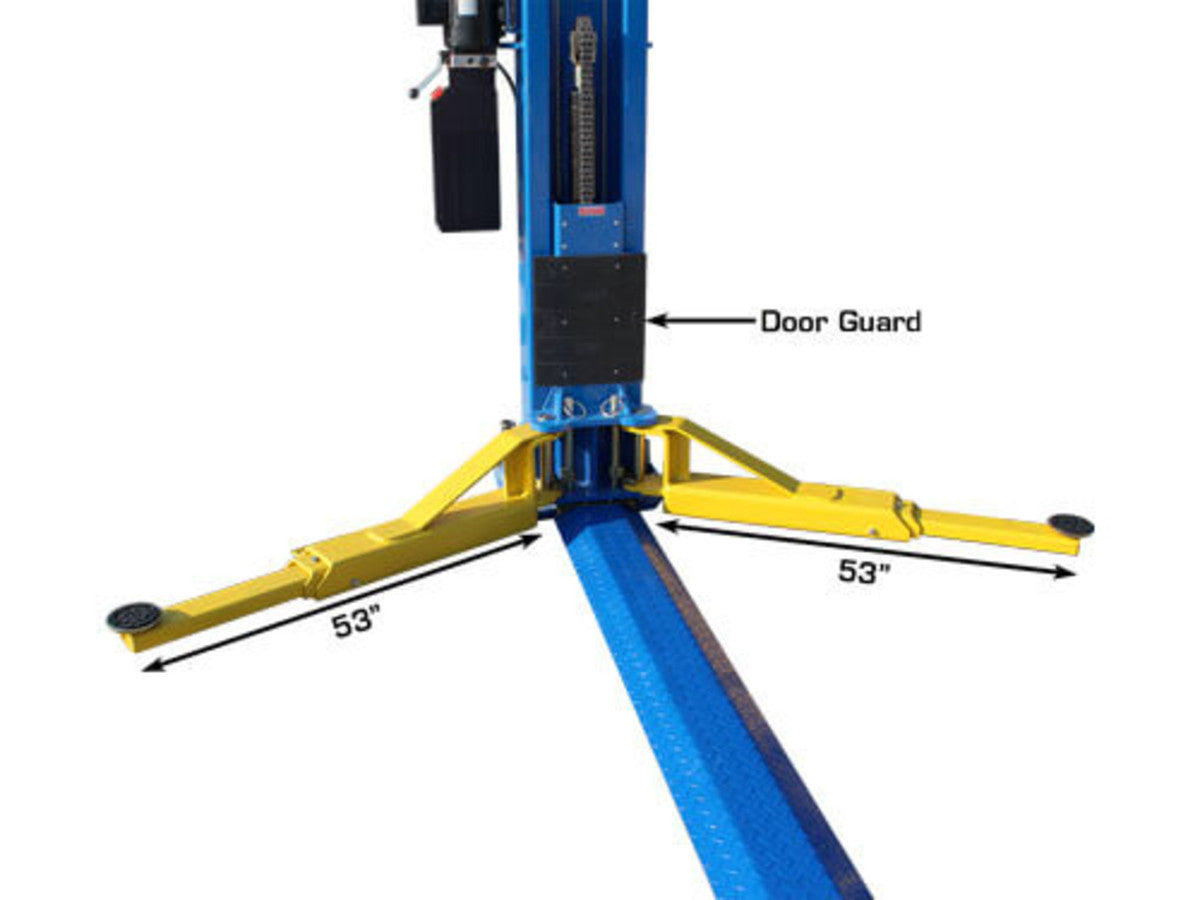

- Rubber Guards on Carriages

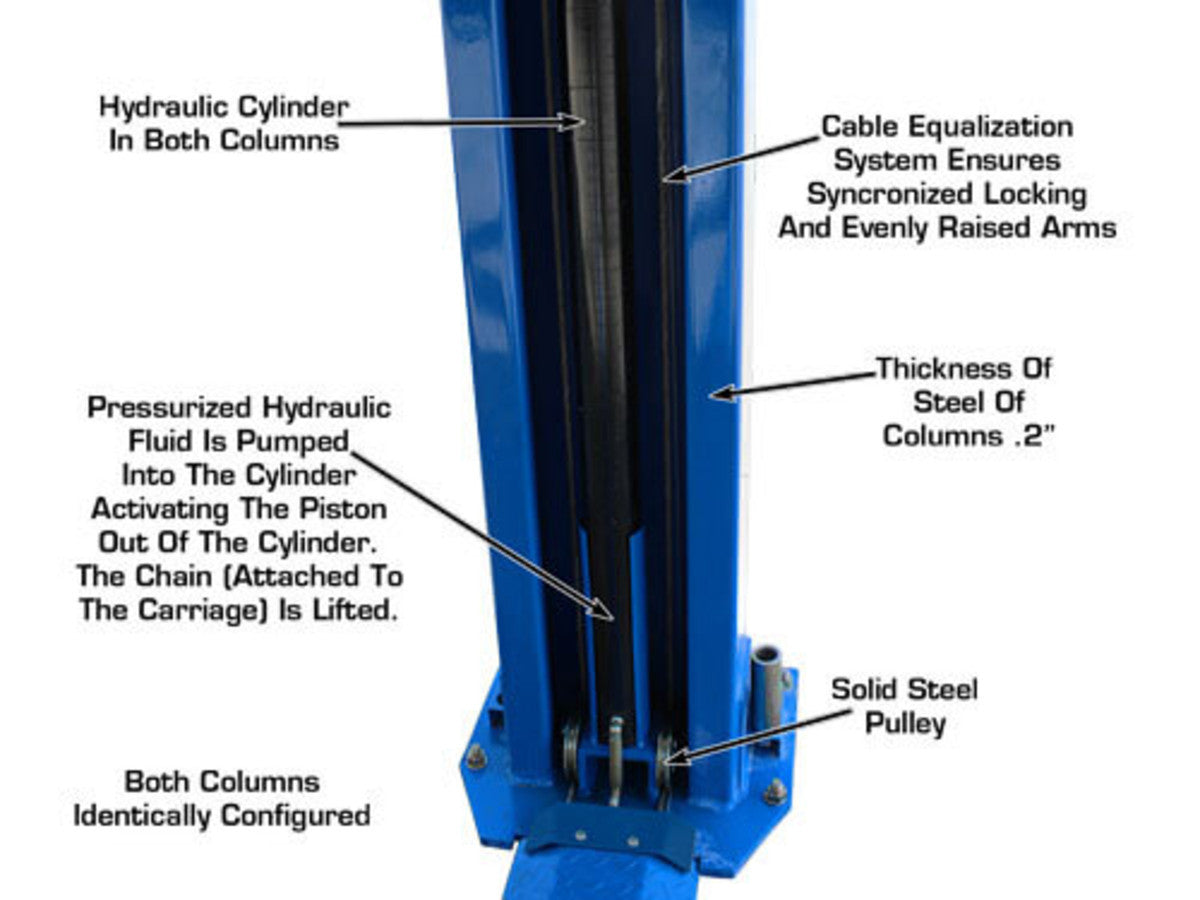

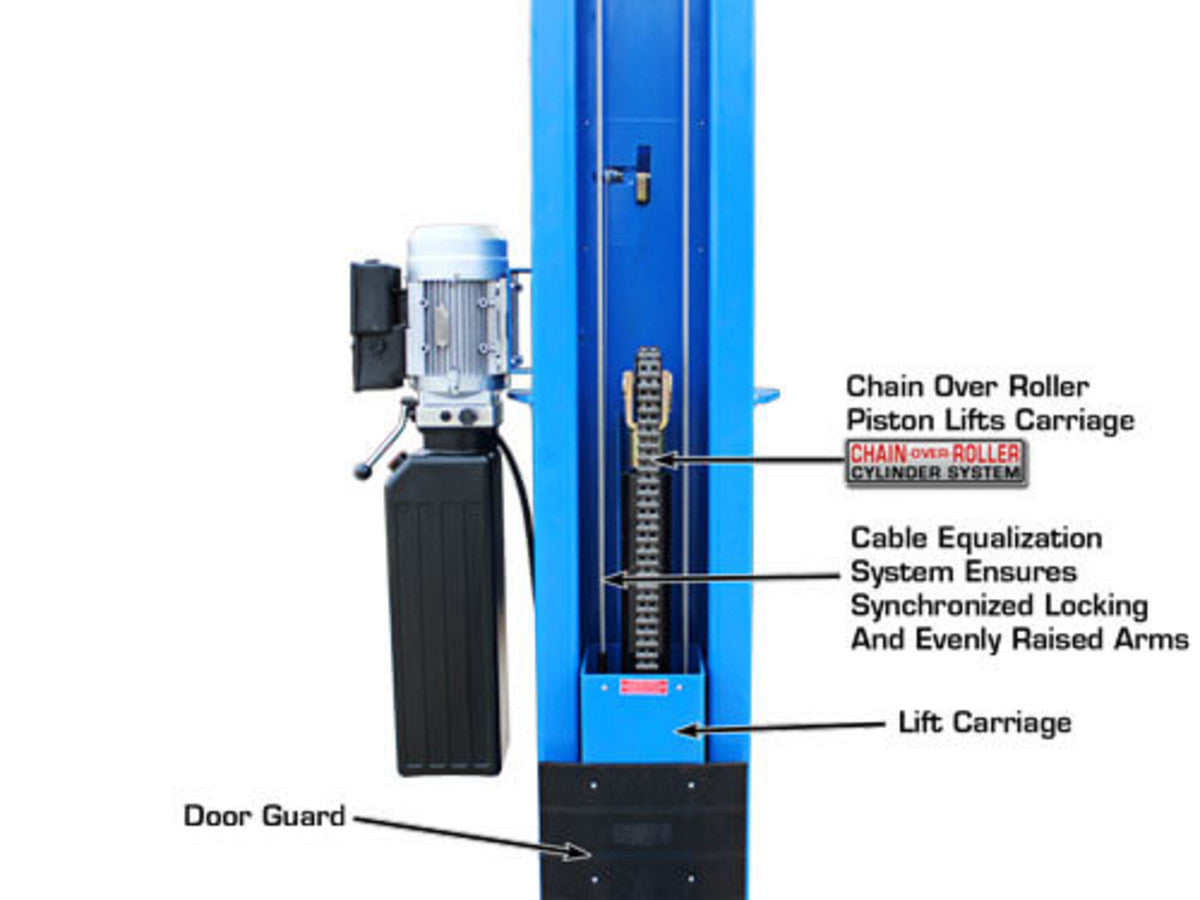

- Dual Hydraulic Chain-Over Cylinders
- Powder Coat Finish

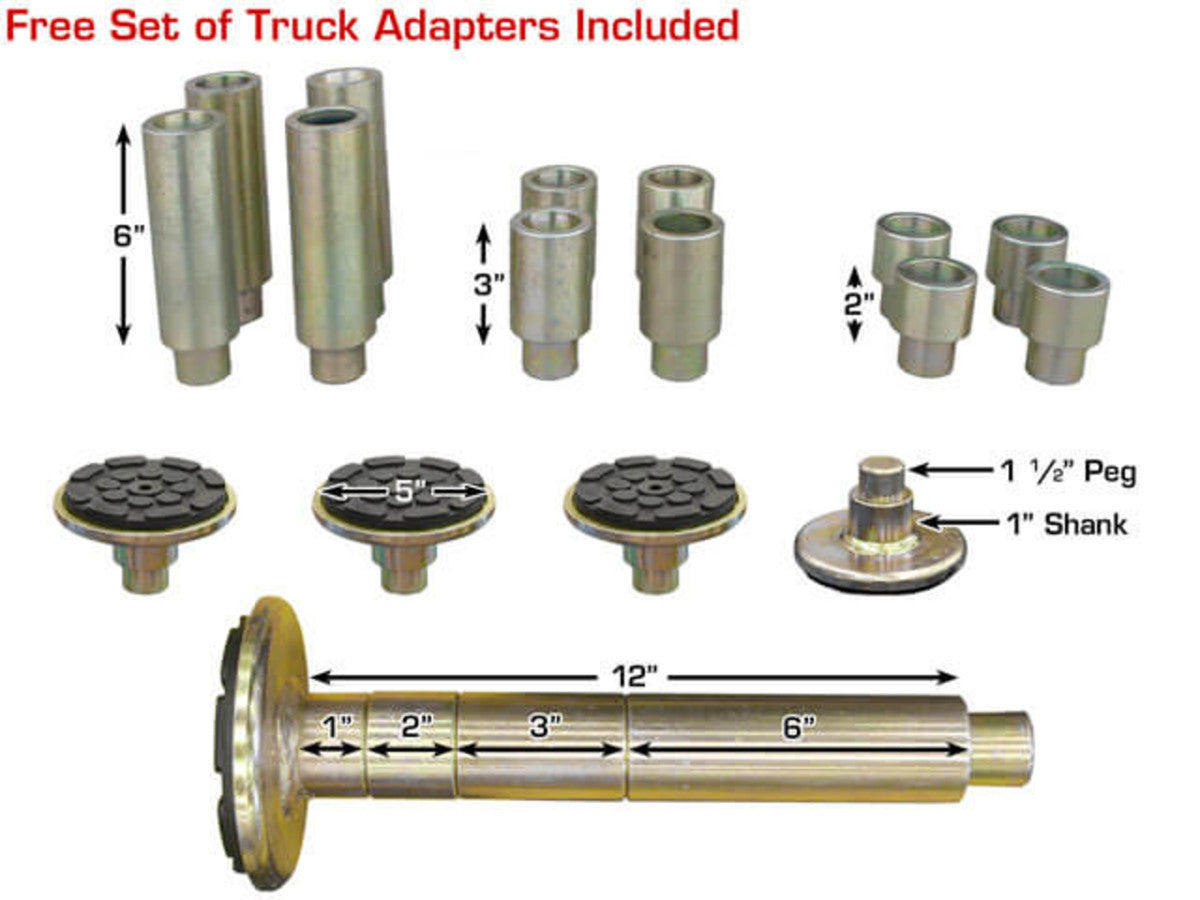

- Free 12 piece Truck Adapter Set

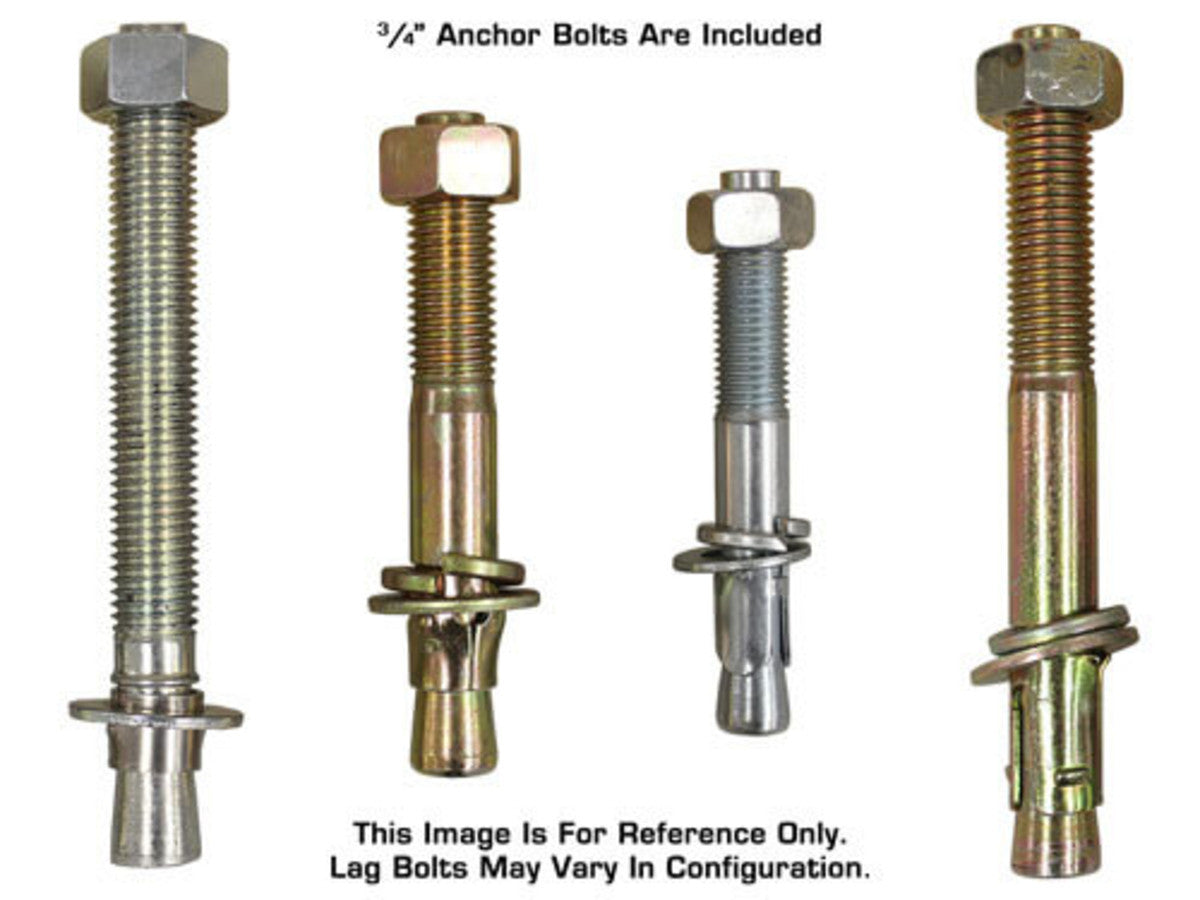

- Mounting Hardware Included

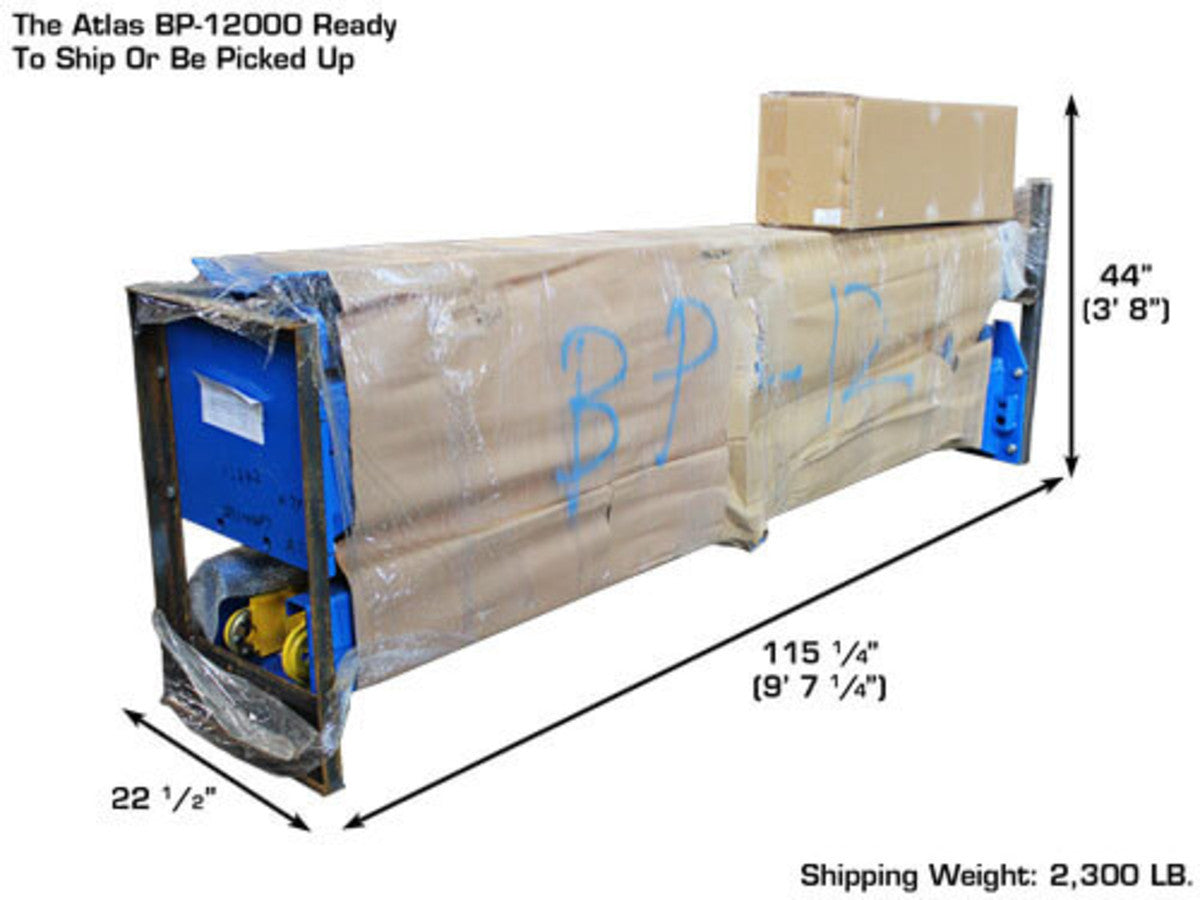

- Shipping Weight: 2,130 lbs.
- 5 yr Structural ‐ 2 yr Hydraulic Warranty ‐ Parts Only
Atlas ATTD-BP12000X Specifications
- Capacity: 12,000 LB.

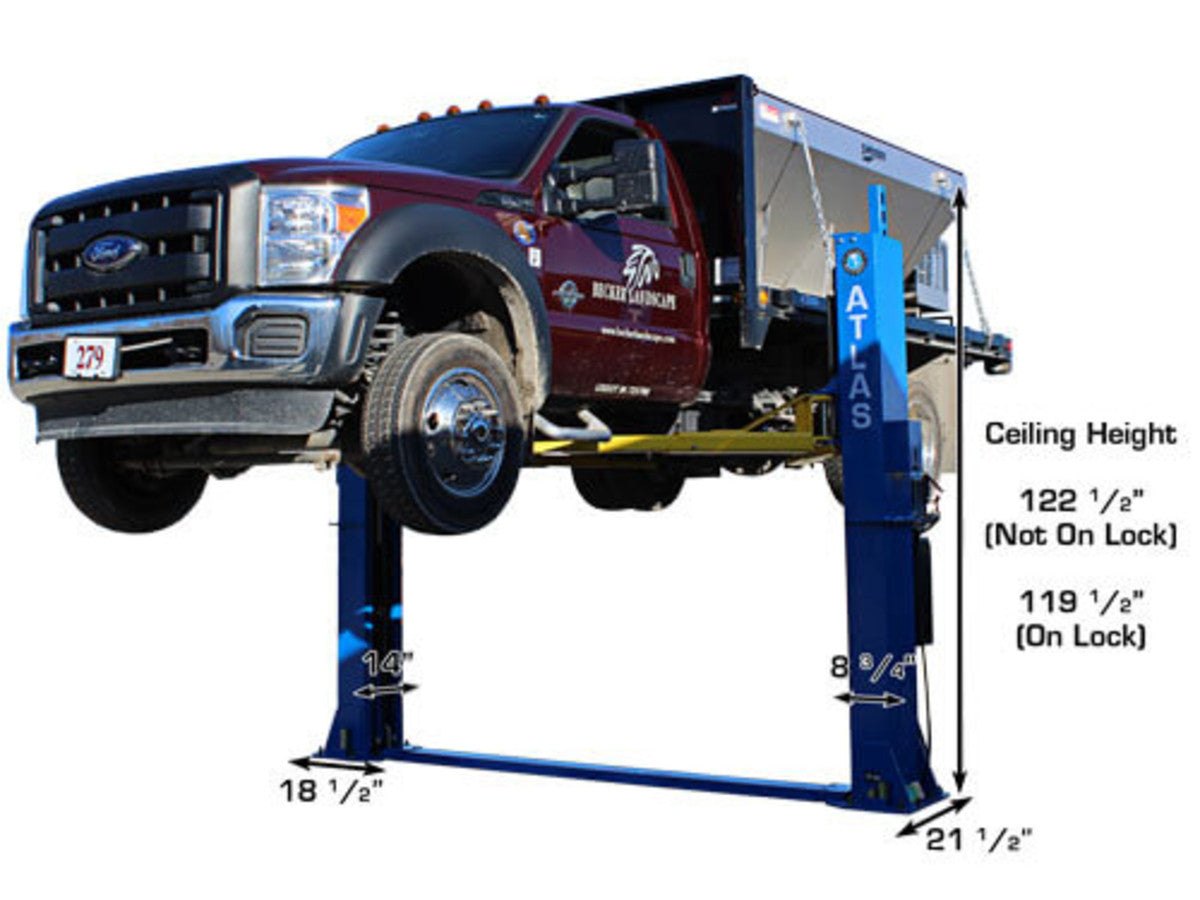

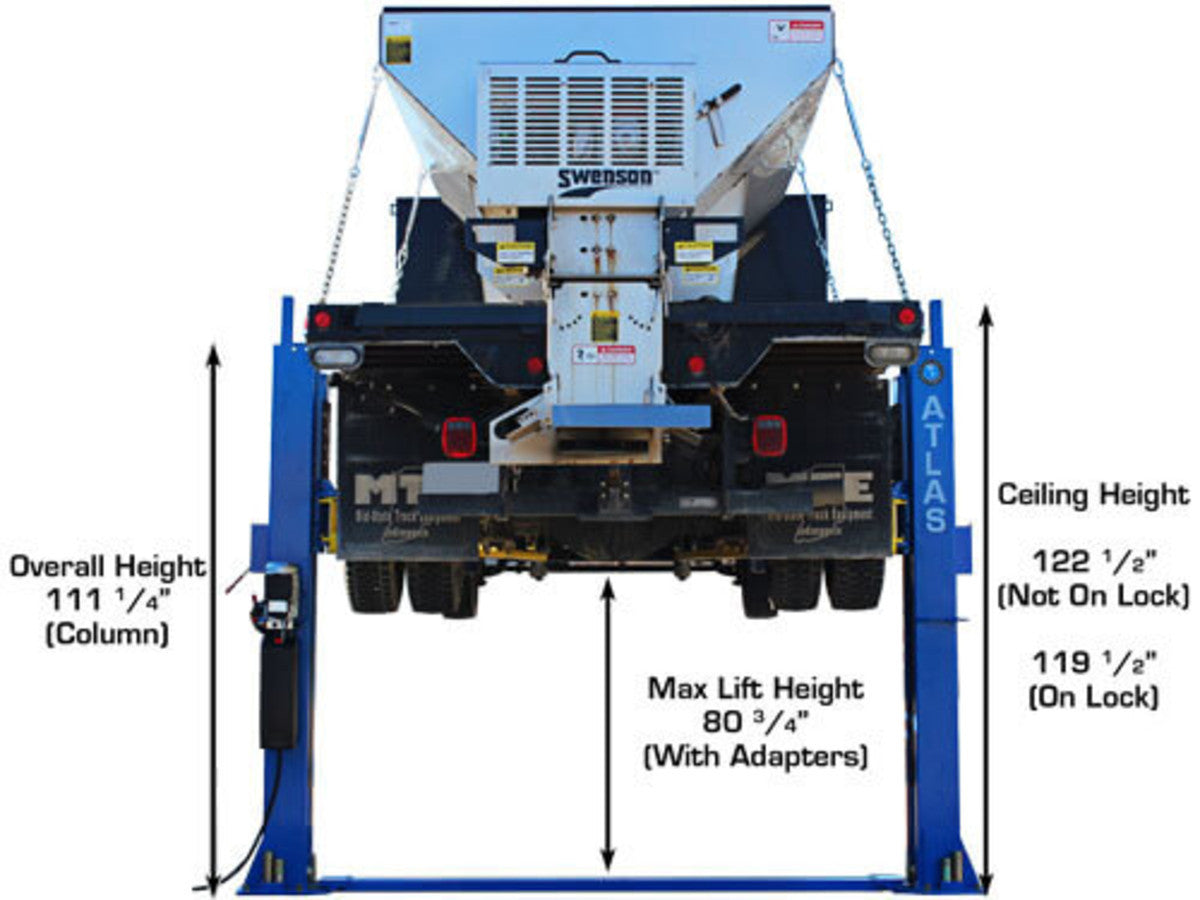

- Overall Height: 122 1/2" (10' 2 1/2")

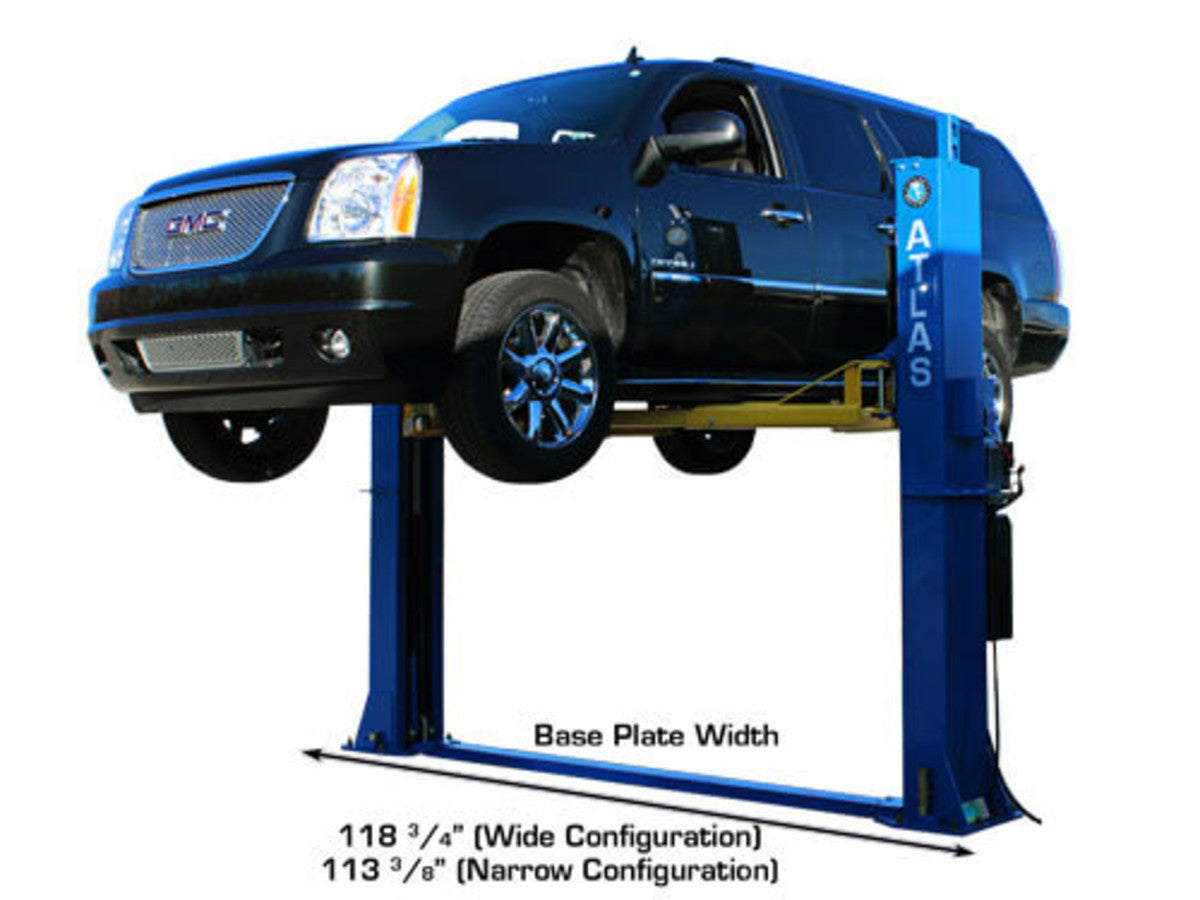

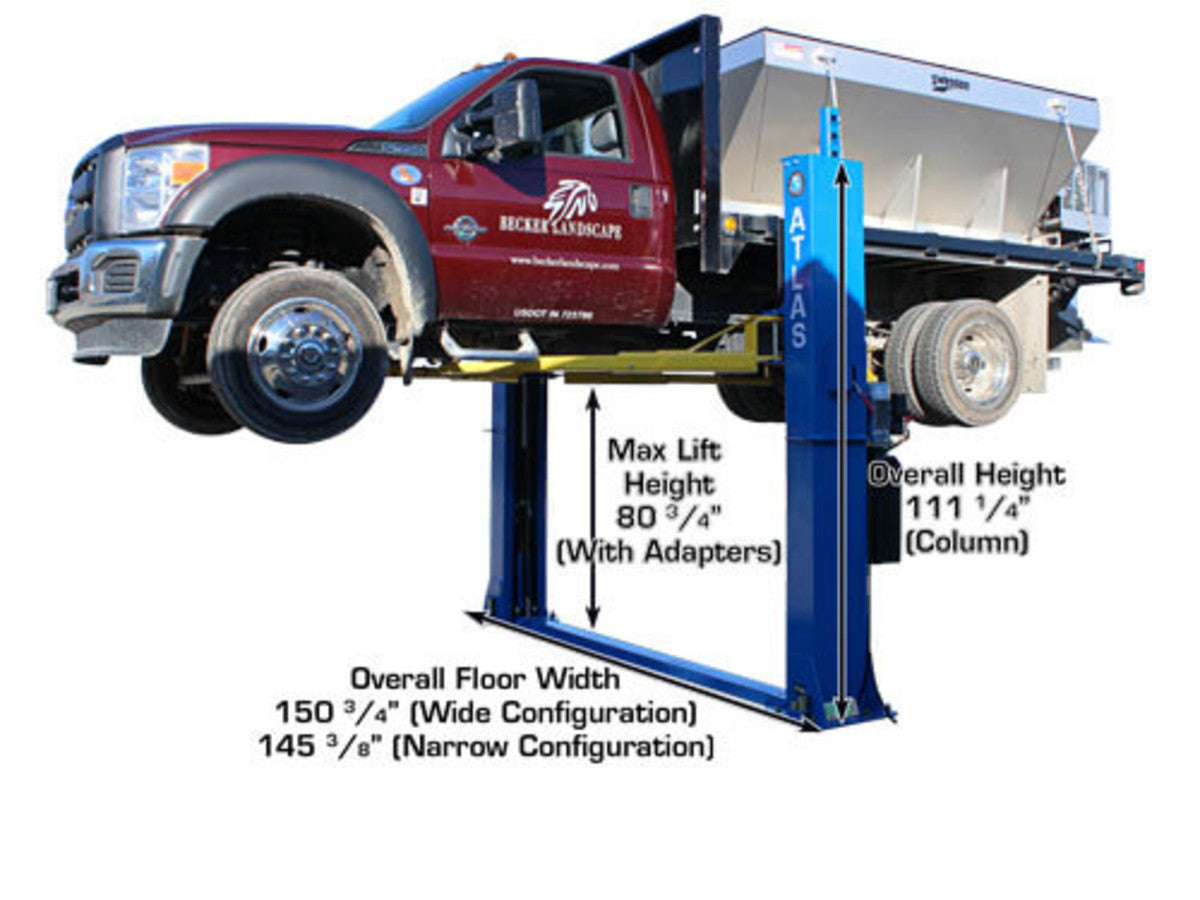

- Overall Floor Width: 149 3/8" (12' 5 3/8") or 154 1/2” (12' 10 1/2”)

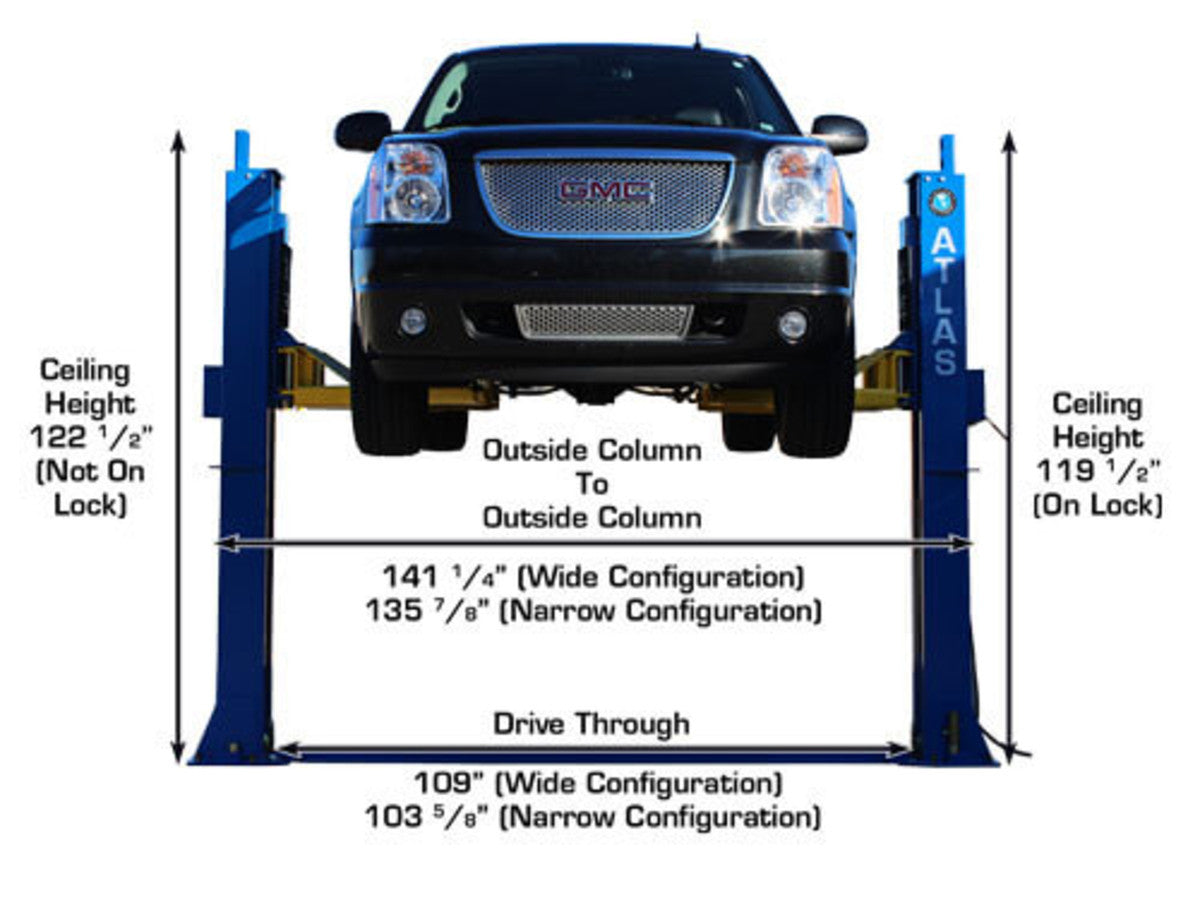

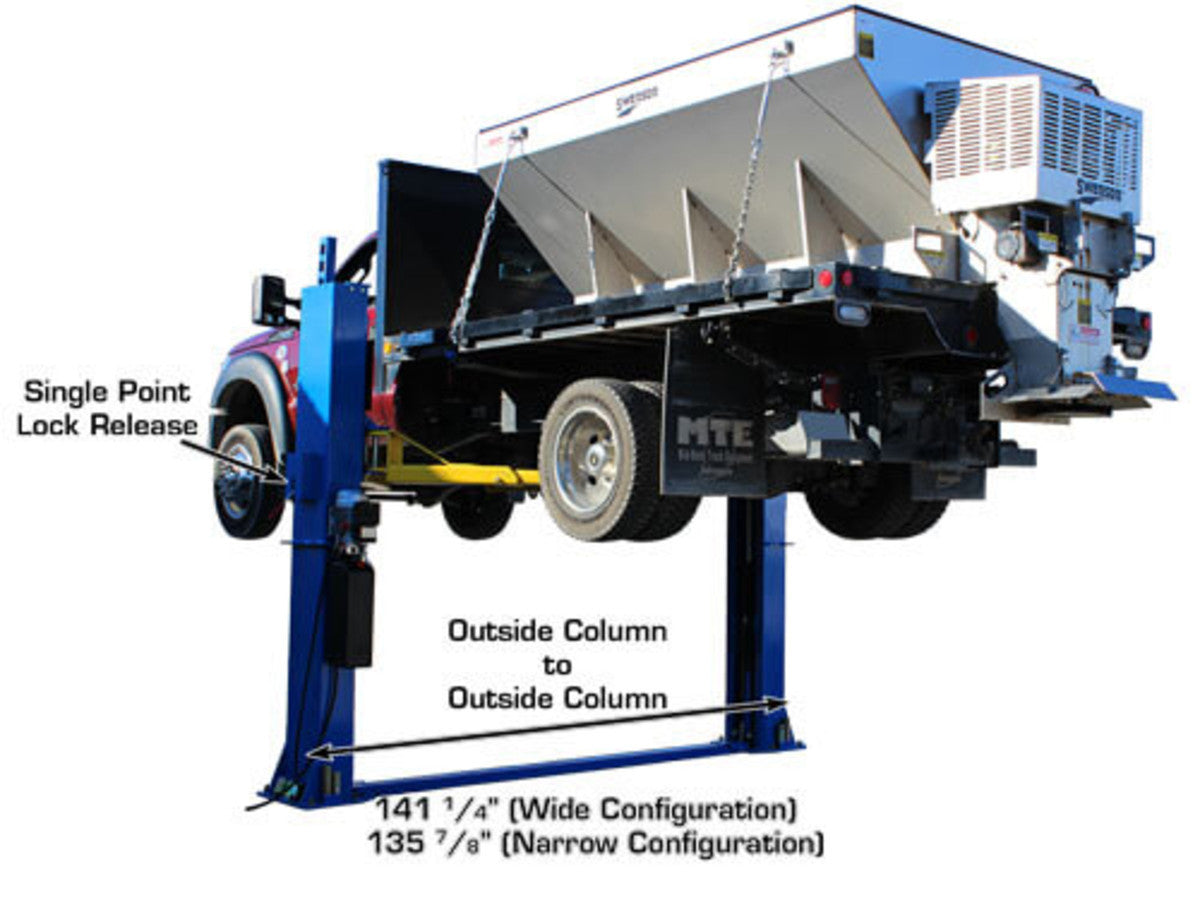

- Outside Column to Outside Column: 135 7/8" (11' 3 7/8") or 141 1/4" (11' 9 1/4”)

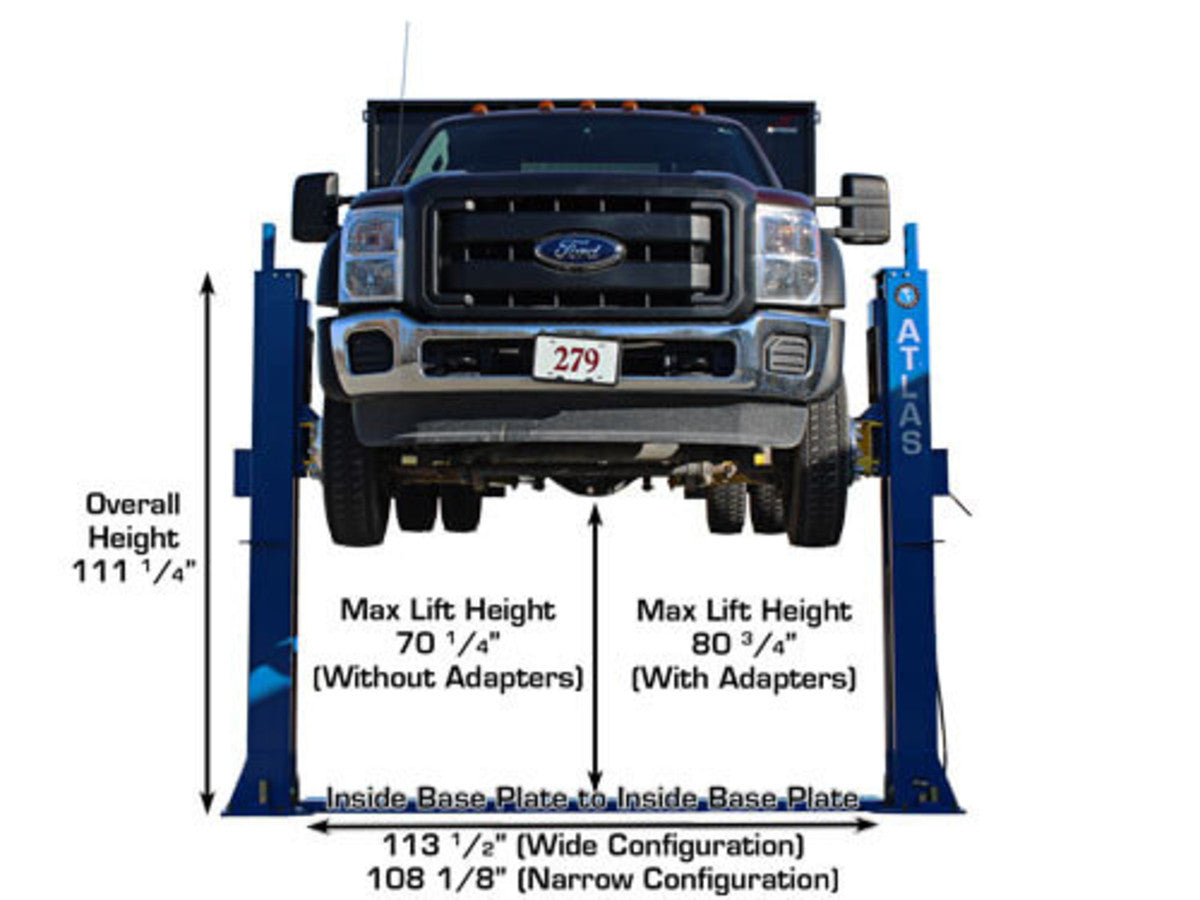

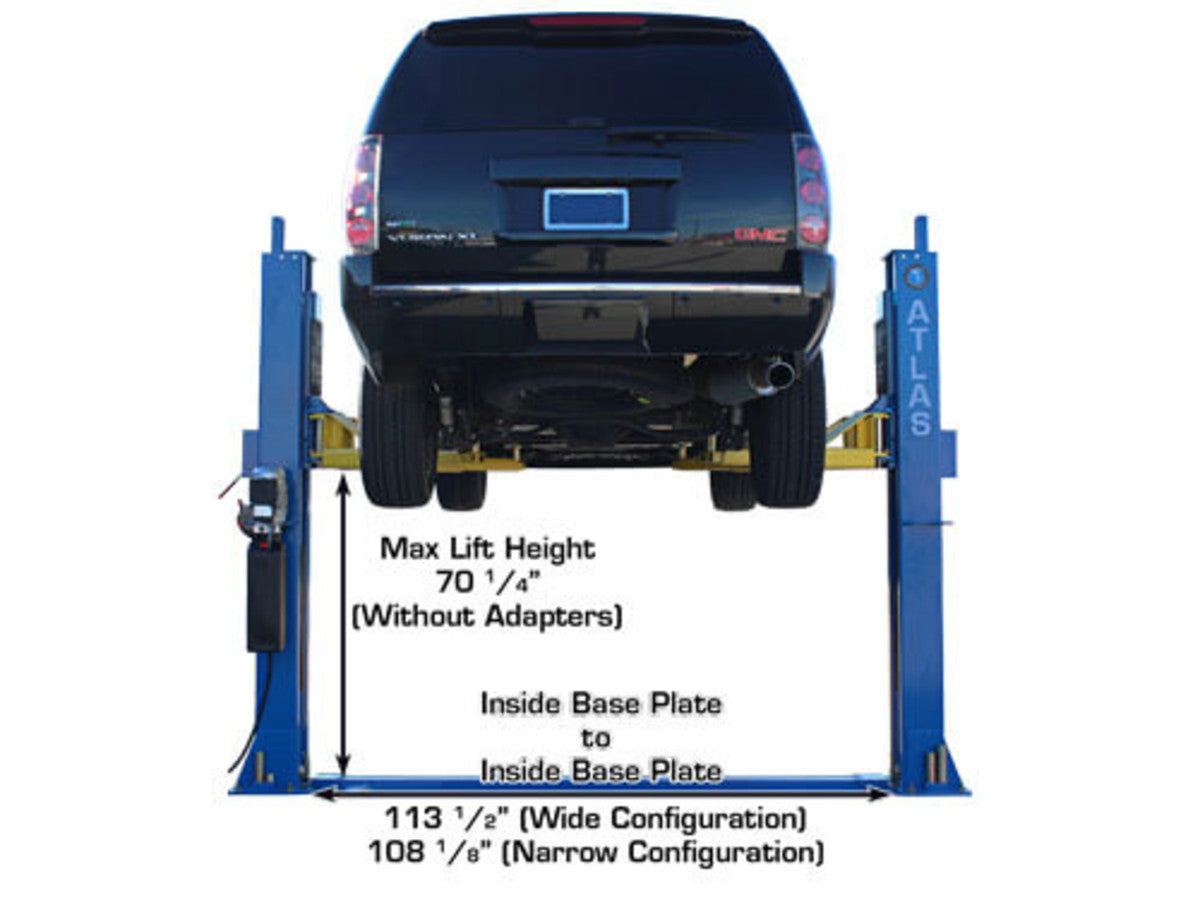

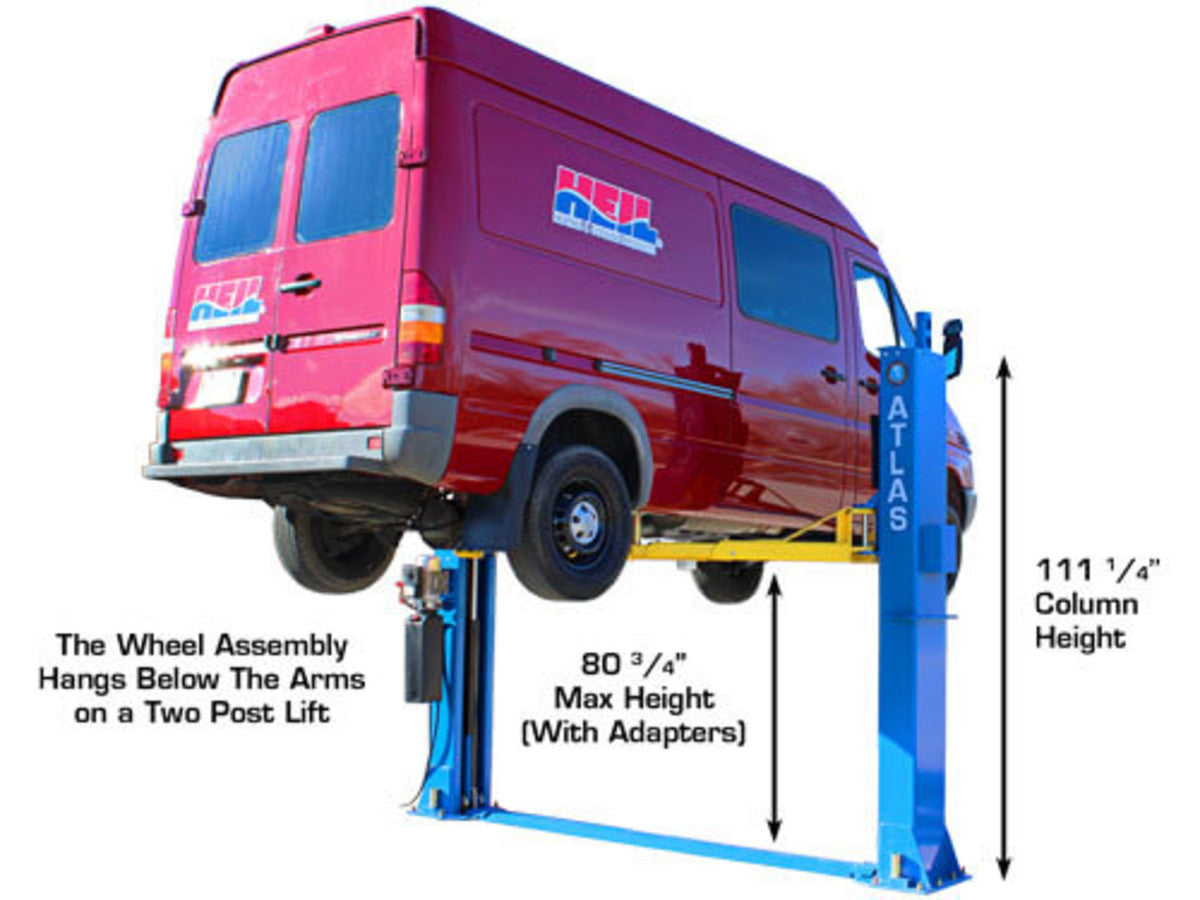

- Maximum Lift Height (Without Adapters): 77 1/2"
- Maximum Lift Height (With Adapters): 88 1/2"

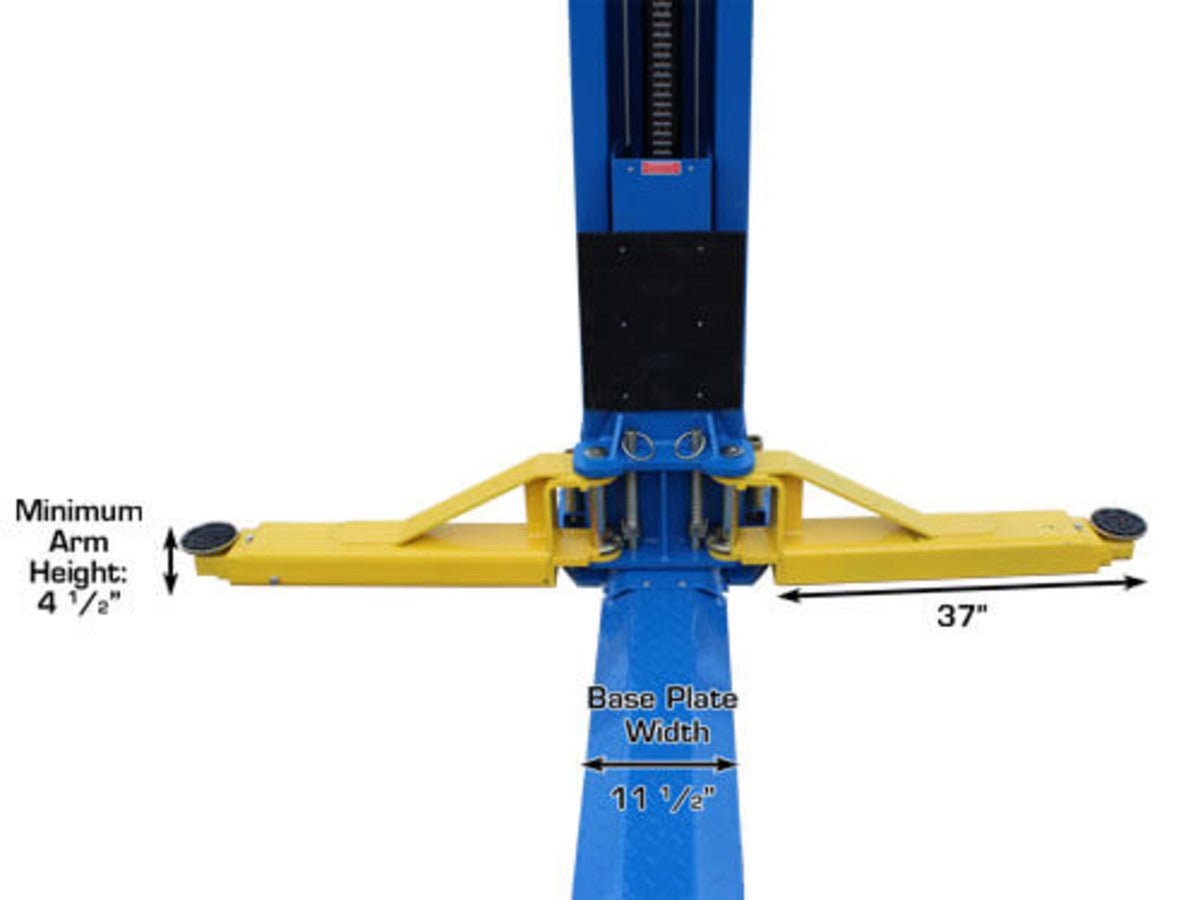

- Minimum Arm Height: 4"

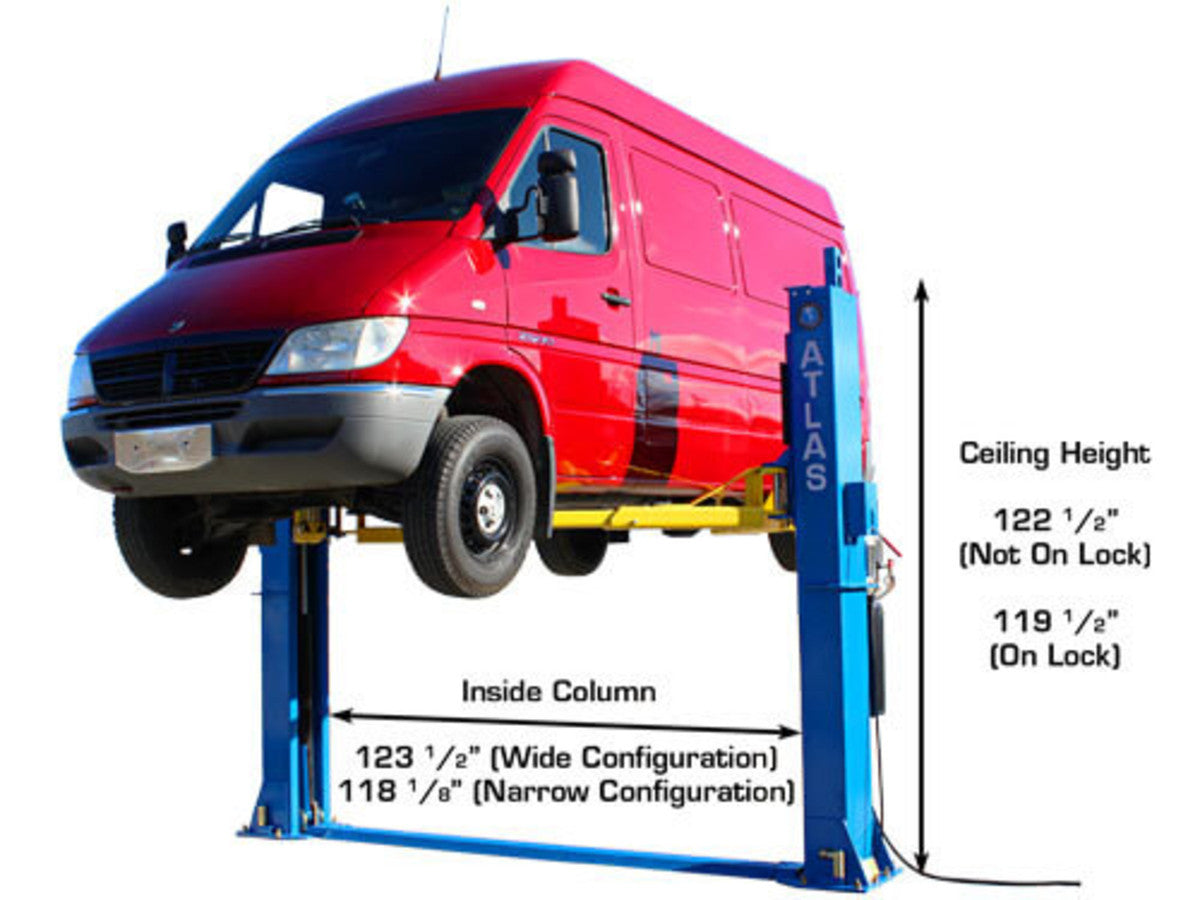

- Inside Column: 118 1/8” (9' 10 1/8”) or 123 1/2" (10' 3 1/2")

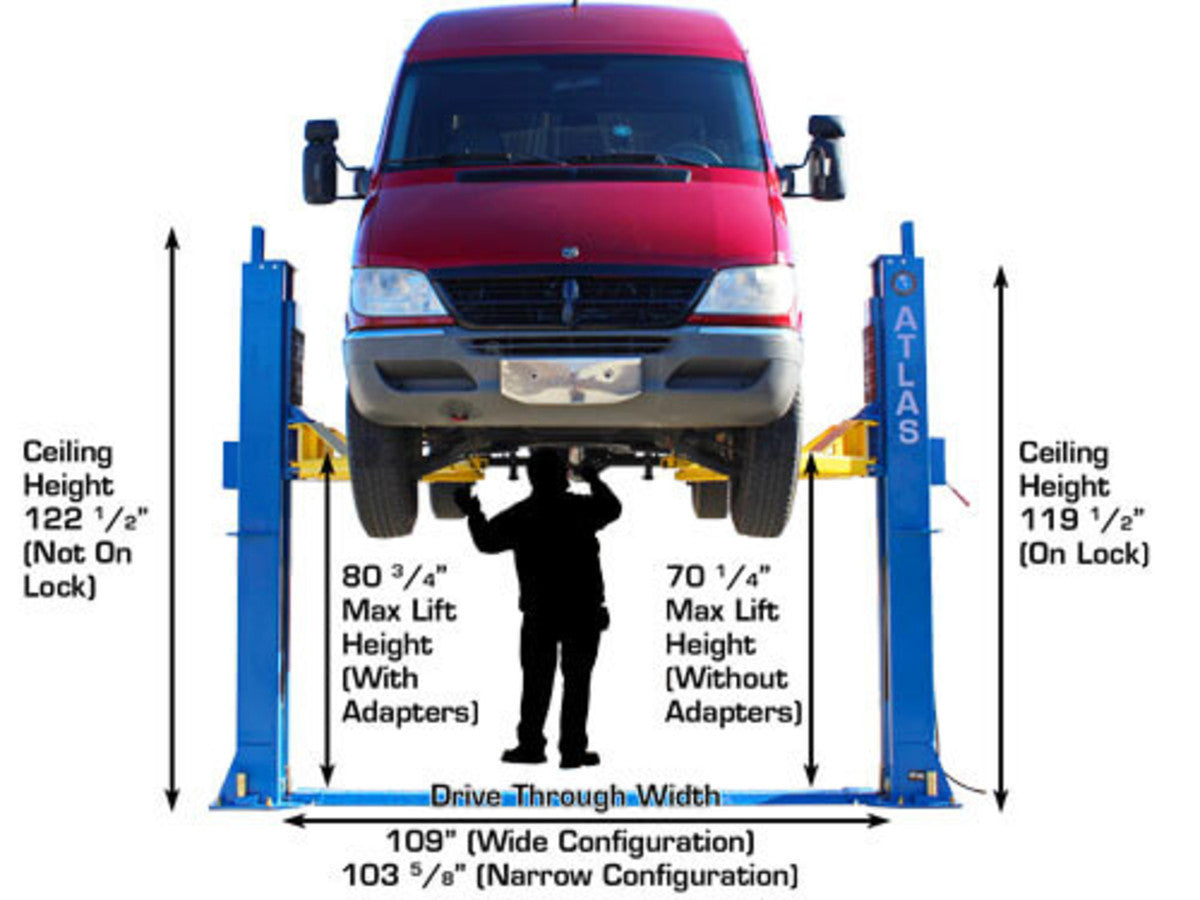

- Drive Thru: 103 5/8” (8' 7 5/8”) or 109” (9' 1”)

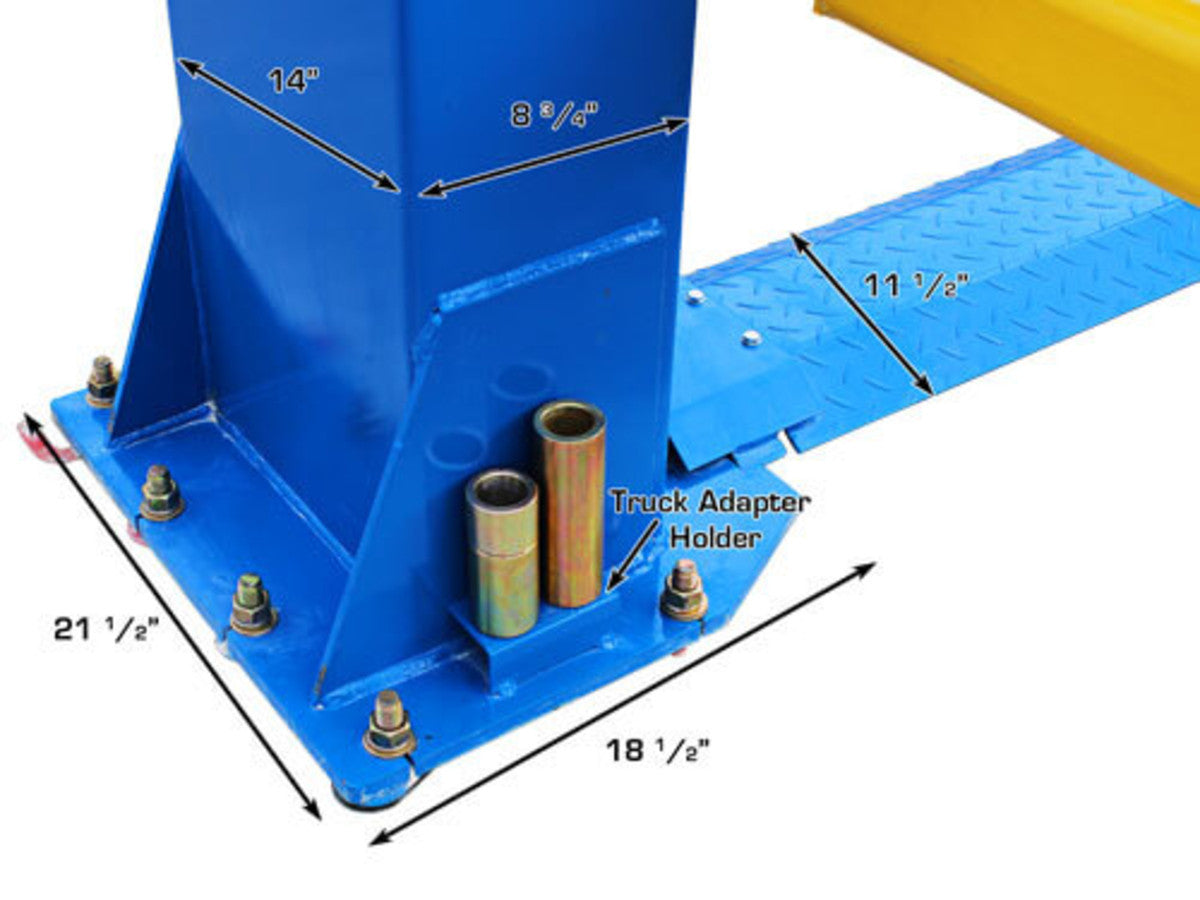

- Column Size: 8 3/4" x 14"
- Base Of Lift: 18 1/2" x 21 1/2"

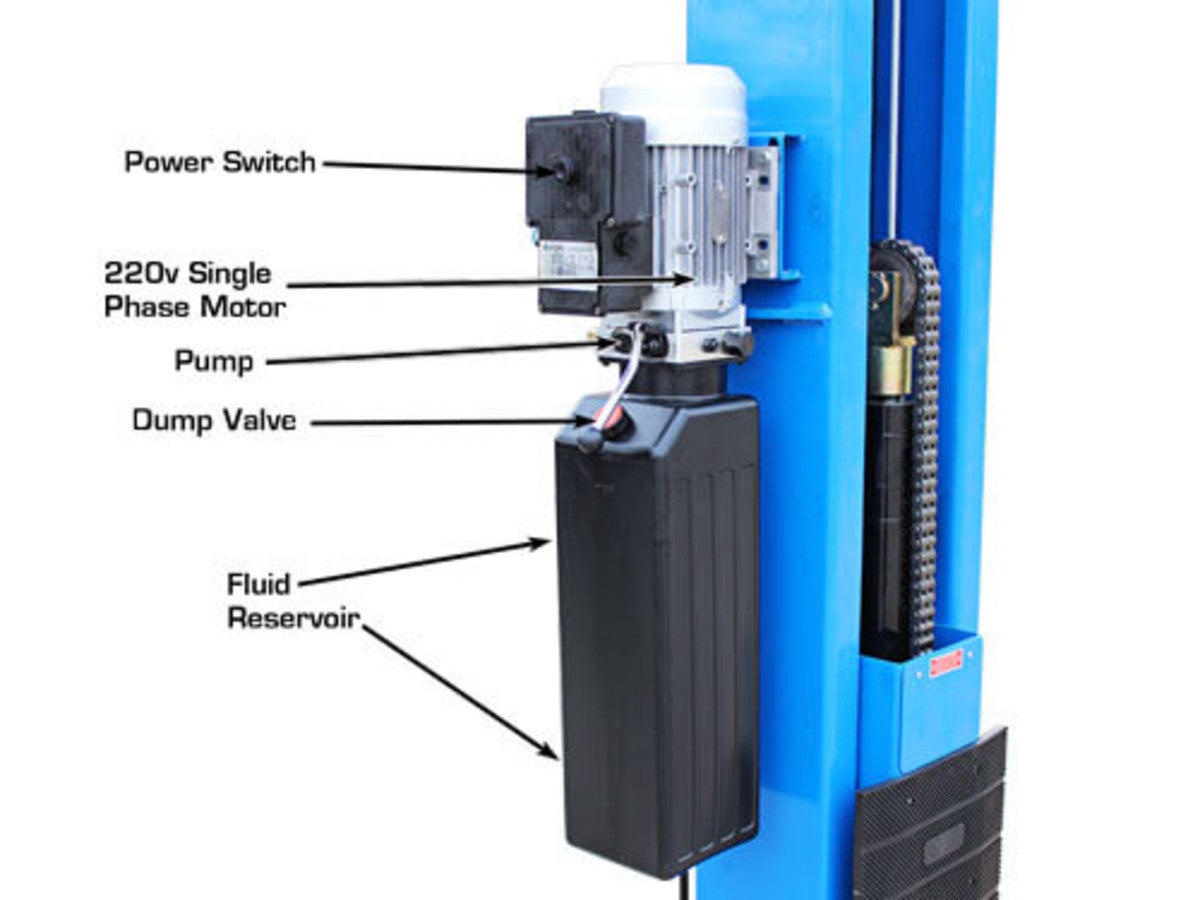

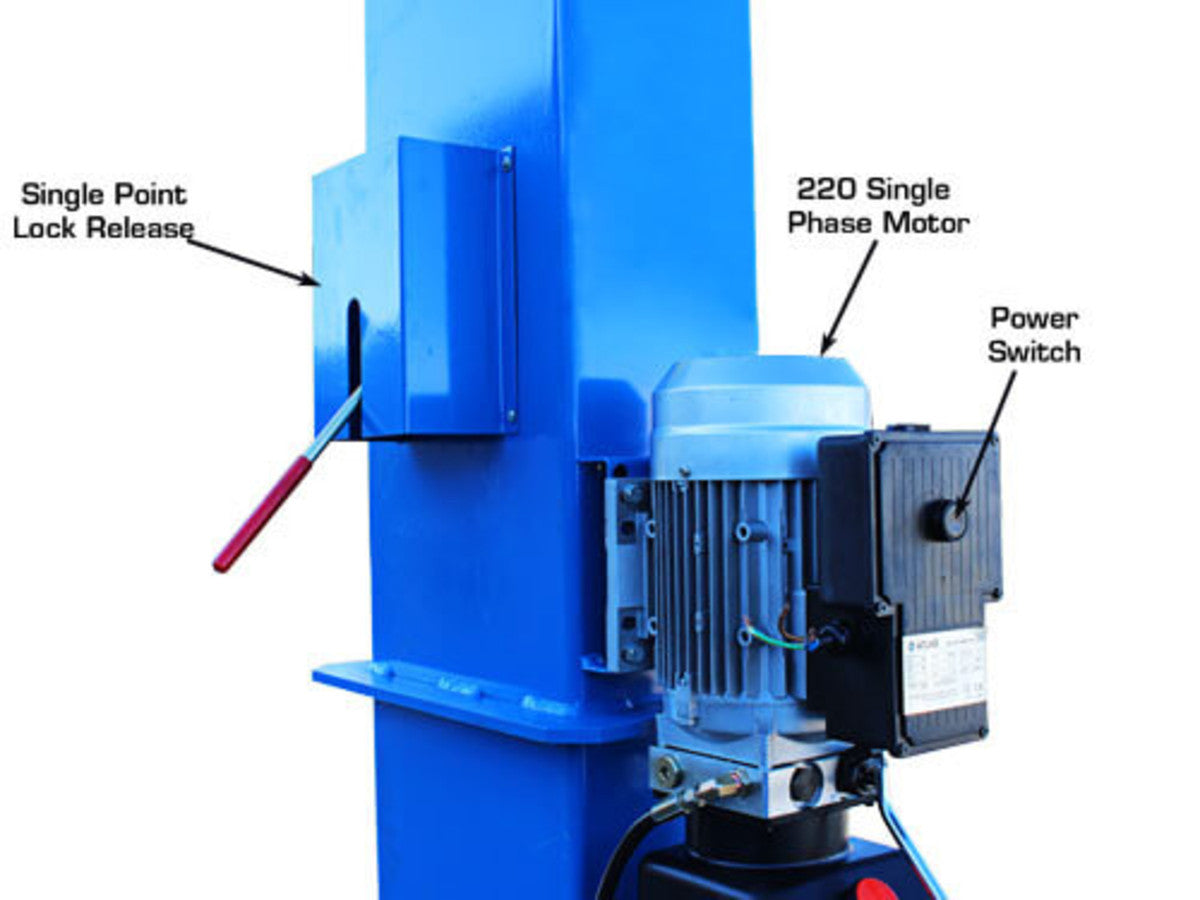

- Motor/Electrical Requirement: 220 volt single (1) phase.A 30 amp breaker is recommended
- Oil Requirement: 3-5 Gallons AW32/AW46 (NOT INCLUDED)
- Shipping Weight: 2,130 LBS.

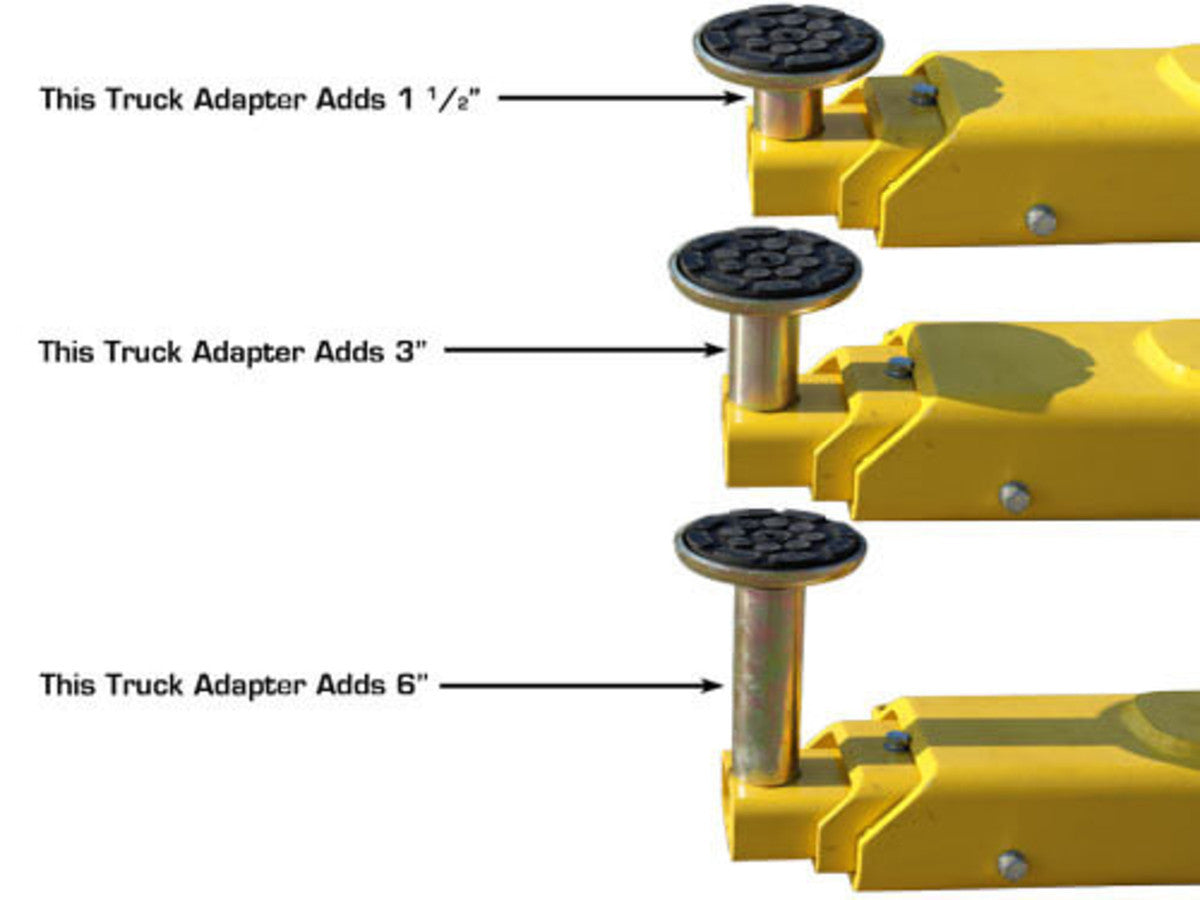

- Adapter Heights: 4 Each 2”, 3”, 6”
- Arm Hole/Adapter Peg Size: 1.5”
- Requires a minimum of 6" of concrete with a 3000 psi. rating

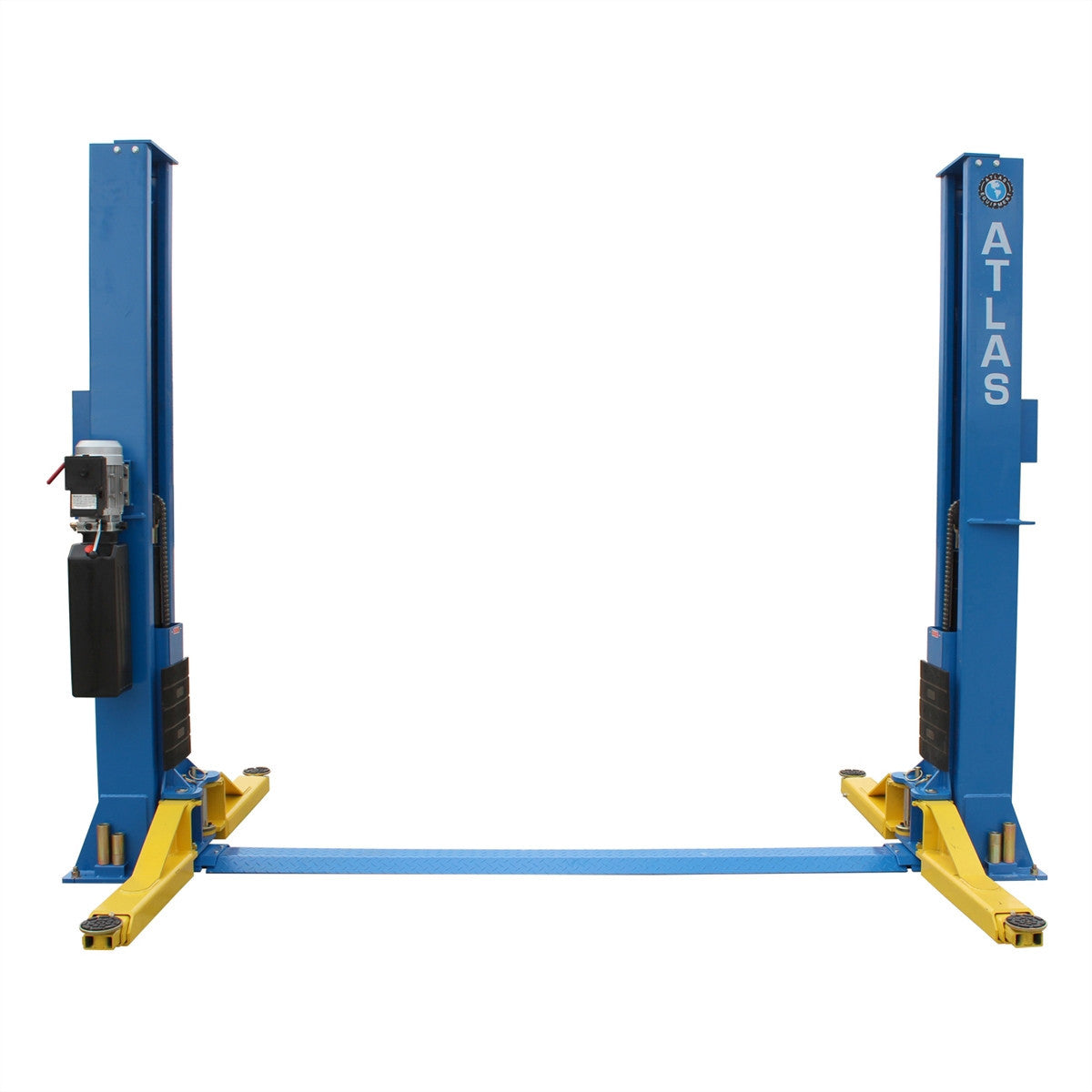

The Atlas BP12000X is a commercial grade heavy duty 12,000 LB. capacity 2 post base plate above ground lift. This above ground lift has over sized columns, symmetric three stage arms, and single point lock release. This lift is perfect for those commercial garages that want to lift heavier vehicles but have limited ceiling height. The Atlas BP12000X can be installed at two different width settings to accommodate wider trucks or trailers and to facilitate “driving between” the lift columns.
Document. Atlas ATTD-BP12000X ManualDocument. Atlas BP12000 Cylinder Bleeding Procedure (Do this immediately after installation)
Delivery is by pallet at a minimum of $70. If ordering before 2pm we can delivery next day for $50 otherwise orders are 3-5 working days.
We only deliver within a 10mile radius of our site.
