Atlas Automotive Equipment BP8000 Baseplate 2-Post Lift 8,000 lb. Capacity (WILL CALL)
SKU Number:
ATEATTD-BP8000
Regular price
$3,099.00
Pickup currently unavailable
Features and Benefits:
- 8,000 lb. Capacity
- Hobbyist Grade Lift ‐ Not intended for heavy commercial use
- Baseplate, Open-Top Style Lift

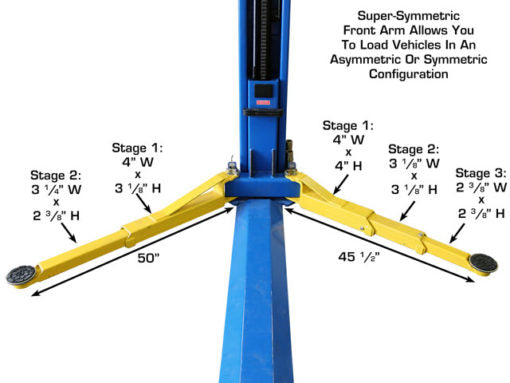

- 3-Stage front arms/2-Stage rear arms

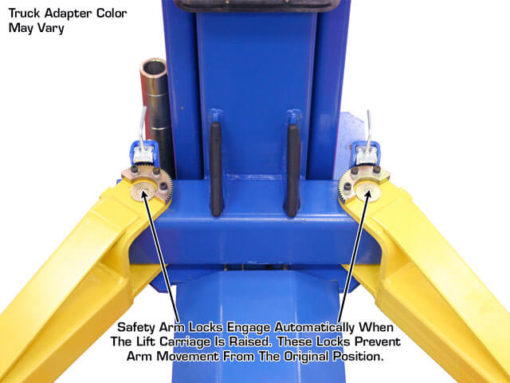

- Automatic Arm Restraints

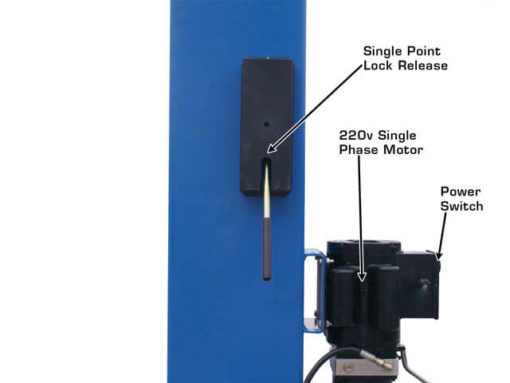

- Single-Point Lock Release
- Double Safety Lock System

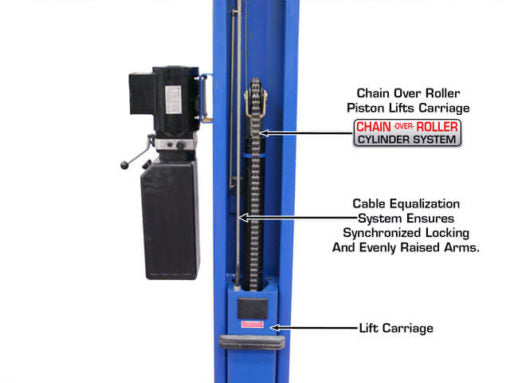

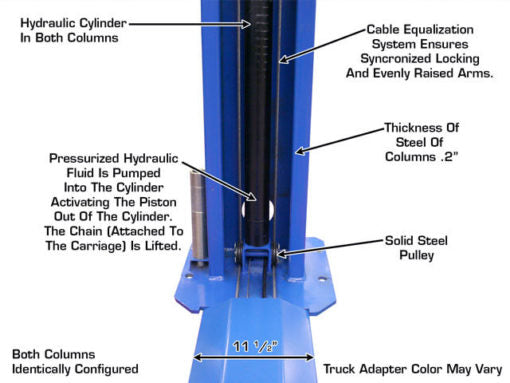

- Dual Hydraulic Chain-Drive Cylinders

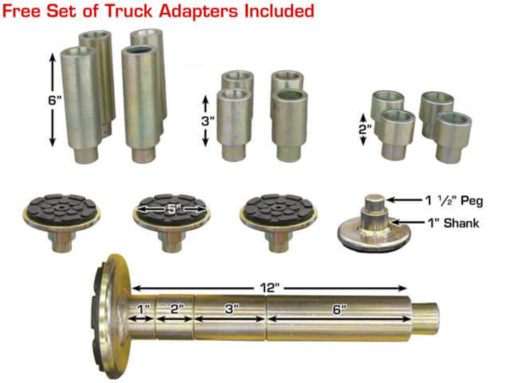

- Free 12 Piece Truck Adapter Set
- Mounting Hardware Included

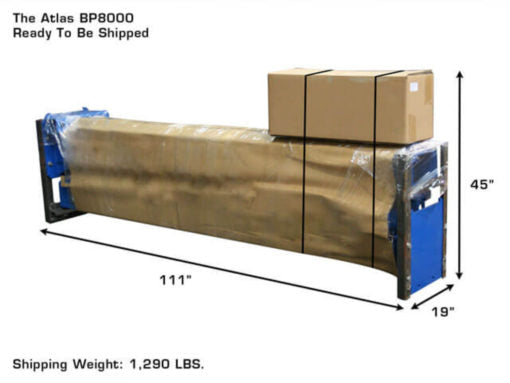

- Shipping Weight: 1,300 lbs.
- 5 yr Structural ‐ 2 yr Hydraulic Warranty ‐ Parts Only
Atlas ATTD-BP8000 Specifications
- Capacity: 8,000 LB.

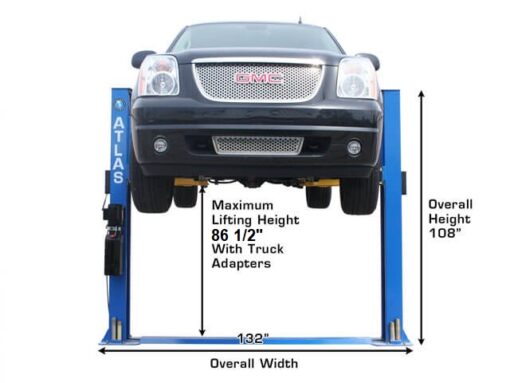

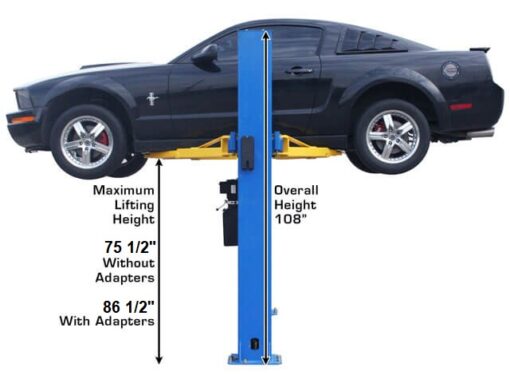

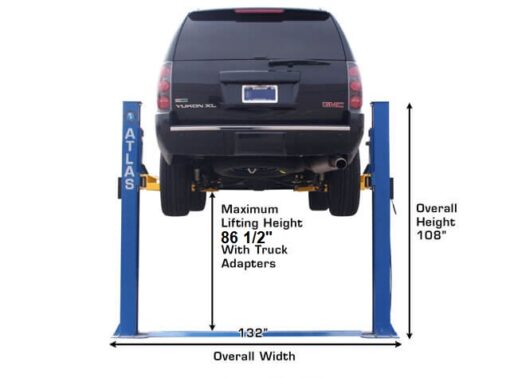

- Overall Height: 108" (9')

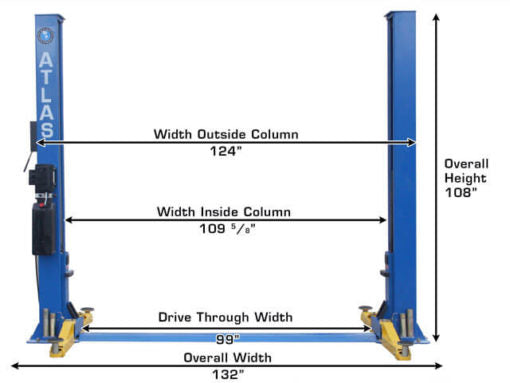

- Overall Floor Width: 132" (11')
- Outside Column to Outside Column: 124" (10' 4")

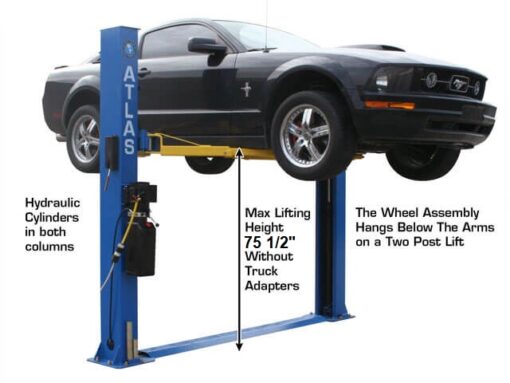

- Maximum Lift Height (Without Adapters): 75 1/2"
- Maximum Lift Height (With Adapters): 86 1/2"
- Minimum Arm Height: 4"
- Inside Column: 109 1/8” (9' 1 1/8”)

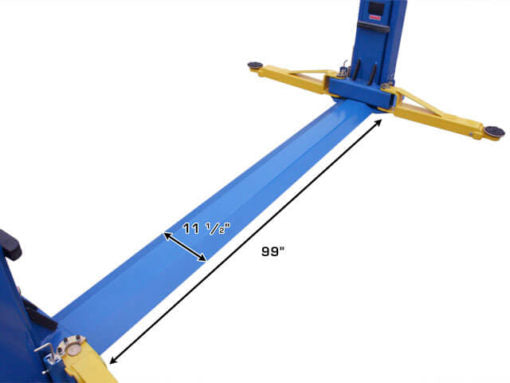

- Drive Thru: 99” (8' 3”)

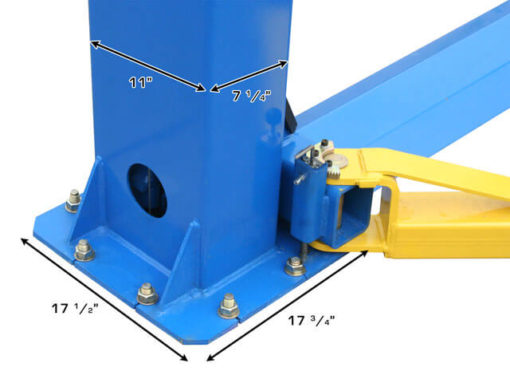

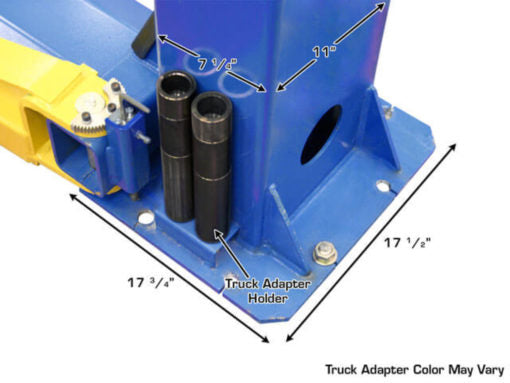

- Column Size: 7 1/4" x 11"
- Base Of Lift: 17 1/2" x 17 3/4"

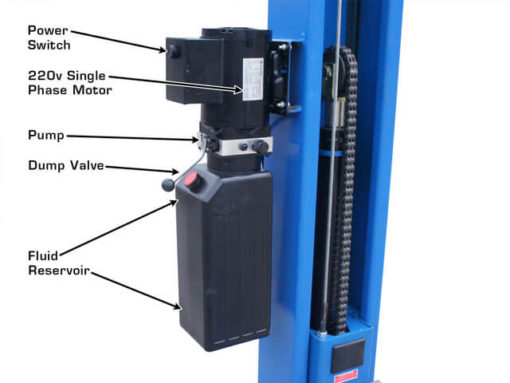

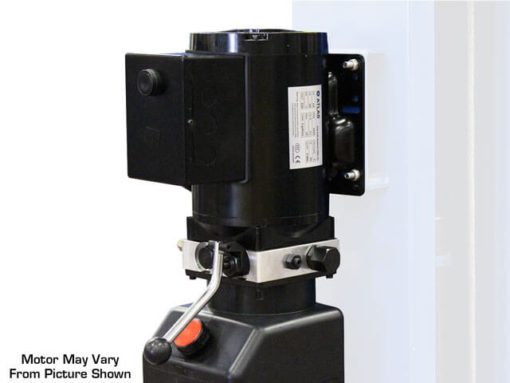

- Motor/Electrical Requirement: 220 volt single (1) phase. A 30 amp breaker is recommended
- Oil Requirement: 3-5 Gallons AW32/AW46 (NOT INCLUDED)
- Shipping Weight: 1,300 LBS.

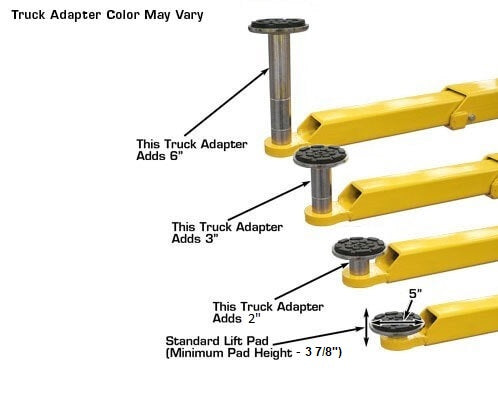

- Adapter Heights: 4 Each 2”, 3”, 6”
- Arm Hole/Adapter Peg Size: 1.5”
- Requires a minimum of 4" of concrete with a 3000 psi. rating

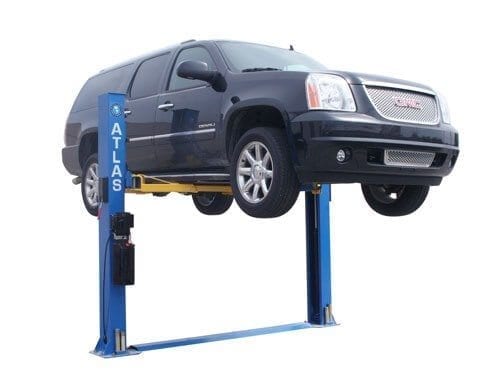

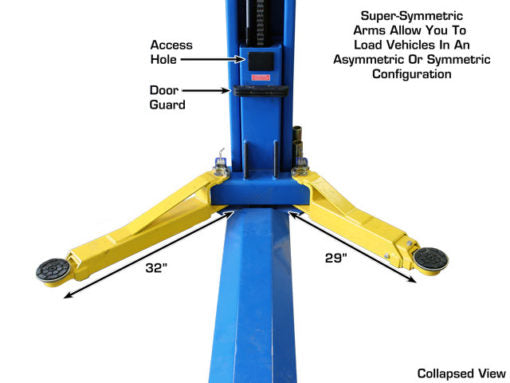

The Atlas BP8000 is a baseplate two-post lift designed for low ceiling garages. The total column height of 108 inches or 9 feet allows this lift to be installed in almost any professional or home garage with a ceiling as low as 9 foot 3 inches. The BP8000 also has many of the popular features found on larger more expensive lifts, including a single-point lock release, Super-symmetric arms, and a twelve piece truck adapter set.
Document. Atlas BP8000 ManualDocument. Atlas BP8000 Cylinder Bleeding Procedure (Do this immediately after installation)
Delivery is by pallet at a minimum of $70. If ordering before 2pm we can delivery next day for $50 otherwise orders are 3-5 working days.
We only deliver within a 10mile radius of our site.
