Atlas Automotive Equipment OHX10000X Commercial Grade Extra Tall 2-Post Lift 10,000 lb. Capacity

Features and Benefits:

• 10,000 lb. Capacity
• Commercial Grade
• Extra Tall & Extra Wide
• Overall height: 152" (12? 8")

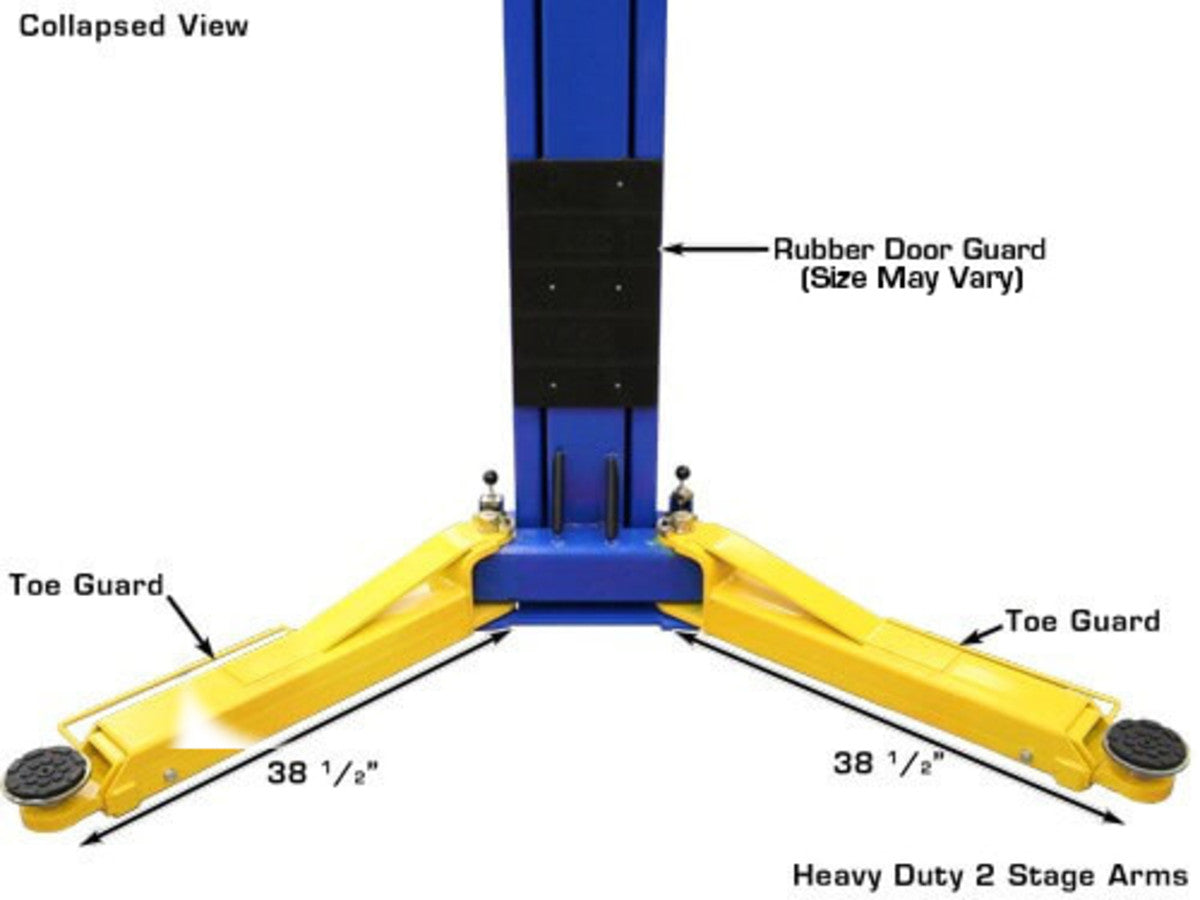

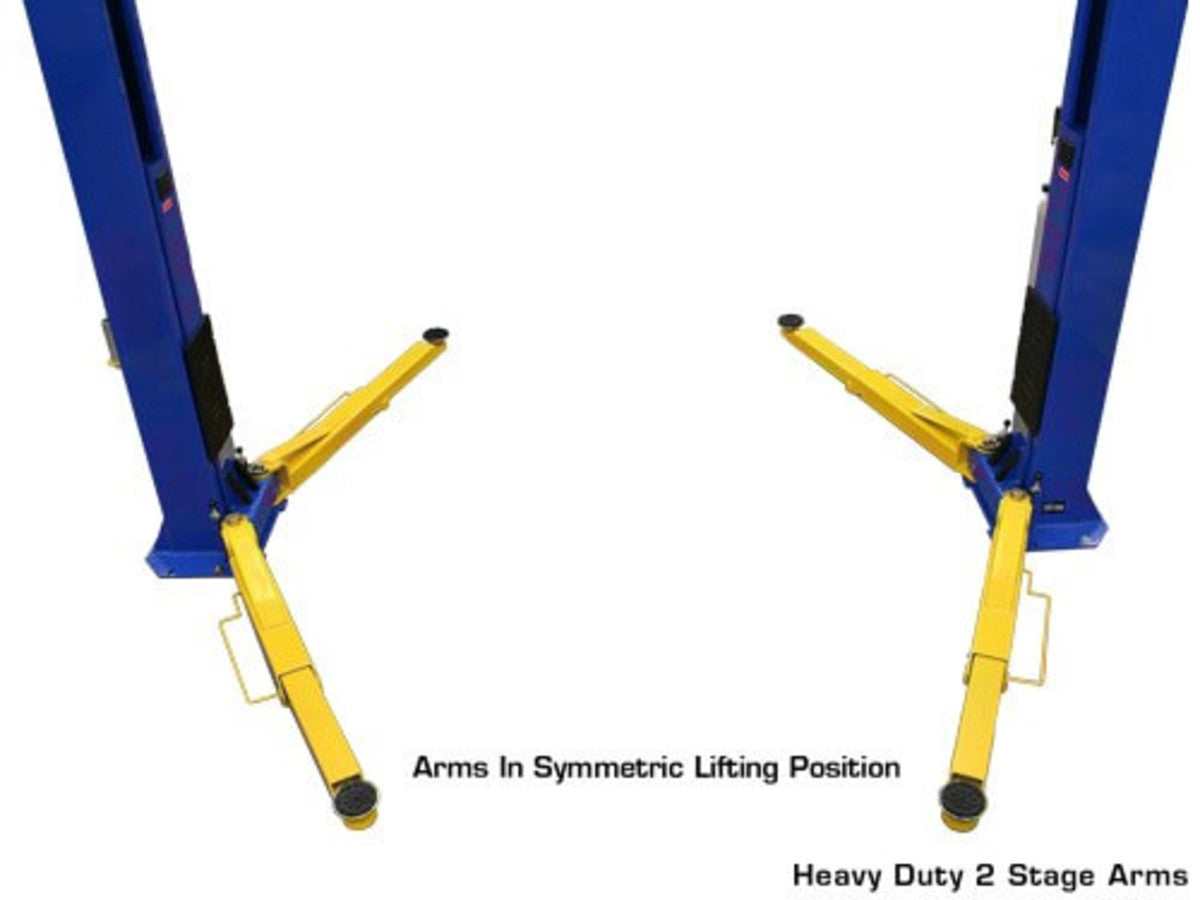

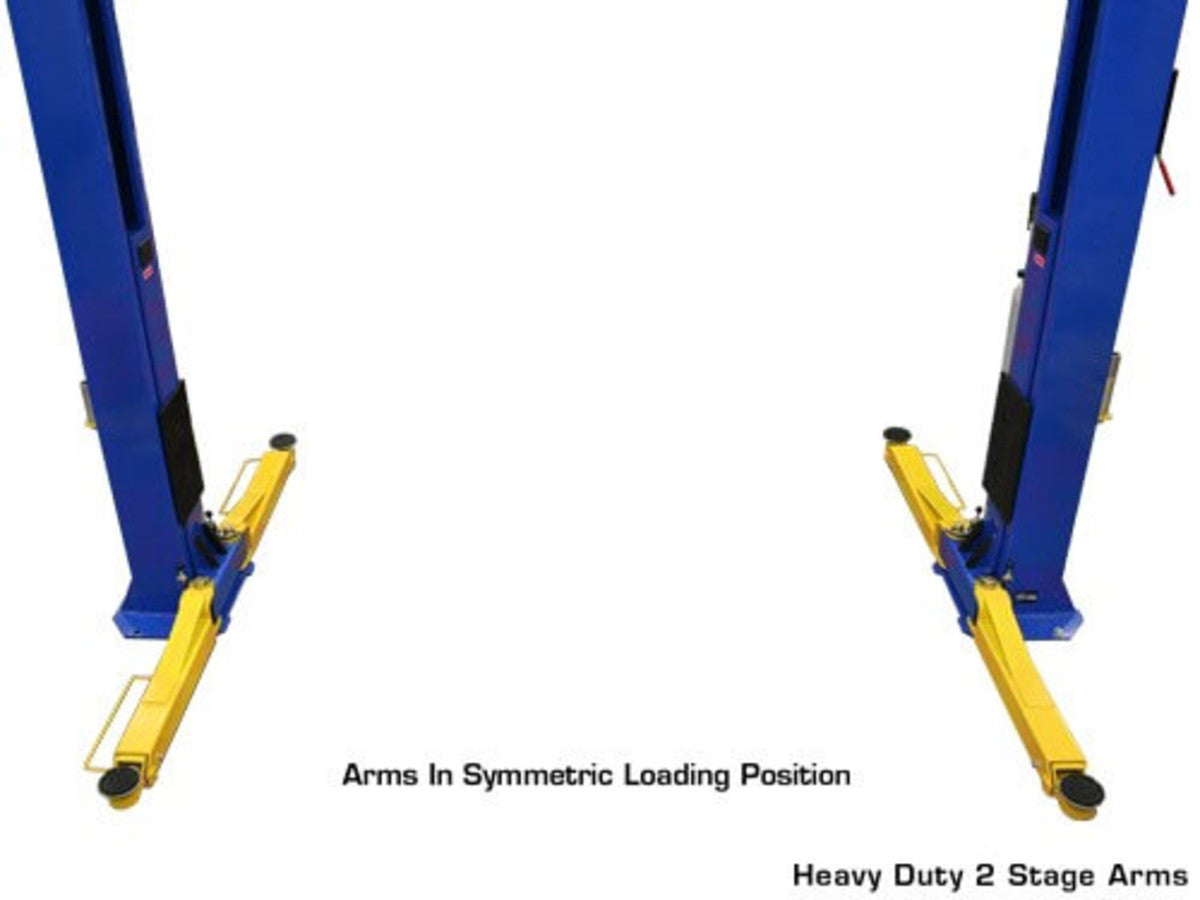

• Symmetric arms

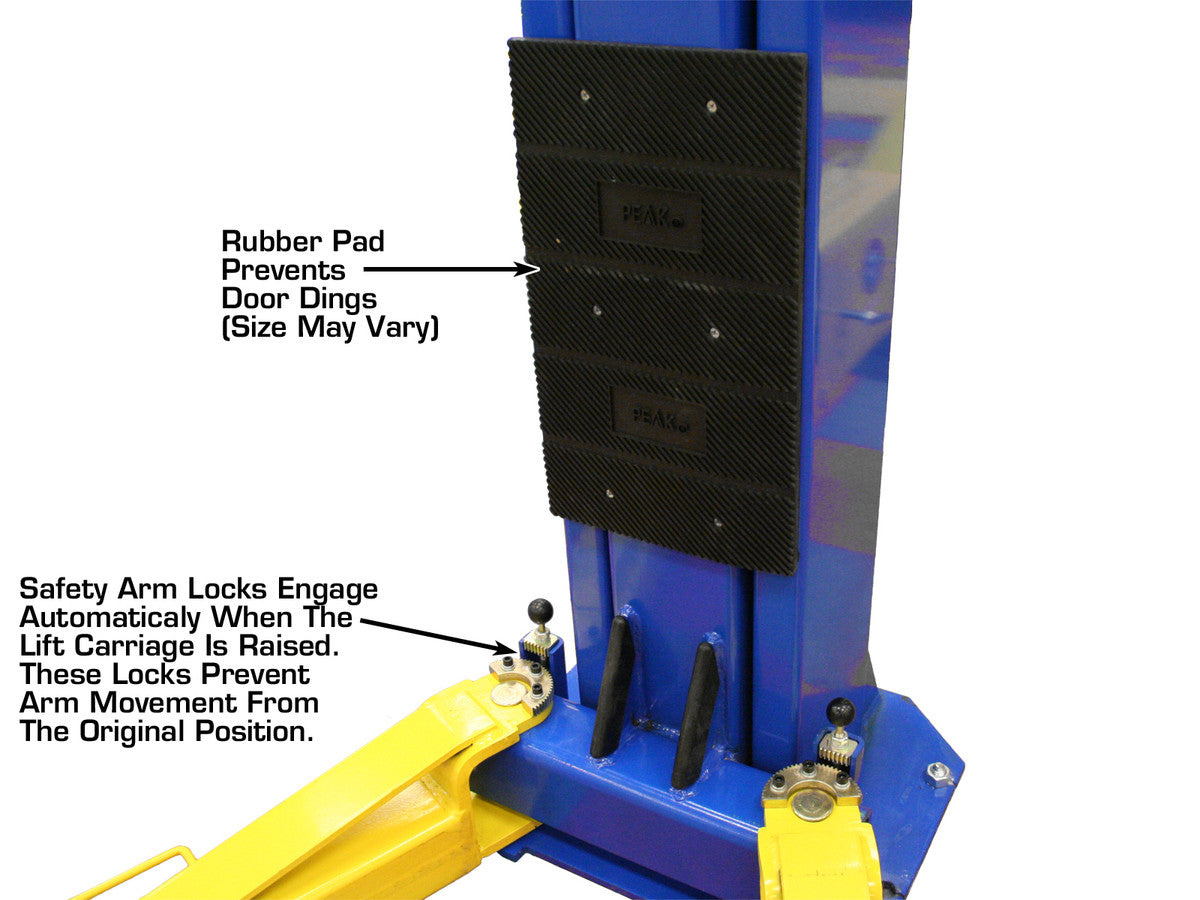

• Automatic Arm Restraints
• “Padded” Shut-Off Bar
• Rubber Covers on Carriages

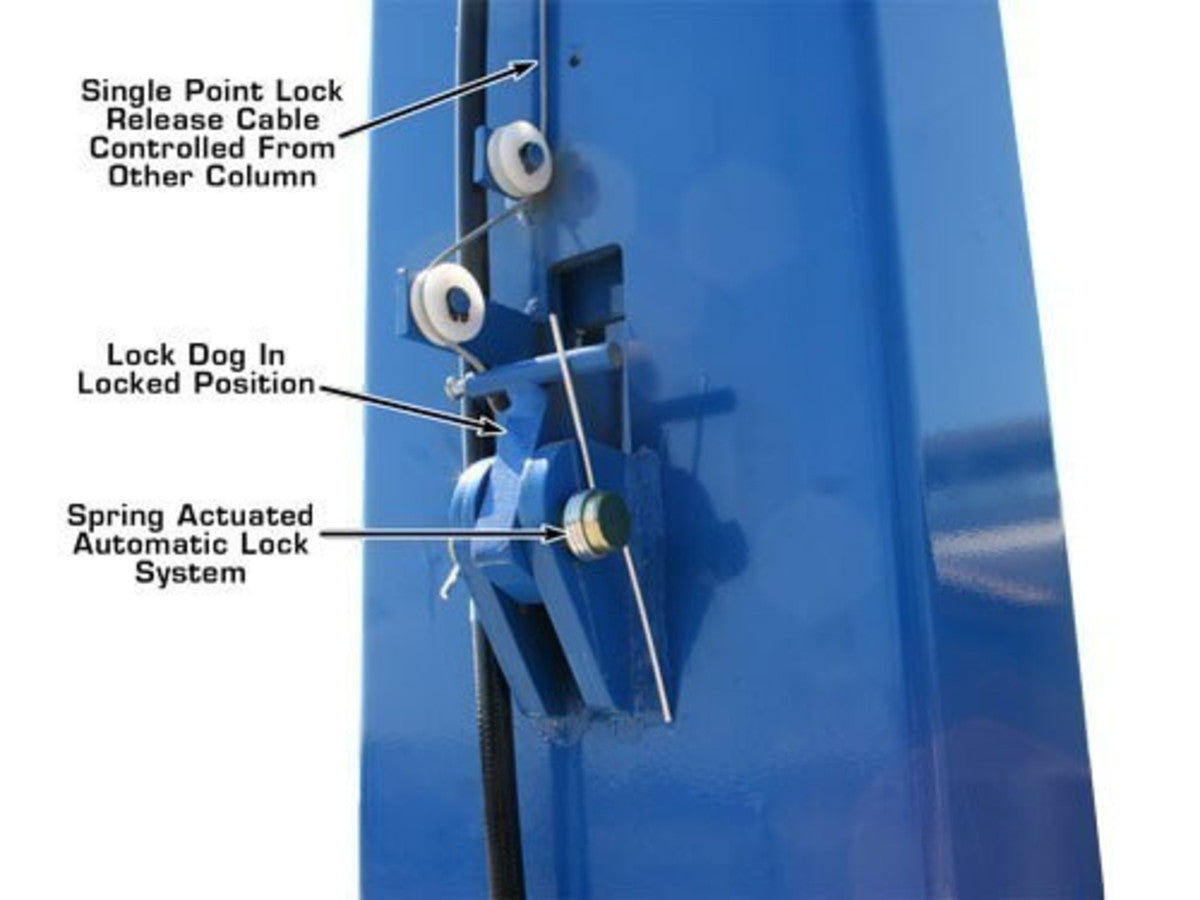

• Single Point Lock Release

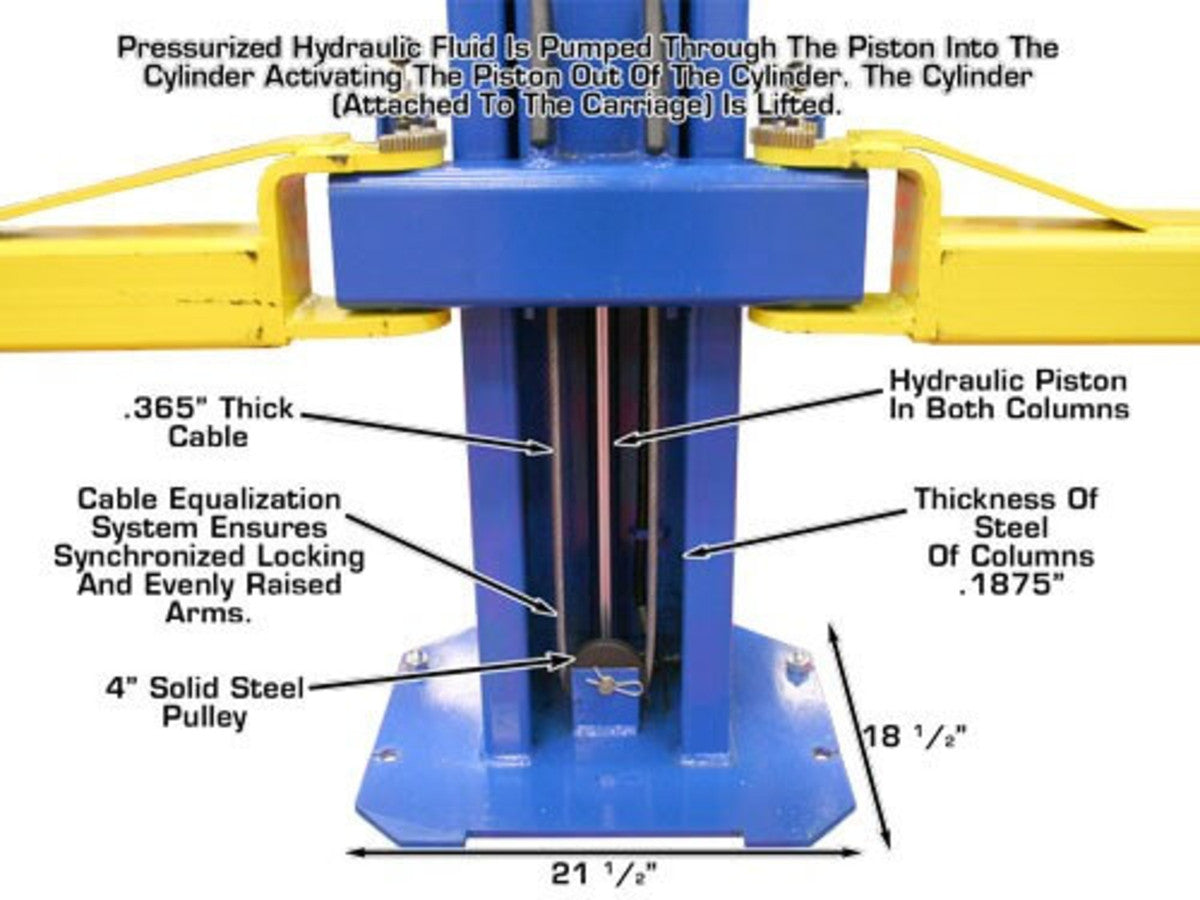

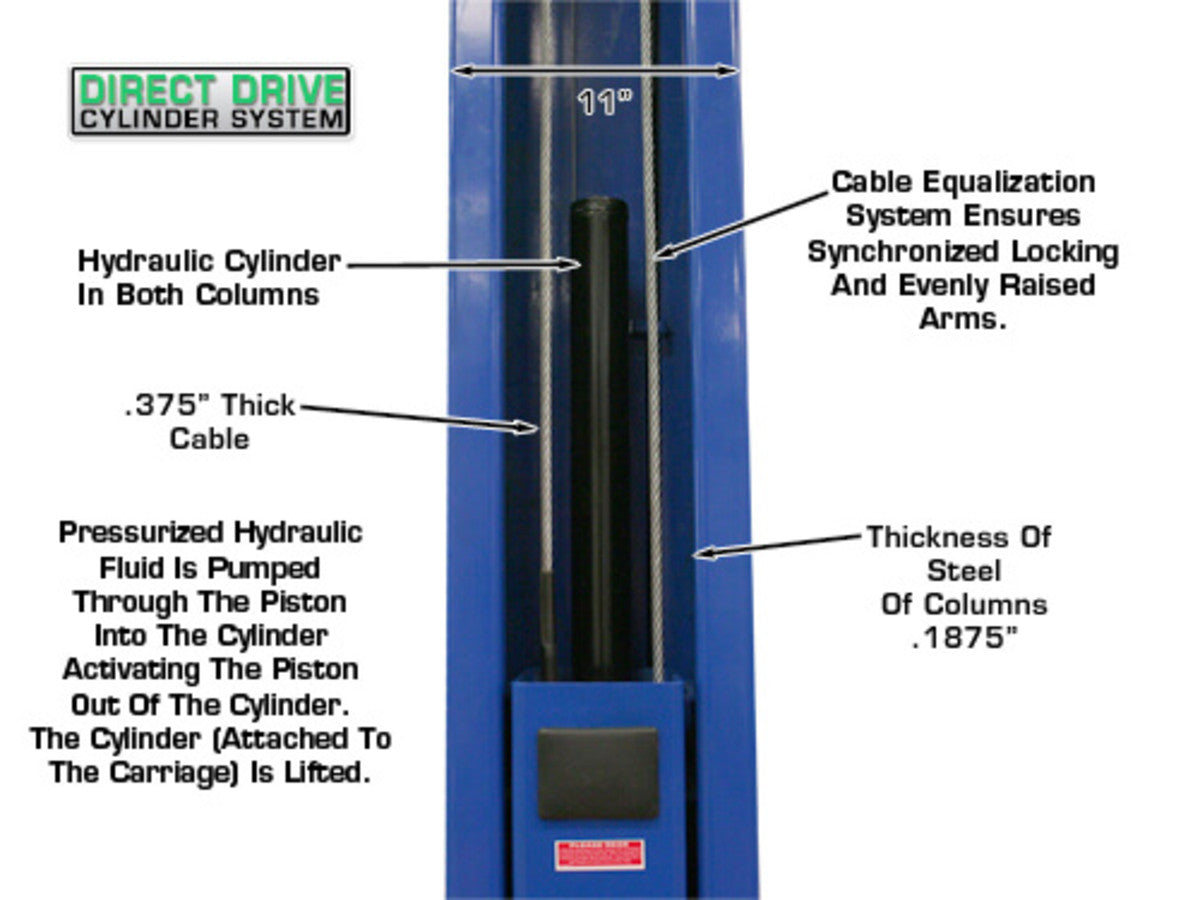

• Dual Direct-Drive Cylinders
• Powder Coat Finish

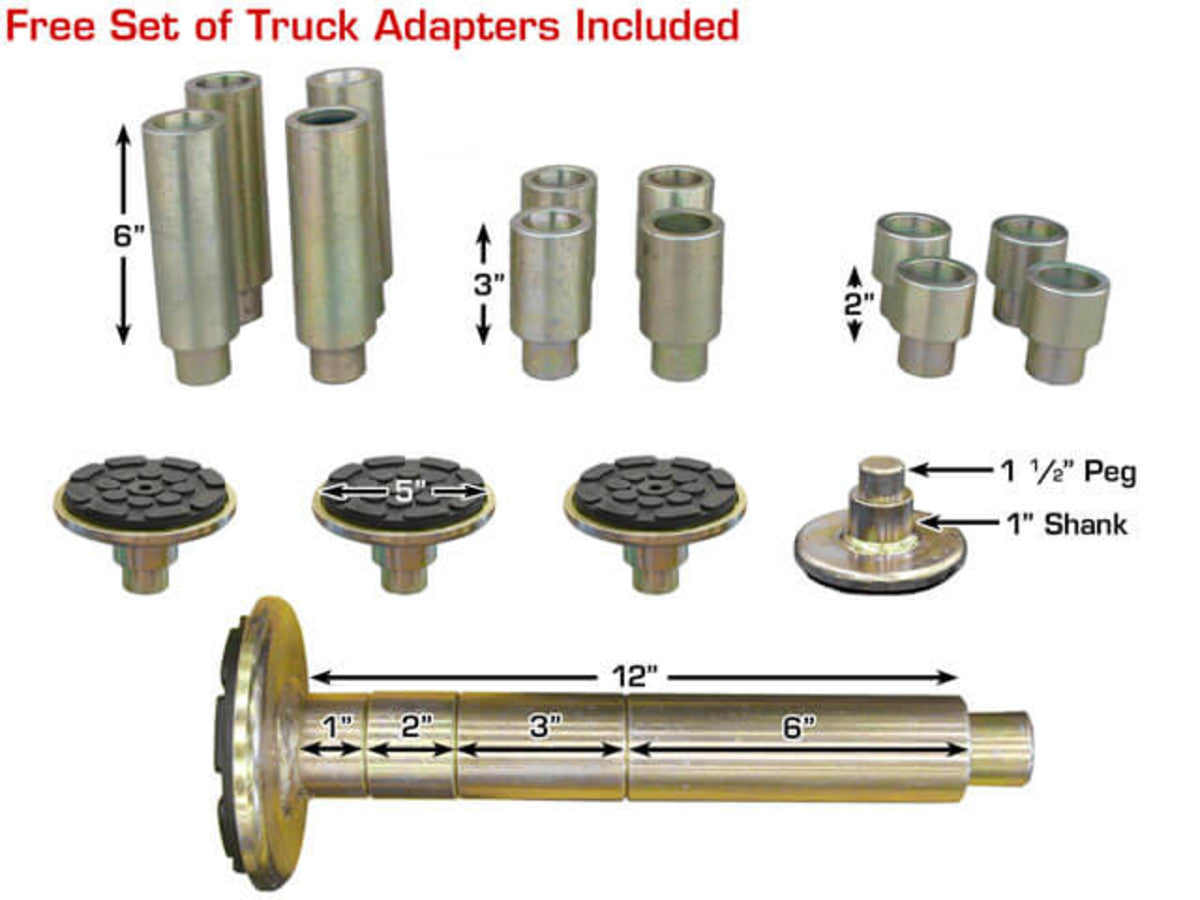

• Free 12 Piece Truck Adapter Set
• Mounting Hardware Included

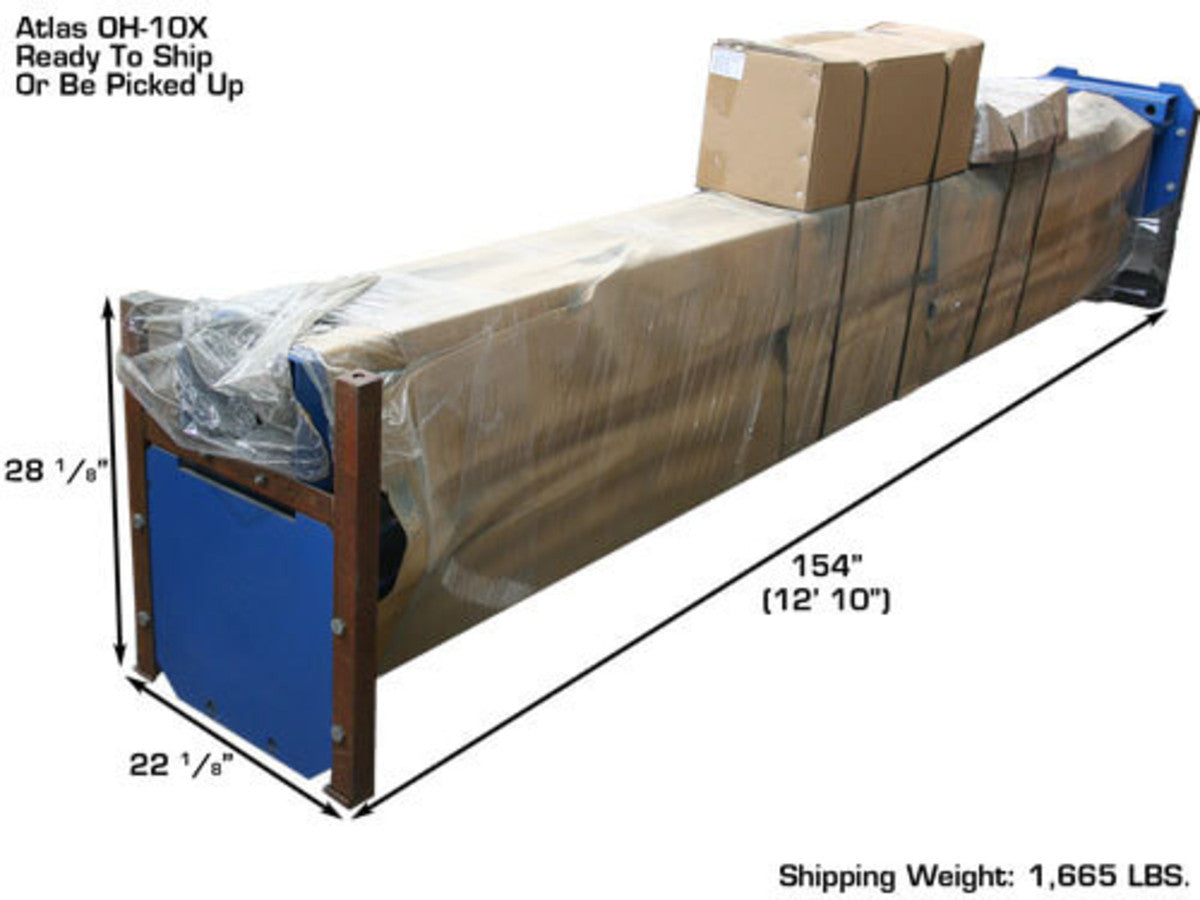

• Shipping Weight: 1,665 lbs
• 5 yr Structural ‐ 2 yr Hydraulic Warranty ‐ Parts Only

Atlas ATTD-OHX10000X Specifications

• Capacity: 10,000 LB.

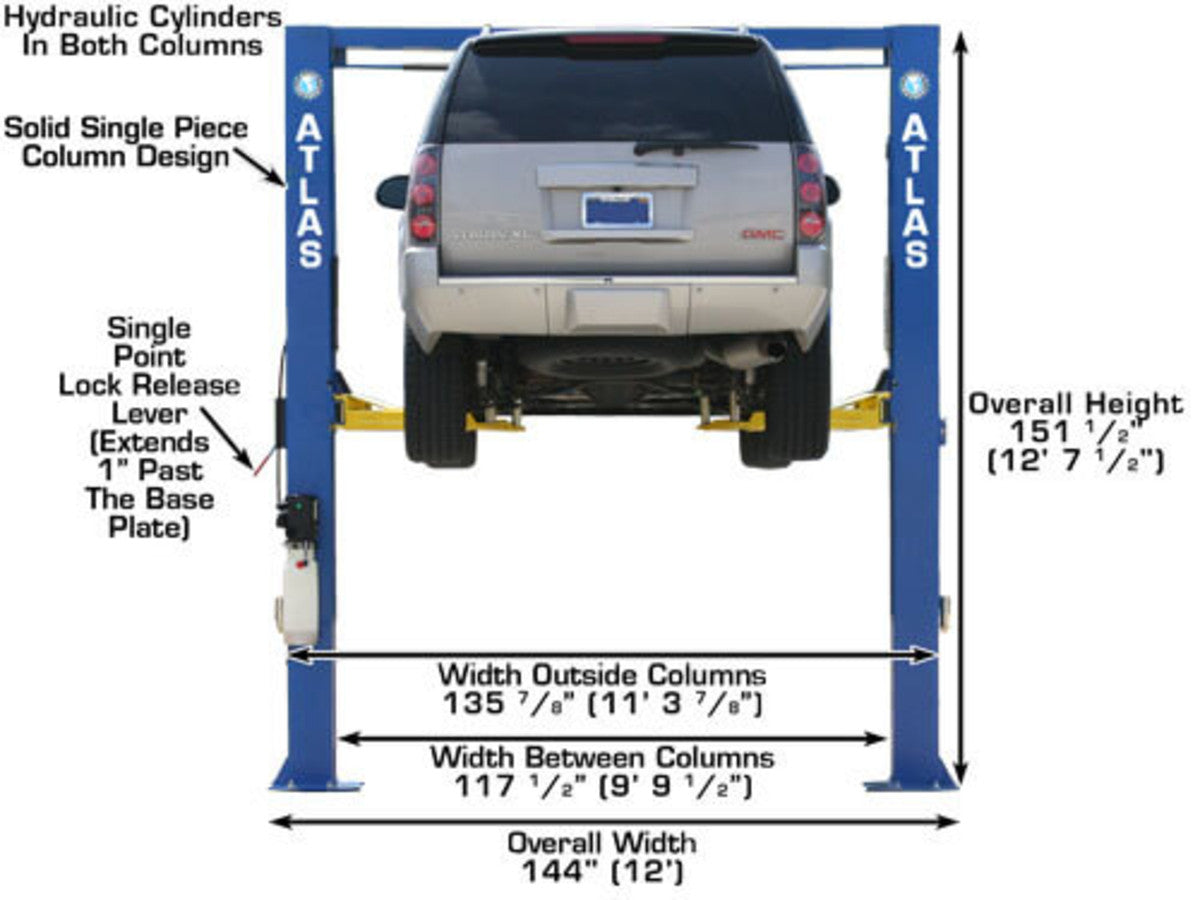

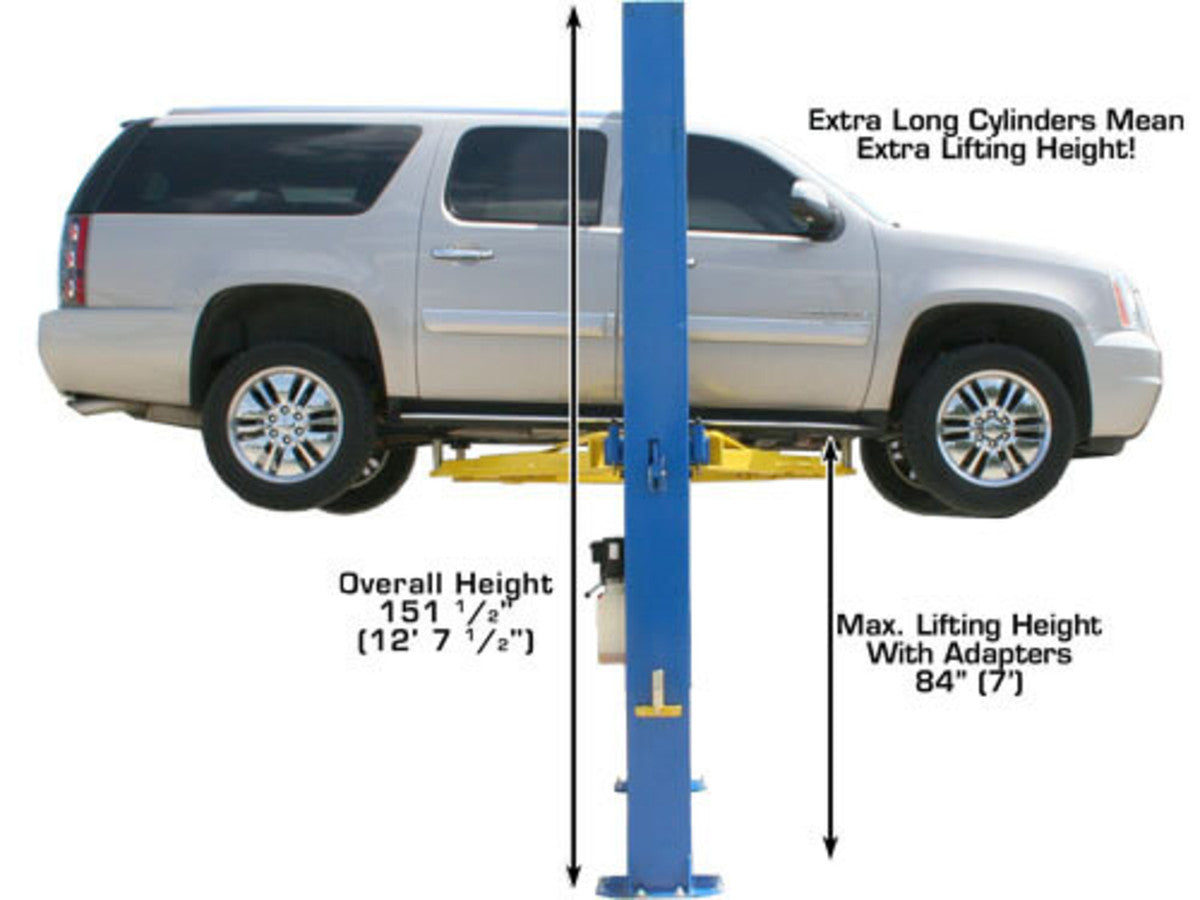

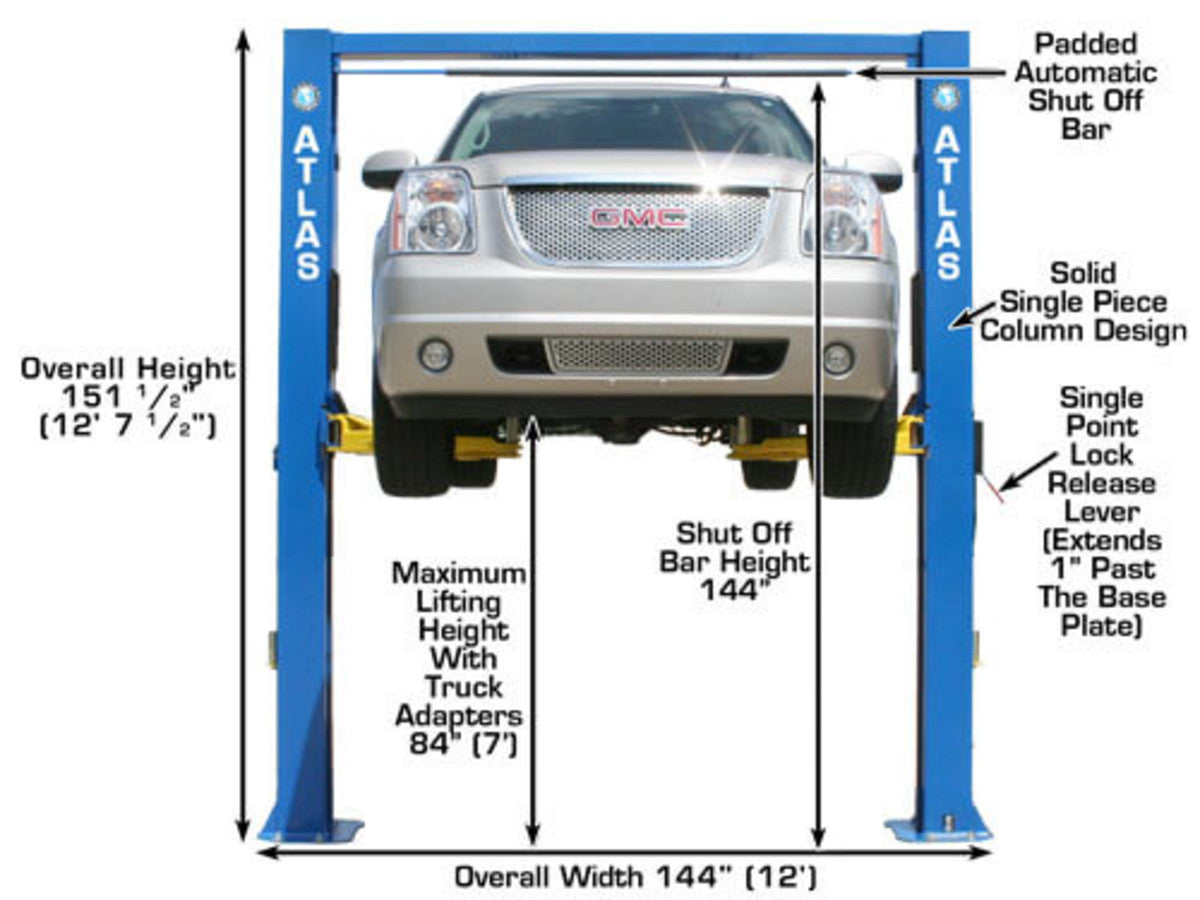

• Overall Height: 152" (12' 8”)
• Overall Floor Width: 144 3/8" (12' 3/8")
• Outside Column to Outside Column: 136" (11' 4")

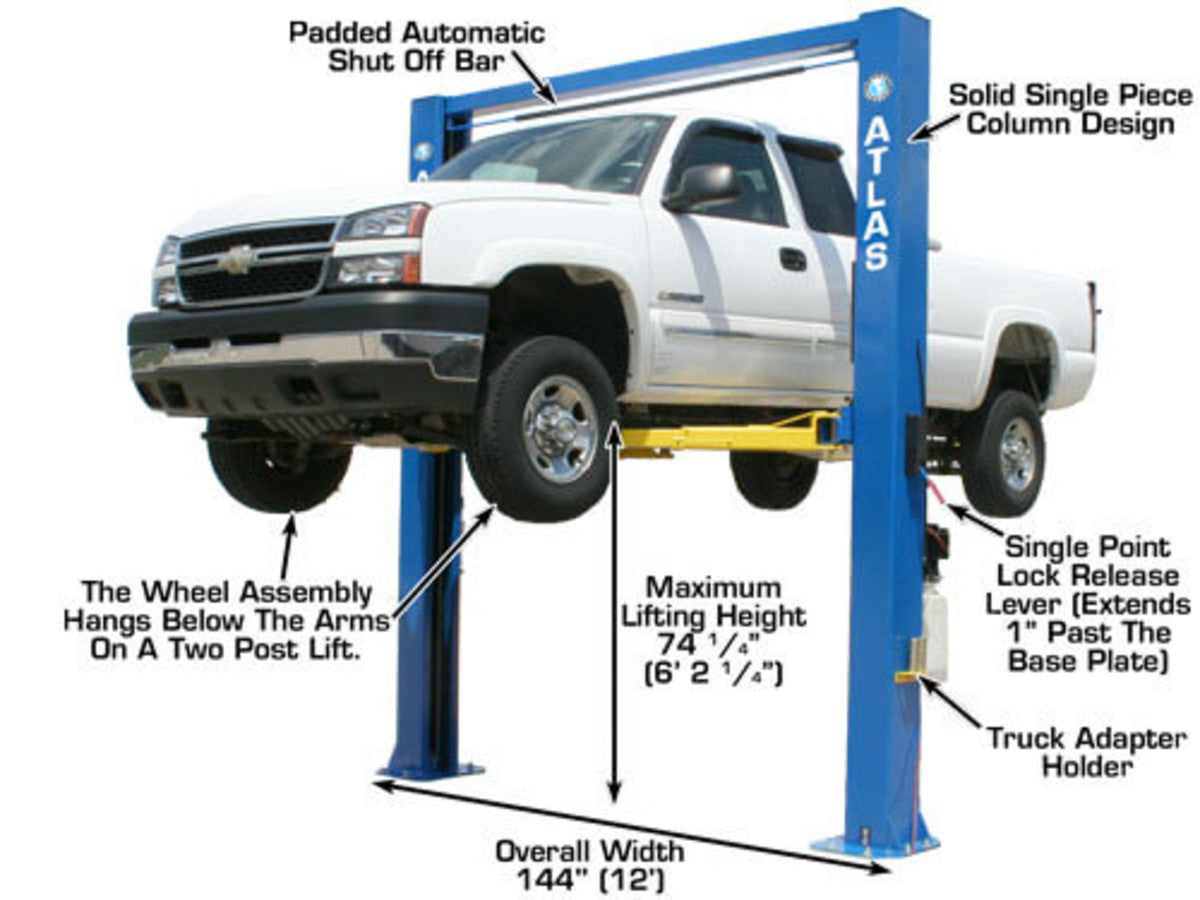

• Maximum Lift Height (Without Adapters): 74 3/4"

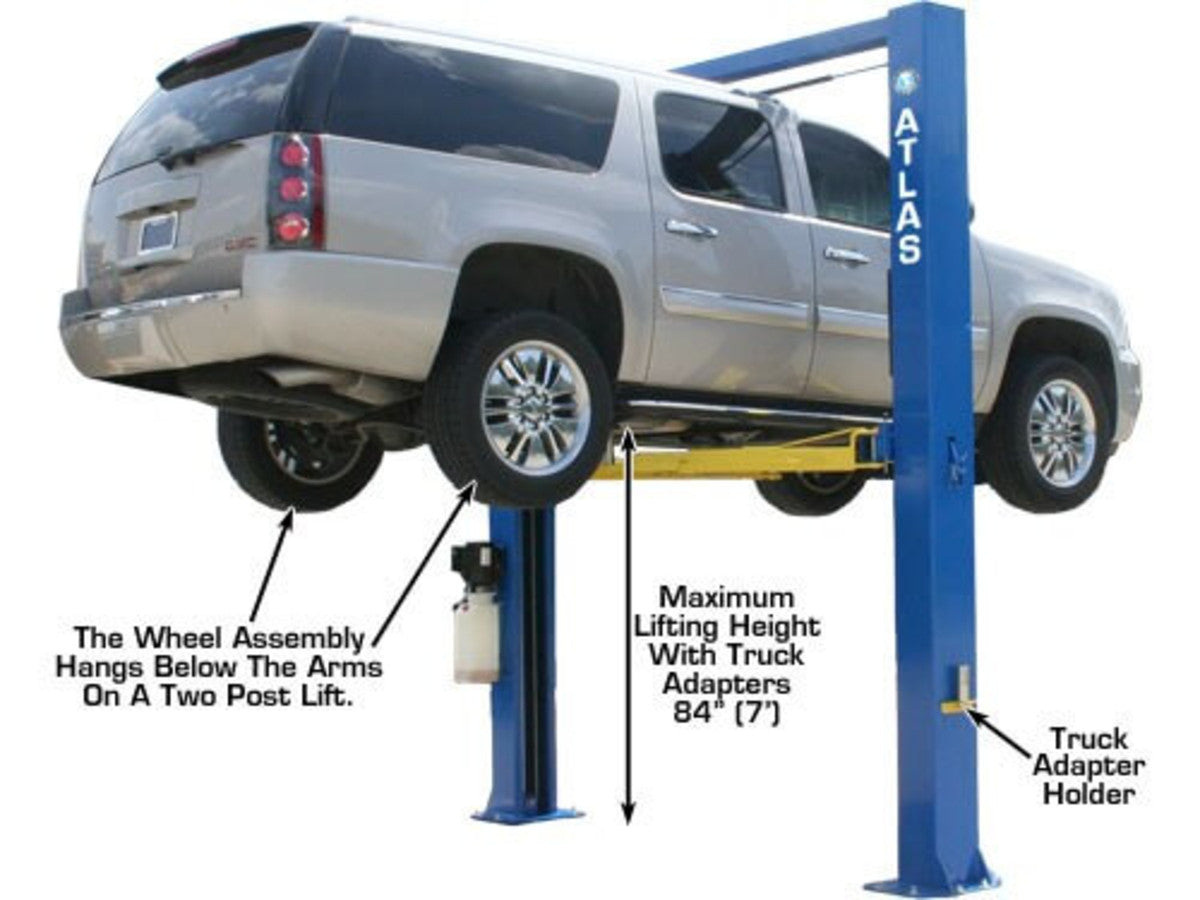

• Maximum Lift Height (With Adapters): 85 3/4"
• Minimum Arm Height: 4 1/2"

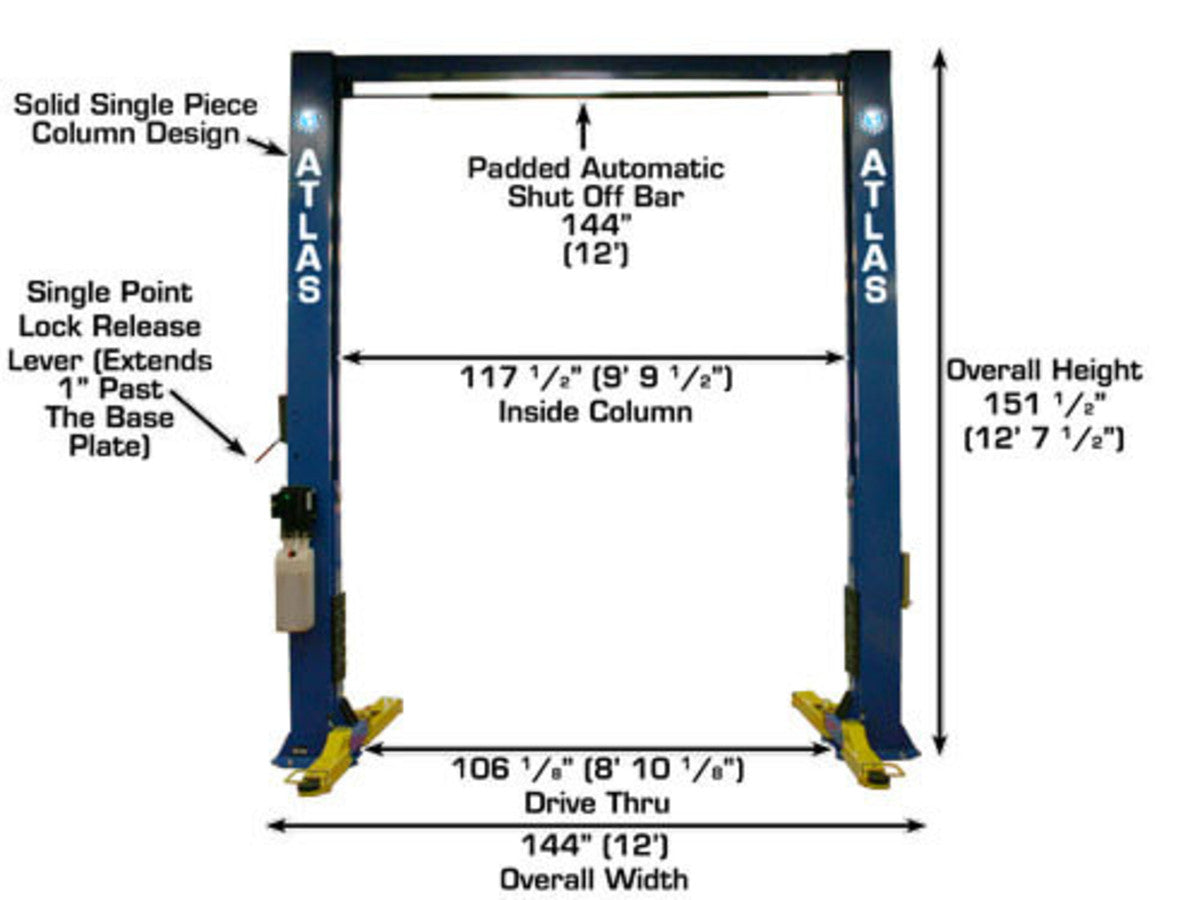

• Inside Column: 118 1/4” (9' 10 1/4”)
• Drive Thru: 106 7/8” (8' 10 7/8”)

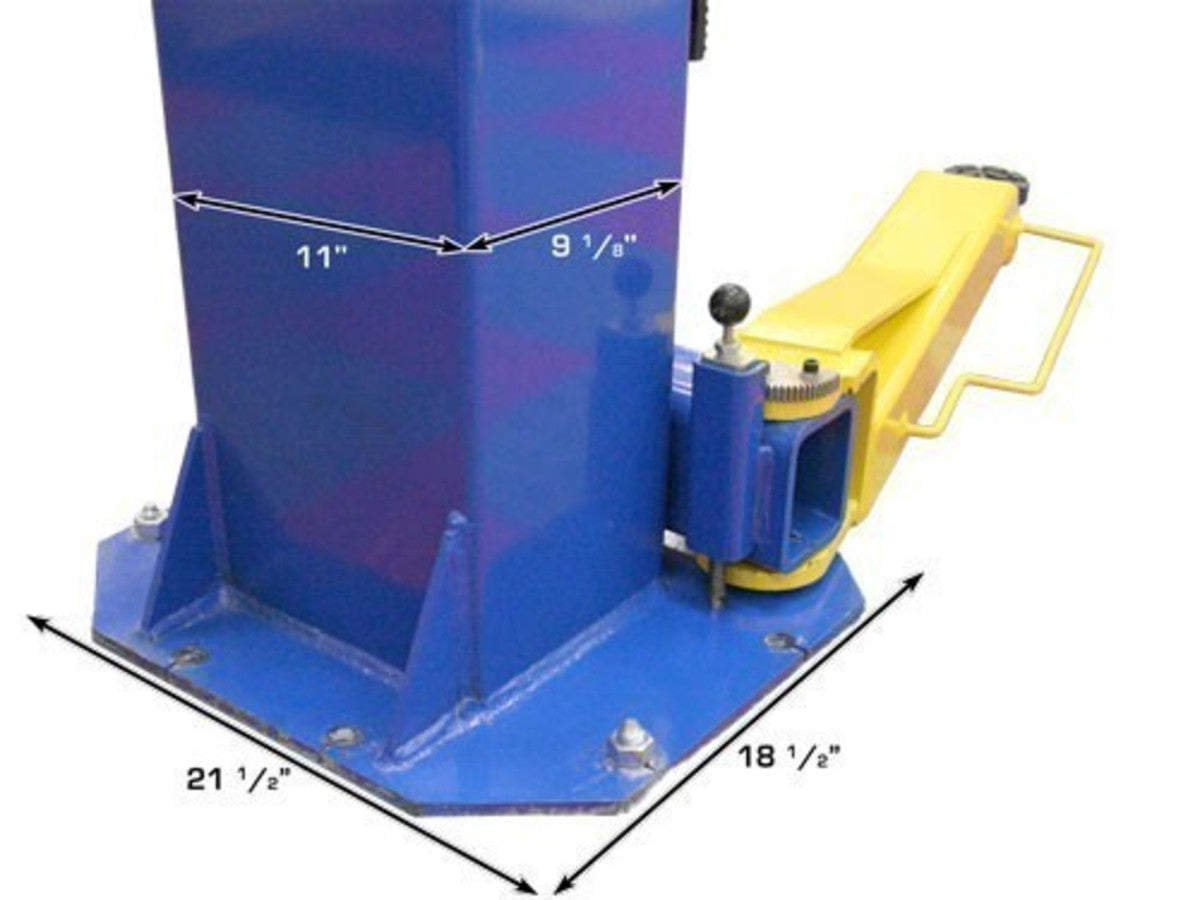

• Column Size: 9 1/8" x 11"
• Base Of Lift: 18 1/2" x 21 1/2"

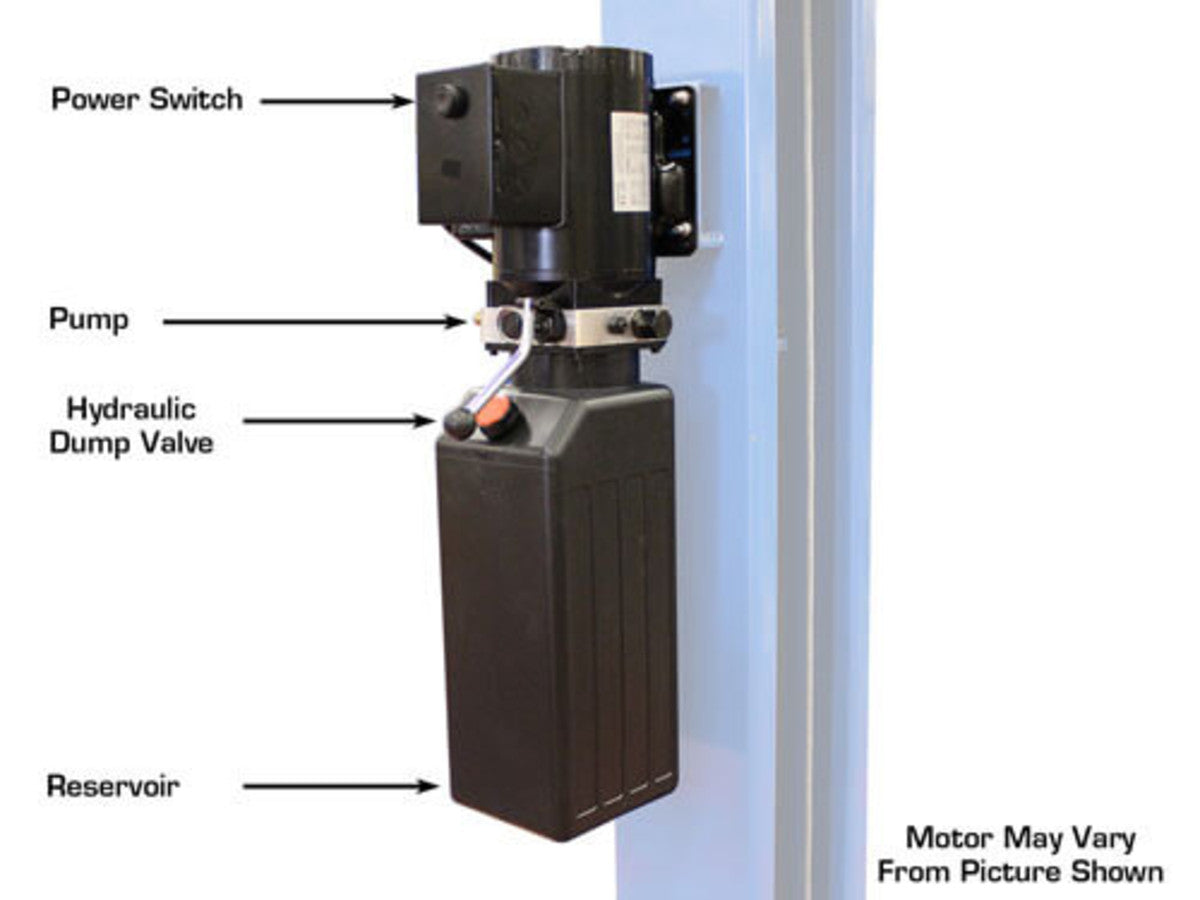

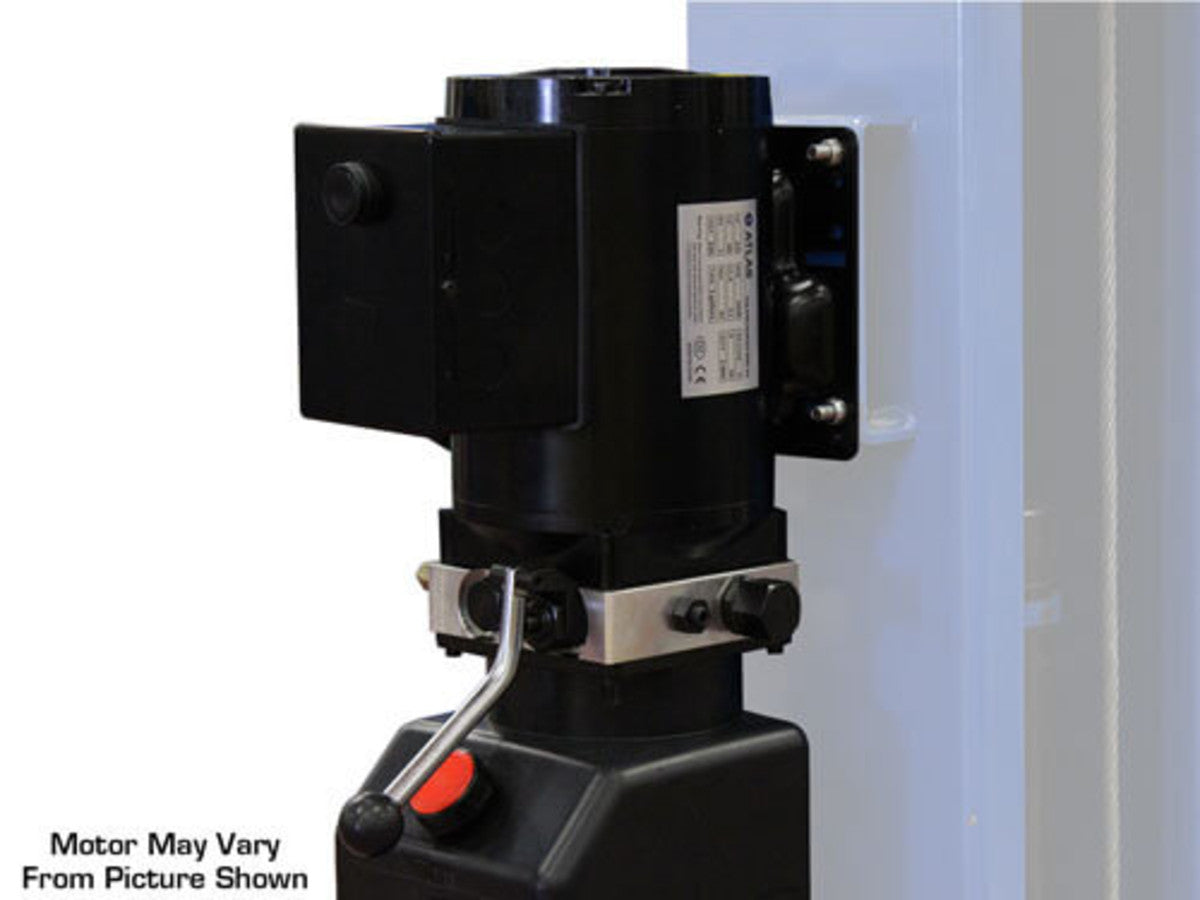

• Motor/Electrical Requirement: 220 volt single (1) phase.A 30 amp breaker is recommended
• Oil Requirement: 3-5 Gallons AW32/AW46 (NOT INCLUDED)
• Shipping Weight: 1,665 LBS.

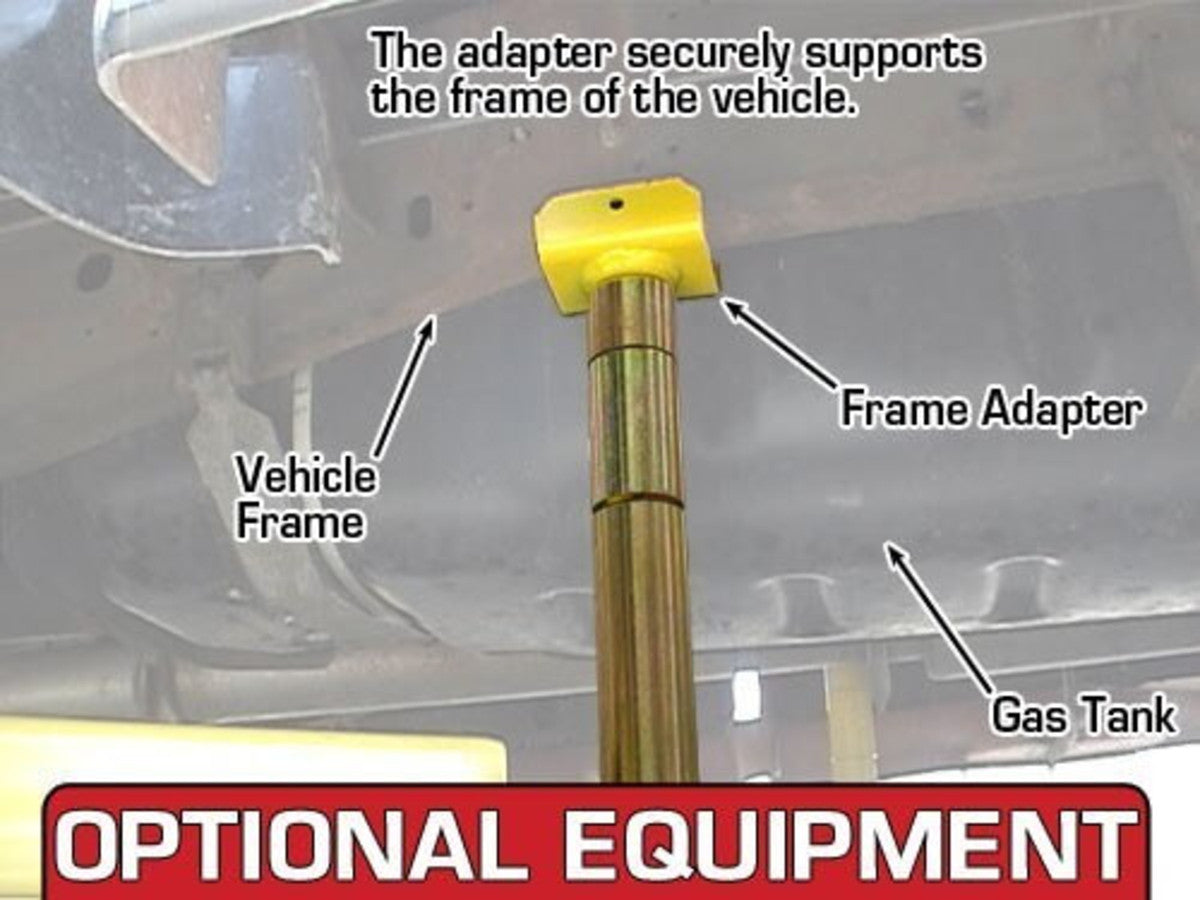

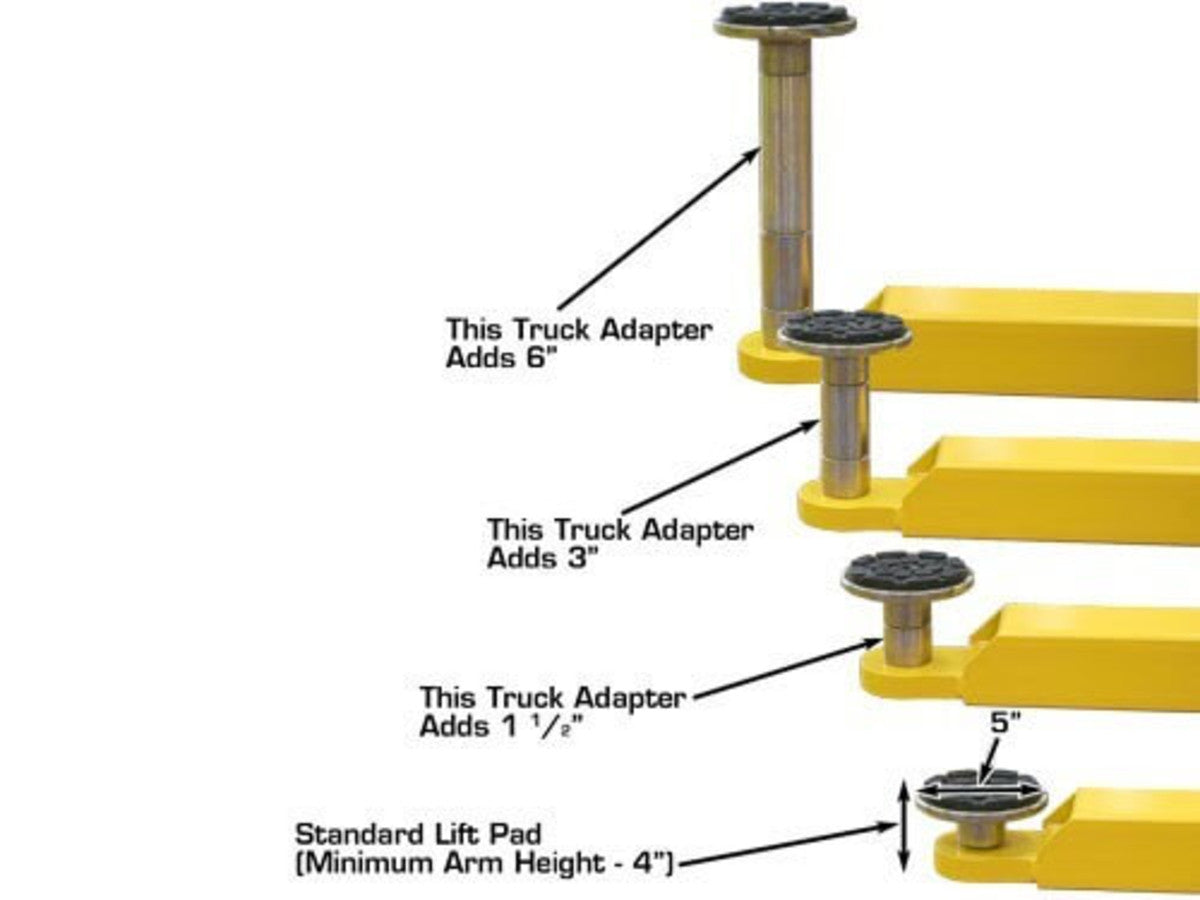

• Adapter Heights: 4 Each 2”, 3”, 6”
• Arm Hole/Adapter Peg Size: 1.5”
• Requires a minimum of 4" of concrete with a 3000 psi. rating

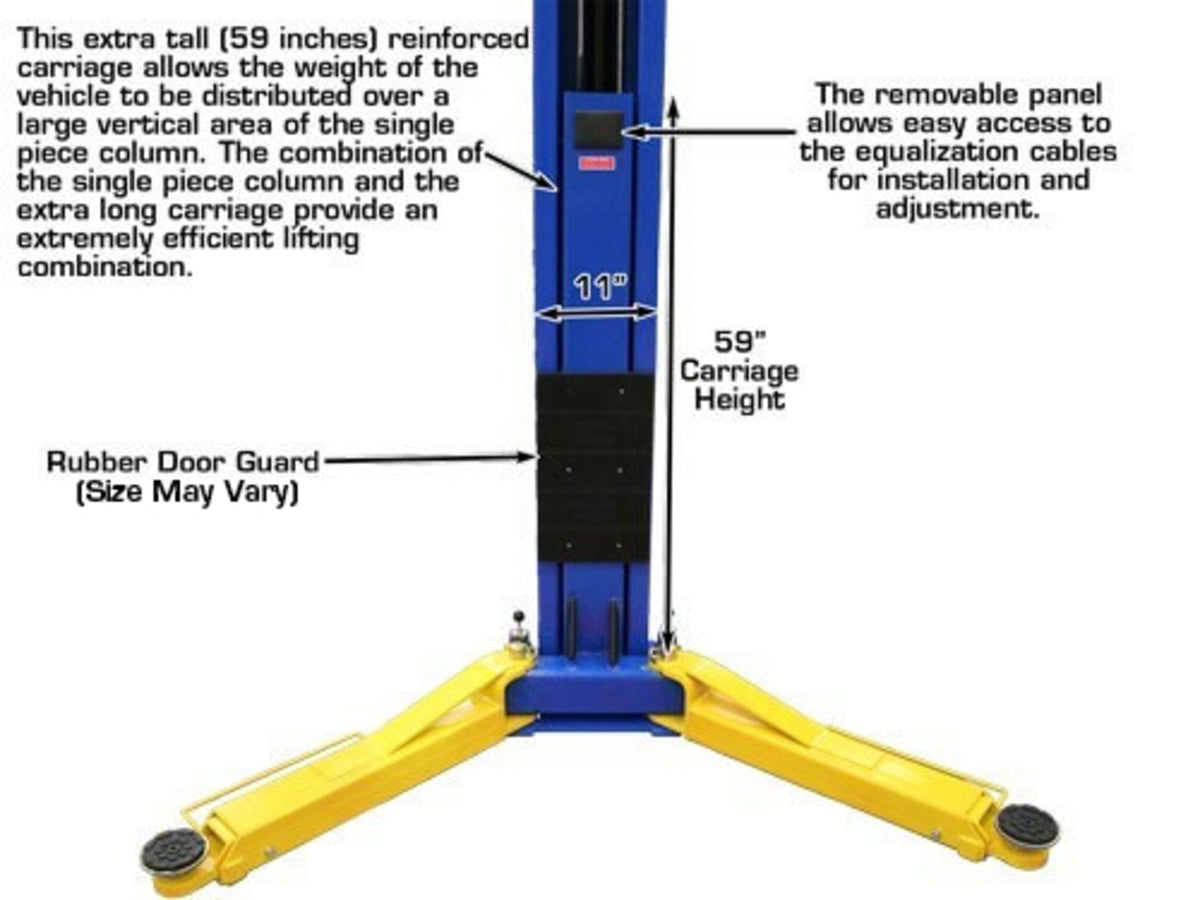

The Atlas OHX10000X two post commercial grade above ground lift is the perfect choice for those large commercial repair facilities or the “Mr. Homeowner” who demand the highest quality at the absolute best price. The Atlas OHX10X is a TRUE 10,000 lb. capacity two post lift that offers a great value to the customer. Due to the drive through width, arm length and arm style the Atlas OHX10000X was engineered and manufactured to lift a wide range of vehicles, specifically longer wheel based vehicles such as a one-ton diesel dually. Extra lifting height and extra width between the columns allows the operator to work on varied sizes of vehicles and offers a “fudge factor” of about 6 inches when “driving through” to another part of the building or lifting the van or “ladder truck”. If you are over 6? 1", the Atlas OHX10X has longer cylinders which allow the vehicle to be “lifted” about 3 inches higher than many other lifts. The Atlas OHX10X incorporates a single piece 12? 7" formed column and an extra-long carriage that provides maximum column and arm strength to lift and support a 10,000 lb. vehicle. The single piece columns require the customer to have a ceiling of at least 13 feet to stand the column.
