Atlas Automotive Equipment PRO-9D Overhead 2-Post Lift 9,000 lb. Capacity (WILL CALL)
SKU Number:
ATEXH-PRO-9D
Regular price
$3,299.00
Pickup currently unavailable
Features and Benefits:
- 9,000 lb. Capacity
- Overhead, Open-Floor design
- Overall Height: 144" (12?)

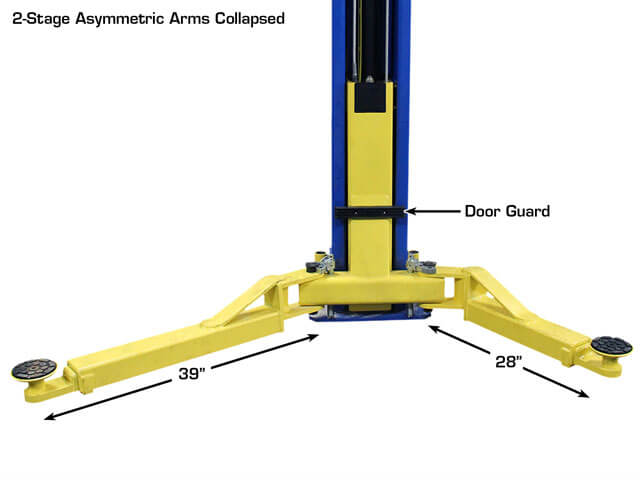

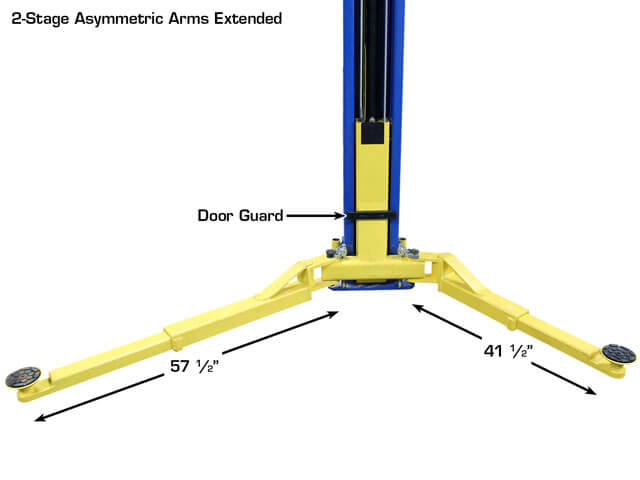

- Asymmetric/Symmetric Arms

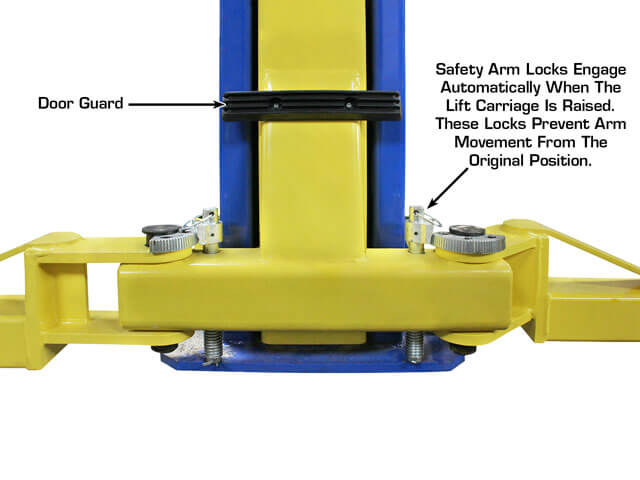

- Automatic Arm Restraints
- Single-Point Lock Release
- Rubber Guards on Carriages

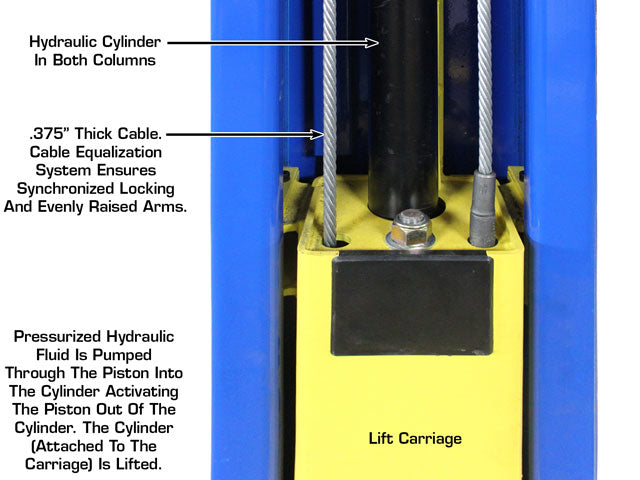

- Dual Direct-Drive Cylinders
- Powder Coat Finish

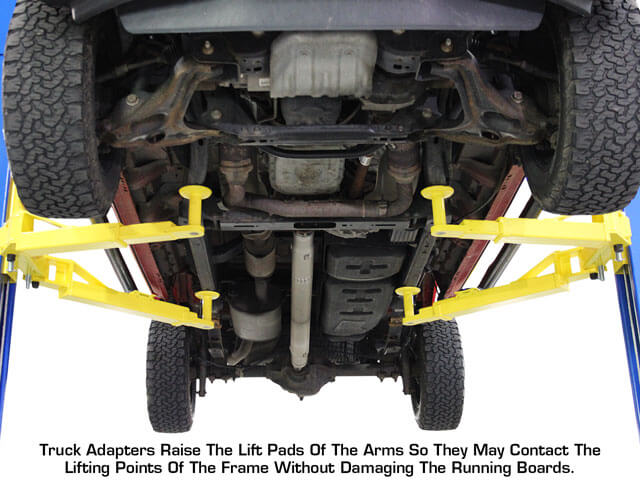

- Free 8 Piece Truck Adapter Set
- Mounting Hardware Included

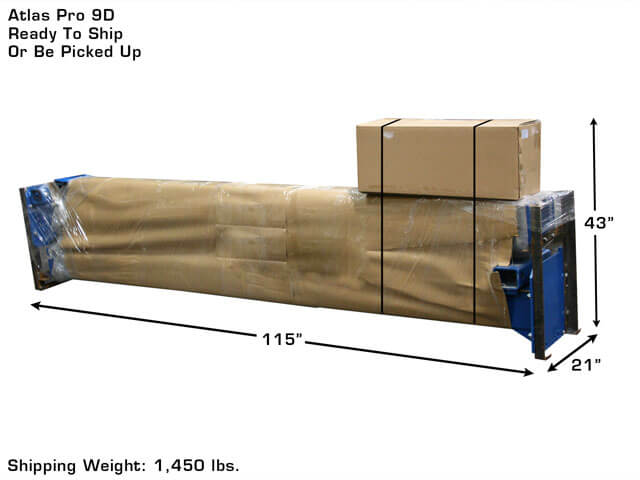

- Shipping Weight: 1,450 lbs.
- 5-year Structural Warranty, 2-year Hydraulic-Power Warranty
Atlas PRO-9D Specifications
- Capacity: 9,000 LB.

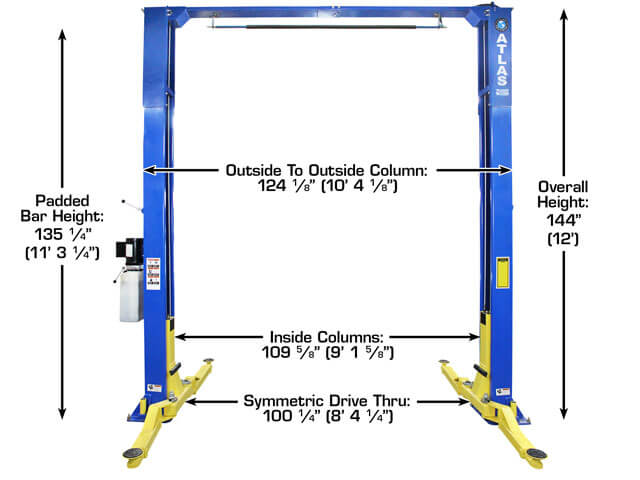

- Overall Height: 144" (12')

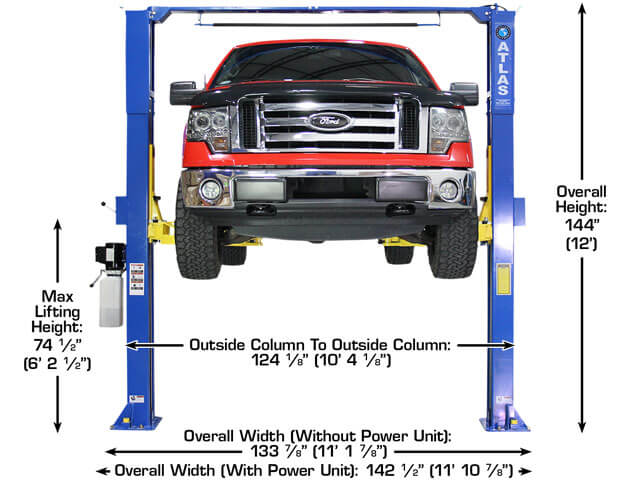

- Overall Floor Width: 134 1/2" (11' 2 1/2")
- Outside Column to Outside Column: 124 7/8" (10' 4 7/8")
- Maximum Lift Height (Without Adapters): 68"

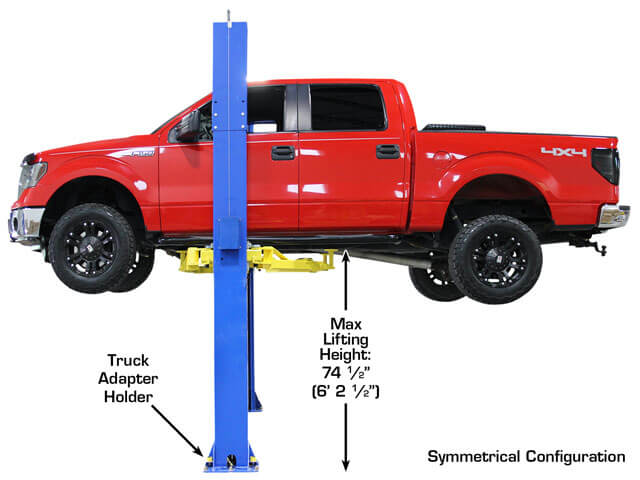

- Maximum Lift Height (With Adapters): 74 1/4"

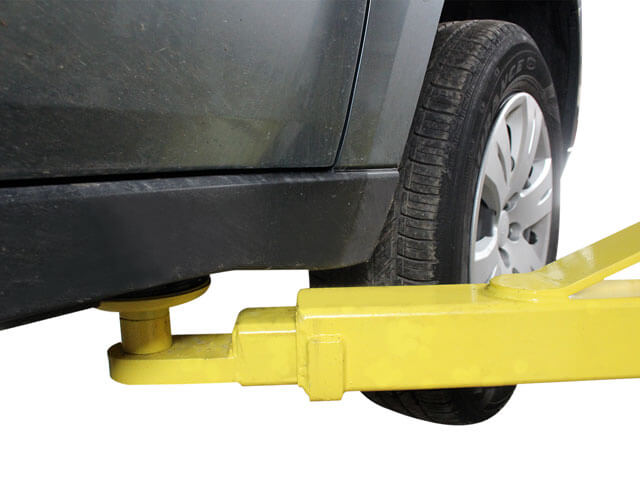

- Minimum Arm Height: 4 1/2"

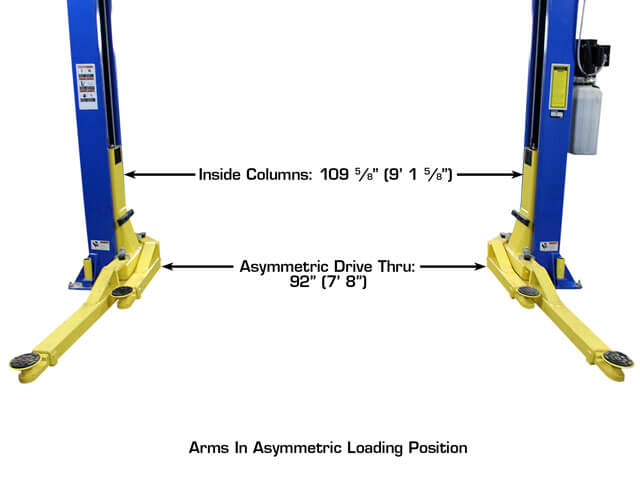

- Inside Column: 110” (9' 2”)
- Drive Thru: 100” (8' 4”) Symmetric/ 90 1/2" (7' 6 1/2”) Asymmetric

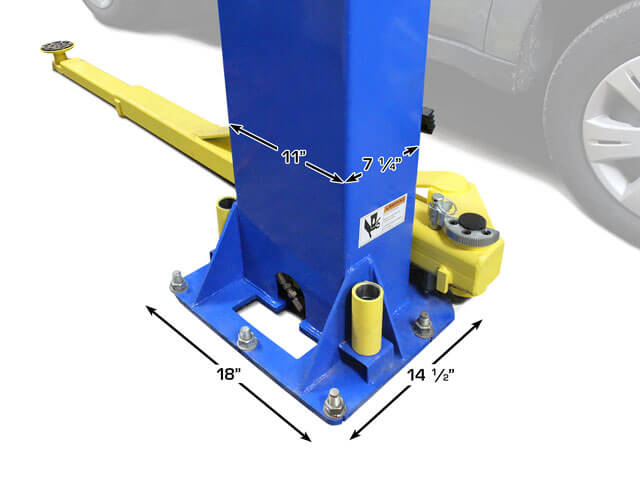

- Column Size: 7 1/4" x 11"
- Base Of Lift: 14 1/4" x 18"
- Motor/Electrical Requirement: 220 volt single (1) phase.A 30 amp breaker is recommended
- Oil Requirement: 3-5 Gallons AW32/AW46 (NOT INCLUDED)
- Shipping Weight: 1,450 LBS.

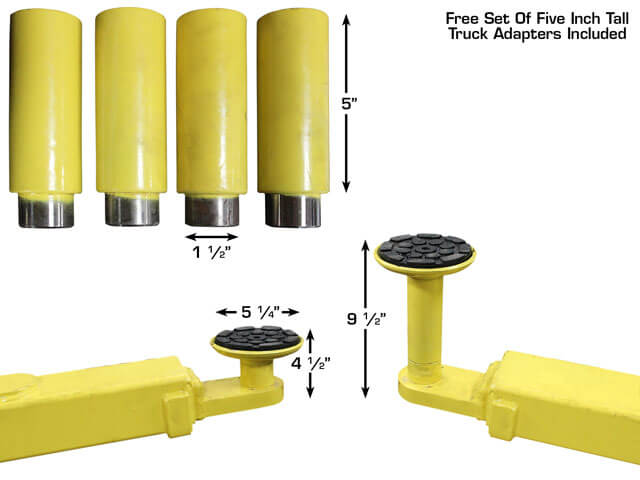

- Adapter Heights: 4 Each 1.5”, 5”
- Arm Hole/Adapter Peg Size: 1.5”
- Requires a minimum of 4" of concrete with a 3000 psi. rating
The Atlas PRO-9D two post above ground lift is the perfect choice for those smaller commercial repair facilities or the “Mr. Homeowner” who demand the highest quality at the absolute best price. The 12 foot tall Atlas PRO-9D is a TRUE 9,000 lb. capacity two post lift that offers a great value to the customer. The Atlas PRO-9D has symmetric columns and specially designed arms that can be set in either the symmetric or asymmetric position. The asymmetric/symmetric arm design offers an extremely low lift pad position on the EZ-metric lift arm configuration. This low pad height will allow the operator to position the lift arms under most small cars (with low pick up points) and heavier pick up trucks. The PRO-9D has dual direct drive cylinder, this direct drive system, with fewer moving parts, ensures years of excellent lifting service from your Atlas above ground hoist.
Document. Atlas Pro-9D ManualDelivery is by pallet at a minimum of $70. If ordering before 2pm we can delivery next day for $50 otherwise orders are 3-5 working days.
We only deliver within a 10mile radius of our site.
