Atlas Equipment 412 12,000 lb. 4-Post Lift + RJ6 Rolling Jacks Combo

Features and Benefits:

• Combo Package includes 412 12,000 lb. Capacity lift & two RJ6 rolling jacks
• Heavy Duty, Commercial Grade
• Lift is Extra Tall, Extra Wide & Extra Long
• Lift has Diamond Plated Runways
• Lift has Air Operated Single Point Lock Release (External Air Supply Required - NOT INCLUDED)
• Steel Approach Ramps Included
• Additional Drive off Ramps Available (Sold Separately)
• Runway Extensions Available (Sold Separately)
• Mounting Hardware Included
• Jacks are Air Over Hydraulic operated
• Truck Adapter Set for each Jack Included
• This part number FREIGHT PREPAID

The Atlas® 412 incorporates many structural and cosmetic features that are found on lifts costing thousands of dollars more money. The Atlas® 412 is tested to ensure that this lift system will perform flawlessly at its rated capacity. The Atlas® 412 has been manufactured to the same exacting specifications for many years.

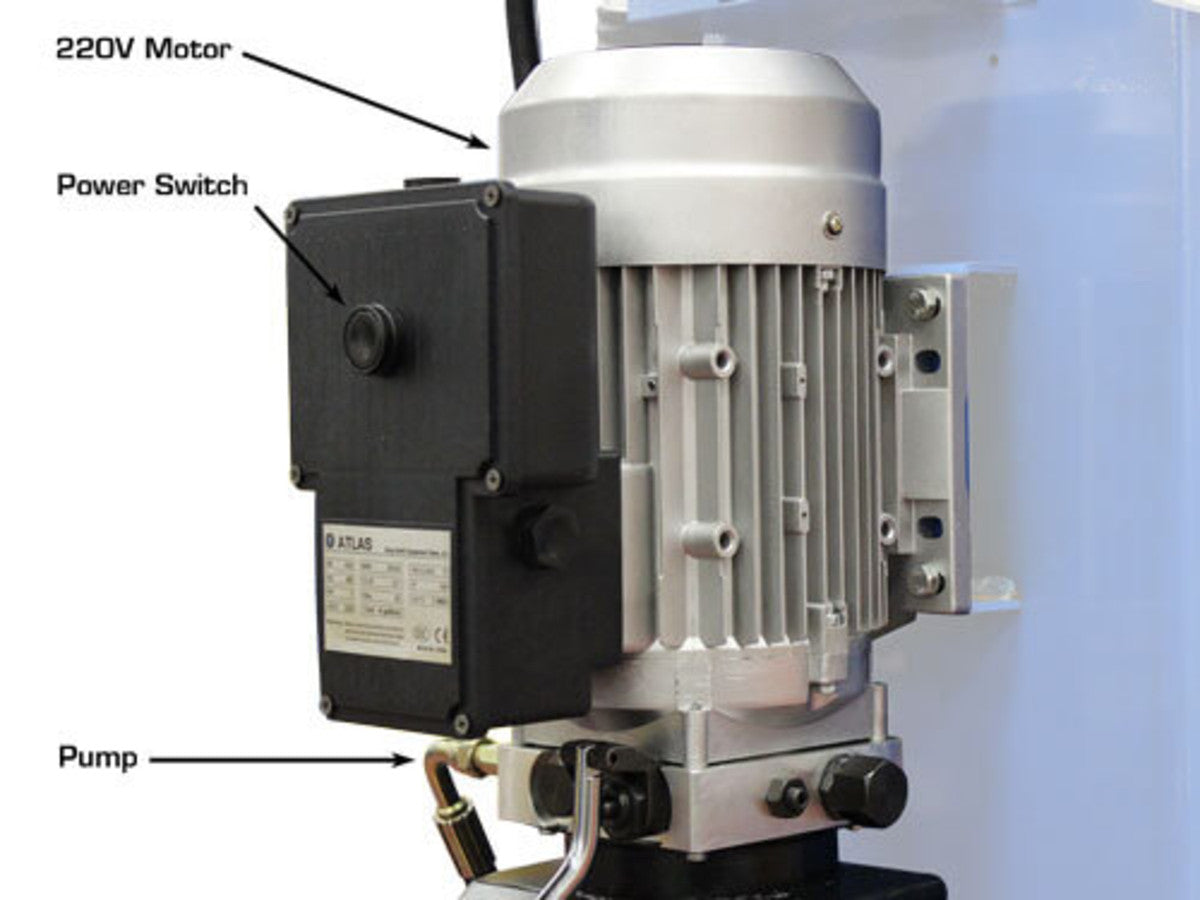

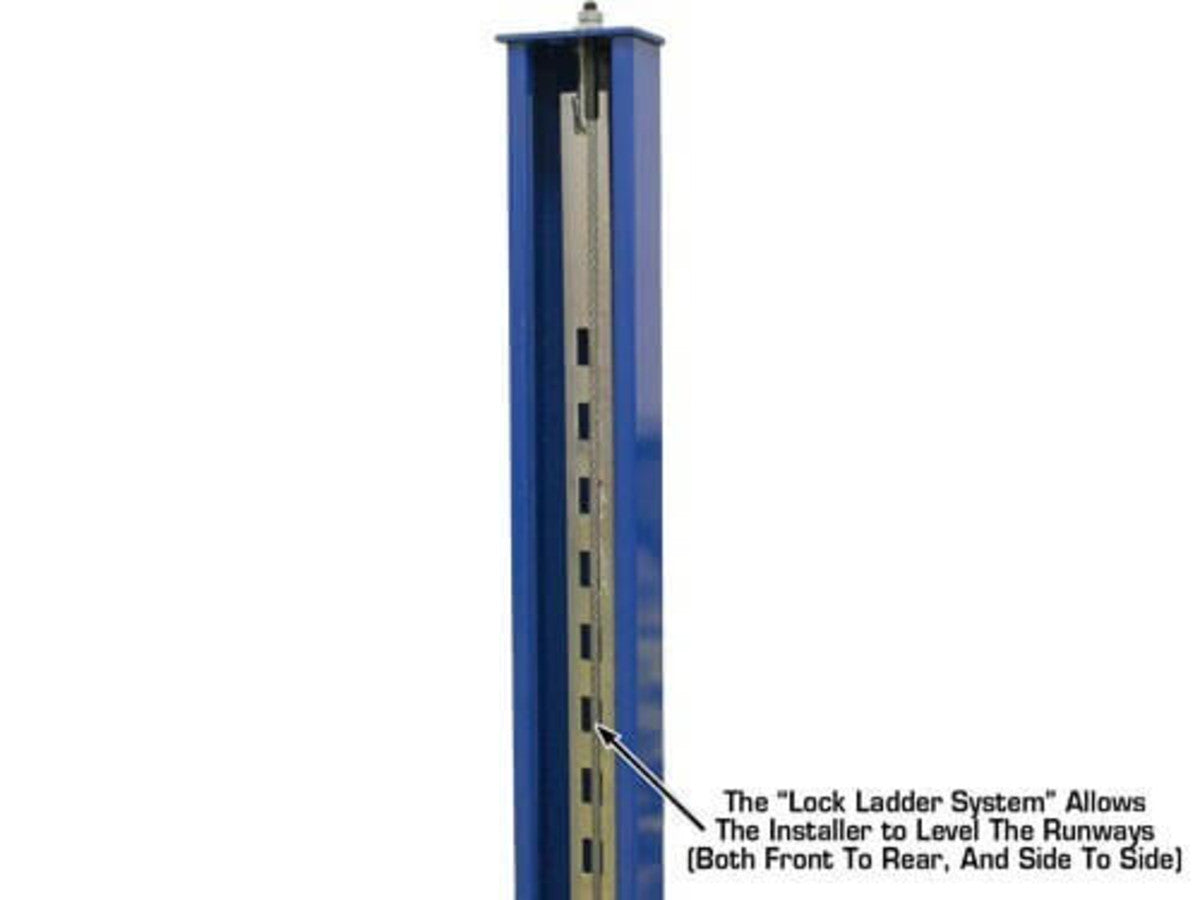

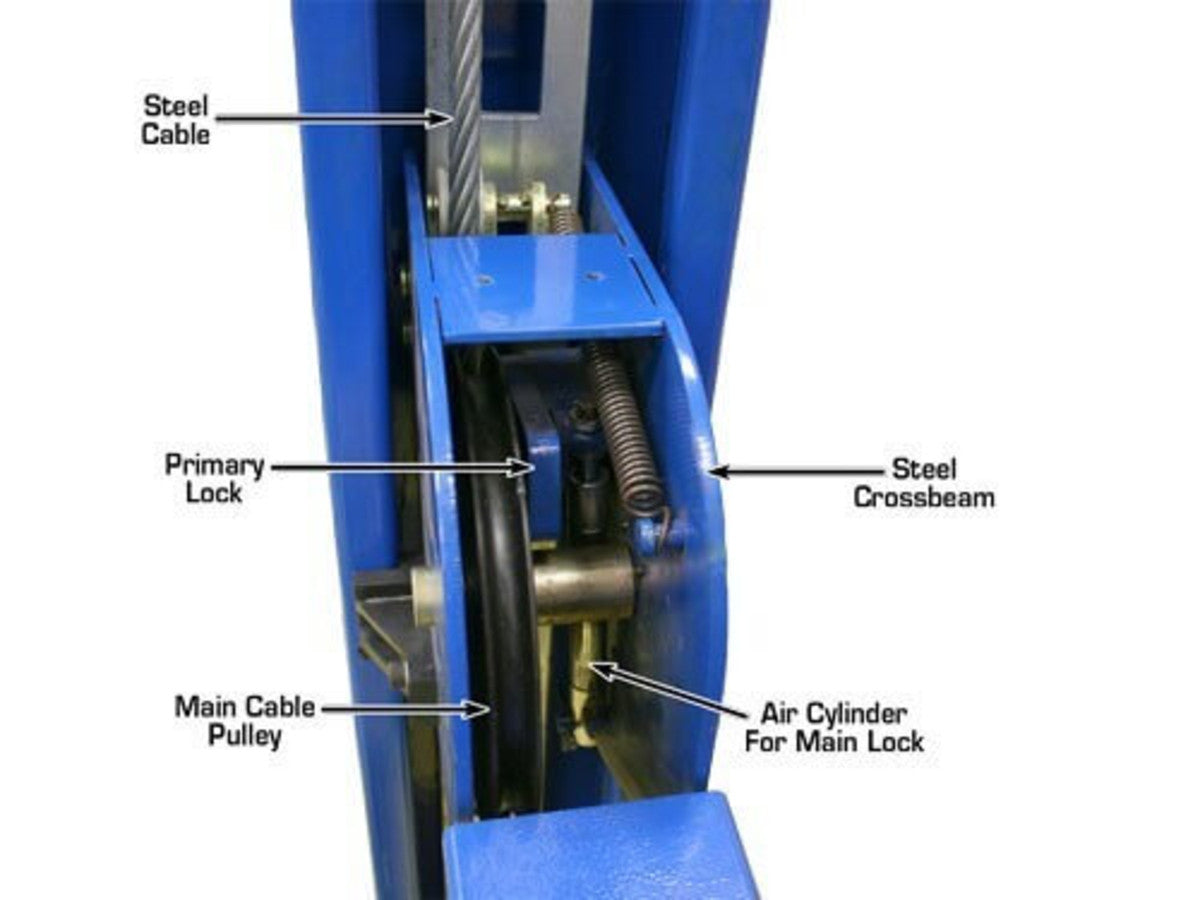

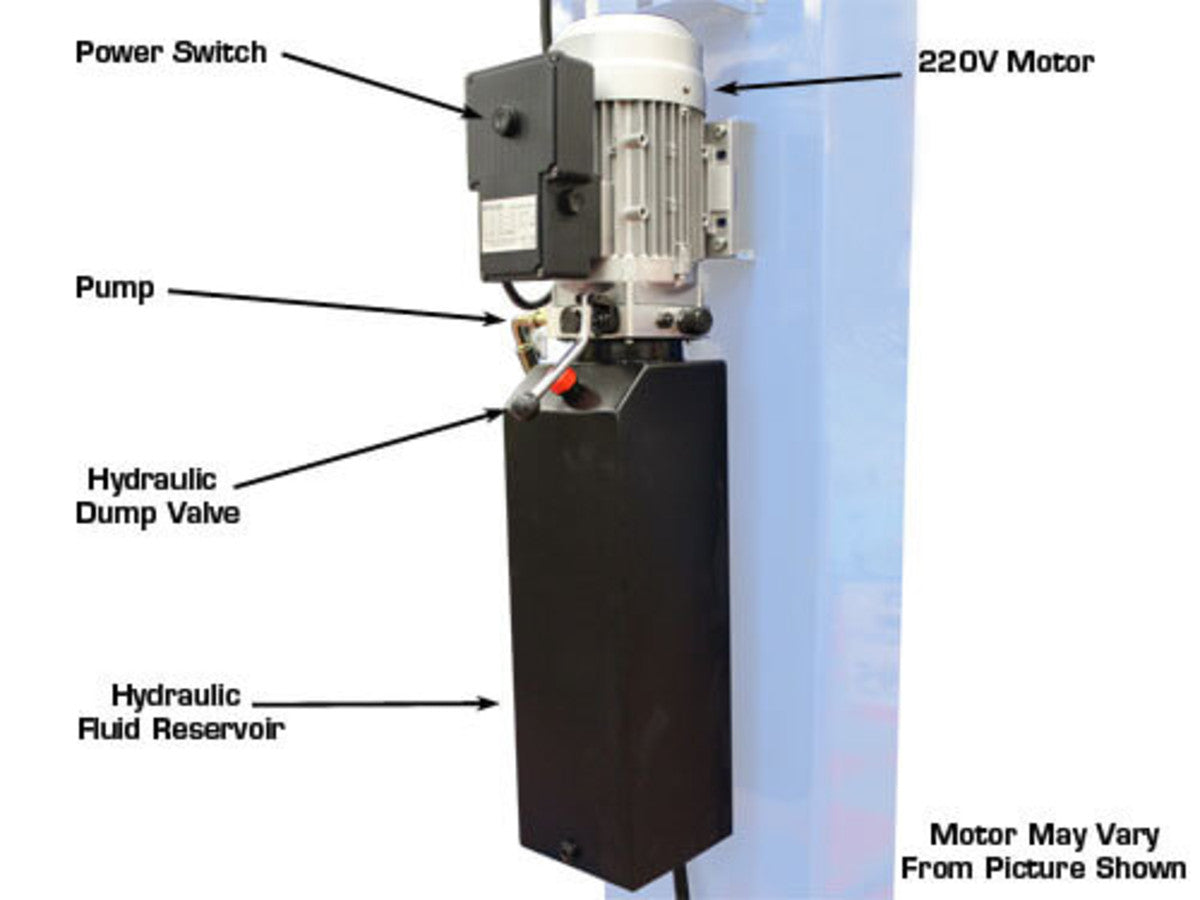

The Atlas® 412 uses a high strength cable system (with a under runway oversized hydraulic cylinder) powered by a 220 volt (single phase) power unit to raise and lower the lift. Many competitors use an “old style” chain lifting system with an exposed hydraulic cylinder system. Old style chain lifts are difficult to “level” properly and the exposed hydraulic cylinder is responsible for numerous “door dings”.

This combo package also includes two of the the popular Atlas® RJ6 rolling bridge jacks. The jacks are perfect for raising a vehicles wheels off the lifts runways in order to service tires and brakes.

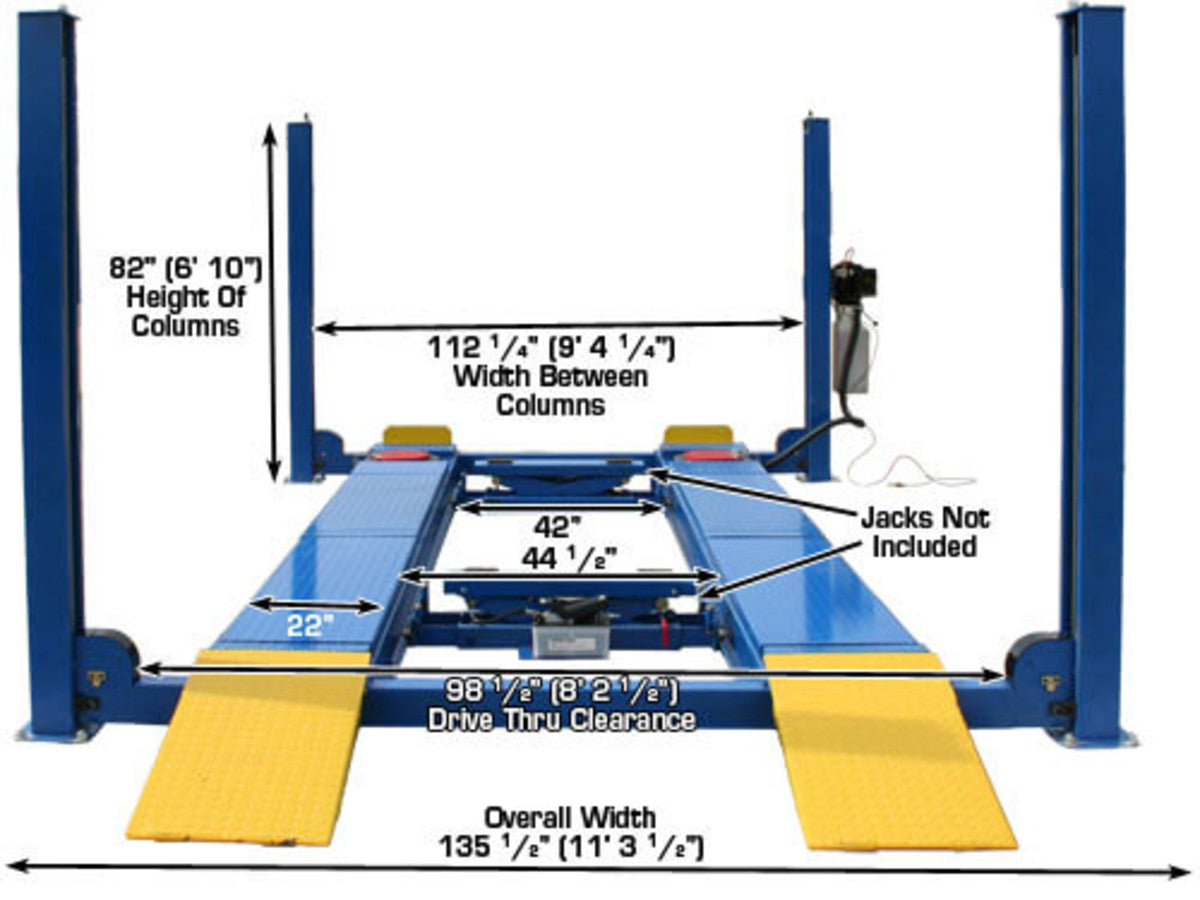

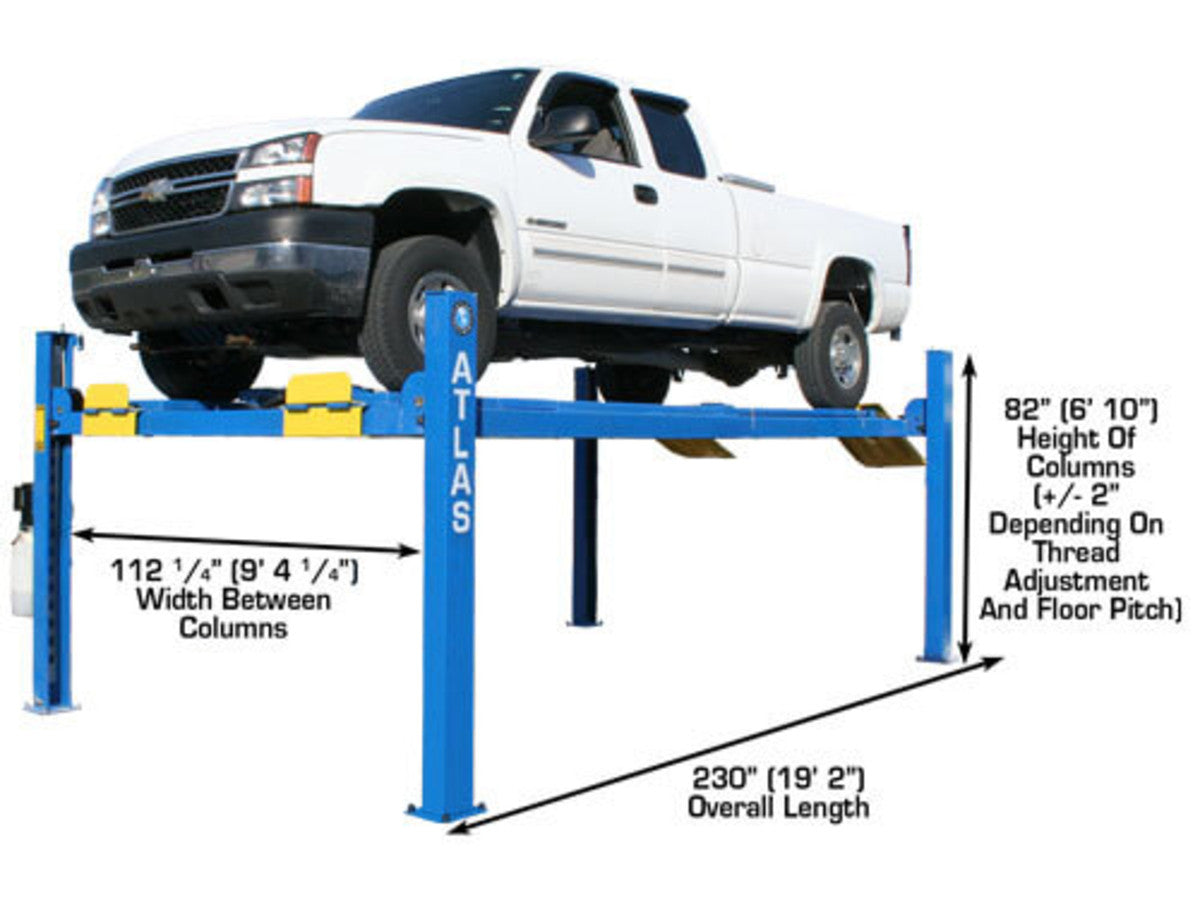

Atlas® ATTD-412 Specifications

• Capacity 12,000 lb.

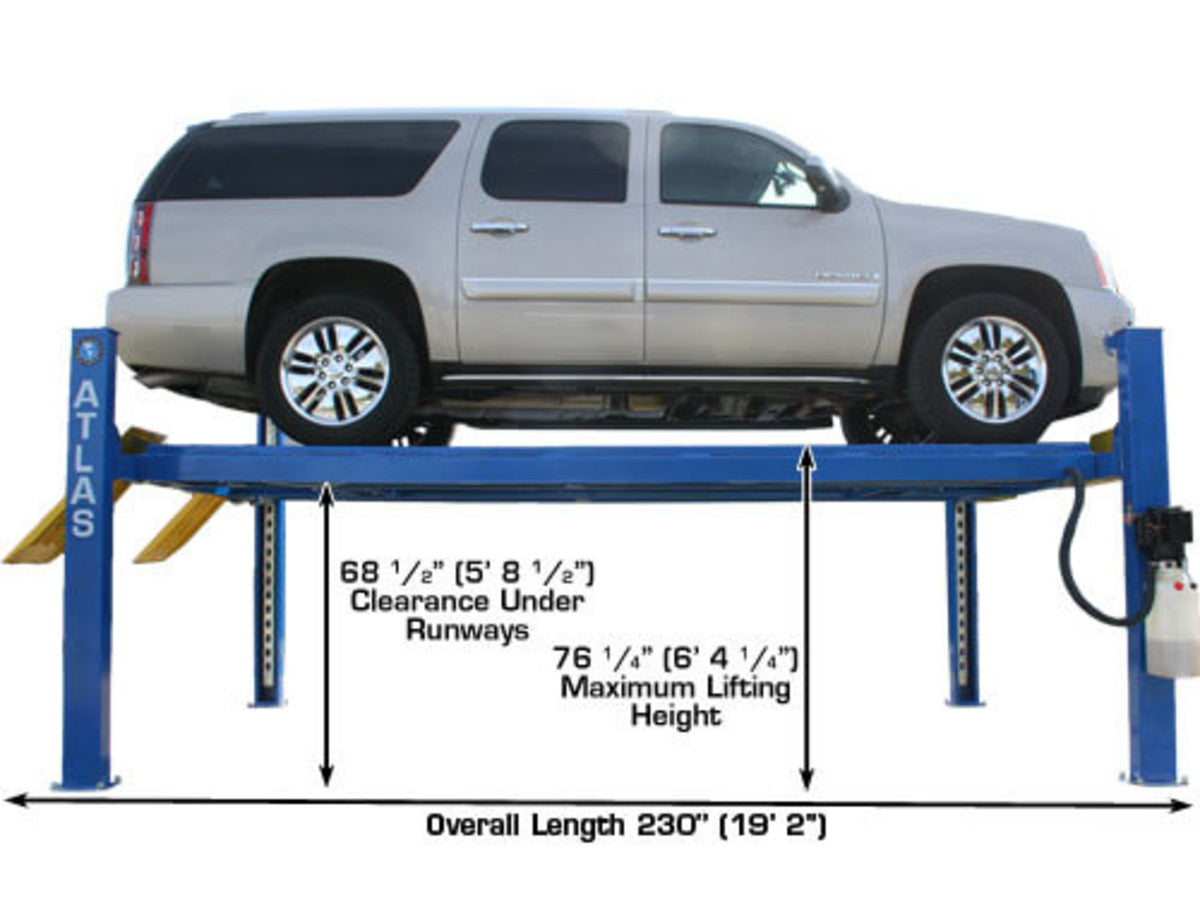

• Lifting Height 77 3/4" (6' 5 3/4")

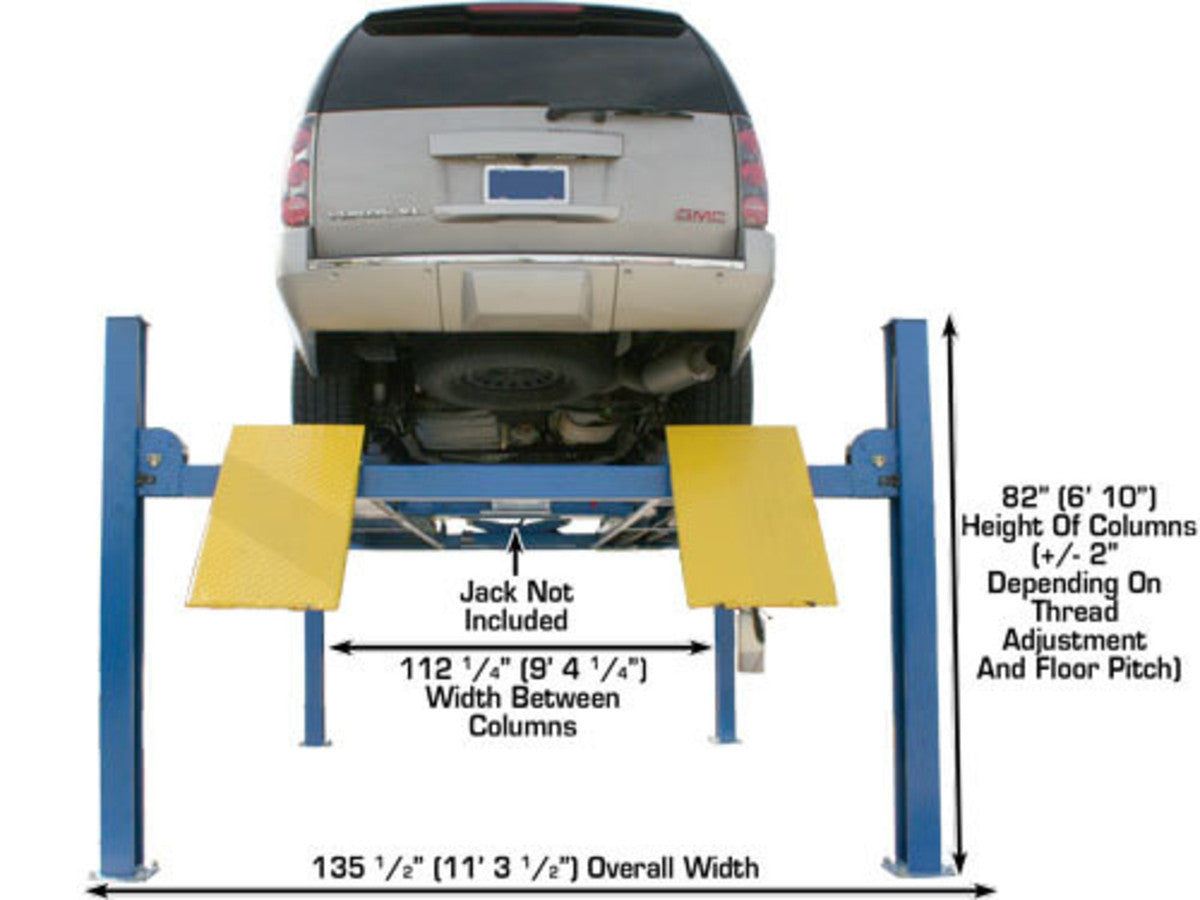

• Overall Width Of Columns (Without Motor) 126 1/4" (10' 6 1/4")
• Overall Width Of Columns (With Motor) 135 1/4" (11' 3 1/4")

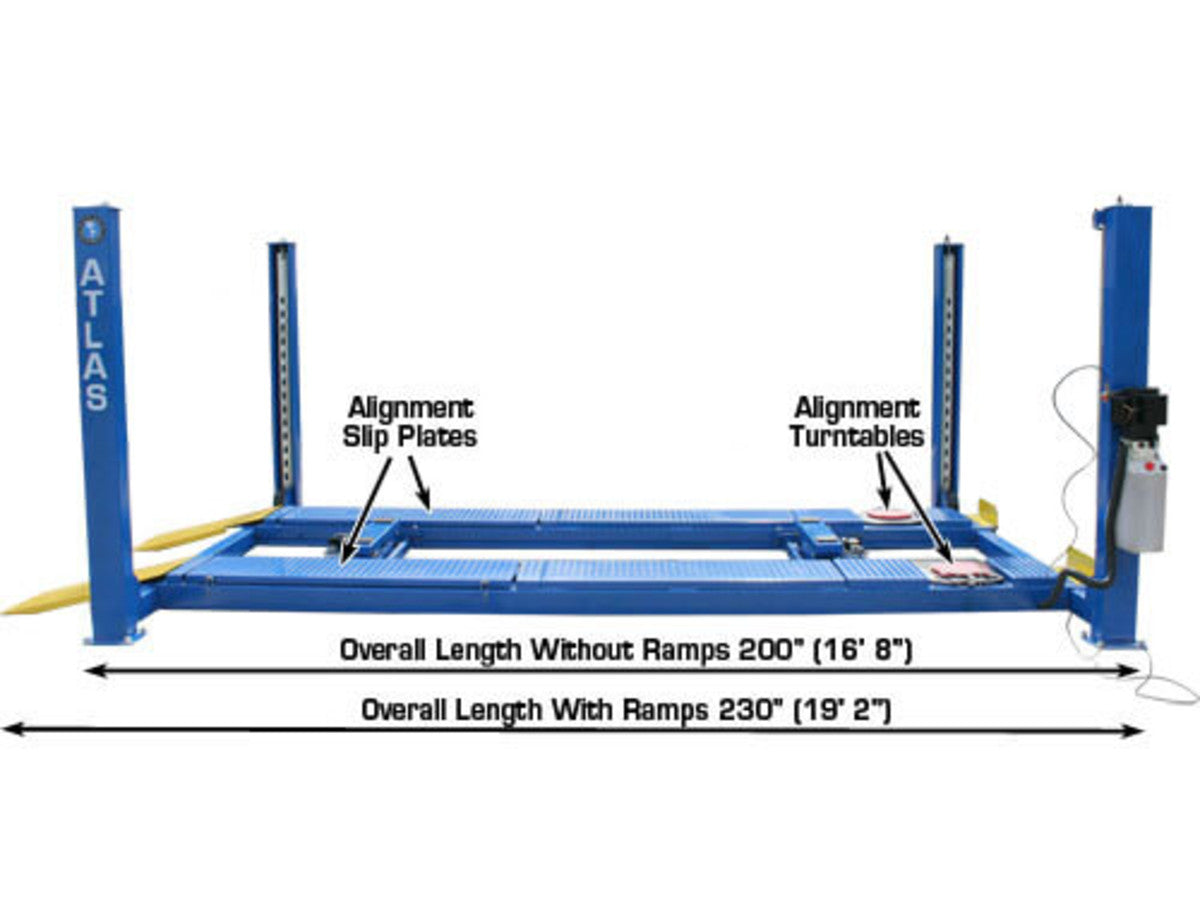

• Overall Length With Approach Ramp 236 1/2" (19' 8 1/2")
• Length Between Columns 183 1/4" (15' 3 1/4")
• Runway Length 194 1/2" (16' 2 1/2")
• Runway Width 20"
• Thickness Of Runway 7 1/2"
• Width Between Runways 43 1/4" (w/ Rail 39 3/4")
• Outside Runway To Outside Runway 83 1/4" (6' 11 1/4")
• Clearance Under Runways 70 1/4" (5' 10 1/4")
• Clearance Between Columns 112 5/8" (9' 4 5/8")
• Height Of Columns 89 3/4" (7' 5 3/4")

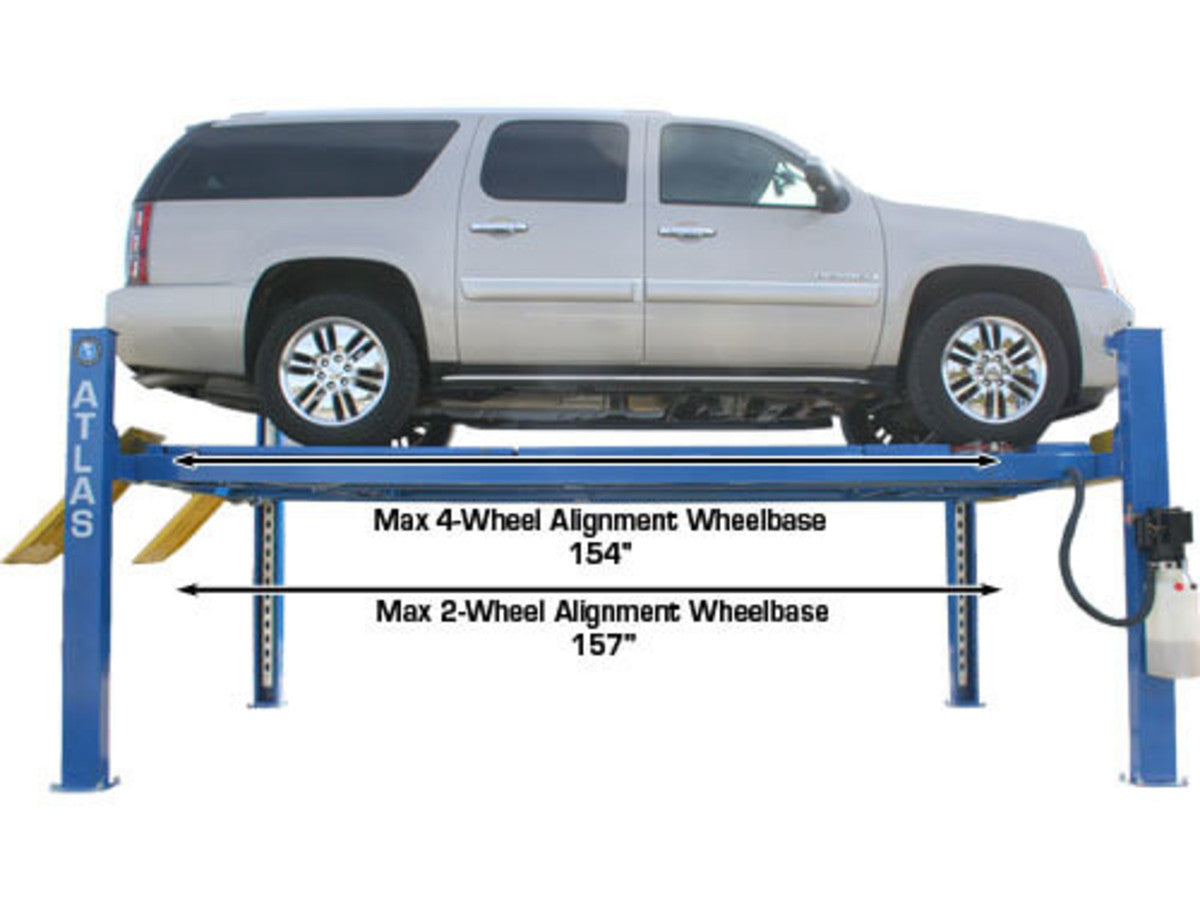

• Maximum Wheel Base 185" (15' 5")
• Drive Thru 98" (8' 2")

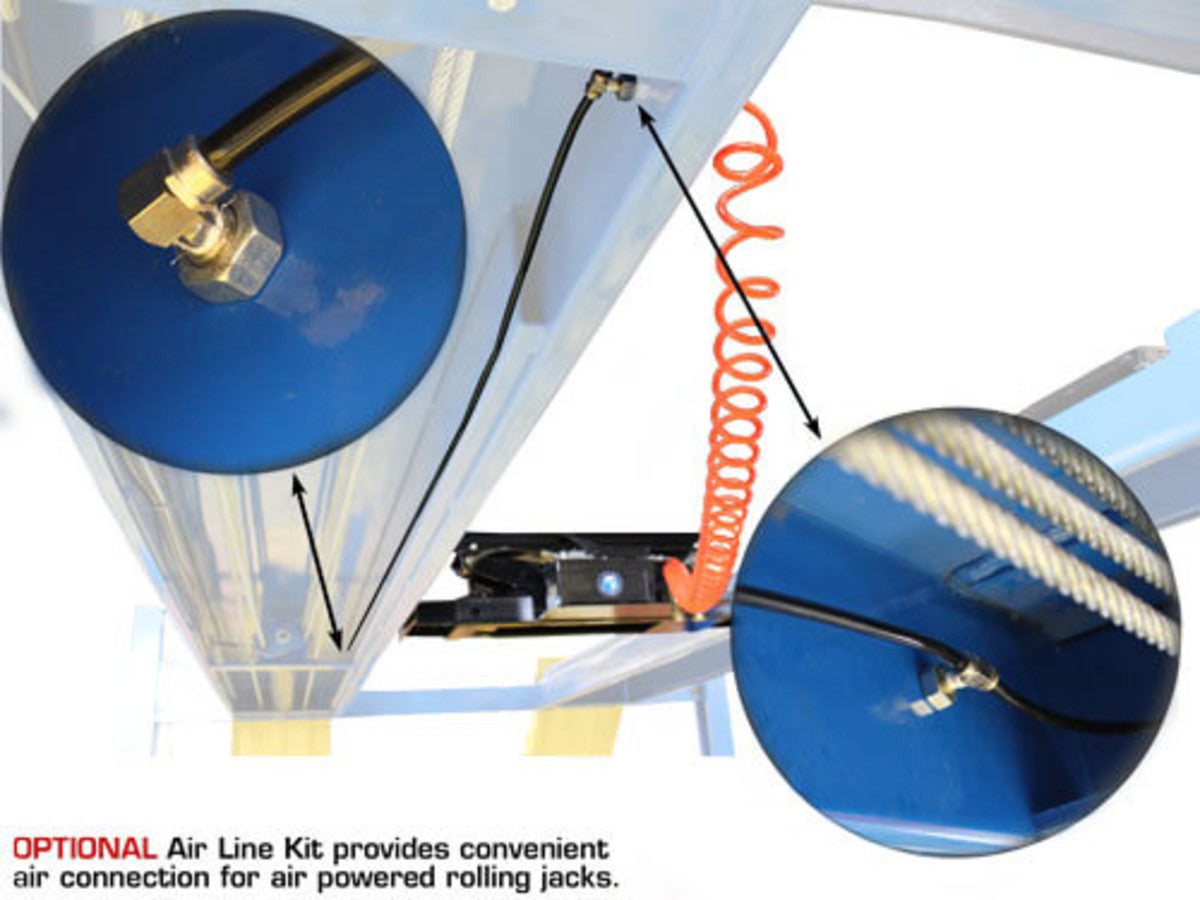

• Air Requirement 85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED)
• Motor/Electrical Requirement 220 volt single (1) phase (A 30 amp breaker is recommended)
• Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
• Shipping Weight 2,800 LBS.

• Atlas® RJ6BK Specifications:

  • Capacity: 6,000 lbs
  • Minimum Width: 35"
  • Maximum Width: 55"
  • Distance Between Runway Capability: 32" - 52"
  • Minimum Lifting Height: 8 1/4"
  • Maximum Lifting Height (w/ Adapters): 21"
  • Air Requirement: 70-115 PSI
  • Shipping Weight: 350 lbs
  • Adapter Heights: 2 Each 2", 3"
  • Arm Hole/Adapter Peg Size: 1 1/2"
