Atlas Automotive Equipment Garage PRO7000ST Super Tall 4-Post Lift 7000 lb. Capacity (WILL CALL)

Features and Benefits:

• 7,000 lb. Capacity
• Heavy Duty
• “Super Tall” Lifting Height
• Extra Wide & Extra Long
• Diamond Plated Runways

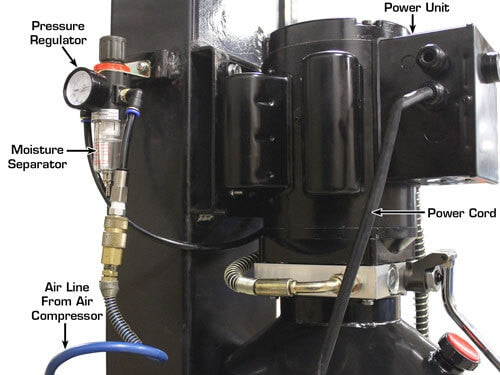

• Single Point Release, Pneumatic Locks (External Air Supply Required)
• Lock Ladder Design
• Double Lock Safety System
• Steel Approach Ramps Included
• Mounting Hardware Included
• Perfect for Storage or Working on Vehicles
• 220volt/1phase Electric Operation (Requires 30amp Breaker)
• Shipping Weight: 2,866 lbs.
• 2 yr Structural ‐ 1 yr Hydraulic Warranty ‐ Parts Only

Atlas Garage PRO7000ST Specifications

• Capacity: 7,000 Lb.
• Lifting Height To Top Of Runway: 147" (12' 3")

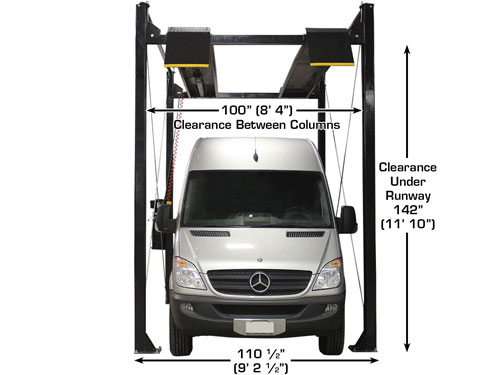

• Clearance Under Runways: 142" (11' 10")

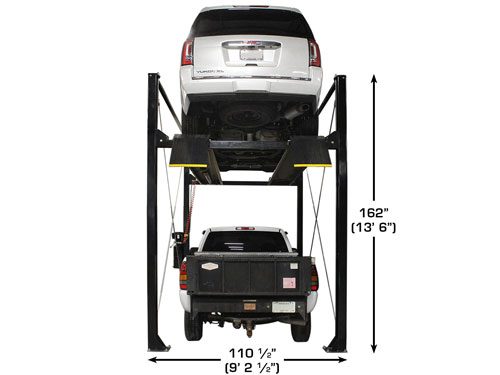

• Height Of Columns: 162" (13' 6")
• Overall Width (Without Motor): 110 1/2" (9' 2 1/2")
• Overall Width (With Motor): 123" (10' 3")
• Overall Length With Approach Ramp: 227 1/2" (18' 11 1/2”)
• Approach Ramp: 31" (2' 7")

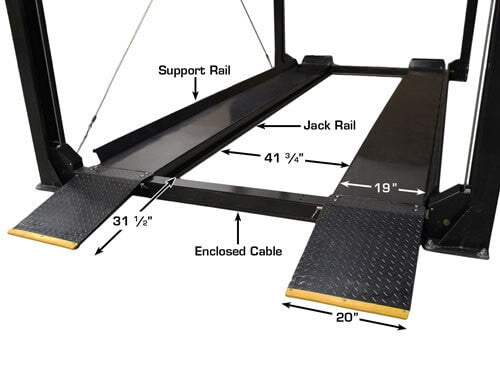

• Runway Width: 21" (w/ Rails) or 20" (Driving Surface)
• Runway Length: 194" (16' 2")
• Runway Thickness: 4 3/4"
• Width Between Runways: 45" (3' 9")
• Width Between Runway Rails: 41 3/4" (3' 5 3/4")
• Outside Runway To Outside Runway: 83" (6' 11")
• Clearance Between Columns: 100" (8' 4")
• Length Between Columns: 185" (15' 5")
• Maximum Wheel Base: 182" (15' 2")
• Drive Thru (Outside Of Tire To Outside Of Tire): 82 1/2" (6' 10 1/2")
• Motor/Electrical Requirement: 220 Volt, 1 phase, 30 AMP BREAKER REQUIRED
• Shipping Weight: 2,866 lb.

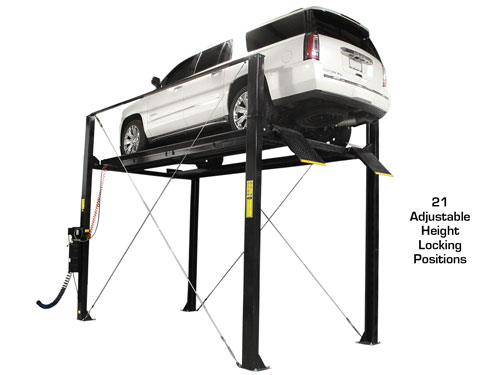

• Locking Positions Under Runway(+/ 2")
• 23" (1' 11")
• 29" (2' 5")
• 35" (2' 11")
• 41" (3' 5")
• 47" (3' 11")
• 52" (4' 4")
• 58" (4' 10")
• 64" (5' 4")
• 70" (5' 10")
• 76" (6' 4")
• 82" (6' 10")
• 88" (7' 4")
• 94" (7' 10")
• 100" (8' 4")
• 106" (8' 10")
• 112" (9' 4")
• 118" (9' 10")
• 124" (10' 4")
• 130" (10' 10")
• 136" (11' 4")
• 142" (11' 10")

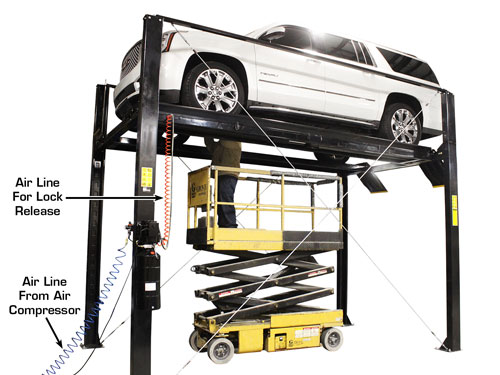

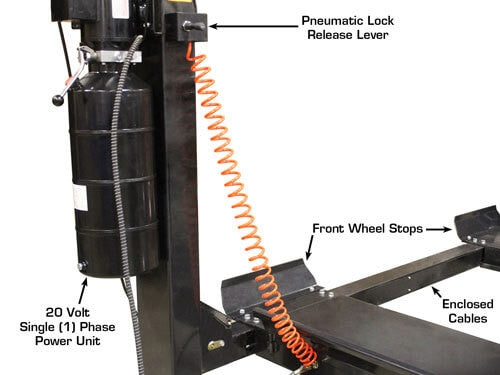

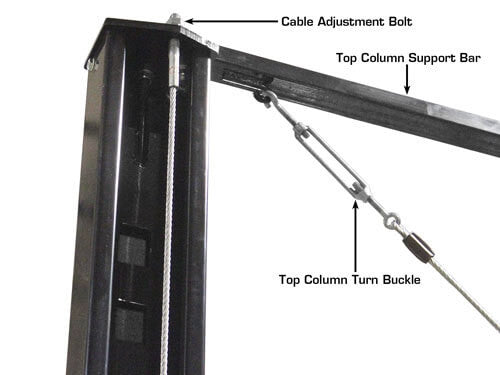

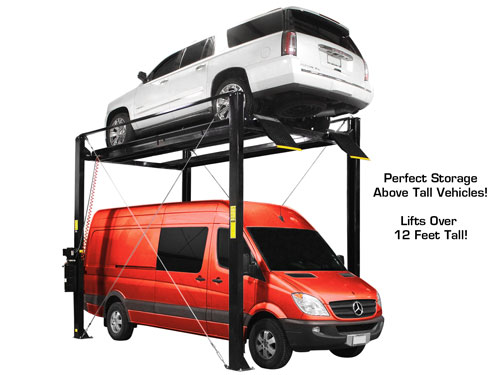

The Atlas Garage PRO7000ST is the perfect lift for those car enthusiasts lucky enough to have extra tall ceilings and need to store regular height vehicles on top of extra tall vehicles. The PRO7000ST raises vehicles weighing up to 7,000 lbs. all the way to over 12 feet (144 inches) under the runway. This super tall four post storage lift uses the same heavy duty runways as the Atlas Garage PRO9000. The runways feature welded tracks which allow the use of a rolling bridge jack (such as the Atlas RJ6BK ) . The extra tall lifting height gives customers the space needed to park much taller vehicles under the vehicle stored on top. There are a whopping 21 locking positions in the lock ladder, and the lock ladder may be adjusted during installation giving an almost infinite number of locking heights. A single point release toggle (located next to the power unit) automatically unlocks all four spring loaded pneumatic locks. Compressed air is required to disengage the locks (air supply not included). The emergency slack cable secondary lock system is always “on standby” and will engage automatically if the cables are compromised or become too slack.
