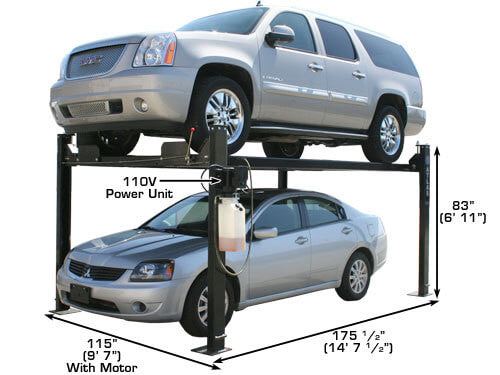

Atlas Automotive Equipment Garage PRO8000 Portable Hobbyist 4-Post Lift 8000 lb. Capacity

Features and Benefits:

• 8,000 lb. Capacity
• Free Standing/Portable Design
• Diamond Plated Runways
• Single-Point Lock Release

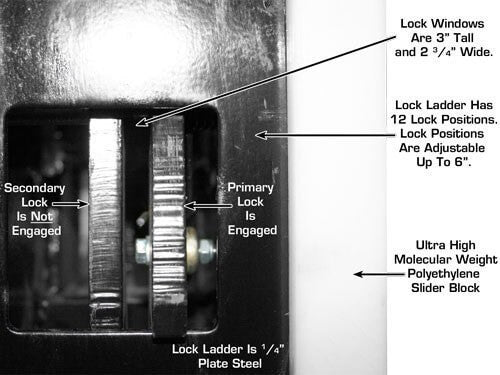

• Lock Ladder Design

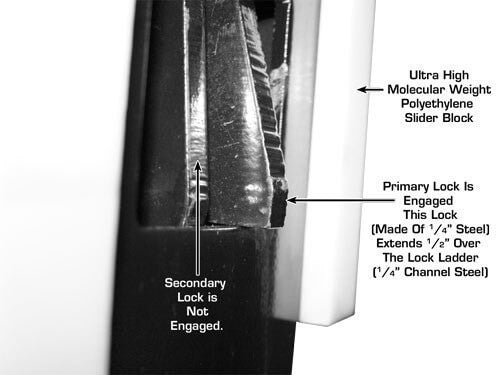

• Double Lock Safety System

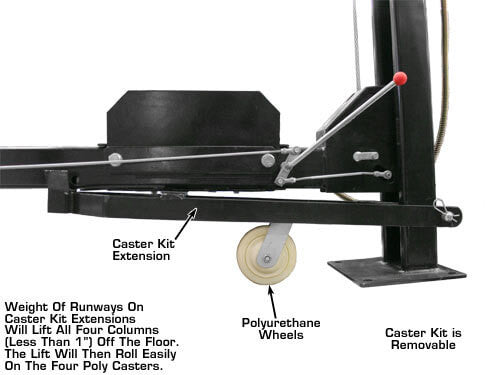

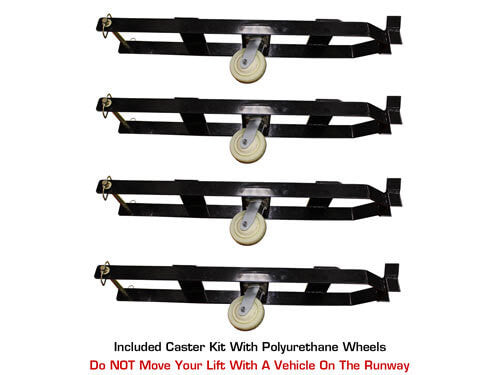

• Caster Kit With Polyurethane Wheels Included

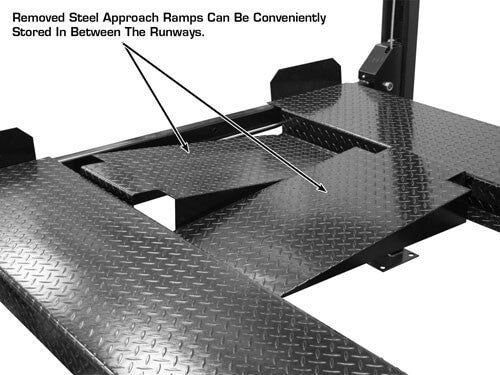

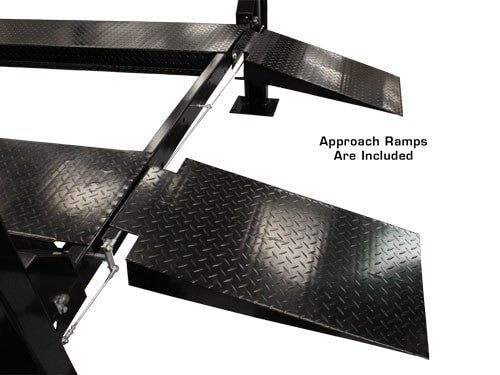

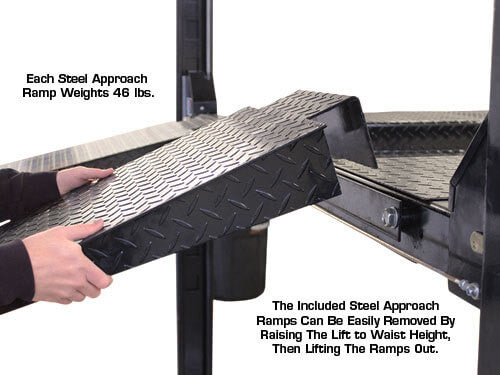

• Steel Approach Ramps Included

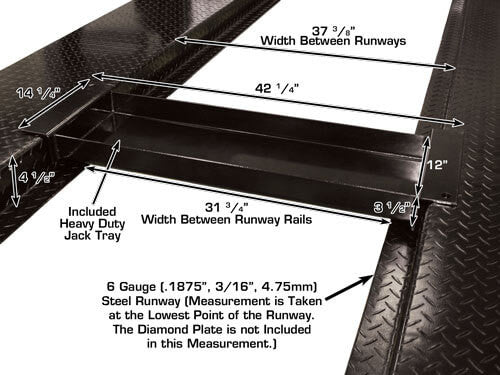

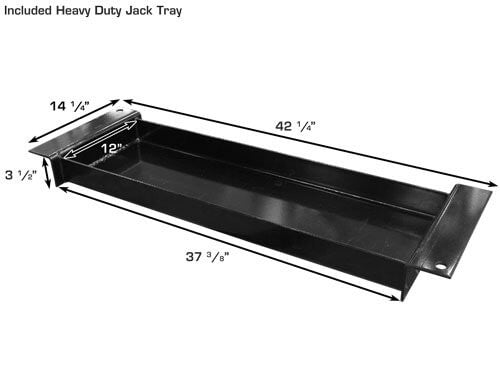

• Steel Jack Tray Included

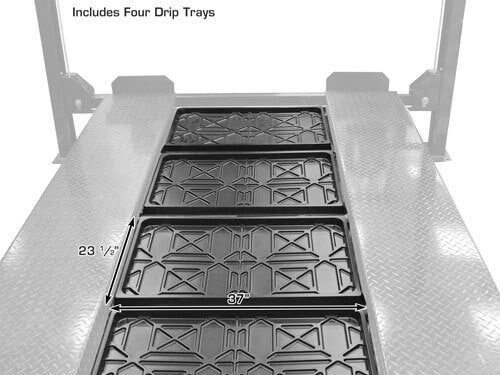

• 4 Plastic Drip Trays Included
• 4 Wheel Stops Included

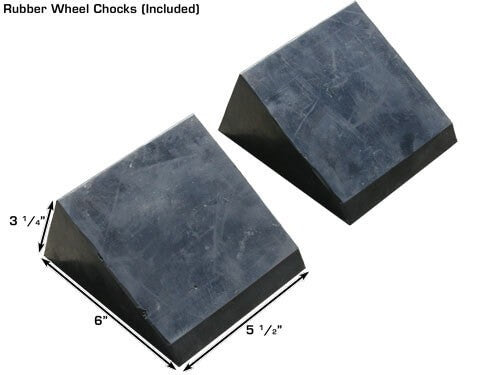

• 2 Rubber Wheel Chocks Included

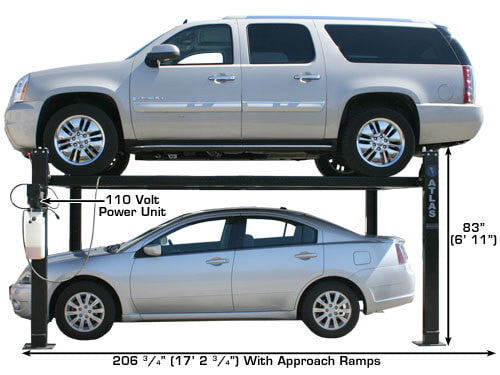

• Perfect For Storing Or Working On Vehicles
• 110volt Electric Operation (30 AMP BREAKER REQUIRED)
• Shipping Weight 1,800 lbs.
• 2 yr Structural ‐ 1 yr Hydraulic Warranty ‐ Parts Only

Atlas Garage PRO8000 Specifications

• Capacity: 8,000 lb.

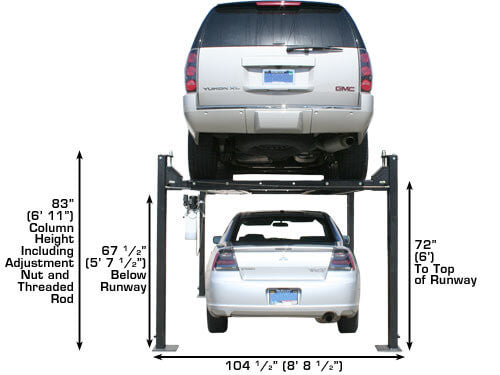

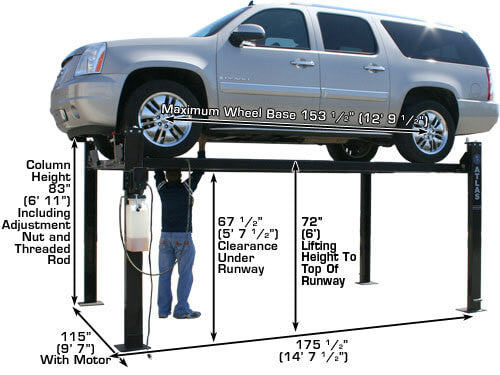

• Lifting Height To Top Of Runway: 72" (6')
• Clearance Under Runways: 67 (5' 7")

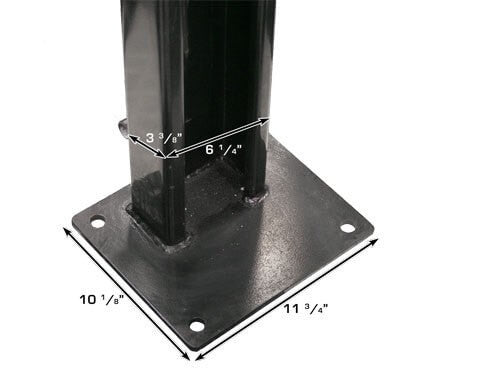

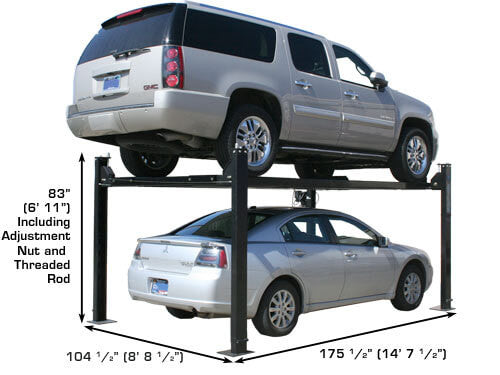

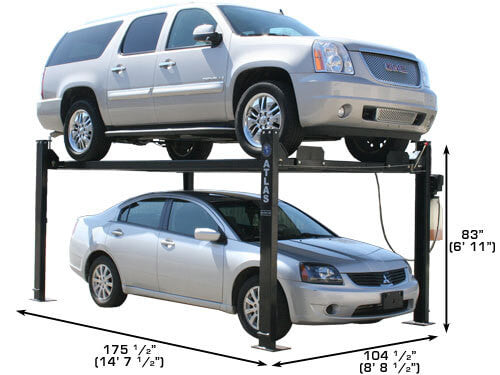

• Height Of Columns: 83" (6' 11")
• Overall Width (Without Motor): 104 1/2" (8' 8 1/2")

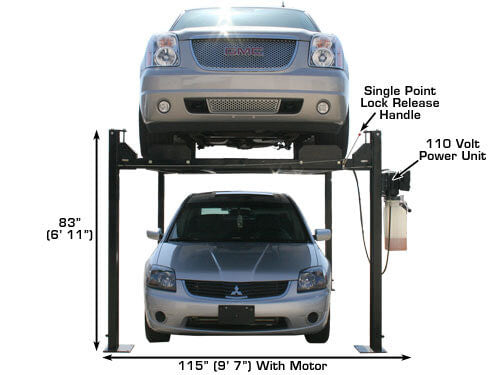

• Overall Width (With Motor): 115" (9' 7")

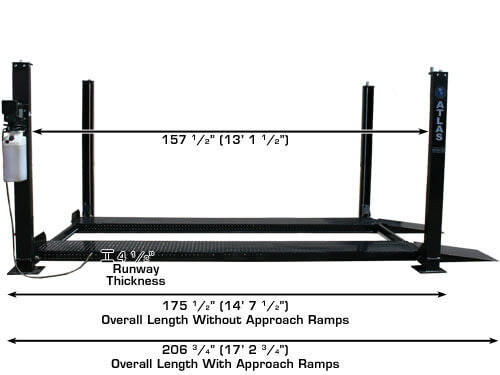

• Overall Length With Approach Ramp: 206 3/4" (17' 2 3/4")
• Approach Ramp: 37" (3' 1")
• Runway Width: 21 1/2" (w/ Rails) or 18 3/4" (Driving Surface)
• Runway Length: 165 3/4" (13' 9 3/4")
• Runway Thickness: 4 1/2"

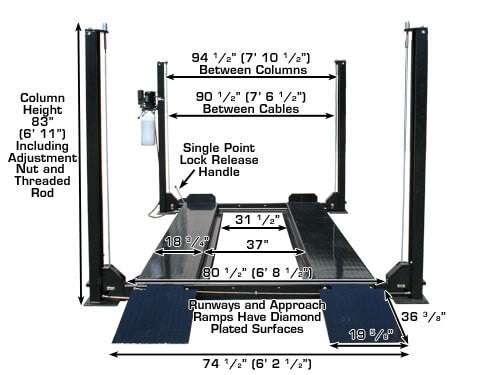

• Width Between Runways: 37" (3' 1")
• Width Between Runway Rails: 31 1/2" (2' 7 1/2")
• Outside Runway To Outside Runway: 74 5/8" (6' 2 5/8")
• Clearance Between Columns: 94 1/2" (7' 10 1/2")
• Length Between Columns: 157 1/2" (13' 1 1/2")
• Maximum Wheel Base: 153 1/2" (12' 9 1/2")
• Drive Thru (Outside Of Tire To Outside Of Tire): 80 1/2" (6' 8 1/2")

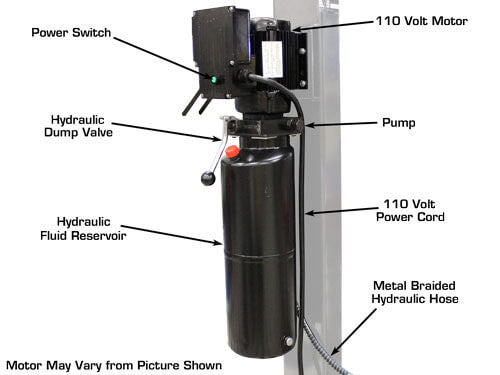

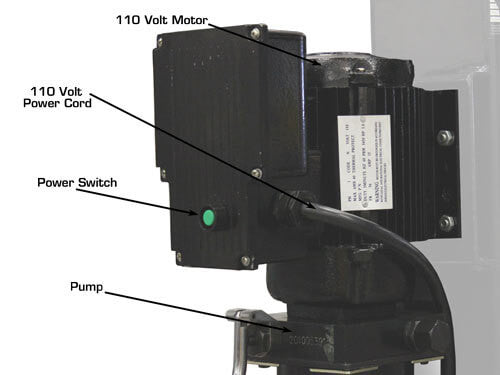

• Motor/Electrical Requirement: 110 Volt, 30 AMP BREAKER REQUIRED
• Shipping Weight: 1,800 lb.

The Atlas Garage PRO8000 is our most popular 4-post hobbyist lift. Perfect for the customer with too many cars and not enough space. The Garage PRO8000 allows the user to easily double their space by stacking most passenger cars. The Atlas Garage PRO series of 4-post lifts (8,000 lb. capacity) are designed and built for use by homeowners or restoration shops. These lifts are not designed for use in commercial repair shops where they would be raised and lowered several times per day. If you have questions about which lift would best work in your application please contact a salesperson.. The Atlas Garage PRO8000 includes free plastic drip trays, a free steel jack tray, and a free caster kit with polyurethane wheels. The caster kit can be installed or removed in just a matter of minutes making the lift portable and allowing it to move between bays or even outside. All that makes the Garage PRO8000 one of the best valued 4-post lifts on the market. Many customers who purchased this lift also purchased the Atlas RJ35 .
