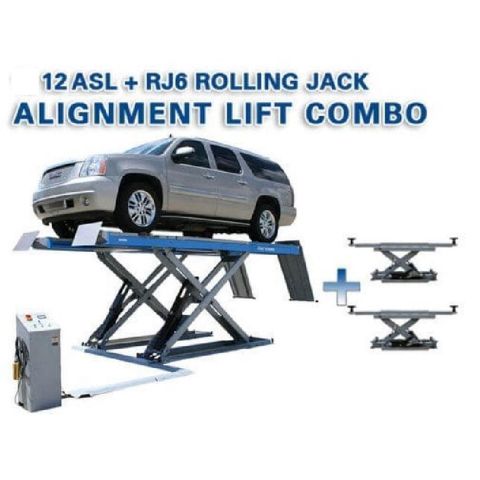

Atlas Equipment 12ASL Alignment Scissor Lift and RJ-6 Rolling Jacks Combo (WILL CALL)

Features & Benefits:

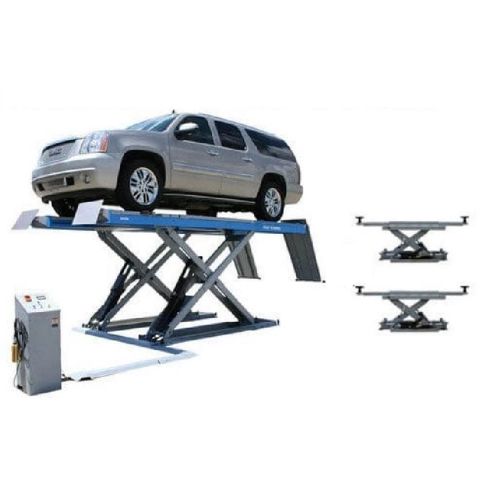

• Combo includes 12ASL scissor alignment lift & two RJ-6 rolling jacks
• Commercial Grade
• Built in Slip Plates and Alignment Turntables Included

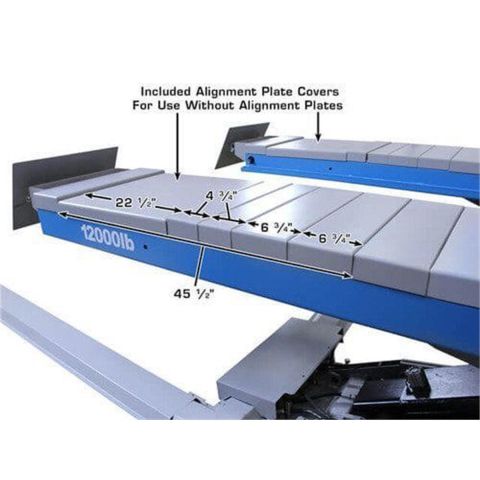

• Turntable Covers Included
• Open Center Design for Easy Access

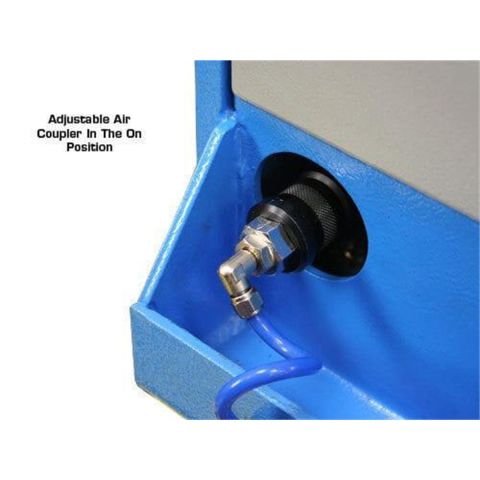

• Air-Operated Single Point Lock Release (External Air Supply Required - NOT INCLUDED)

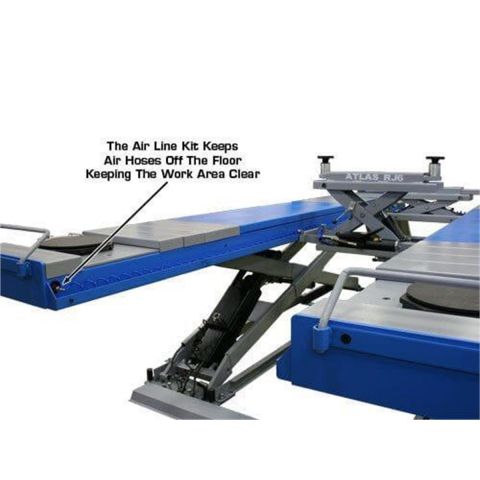

• Airline Kit Included

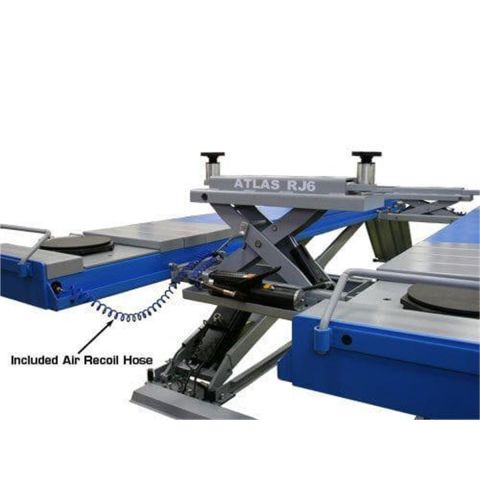

• Jacks are Air Over Hydraulic operated
• Truck Adapter Set for each Jack Included
• This part number WILL CALL ONLY

The Atlas® 12ASL 12,000 lb. scissor alignment lift has a lifting height of over seven feet so that it may be floor-mounted or recessed in the floor for flush mounting. The full frame under the scissor lift provides for maximum stability.

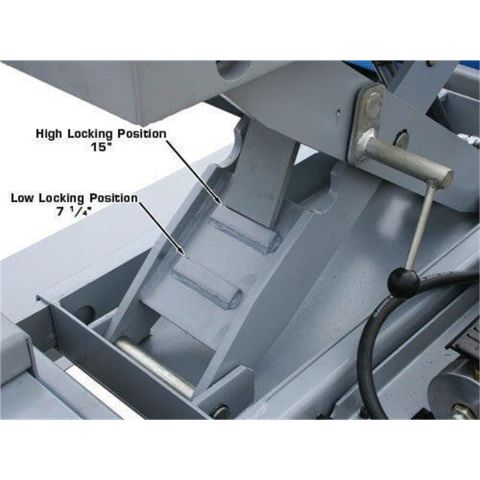

The separate control panel may be conveniently positioned to allow easy access for the operator. The 220 volt (single phase) electric/hydraulic power unit is housed inside the metal control panel box. The push button controls activate the raising and lowering of the lift. The sophisticated air actuated lock system is automatically engaged and disengaged as the lift is being raised or lowered. The lift has a safety lowering limit switch. Once the lift platforms are lowered to within 10 inches of the ground, the lift automatically stops its descent. The Down button needs to be released and depressed again to allow the lift to go down completely.

This combo package also includes two of the the popular Atlas® RJ-6 rolling bridge jacks. The jacks are perfect for raising a vehicles wheels off the lifts runways in order to service tires and brakes.

Atlas® 12ASL Specifications

• Capacity: 12000 lbs
• Minimum Lift Height: 11 1/2"
• Maximum Lift Height Above Floor: 84 1/4" (7' 1/4"))

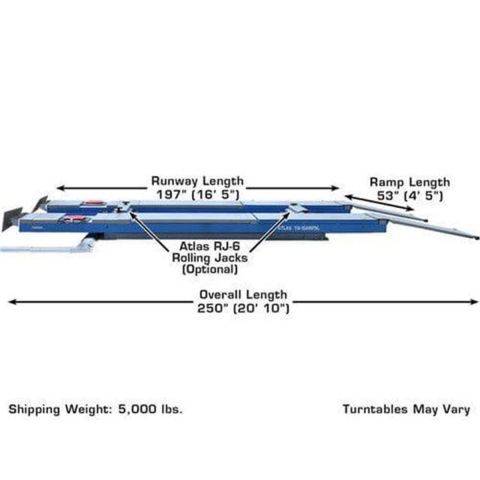

• Overall Length w/ Ramps: 250" (20' 10")
• Overall Length w/o Ramps: 197" (16' 5")
• Overall Width: 86 3/8" (7' 2/ 3/8")
• Runway Width: 23 3/4"
• Between Runways: 39"
• Air Requirement: 85-120 PSI
• Motor/Electrical Requirement: 220volt +/- 5% (209-231 volts)/1phase 30amp breaker required
• Oil Requirement: 3-5 Gallons AW32 or AW46 (NOT INCLUDED)

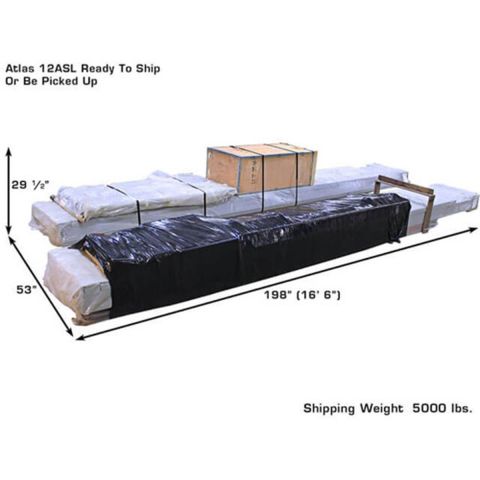

• Shipping Weight: 5000 lbs.

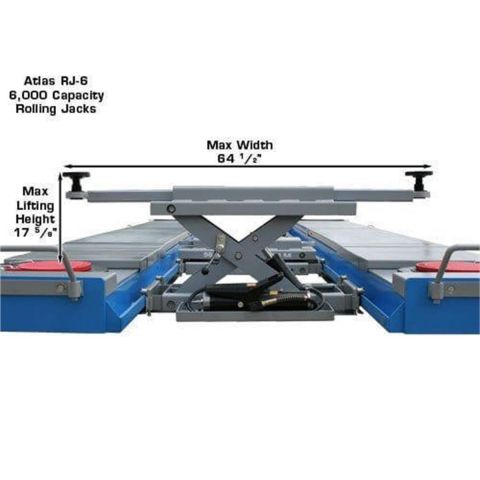

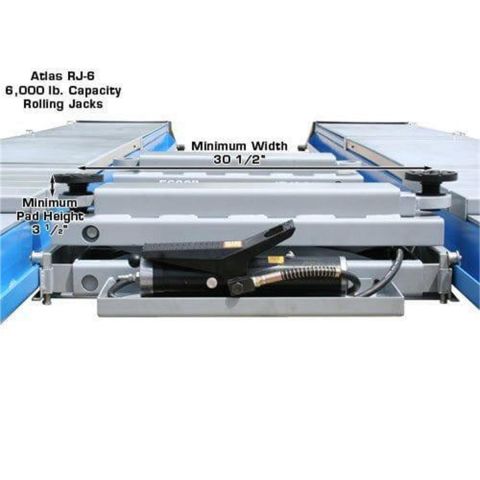

  Atlas® RJ-6 Specifications:

  • Capacity: 6,000 lbs
  • Minimum Width: 30 1/2"
  • Maximum Width: 64 1/2"
  • Distance Between Runway Capability: 31 1/2" - 49 1/2"
  • Minimum Pad Height (Above Runway): 3 1/2"
  • Maximum Lifting Height (w/ Adapters): 17 5/8"
  • Air Requirement: 70-115 PSI
  • Shipping Weight: 350 lbs
  • Adapter Heights: 2 Each 3", 7"
  • Arm Hole/Adapter Peg Size: 2"
