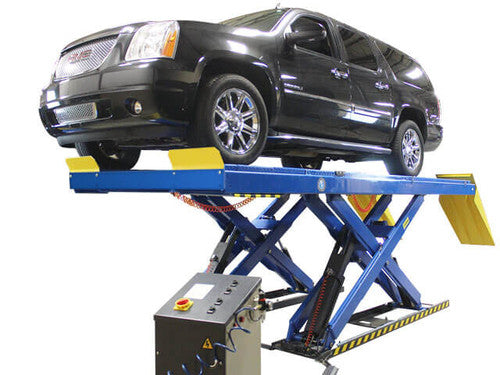

Atlas Automotive Equipment PX16A Scissor Alignment Scissor Lift 16000 lb. Capacity (WILL CALL)

Features and Benefits:

• 16,000 lb. Capacity
• Heavy Duty Commercial Grade Construction
• Scissor Alignment Lift
• Front Cross-Beam for Added Stability
• Super-Balanced with Very Precise Platform Leveling Accuracy for Wheel Alignment

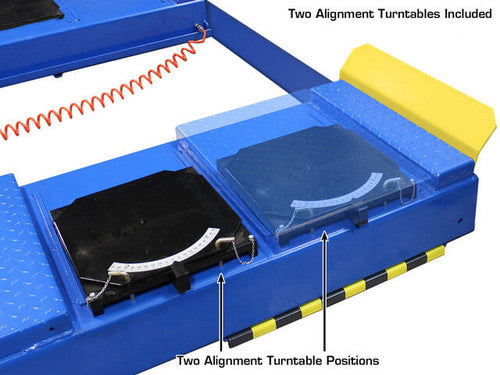

• Built-in Slip Plates and Alignment Turntables Included
• Recessed Positions for Turntables

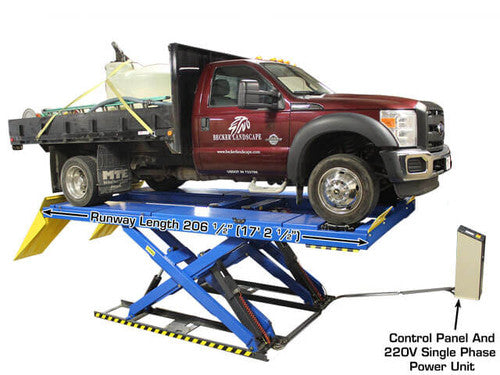

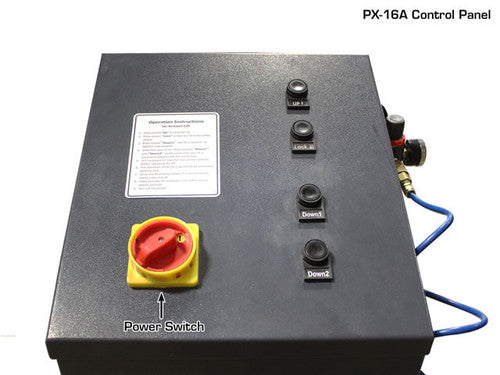

• Separate Self-Contained Control Unit

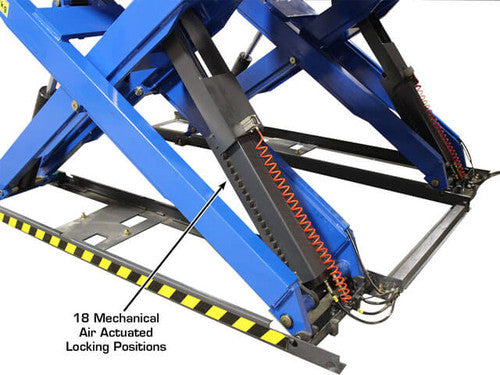

• Air Operated Mechanical Safety Locks (External Air Supply Required)
• Emergency manual pump for lowering
• Overload Valve Included
• Lowering Speed Valve Included
• Mounting Hardware Included
• Extra Long Slip Plates Allow For 4-Wheel Aligning Of Wheelbases From 96" to 184"

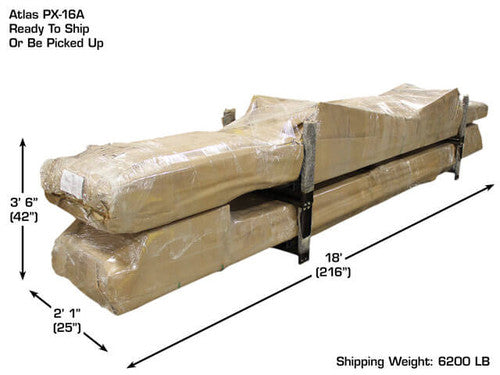

• Shipping Weight: 6,200 lbs.
• 2 yr Structural ‐ 1 yr Hydraulic Warranty ‐ Parts Only

Atlas PX16A Specifications

• Lifting Capacity: 16,000 LB
• Lifting Height: 71 1/2" (5' 11 1/2")

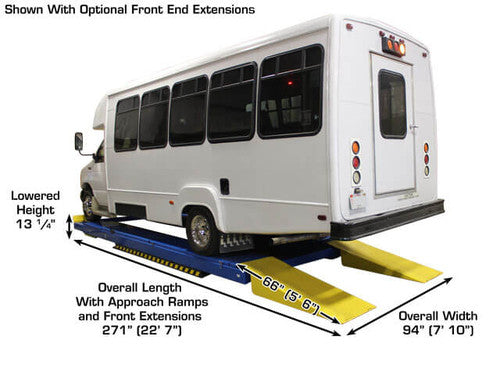

• Lowered Height: 13 1/4"
• Overall Width: 94" (7' 10")
• Overall Length with Approach Ramps: 271" (22' 7")
• Overall Length without Approach Ramps: 206 1/2" (17' 2 1/2")
• Approach Ramp Length: 66" (5' 6")

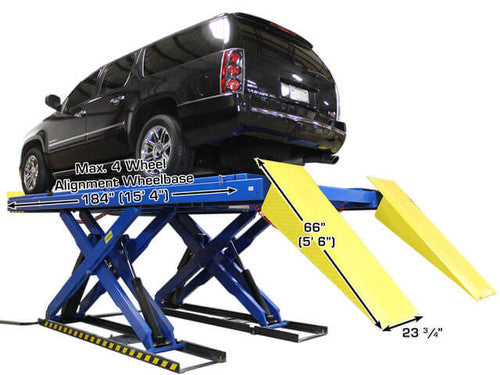

• 4-Wheel Alignment Wheelbase: Max. 184 in.
• 4-Wheel Alignment Wheelbase: Min. 96 in.
• Runway Width including Rail: 23 3/4" (1' 11 3/4")
• Width Between Runways: 44 7/8"

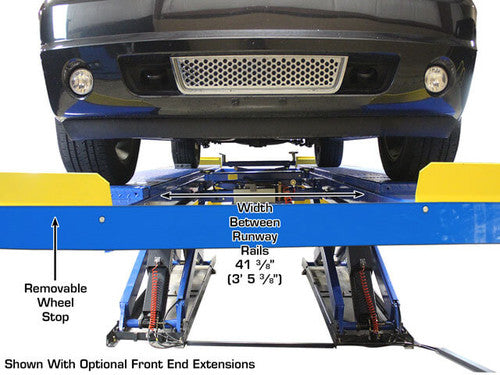

• Width Between Runway Rails: 41 3/8"
• Air Requirement: 90-120 PSI
• Motor/Electrical Requirement: 220 volt +/- 5% (209-231volts) single (1) phase. A 30 amp breaker is required.
• Oil Requirement: 3.5 Gallons AW32/AW46
• Shipping Weight: 6,200 lbs.
• Requires a minimum of 6" of concrete with a 3000 psi. rating

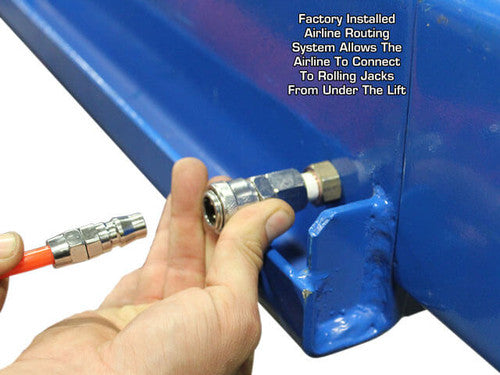

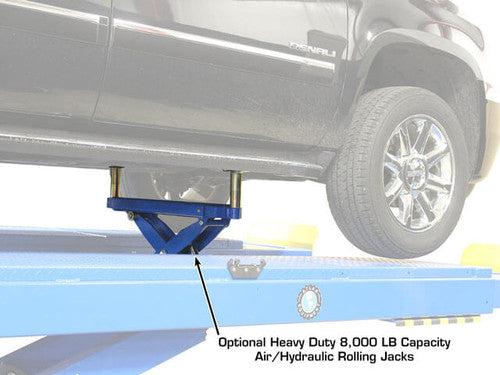

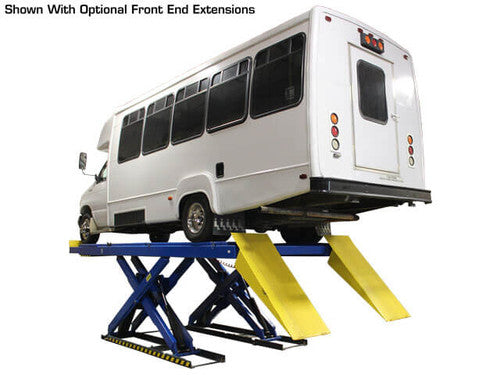

The Atlas PX16A 16,000 lb. capacity scissor alignment lift is the perfect choice for those service shops that need a space saving (narrow width) alignment lift to accommodate most all passenger cars up to heavy-duty long wheel base trucks and vans. The Atlas PX16A allows the operator to perform 4-wheel alignments for vehicles with wheel base lengths from 96 inches to 184 inches. The Atlas PX16A includes a set of turntables, built in slip-plates, and runway jack rails designed to accommodate optional rolling jacks (like the Atlas RJ8000BK ). The lift is equipped with a semi enclosed air line kit routing system to accommodate the optional airline kit. This air line kit will provide air to the rolling jacks and prevent shop air hoses from cluttering the floor.
