Atlas Automotive Equipment 12000 lb. 4-Post Alignment Lift with Turntables

Features and Benefits:

• 12,000 lb. Capacity
• Heavy Duty, Commercial Grade
• Extra Tall, Extra Wide & Extra Long

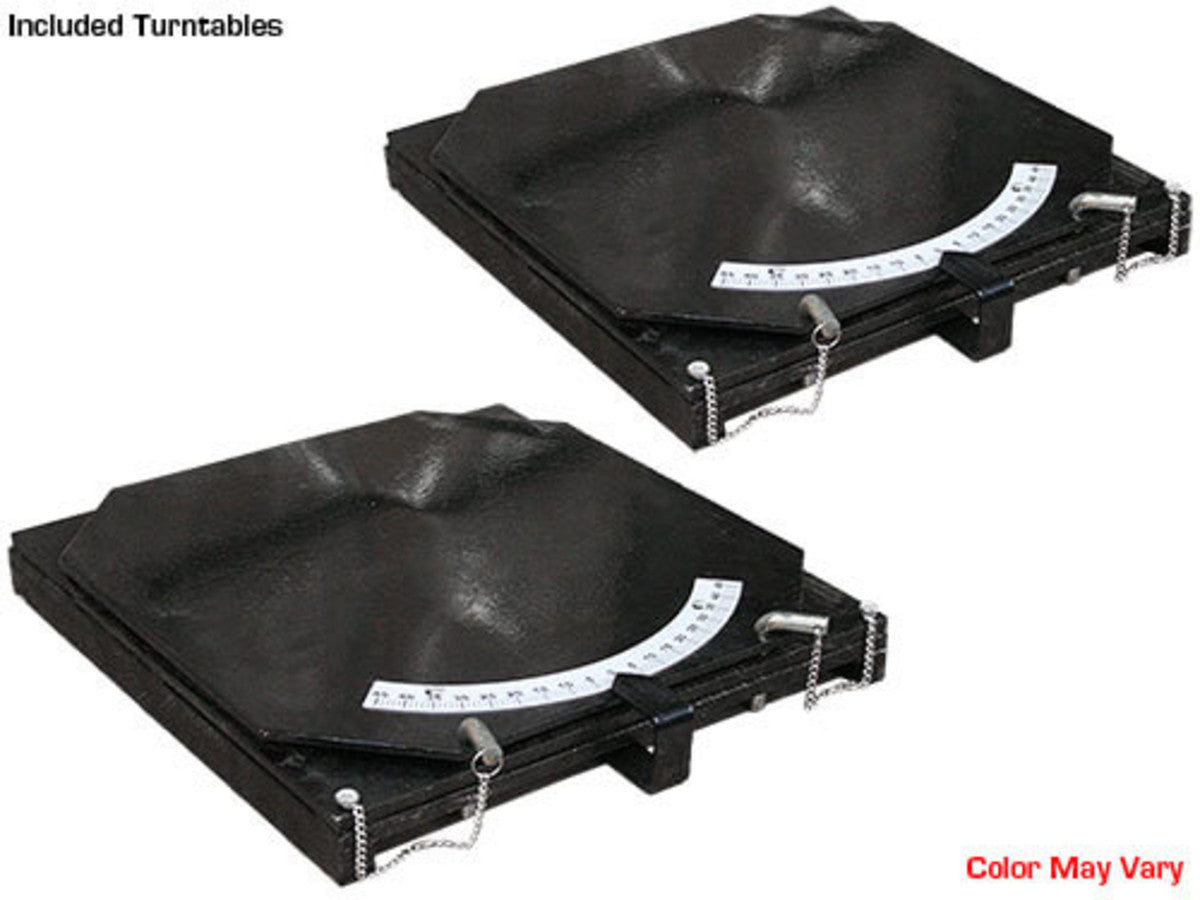

• Built-In Slip Plates & Alignment Turntables Included

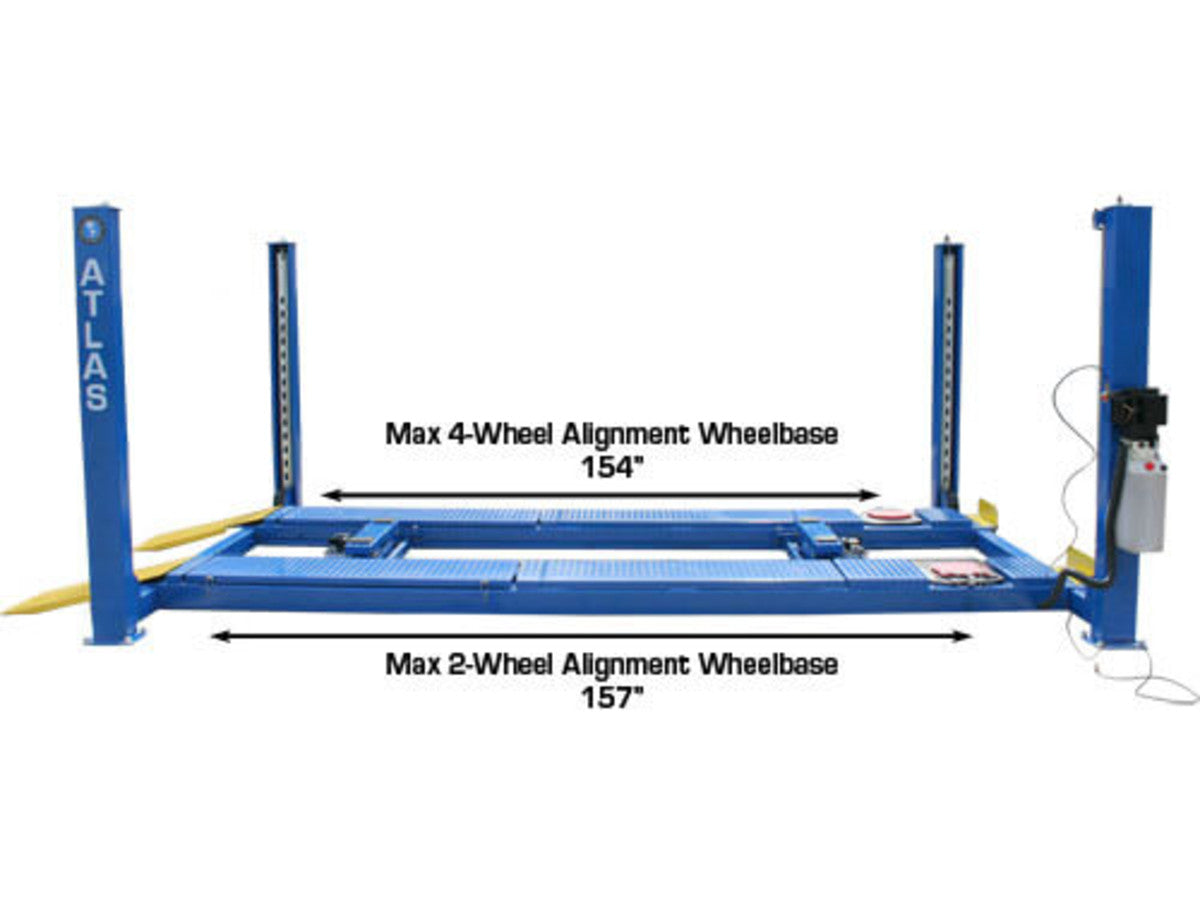

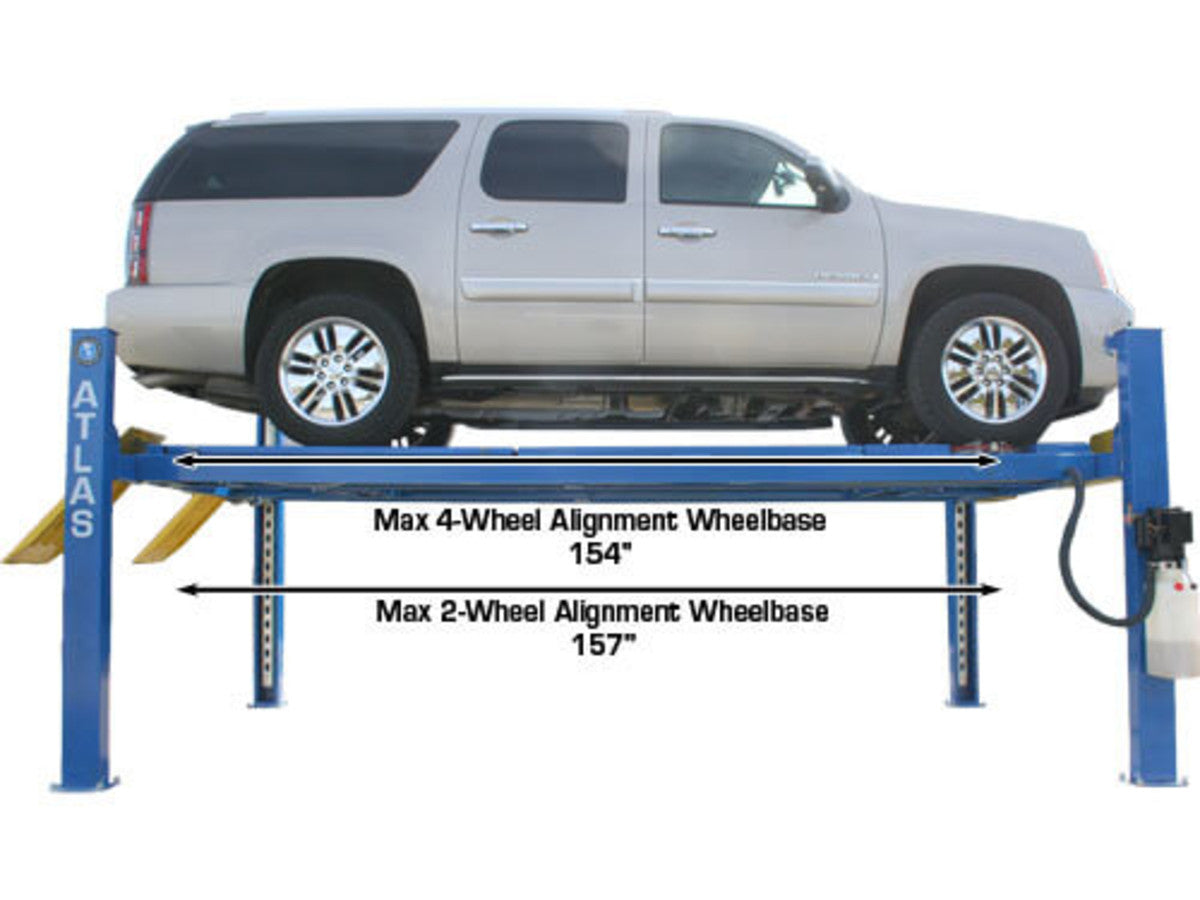

• Multiple Positions for Turntable Placement
• Runway Covers Included (when Turntables are Removed)

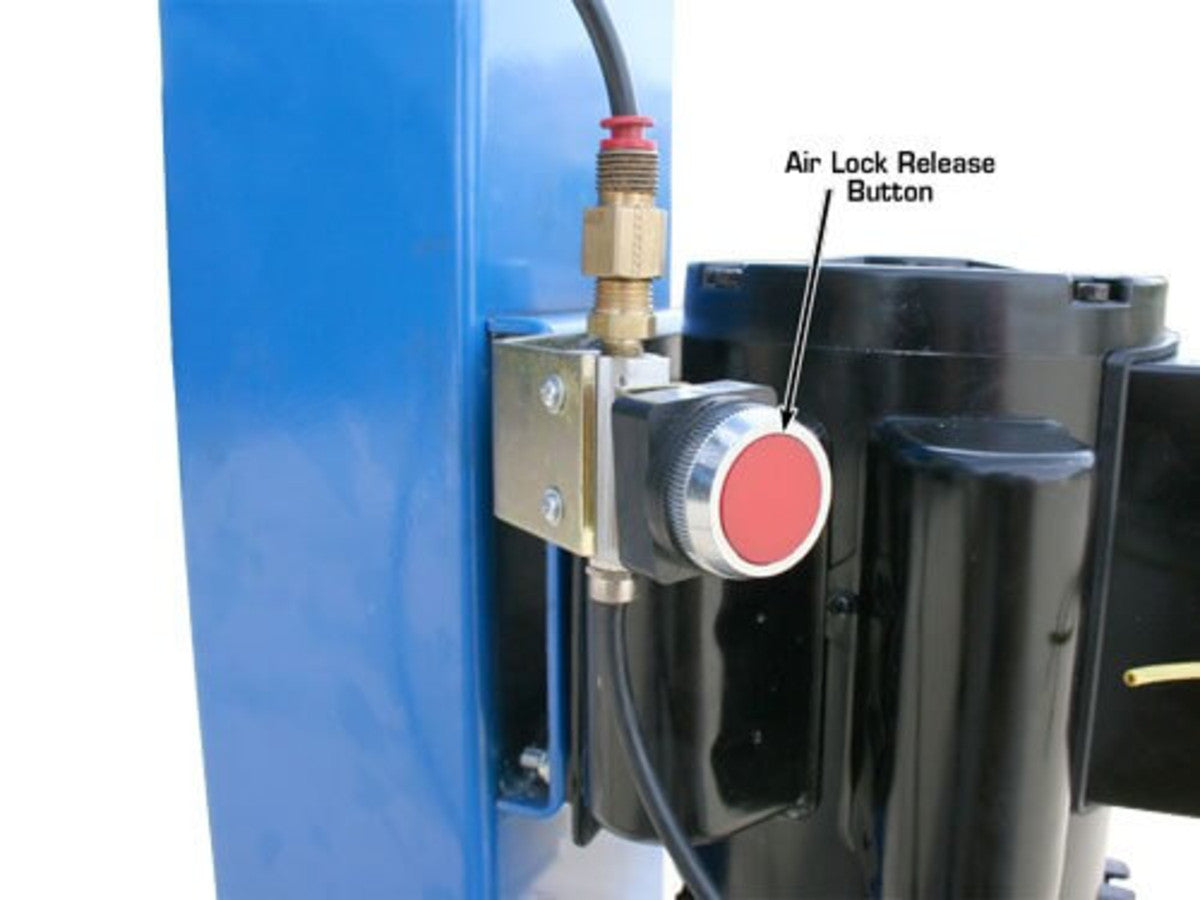

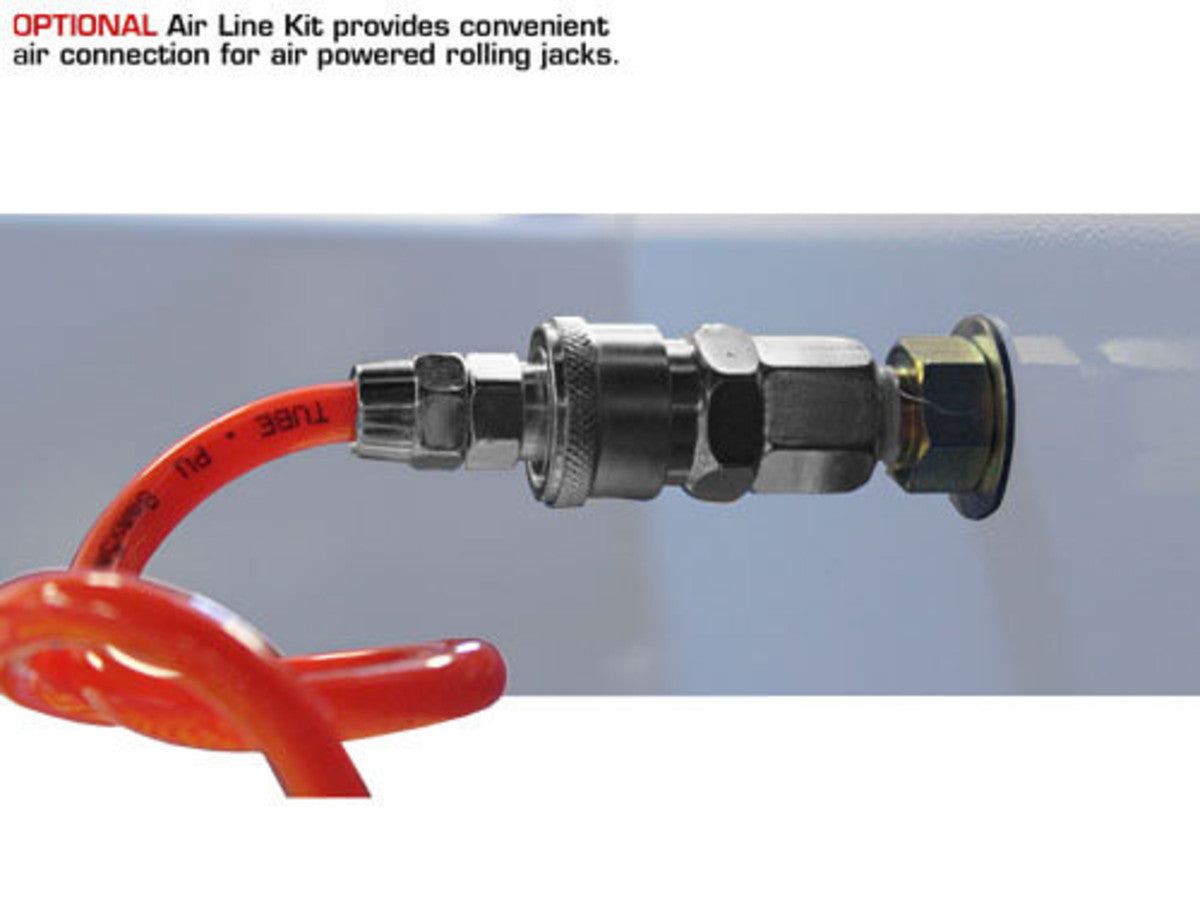

• Air Operated Single Point Lock Release (External Air Supply Required)

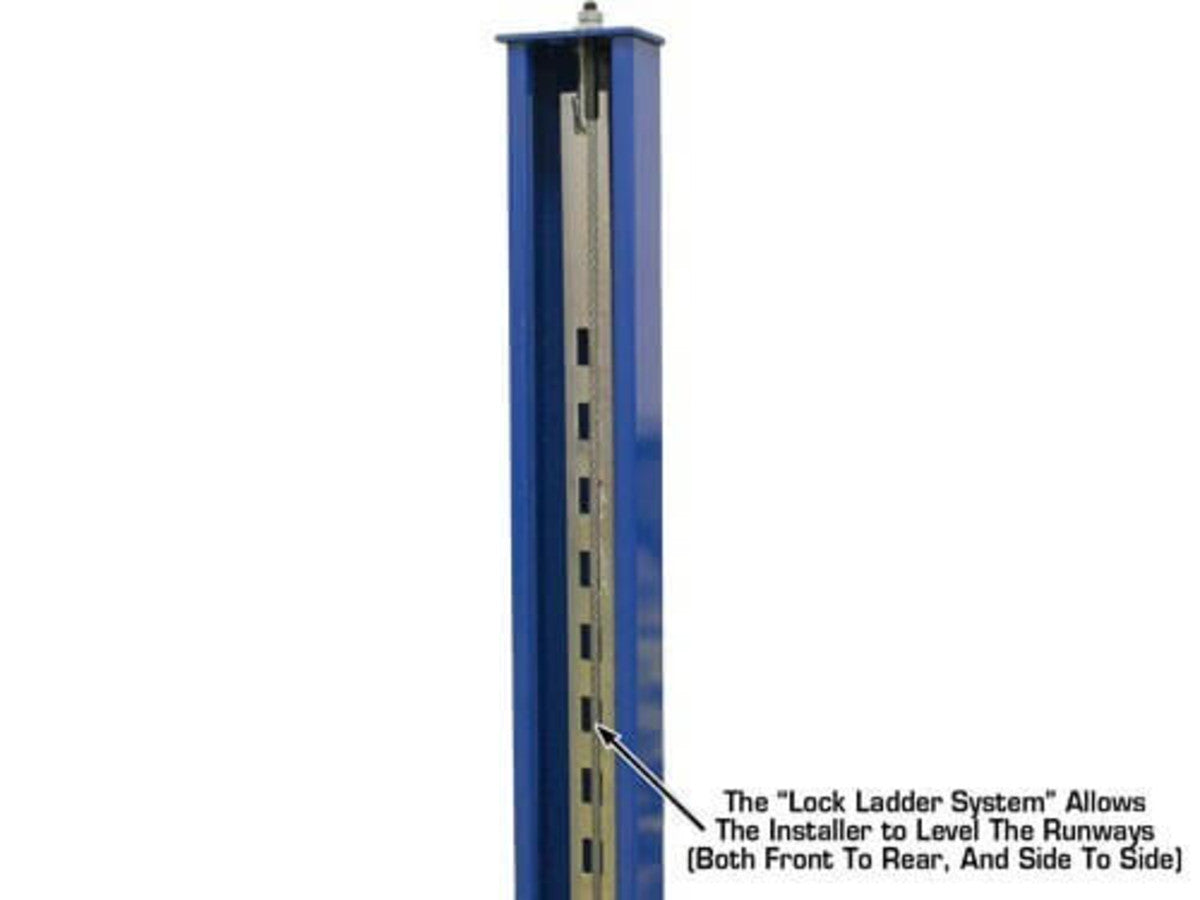

• Lock Ladder Design
• Double Lock Safety System
• Powder Coat Finish

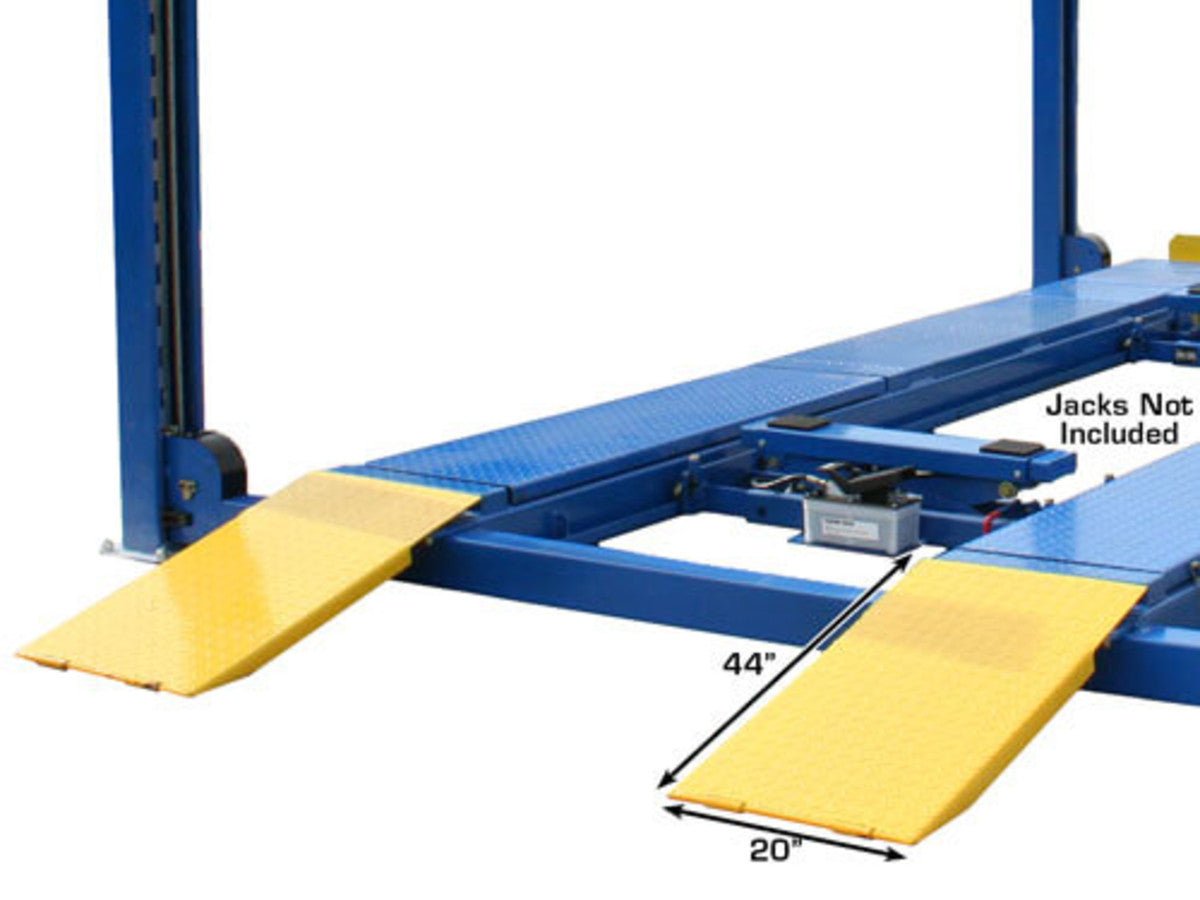

• Steel Approach Ramps Included
• Additional Drive-off Ramps Available (Sold Separately)
• Runway Extensions Available (Sold Separately)

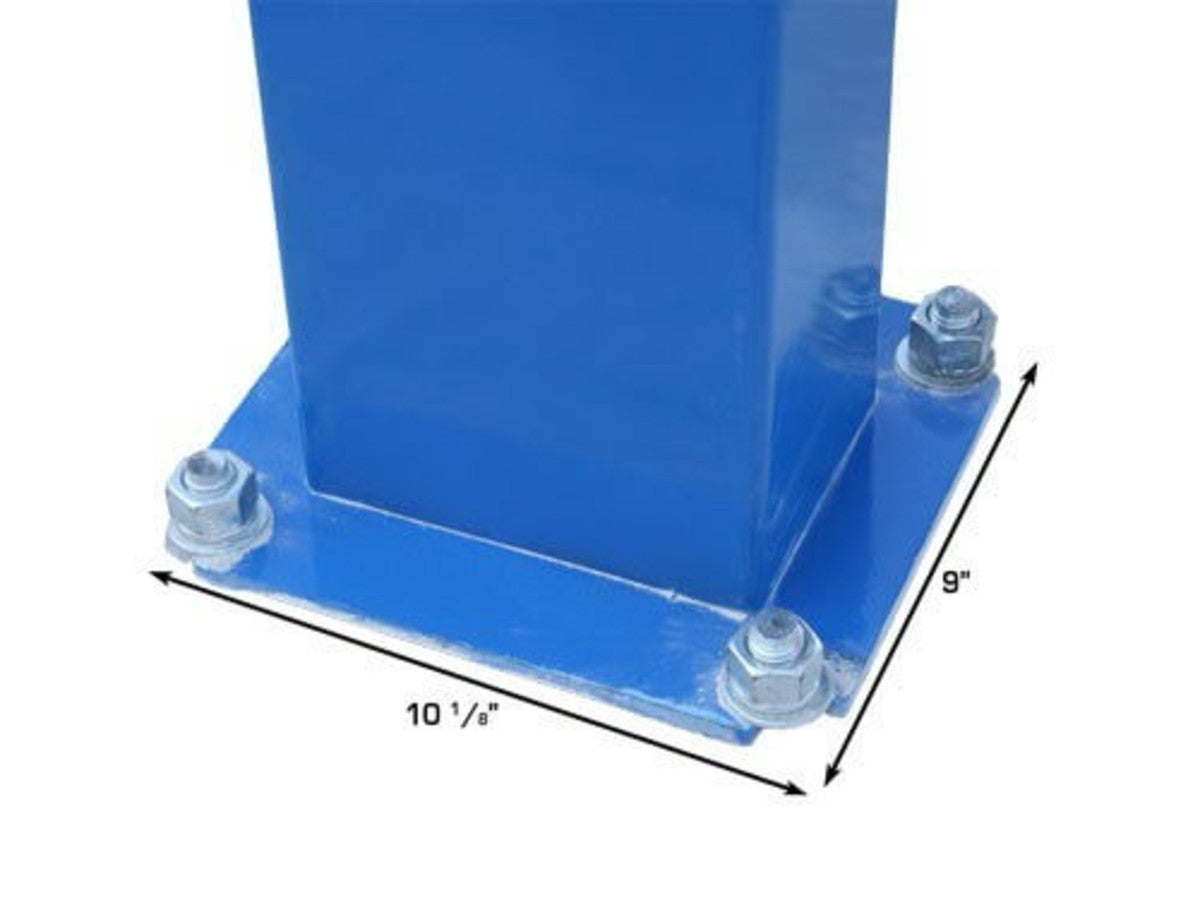

• Mounting Hardware Included
• 220V/1-phase Electric Operation (Requires a 30-amp Breaker)
• 5-Year Structural / 2-Year Hydraulic Warranty
• Shipping Weight: 2,900 lbs.
• This part number is FREIGHT PREPAID

The Atlas 412A 12,000-pound capacity four-post alignment lift is designed and built to commercial-grade standards and will provide many years of service. Our Atlas lifts offer many exclusive features not found on many other competitors' lifts.

The Atlas 412A incorporates many structural and cosmetic features that are found on lifts costing thousands of dollars more. The 412A is tested to ensure that this lift system will perform flawlessly at its rated capacity.

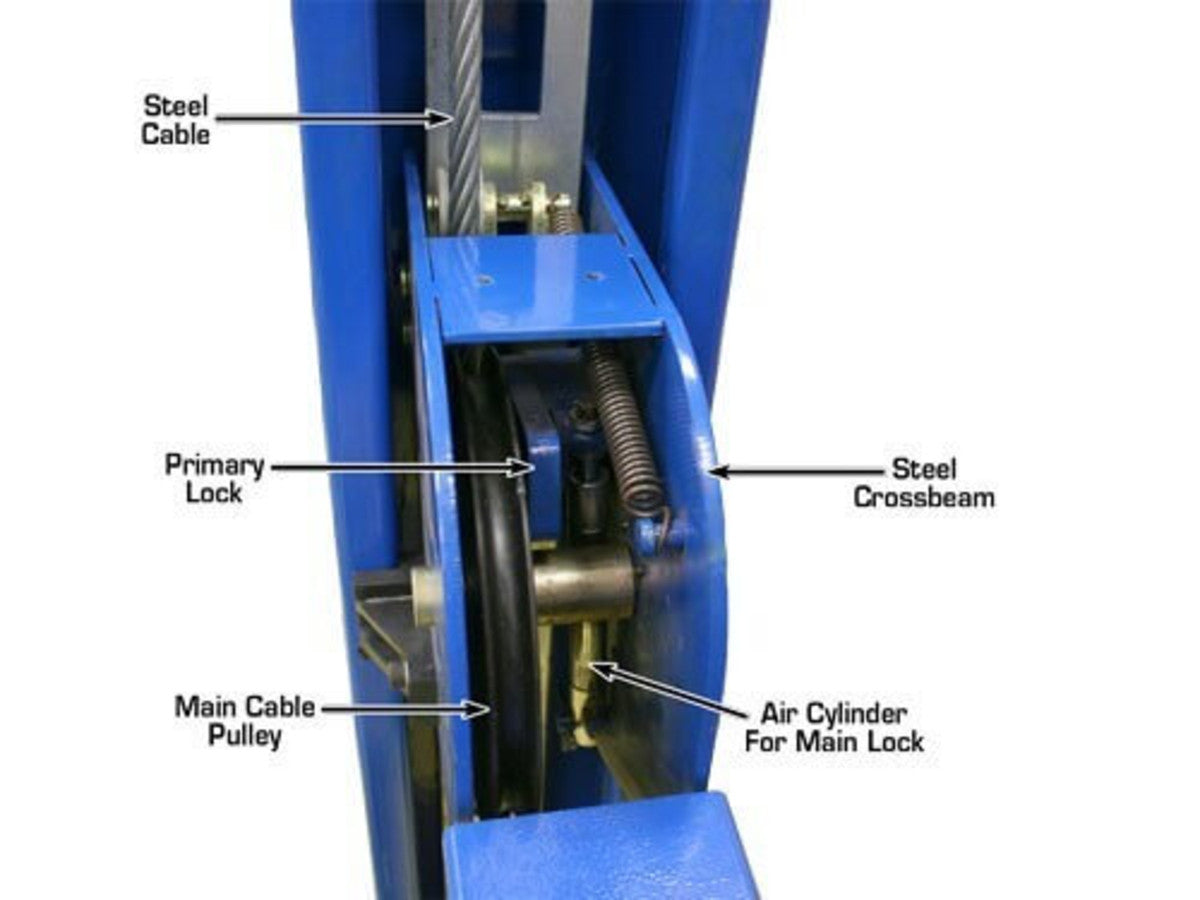

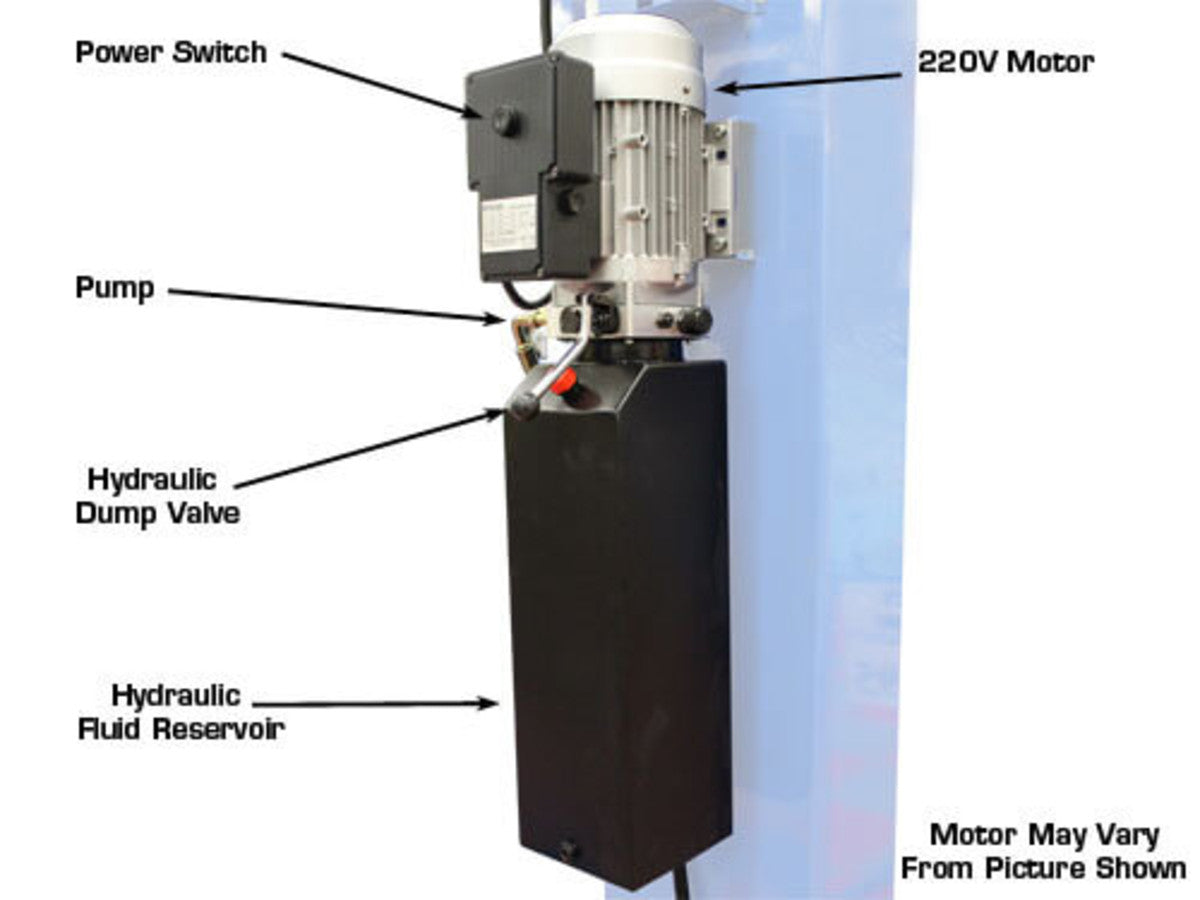

The Atlas 412A uses a high-strength cable system (with an under-runway oversized hydraulic cylinder) powered by a 220-volt (single-phase) power unit to raise and lower the lift. Many competitors use an old-style chain lifting system with an exposed hydraulic cylinder. Old-style chain lifts are difficult to level properly, and the exposed hydraulic cylinder is responsible for numerous door dings.

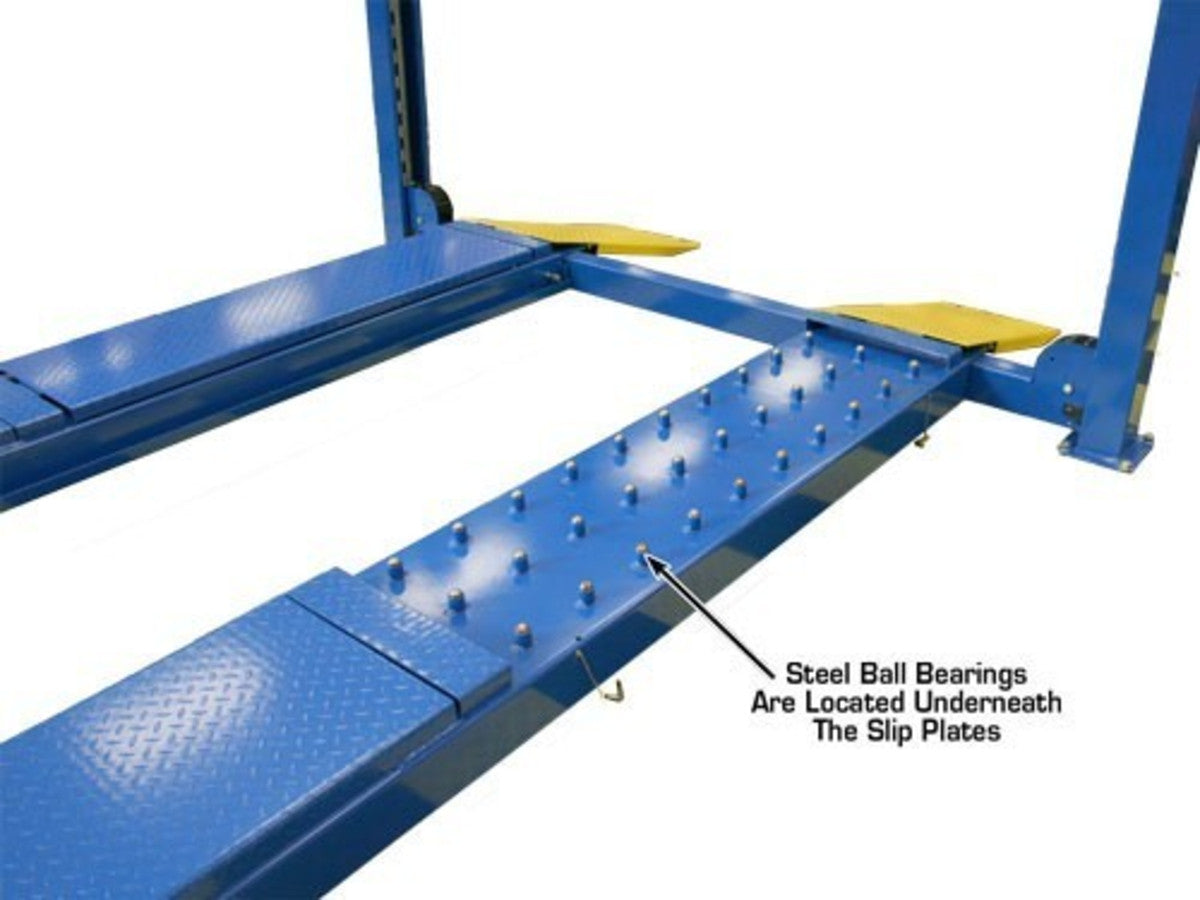

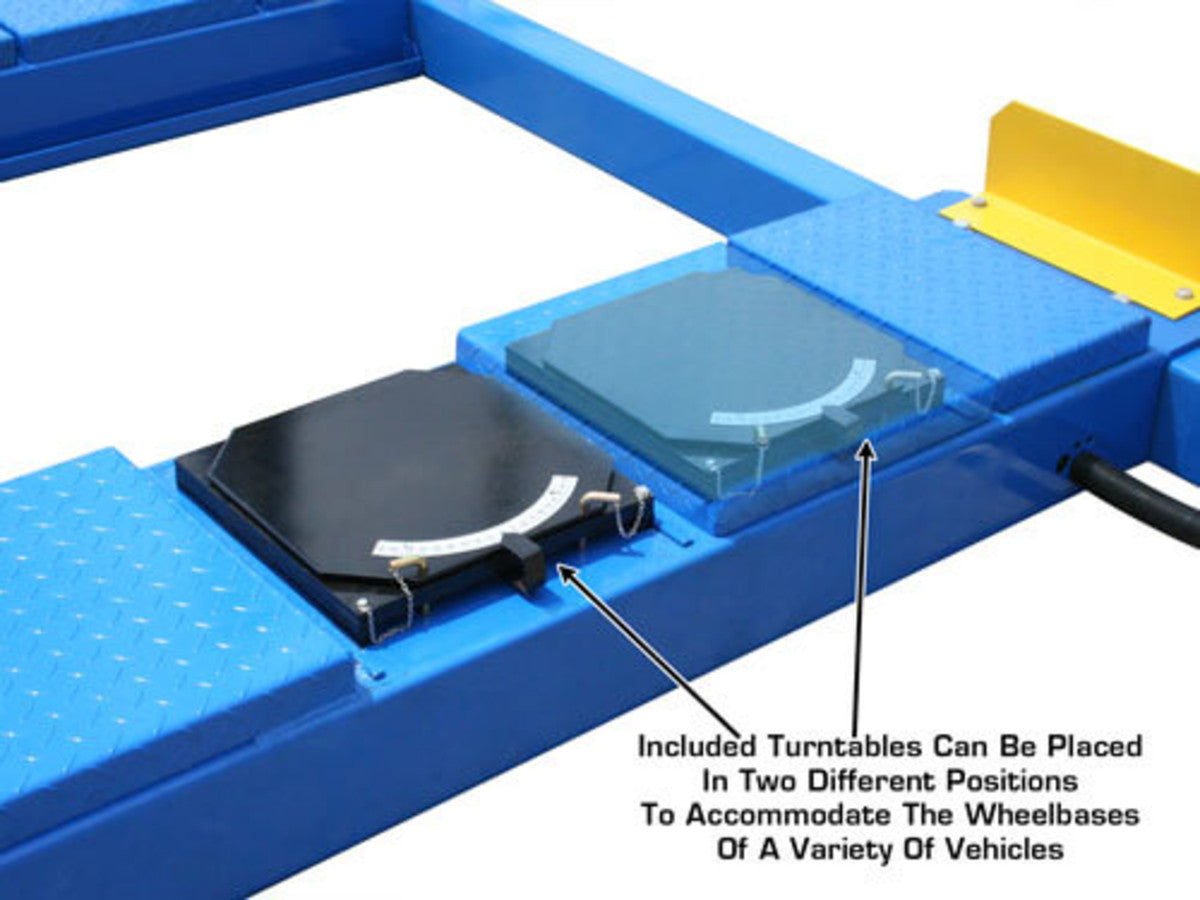

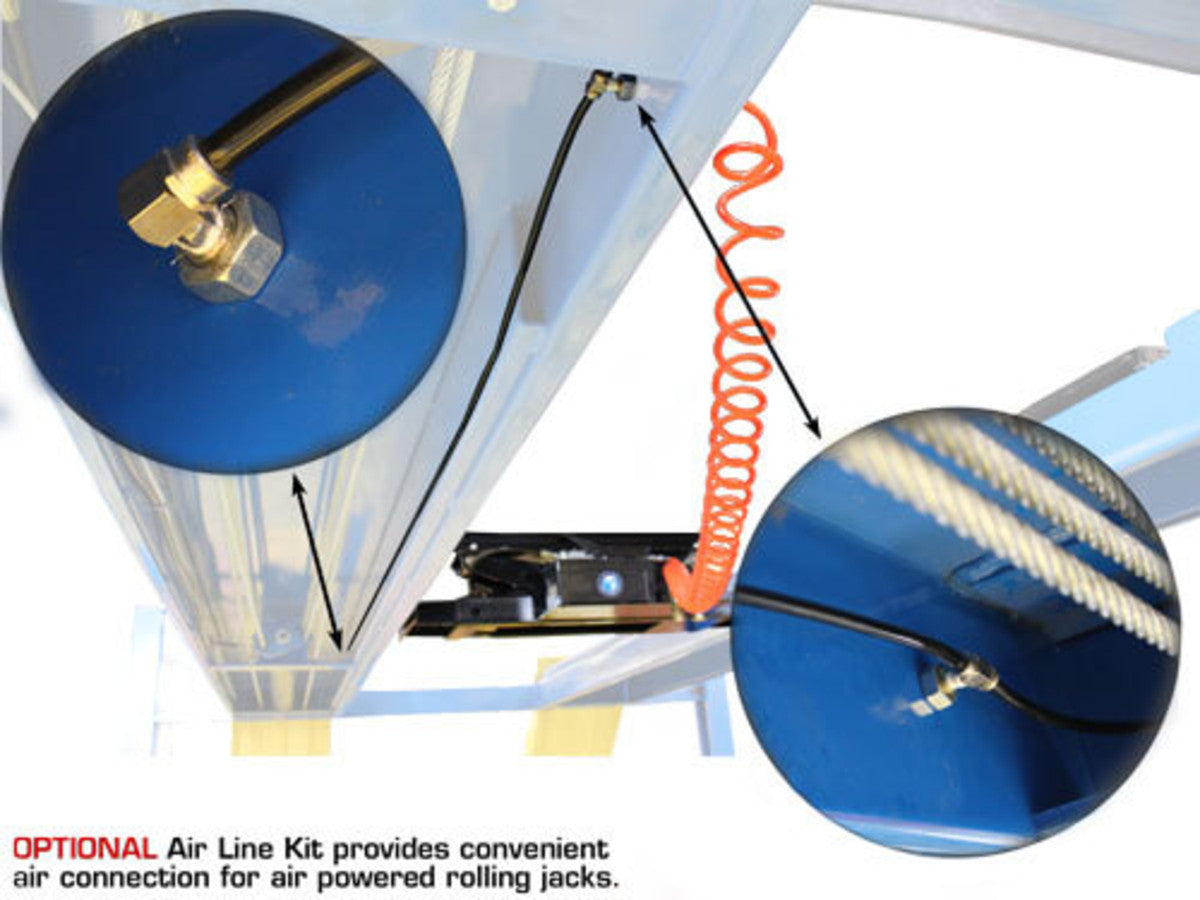

Besides having all the heavy-duty features of the Atlas 412, such as tracks between the runways to allow the use of a rolling bridge jack (the Atlas RJ6BK or Atlas RJ6BKAH) on the lift (rolling jacks sold separately), the 412A features slip plates and alignment turntables. The slip plates are built-in and are assured to be level with the turntables. The turntables can be set in different positions on the runway to accommodate a wide variety of wheelbases. The 412A also features metal cover plates to replace the turntables when not in use so the lift can be used for more than just alignments.

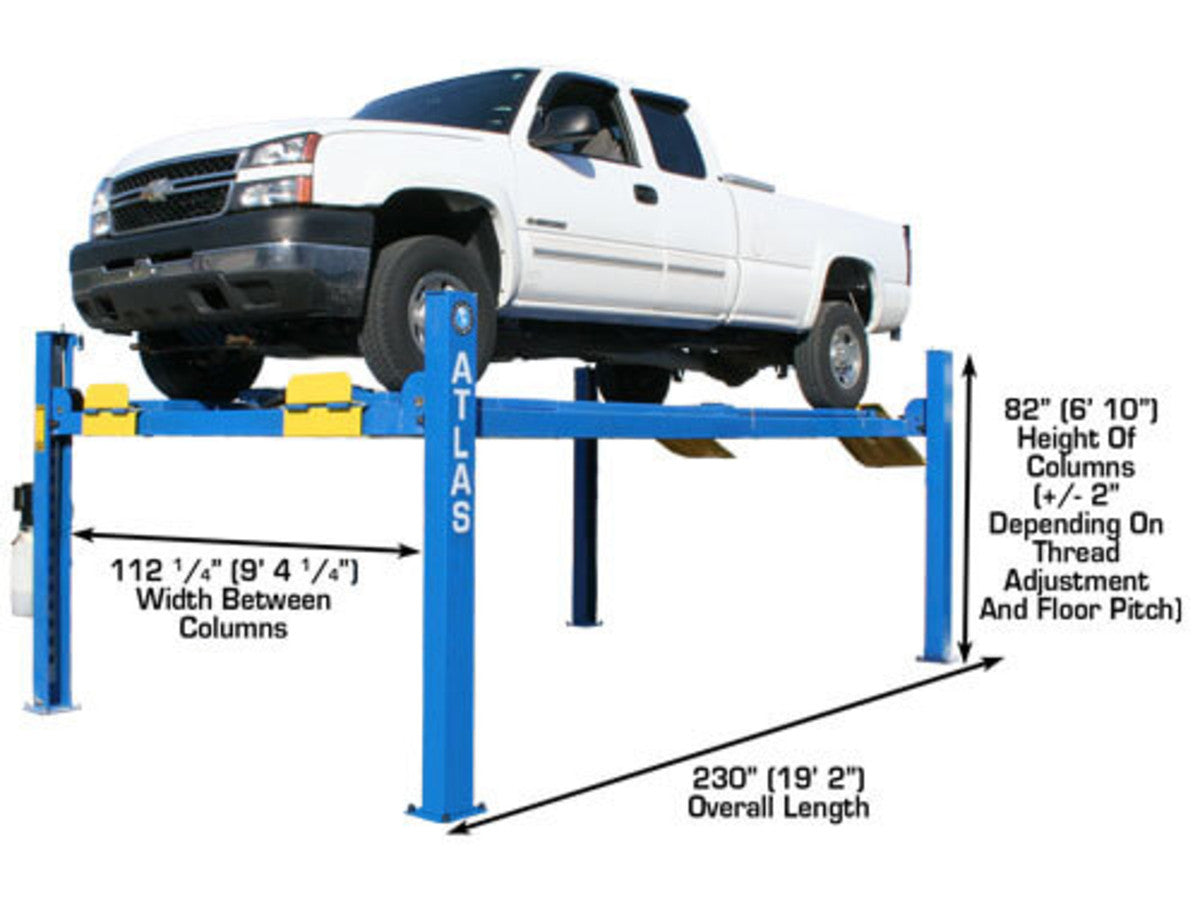

Atlas ATTD-412A Specifications:

• Capacity: 12,000 lbs

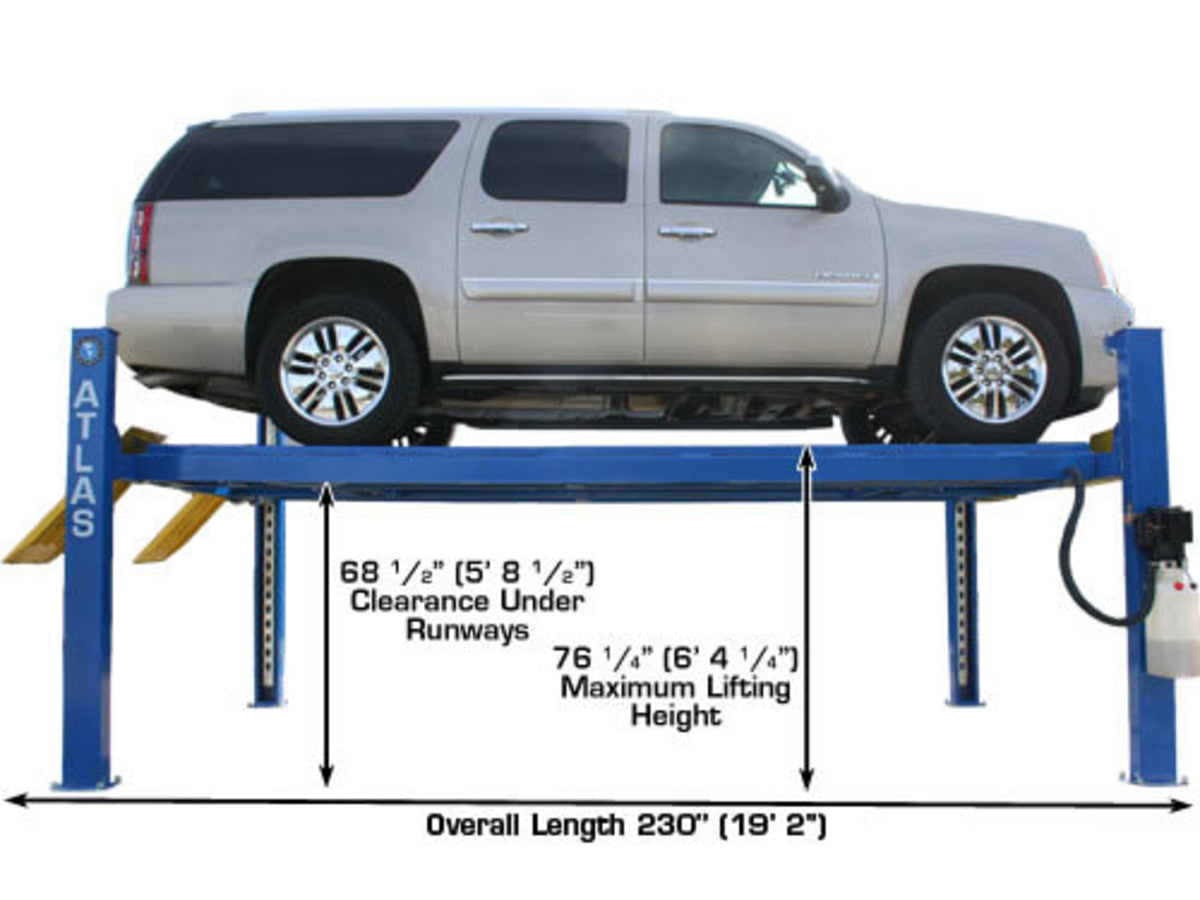

• Lifting Height (Top of Runway): 77 3/4" (6' 5 3/4")
• Clearance Under Runways: 70 1/4" (5' 10 1/4")
• Height of Columns: 89 3/4" (7' 5 3/4")
• Overall Width: 126 1/4" (10' 6 1/4") w/ motor 135 1/4" (11' 3 1/4")

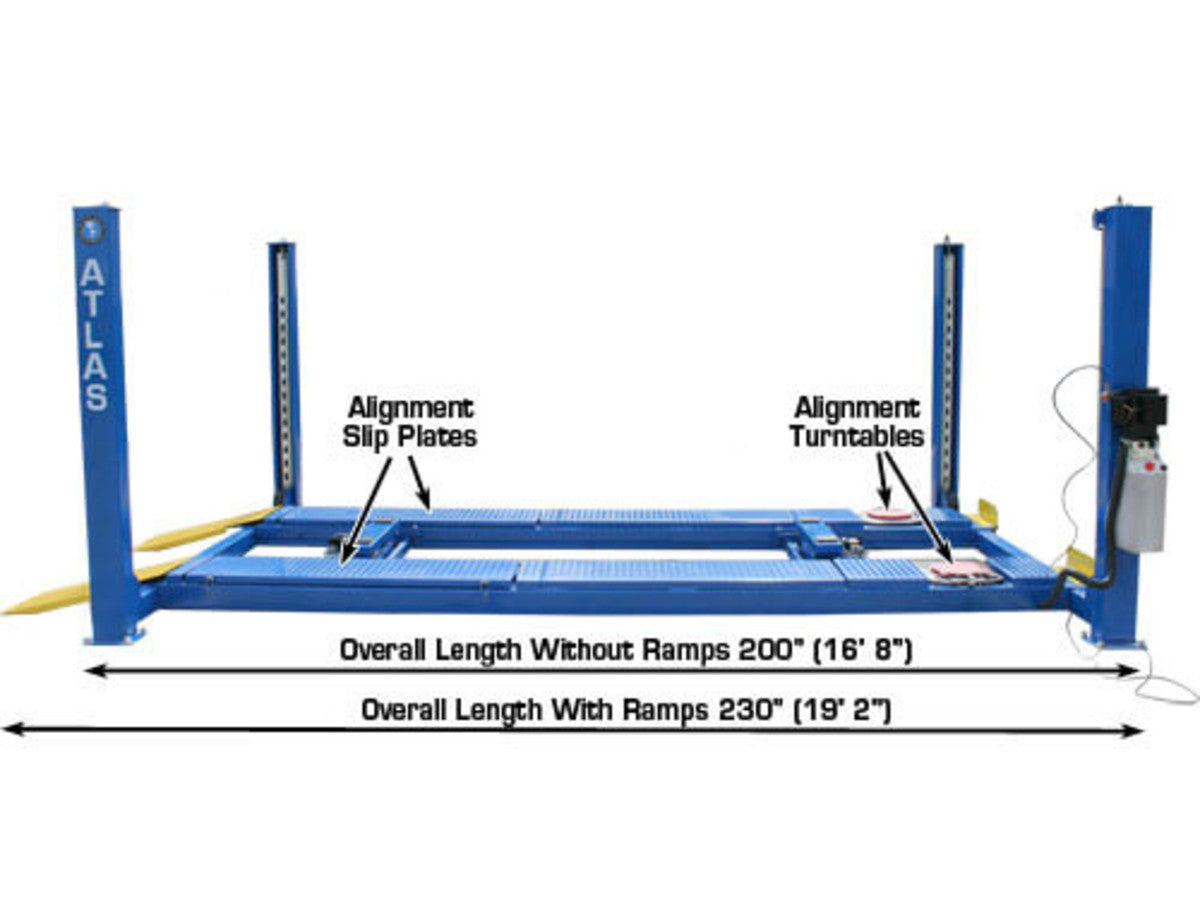

• Overall Length w/ Ramps: 236 1/2" (19' 8 1/2")
• Runway Length: 194 1/2" (16' 2 1/2")
• Runway Width: 20"
• Runway Thickness: 7 1/2"
• Width Between Runways: 43 1/4" w/ Rail 39 3/4"
• Outside Runway to Outside Runway: 83 1/4" (6' 11 1/4")

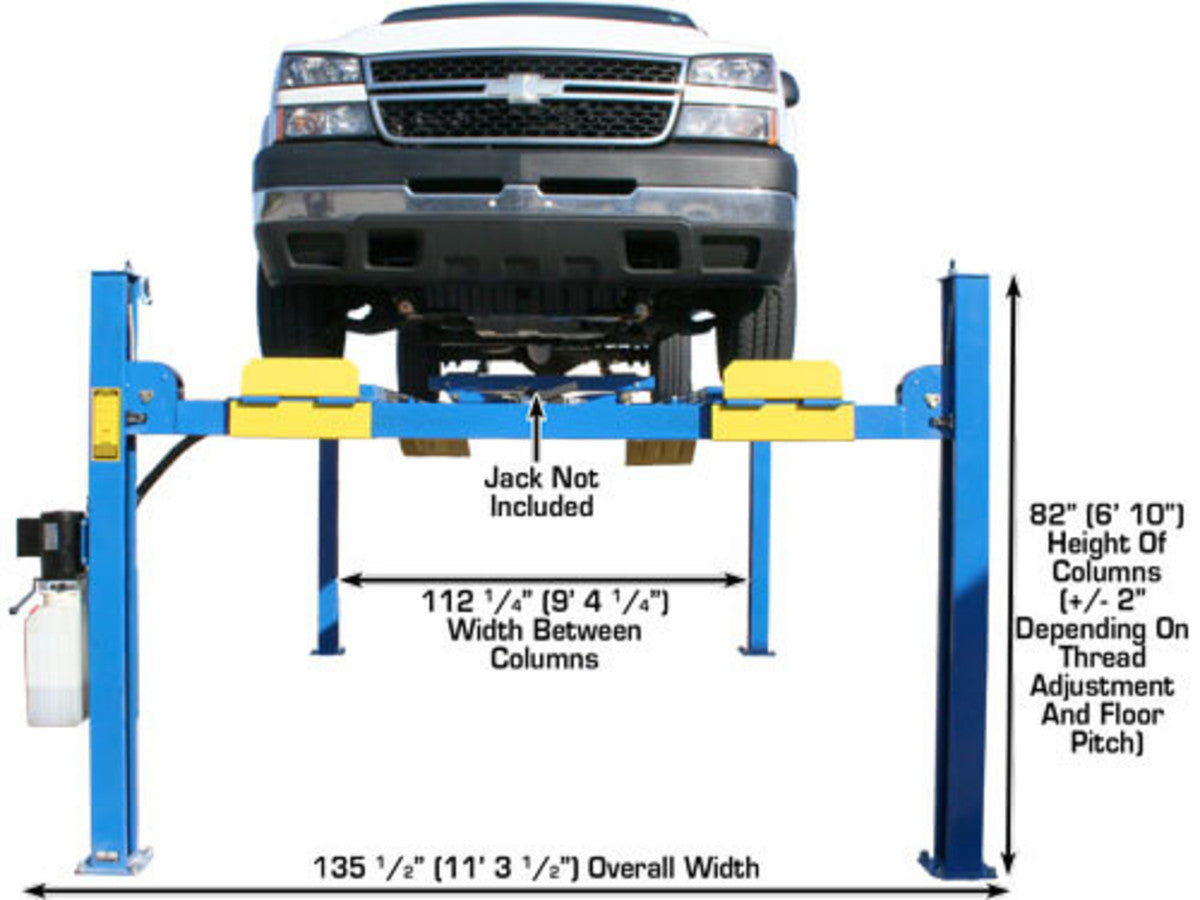

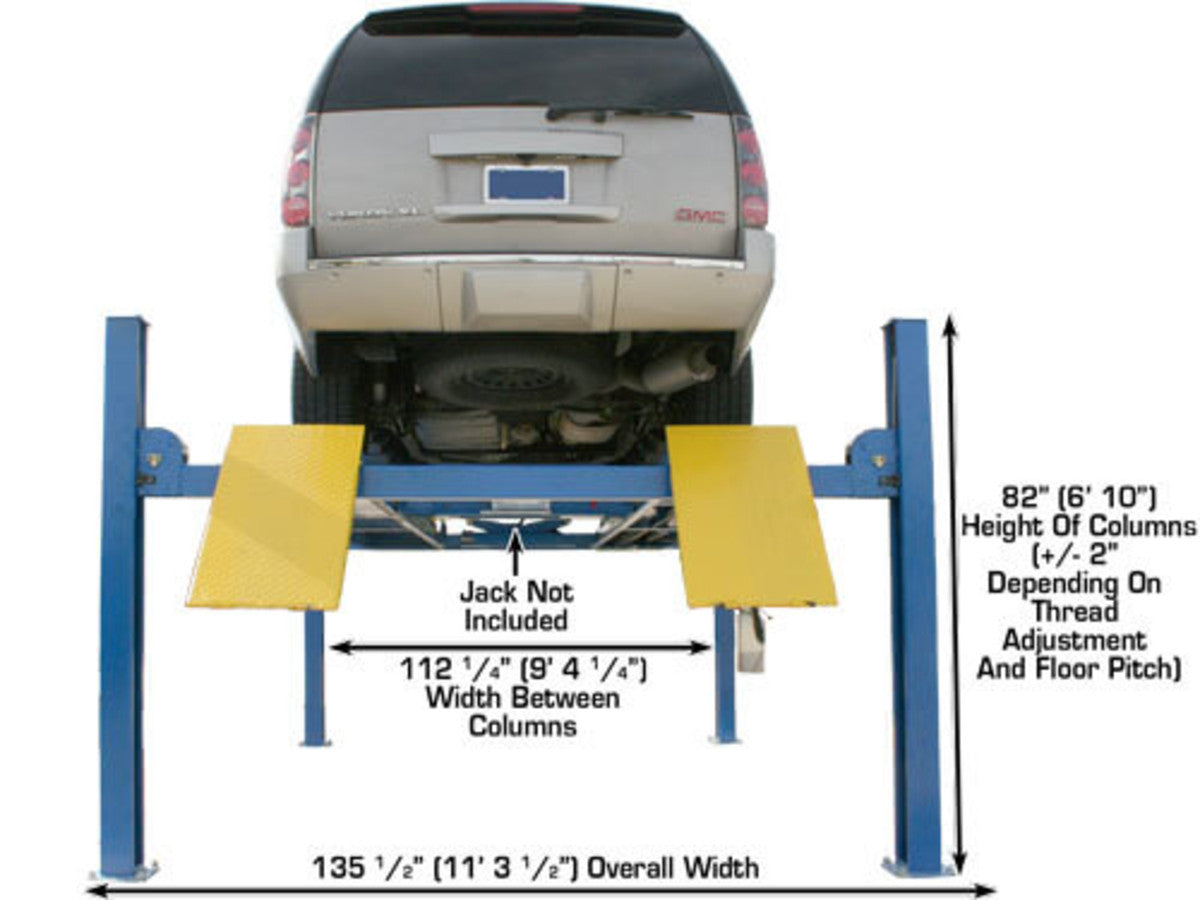

• Clearance Between Columns: 112 5/8" (9' 4 5/8")
• Length Between Columns: 183 1/4" (15' 3 1/4")

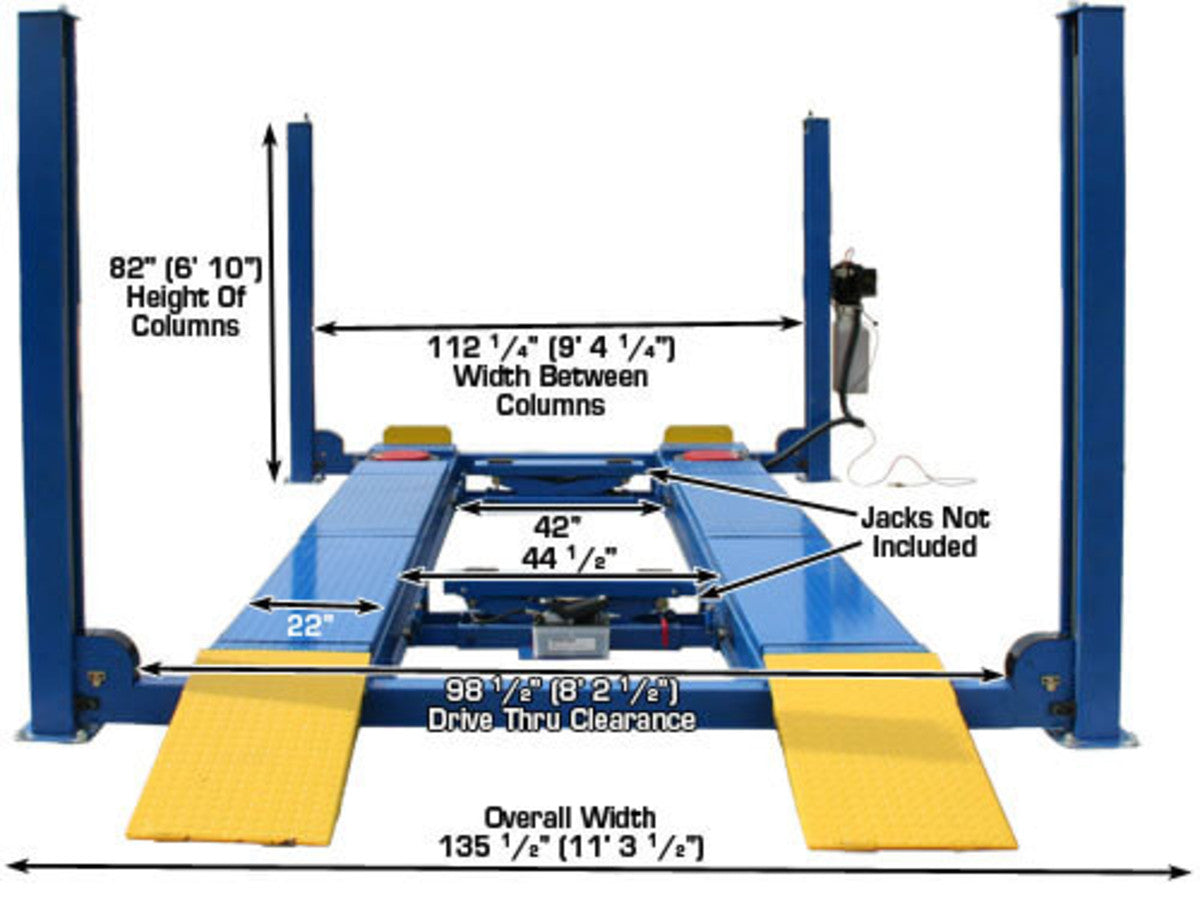

• Drive Thru: 98" (8' 2")
• Air Requirement: 85-115 PSI
• Motor/Electrical Requirement: 220V/1-phase, 30-amp breaker required
• Oil Requirement: 3-5 Gallons AW32 or AW46 (NOT INCLUDED)
• Shipping Weight: 2,900 lbs

Accessories Available:

Runway Extension Kit
