Atlas Automotive Equipment Atlas Equipment TC229 Rim Clamp Tire Changer + WB49-2 Wheel Balancer Combo Package (WILL CALL)

Tire Changer & Wheel Balancer Combo Package:

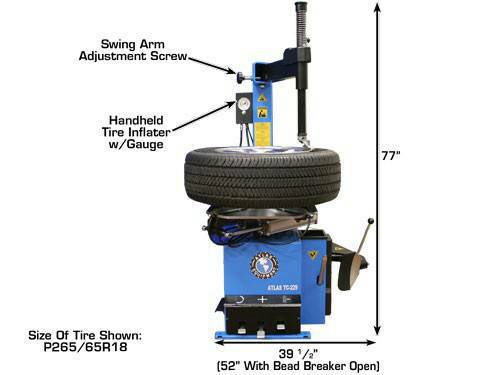

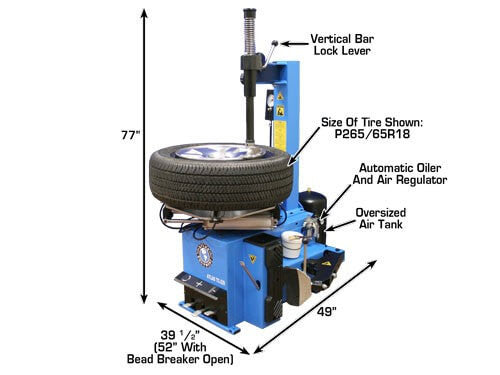

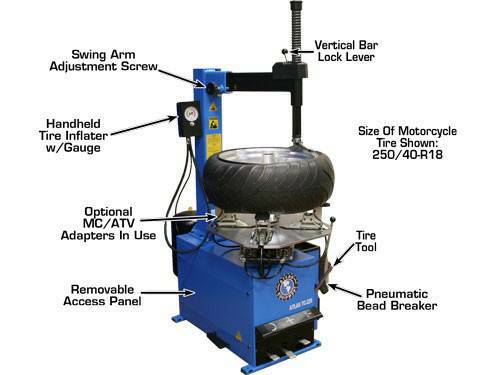

Atlas® TC229 Tire Changer

• Rim Clamp/Swing Arm Tire Changer

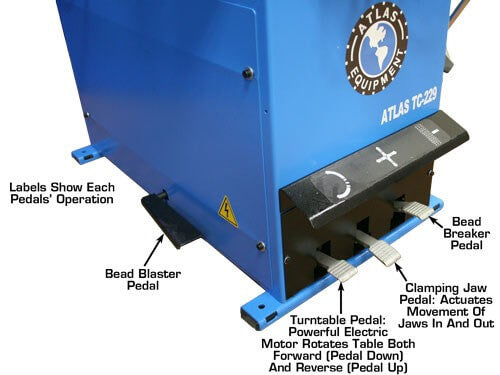

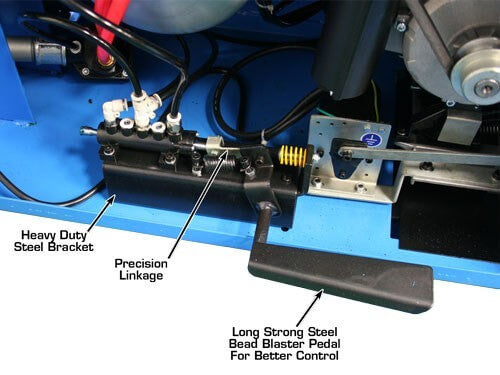

• Built-in "Beadblaster"

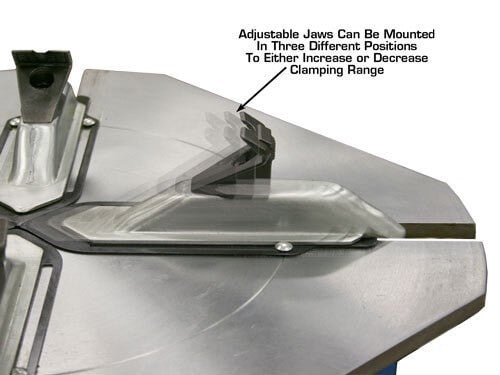

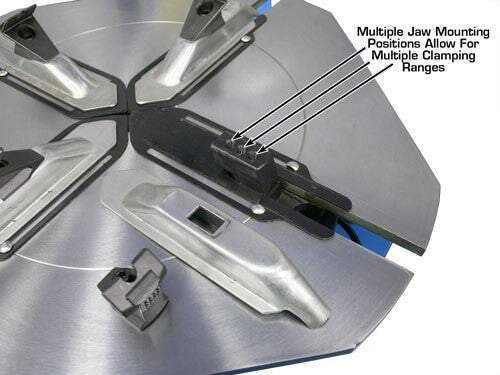

• Adjustable jaws, 3 mounting positions
• Oiler, Filter, Regulator included (external air supply required)

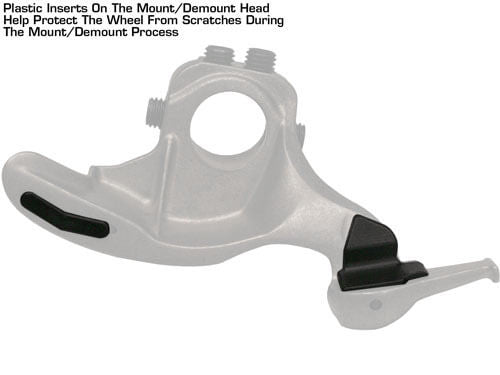

• Plastic Protectors included
• Tire Tool, Lube Bucket, and Lube Brush Included
• Inflation Box w/ Gauge Included

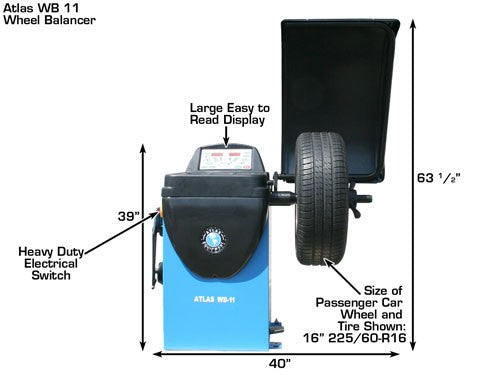

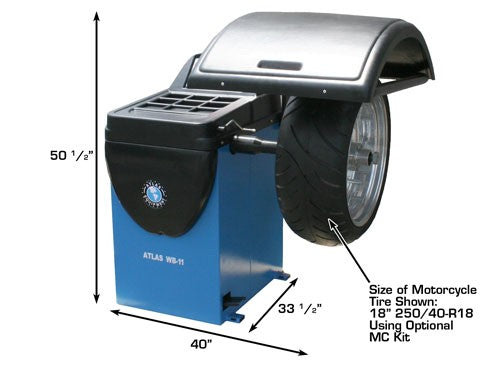

Atlas® WB49-2 Wheel Balancer

• Computer Controlled Motorized Spin Balancer

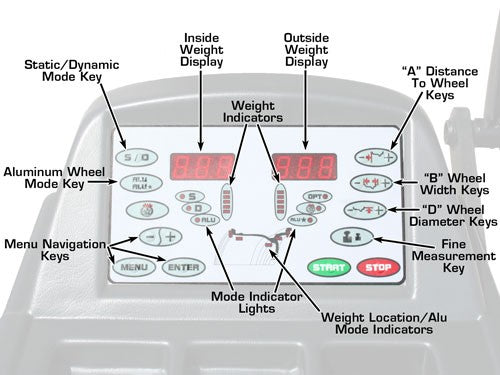

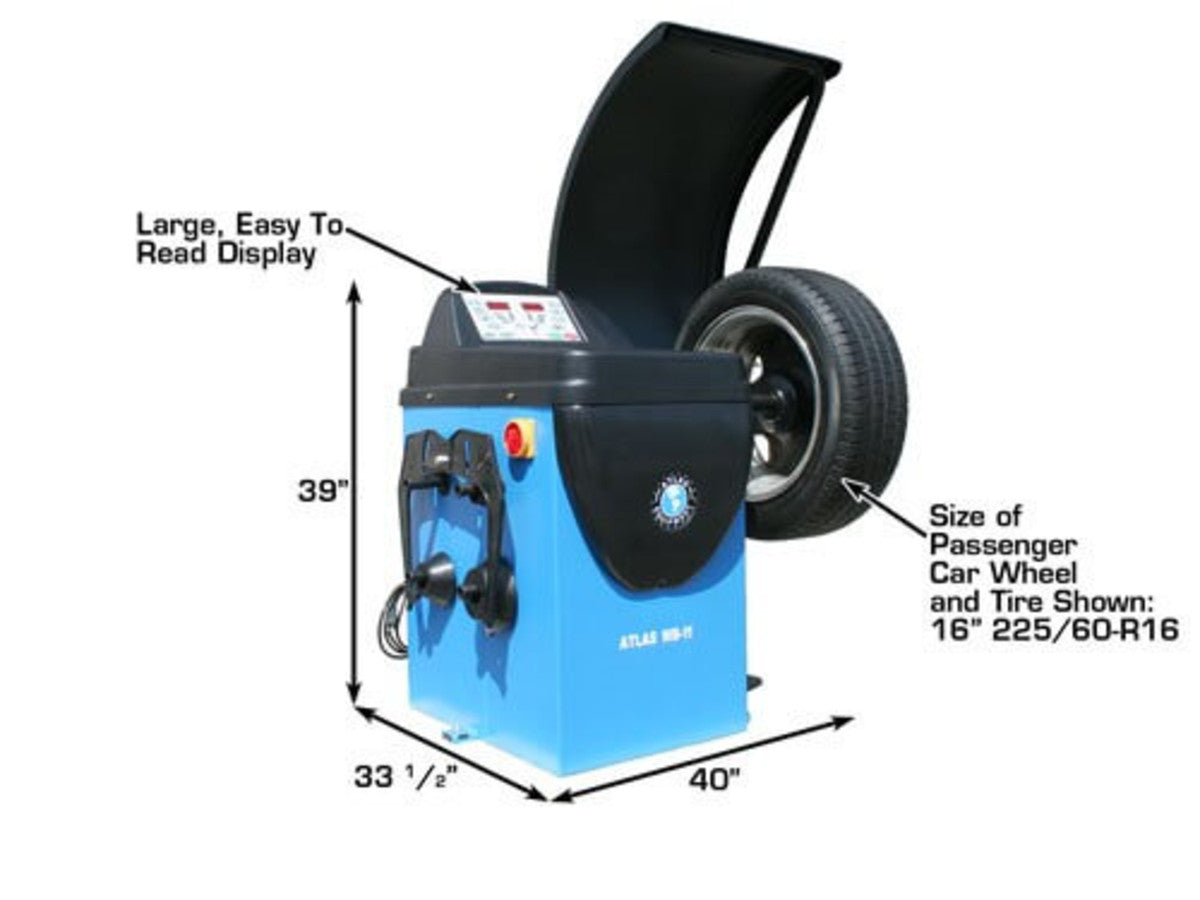

• Raised, Easy to Read Display
• Large Wheel Weight Tray
• Automatic 2D Data Entry
• Width Measuring Gauge for Automatic 3D Data Entry Available (SOLD SEPARATELY)
• Split-Weight Function for hiding weights behind spokes
• Automatic LED Light
• Auto-Positioning

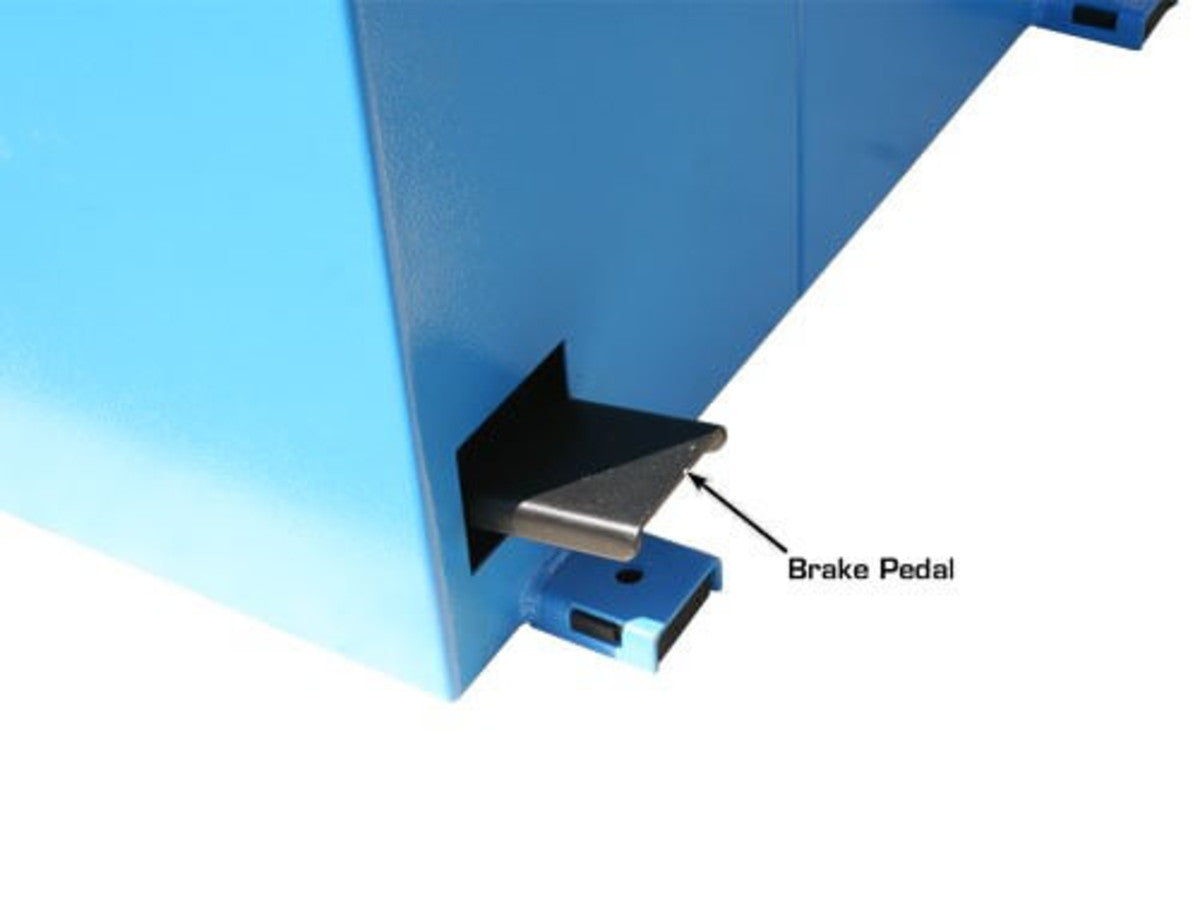

• Automatic and pedal operated brake.
• Automatic start/stop when hood is lowered/raised.
• Static and dynamic balancing modes.
• Rapid optimization (OPT)
• Self-Diagnosing and Self-calibrating
• Exceptional stability in reading the unbalance between planes.
• Display in grams or ounces, and in mm or inches.
• No anchor-down installation needed

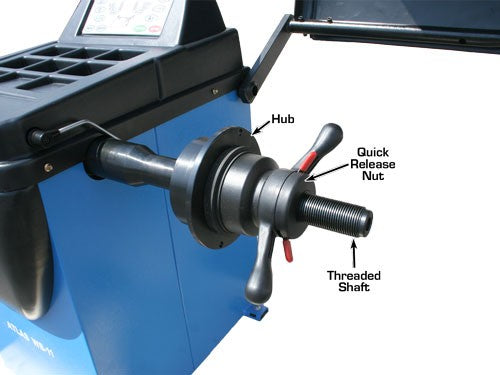

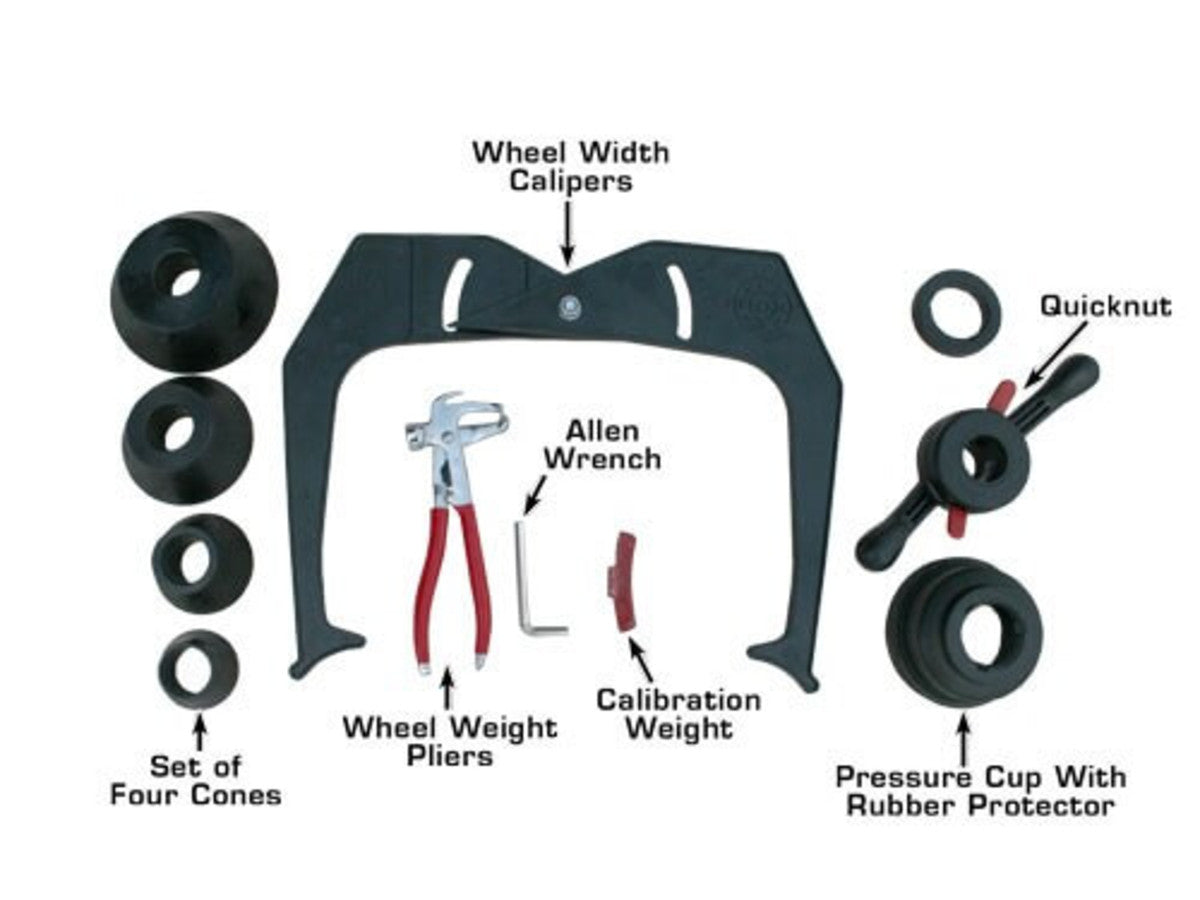

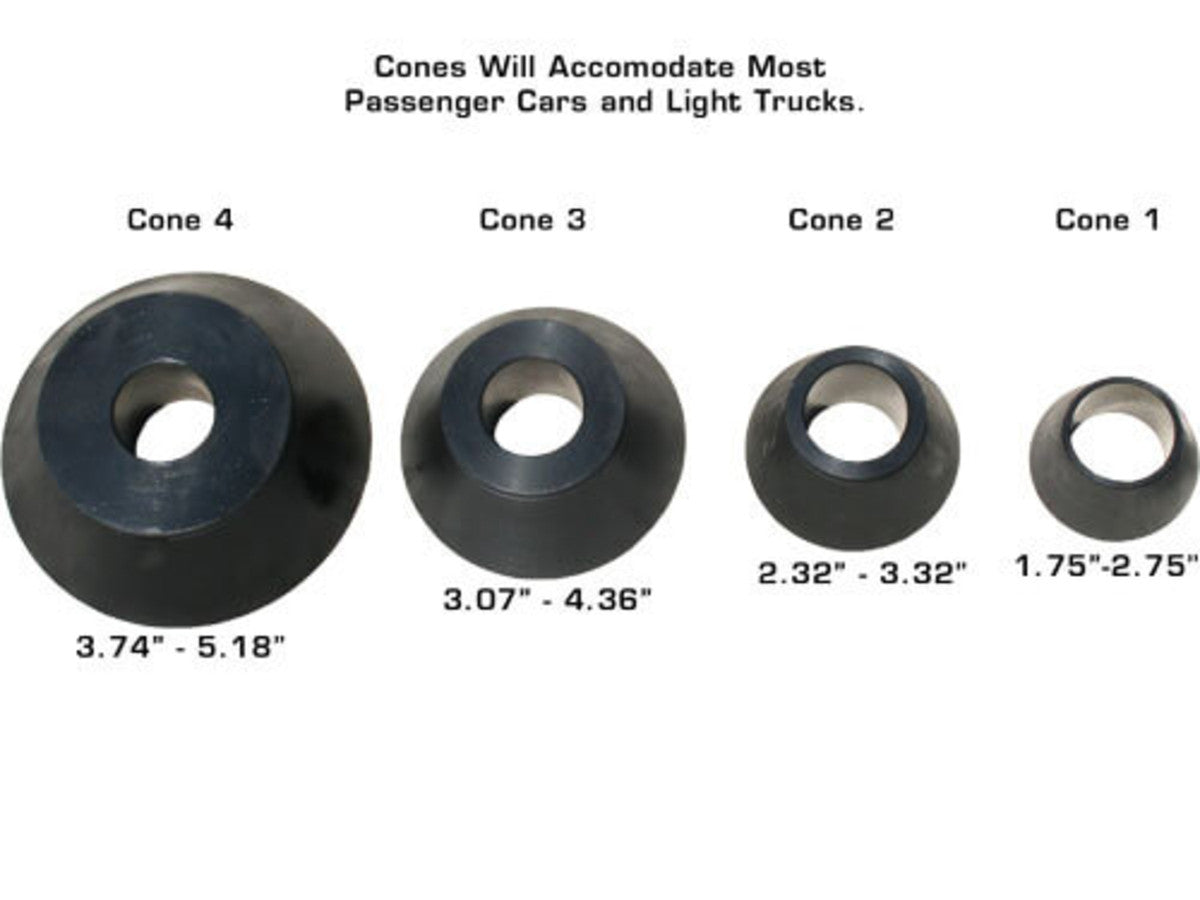

• Includes Plastic Quick-Relase Nut, 4 Centering Cones, Wheel Weight Pliers, & Measuring Calipers
• This part number WILL CALL ONLY

This combination package includes the Atlas® TC229 rim-clamp swing arm tire changer & the Atlas® WB49-2 computerized spin balancer. This combination is perfect for farms, homeowners, and all sizes of shops looking to change and balance tires. Both machines are 110volt operated, both are CE approved, and both carry the Atlas® 1 year parts only warranty. This part number is WILL CALL ONLY.

Atlas® TC229 Specifications

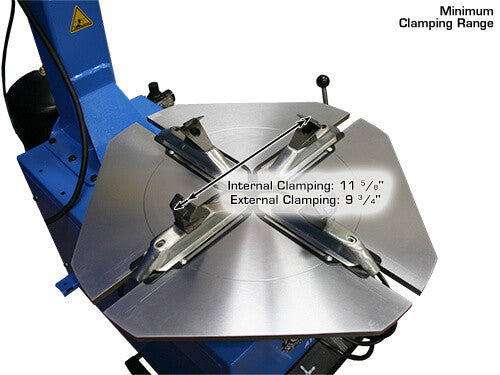

• External Locking Rim Dimensions (From Narrow Position to Wide Position): 9 3/4" to 23 1/4"
• Internal Locking Rim Dimensions (From Narrow Position to Wide Position): 11 5/8" to 25 1/4"
• Maximum Tire Diameter: 39"
• Maximum Wheel Width (Bead Breaker): 13"
• Table Motor: 1 HP
• Turntable Rotating Torque: 885 ft/lbs.
• Bead Breaker: 5500 LB. Force
• Air Requirement: 90-110 PSI (MUST NOT EXCEED 140 PSI)
• Electric Requirement: 110volt

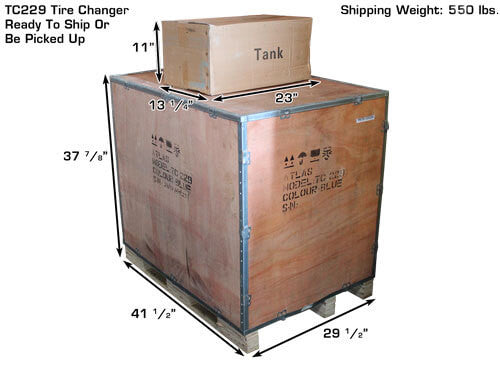

• Shipping Weight: 550 lbs

• Max Tire Diameter: 39"
• Rim Sizes (Cars & Light Trucks): 10" - 32" (Manual Data Entry May be Required over 23")
• Rim Width: 1 1/2" - 20"

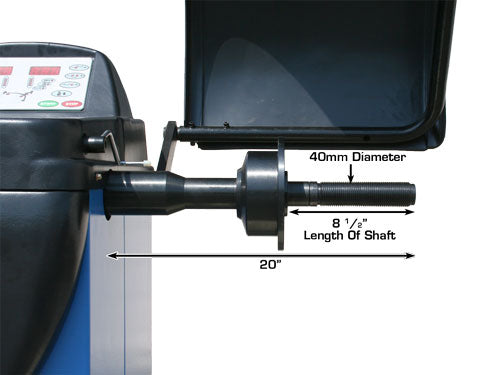

• Shaft Size: 40mm
• Max Wheel Weight: 150 lbs.
• Balancing Speed: 150 rpm
• Data Entry: Automatic 2D (Automatic 3D Optional)
• Measurement: Standard or Metric
• Accuracy: 1 gram
• Weight Position Resolution: 1.4 Degrees
• Self Calibrating: YES
• Motor: 1/4 Horsepower
• Electric Requirement: 110volt
• Shipping Weight: 400 lbs

Accessories Available

• Center Post Adapter
• Quick Change Mount/Demount Head Kit
• Front Mounted Wheel Lift
• Leverless Head Device
• Light Truck Adapter Kit
• Universal Adapter for Lugcentric Tires
• Air-Operated Wheel Lift
