Atlas Equipment TC306 Tire Changer+WBT210 Wheel Balancer Combo

Truck Tire Changer & Heavy Duty Wheel Balancer Combo Package:

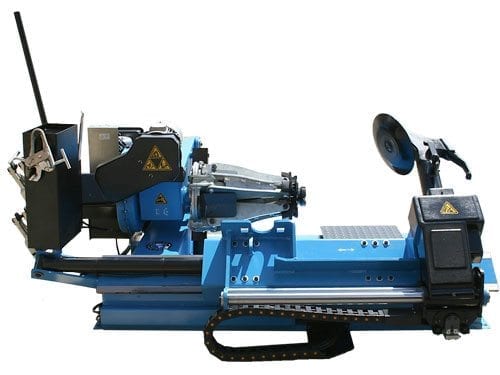

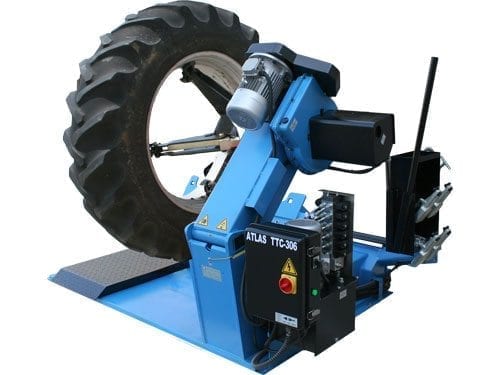

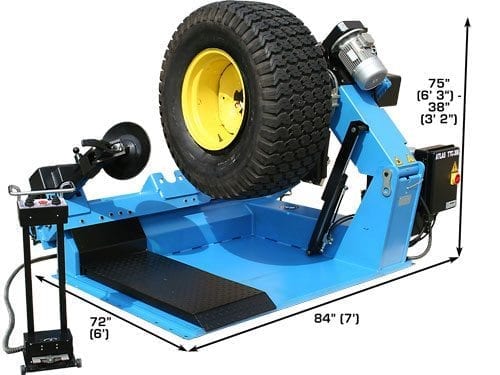

Atlas® TC306 Truck Tire Changer

• 2-Speed Hydraulic Chuck w/ 5 Rim Locking Positions

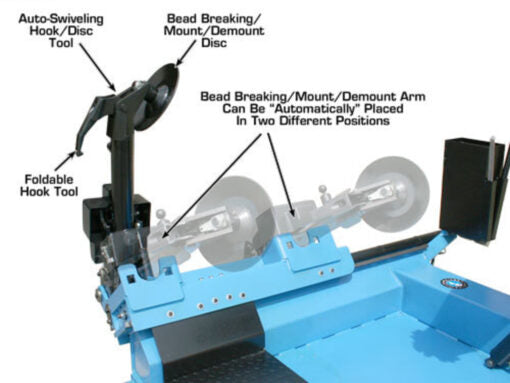

• Automatic movement and positioning of Bead Tool, Carriage, & Chuck Arm

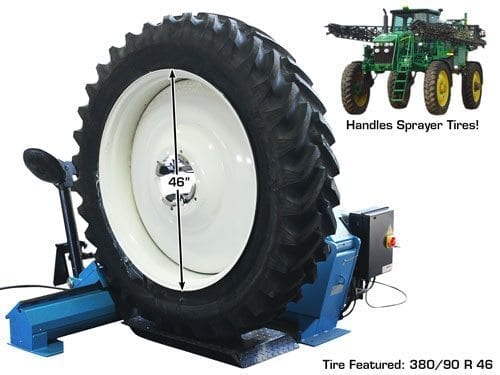

• Handles rims from 14" to 56" and tire diameters in excess of 97"
• Accommodates tires with a max width of up to 53"

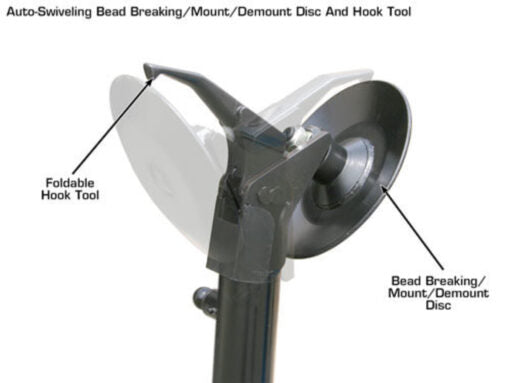

• Bead Breaker
• Mount/Demount Head

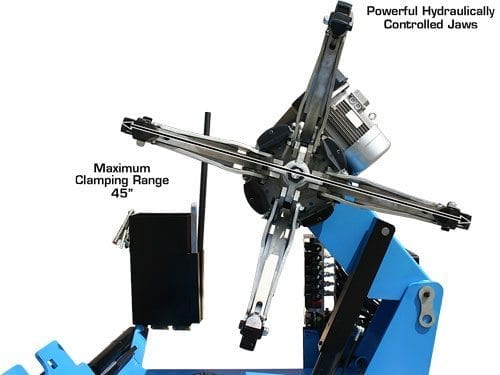

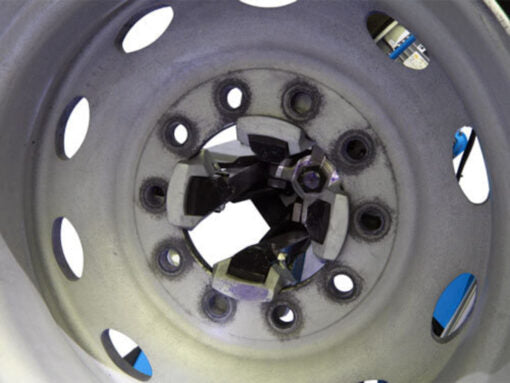

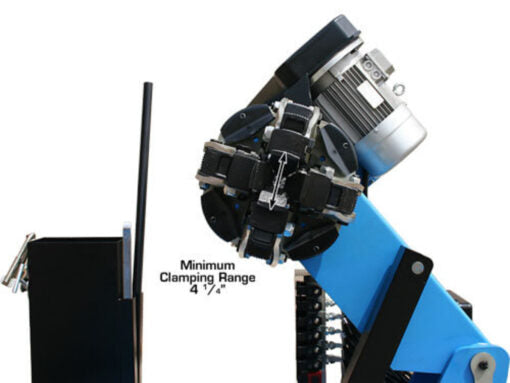

• Electric/Hydraulic Self-Centering Four Jaw Chuck
• 5 different rim locking positions

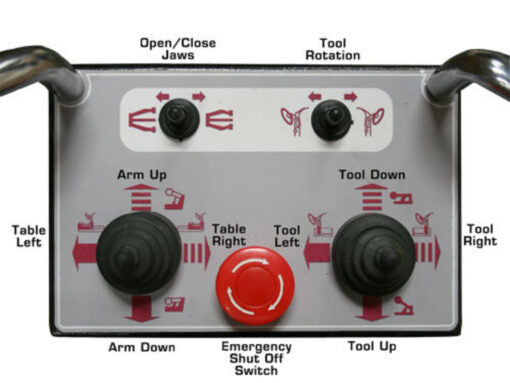

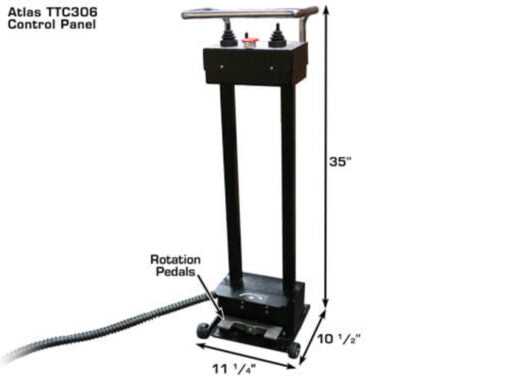

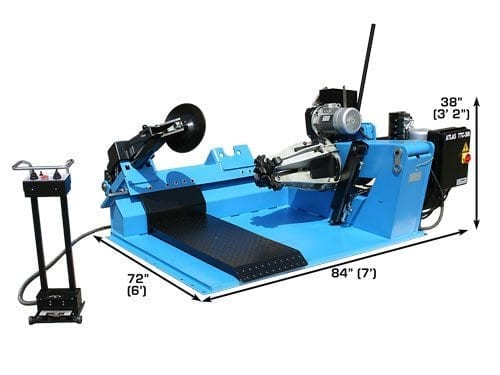

• Wired Mobile Control Unit Available (Sold Separately)

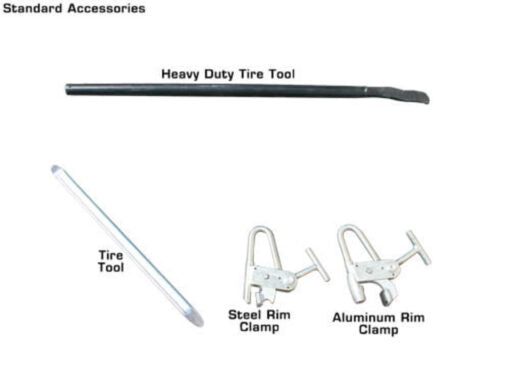

• Heavy Duty Tire Tool Included

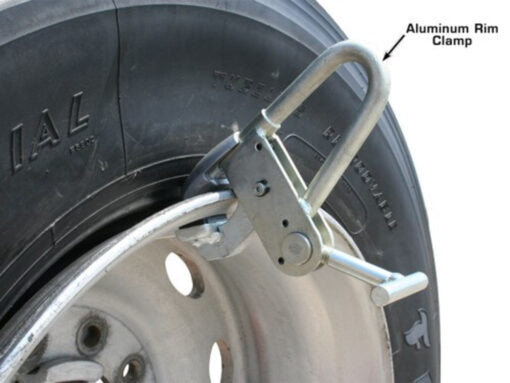

• Rim Clamps for Steel and Alloy Wheels Included

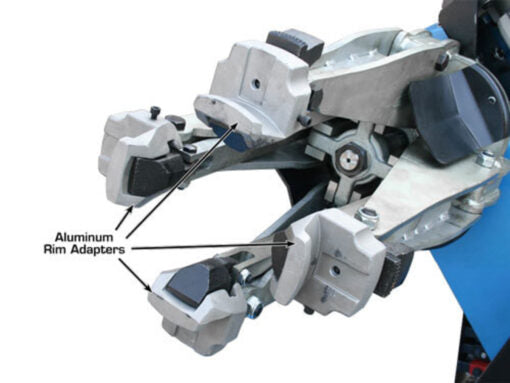

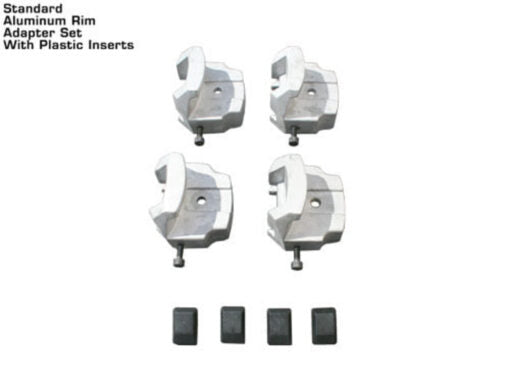

• Alloy Rim Adapter Set w/ Plastic Inserts Included
• Clamping Extensions Included

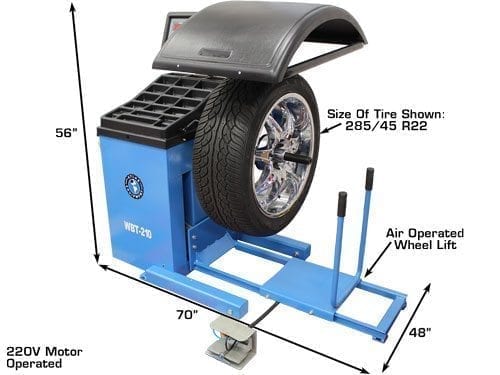

Atlas® WBT210 Heavy Duty Spin Balancer

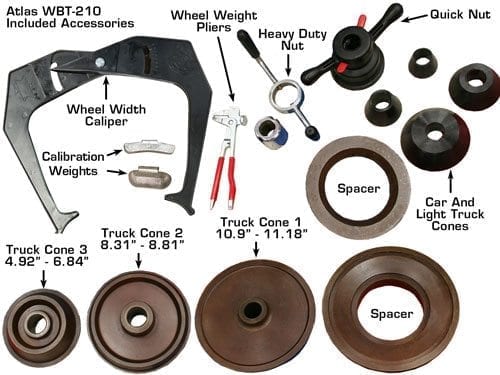

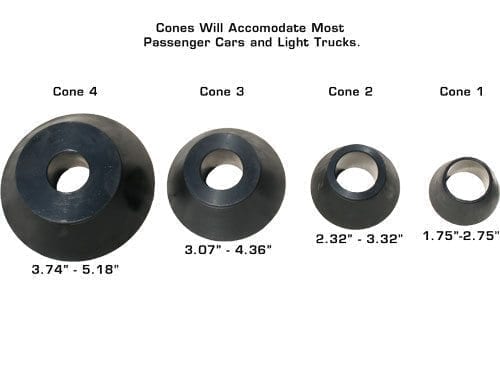

• Cone sets for car and light truck tires included
• Cone and spacer set for truck, bus, or implement tires included
• Plastic Quick Release Nut & Heavy-Duty Steel Wing Nut Included

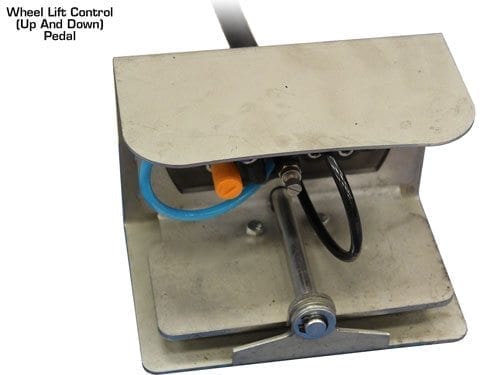

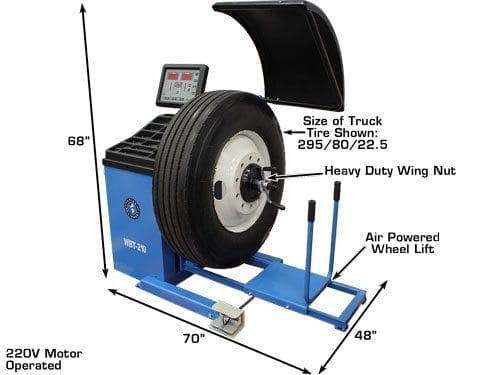

• Pneumatic wheel lift (external air supply required - NOT INCLUDED)

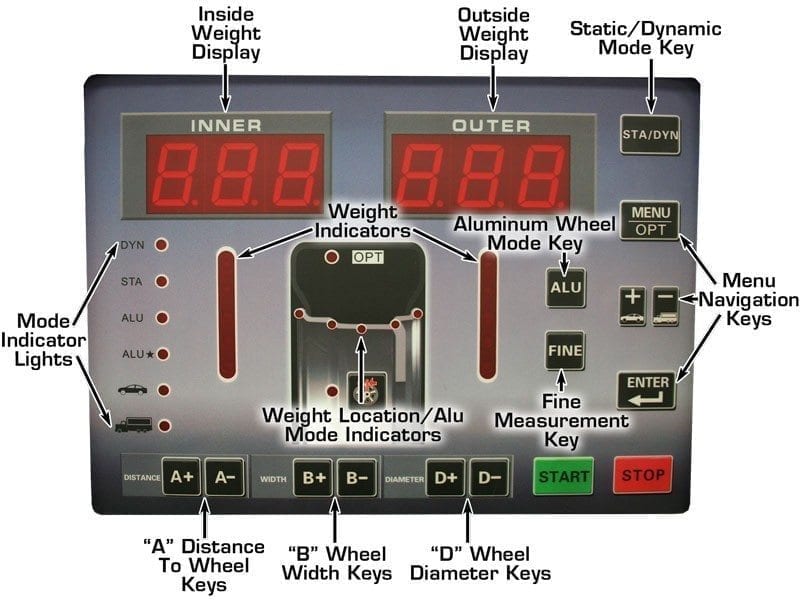

• Automatic start/stop when hood is lowered/raised
• Static and dynamic balancing modes
• Rapid optimization (OPT)
• Self-Diagnosing and Calibrating
• Exceptional stability in reading the unbalance between planes
• Display in grams or ounces, and in mm or inches
• Wheel Weight Pliers & Wheel Width Caliper Included
• Both Machines 1 Year Parts Only Warranty
• This part number FREIGHT PREPAID

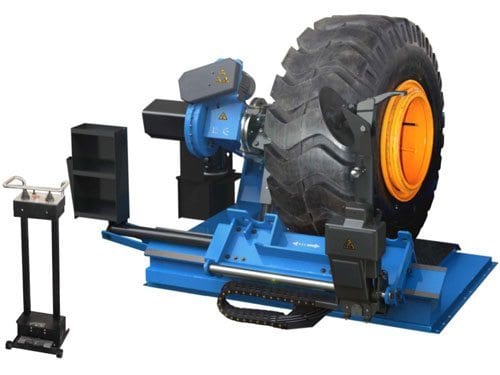

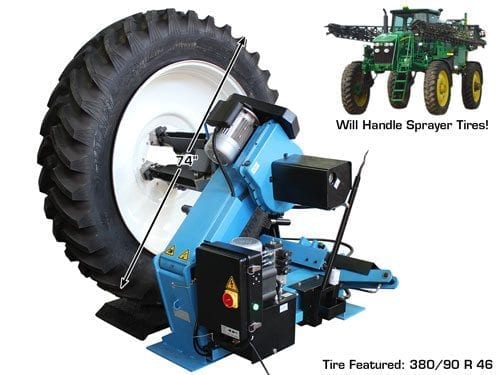

This Combo Package includes the Atlas® TC306 truck tire changer and the the heavy duty computerized Atlas® WBT-210 wheel balancer. The Atlas® TTC306 is very similar to the Atlas® TTC303, but with several additional features. The remote control allows the operator to move the bead breaker disc and mount/demount head automatically. This Super Duty Atlas® truck tire changer is designed and engineered to handle rim sizes from 14 inches to 56 inches and tire diameters in excess of over 97 inches. The Atlas® TTC306 Truck Tire Changer can easily accommodate tires with a maximum width of up to 53 inches. This is the perfect tire changer for those companies that need the extra capacity to change large agricultural and earthmover tires. The Deluxe TTC306 has identical features of those truck tire changers costing over $20,000..

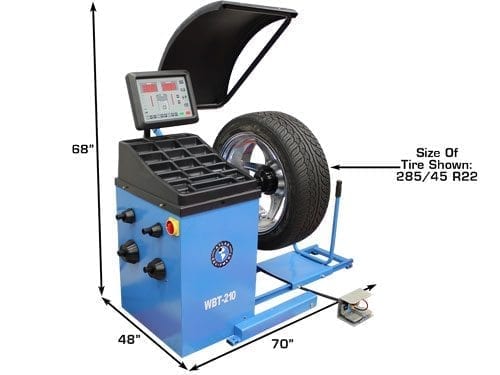

The Atlas® WBT-210 is the perfect wheel balancer for those shops that want one balancer that can balance a 14 inch steel rim up to and including a 300 pound semi-truck tire. There are many large (32 inch) custom wheels and over-sized ” gumbo-mudders ” that can easily be balanced on the Atlas® WBT-210 computer wheel balancer.

The Atlas® WBT-210 is the perfect computer spin balancer for those trucking companies that operate everything from passenger cars to light trucks to over the road semi tractor/ trailer rigs. The 40 mm heavy duty shaft accommodates the standard mounting cones for most cars and pickup trucks. There are several large truck adapters included with the package that will allow the operator to mount and balance most BUDD style wheels.

Atlas® TTC306 Specifications

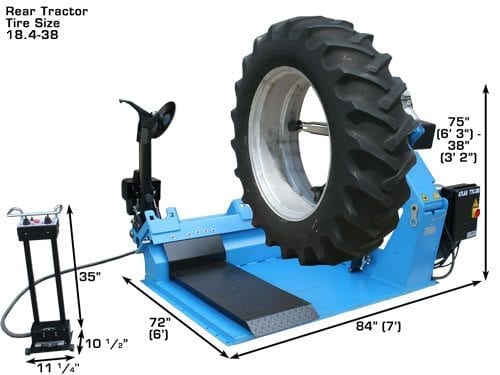

• Max Tire Diameter: 98" (8' 2")
• Max Tire Width: 53"
• Rim Clamping Range: 14" - 46"

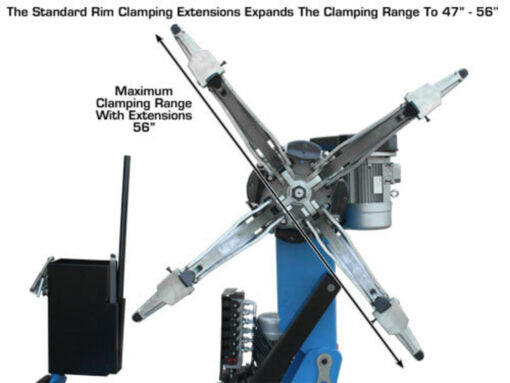

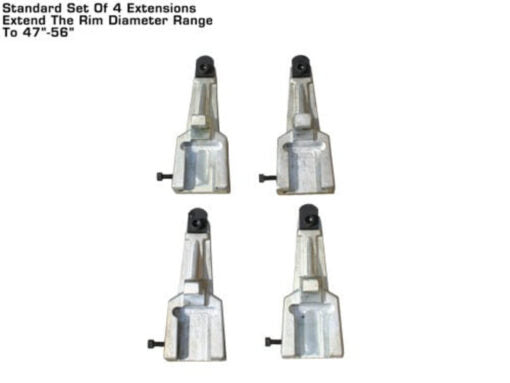

• Rim Clamping Range w/ Extensions: 47" - 56"
• Max Wheel Weight: 3968 lbs.
• Clamping Power: 13173 lbs.
• Operating Pressure: 0 - 1885 psi
• Acoustic Pressure: 70dBA
• Bead Breaker Force: 5930 lbs.
• Tool Arm Positioning: Automatic
• Tool Head Positioning: Automatic
• Construction: Single Piece Frame w/ Solid Floor-Plate

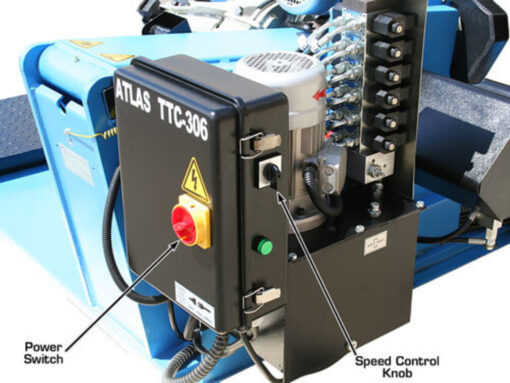

• Hydraulic Motor Power: 3HP 220v +/- 5% (209-231 volts) 3phase, 30 amp breaker required
• Chuck Motor Power: 3.5-4HP 220v +/- 5% (209-231 volts) 3phase, 30 amp
