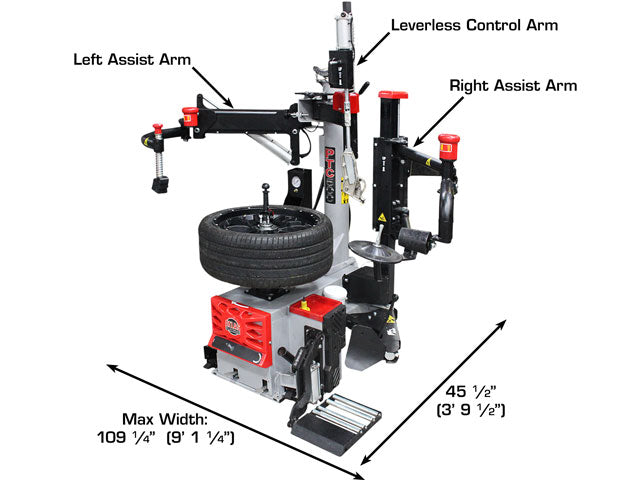

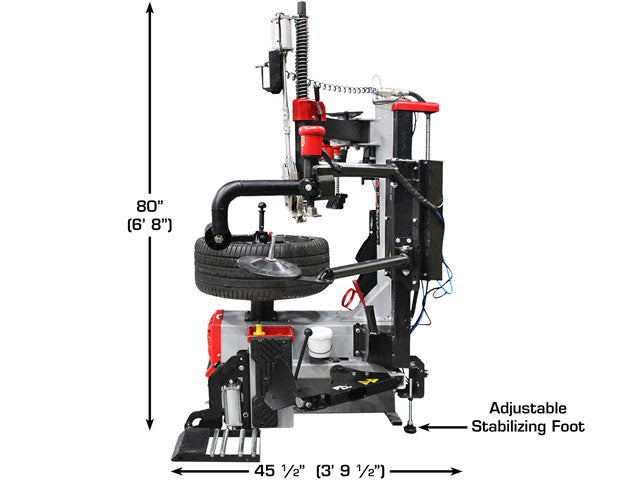

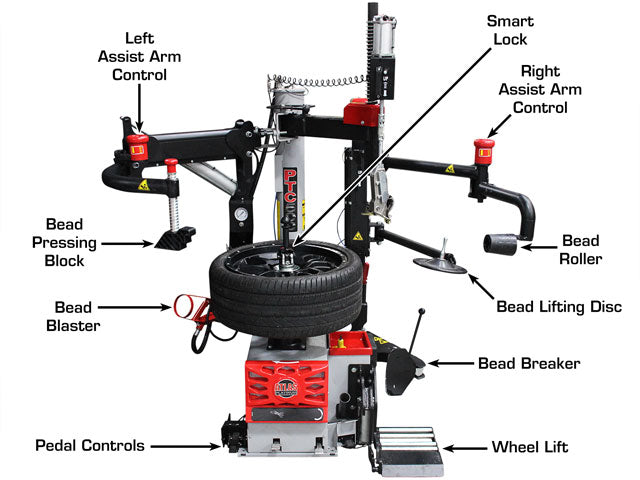

Atlas Equipment Platinum PTC500 Center Post Tire Changer with Assist Arms

Features and Benefits:

• Platinum Center Post Tire Changer

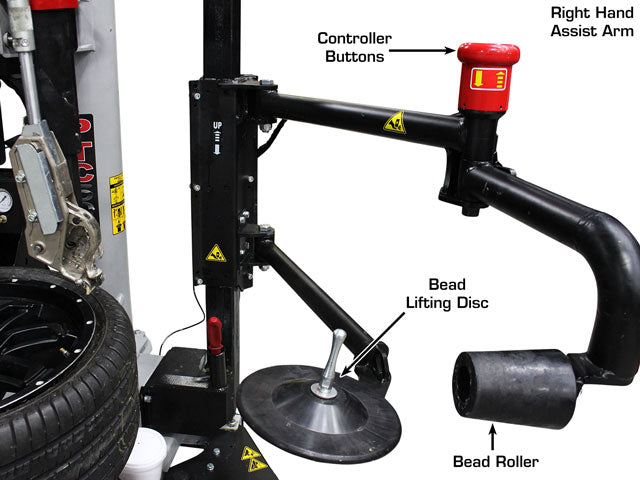

• Dual Assist Arms Included
• Wheel Lift Included

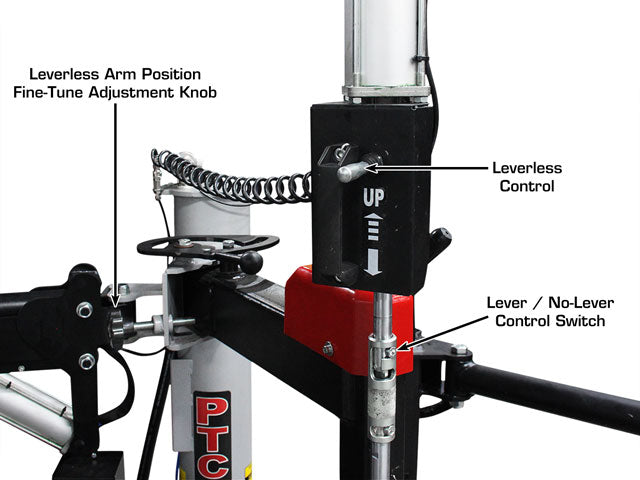

• “Lever/No-Lever” Changing System
• Air operated bead breaker (external air supply required)
• Metal mount/demount head w/ replaceable plastic inserts

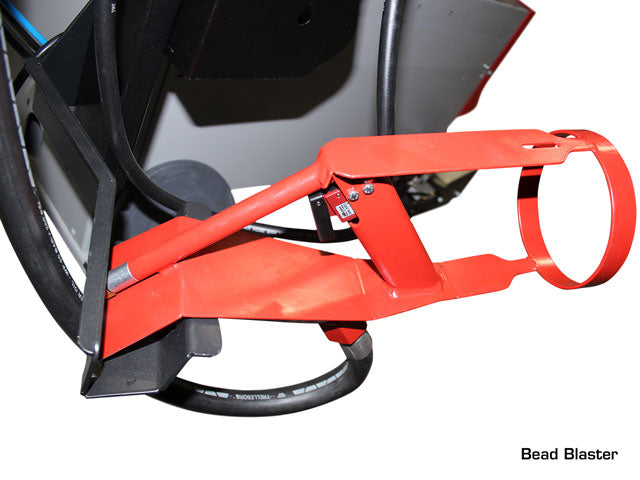

• External Flexible Bead-Blasting system

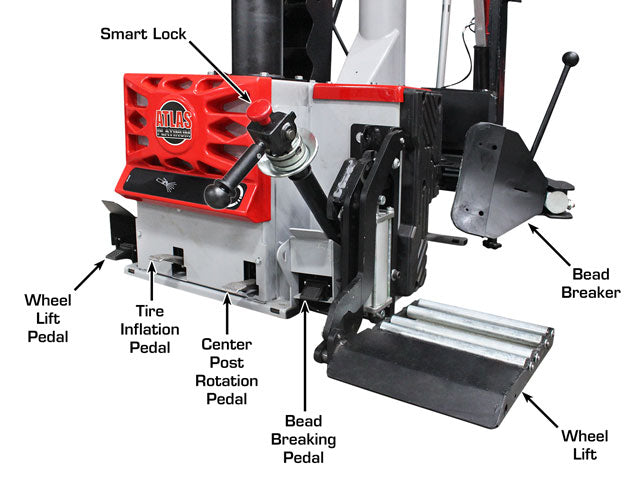

• “Smart Lock” Center-Post Mounting System
• Filter/Regulator/Lubricator Included
• Tire Tool Included
• Lube Bucket with Brush Included
• Multiple Plastic Protectors Included
• Replacement Parts & Wear Items Always in Stock
• 2 Year Parts Only Warranty
• Reverse Mount Adapter Kit
• Light Truck Cone Kit (Center Hole 4.72" ‐ 7.48")
• Light Truck Cone Kit (Center Hole 5.5" ‐ 8.66")
• Double Sided-Cone (Center Hole 2.95" ‐ 5.7")
• Low-Profile Steel Rim Cone (Center Hole 2.95" ‐ 4.7")

Atlas Platinum PTC500 Specifications

• Rims: Steel, Aluminum, Alloy
• Clamping Range: 12" - 30"
• Maximum Tire Diameter: 47"
• Maximum Wheel Width: 15"
• Turntable Rotating Speed: 7 RPM
• Bead Breaker: 6,924 LB. Force
• Air Requirement: 120-145 PSI
• Operating Voltage: 110volt

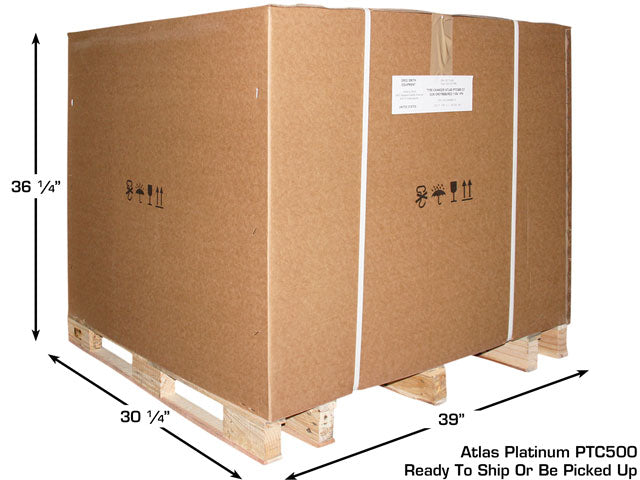

• Shipping Weight: 885 lbs.

The Atlas Platinum PTC500 center post tire changer is designed for high-volume tire shops that deal with the most challenging wheel and tire combinations in the market. The Atlas Platinum PTC500 includes patented, innovative features that make it stand out from the competition! The first of these is the “Lever/No-Lever System” which allows the machine to be used with a standard tire tool/lever or in a “leverless” mode with no manual tools required. The second outstanding feature is the “Smart Lock” system which allows the tire to be mounted and immediately locked in position with a flip of the lever which eliminates the need to manually thread the center cone or to maintain a complicated pneumatic locking system. The external bead seating system makes inflating even the most challenging tires a breeze. Finally, the integrated wheel lift helps reduce employee lifting injuries or damage to expensive wheels. The Atlas Platinum range of wheel service equipment has a 2-year warranty and incorporates the highest quality Italian designed components and engineering to assure it is the best value available at its price. For a Demount and Mount demonstration video click here .
