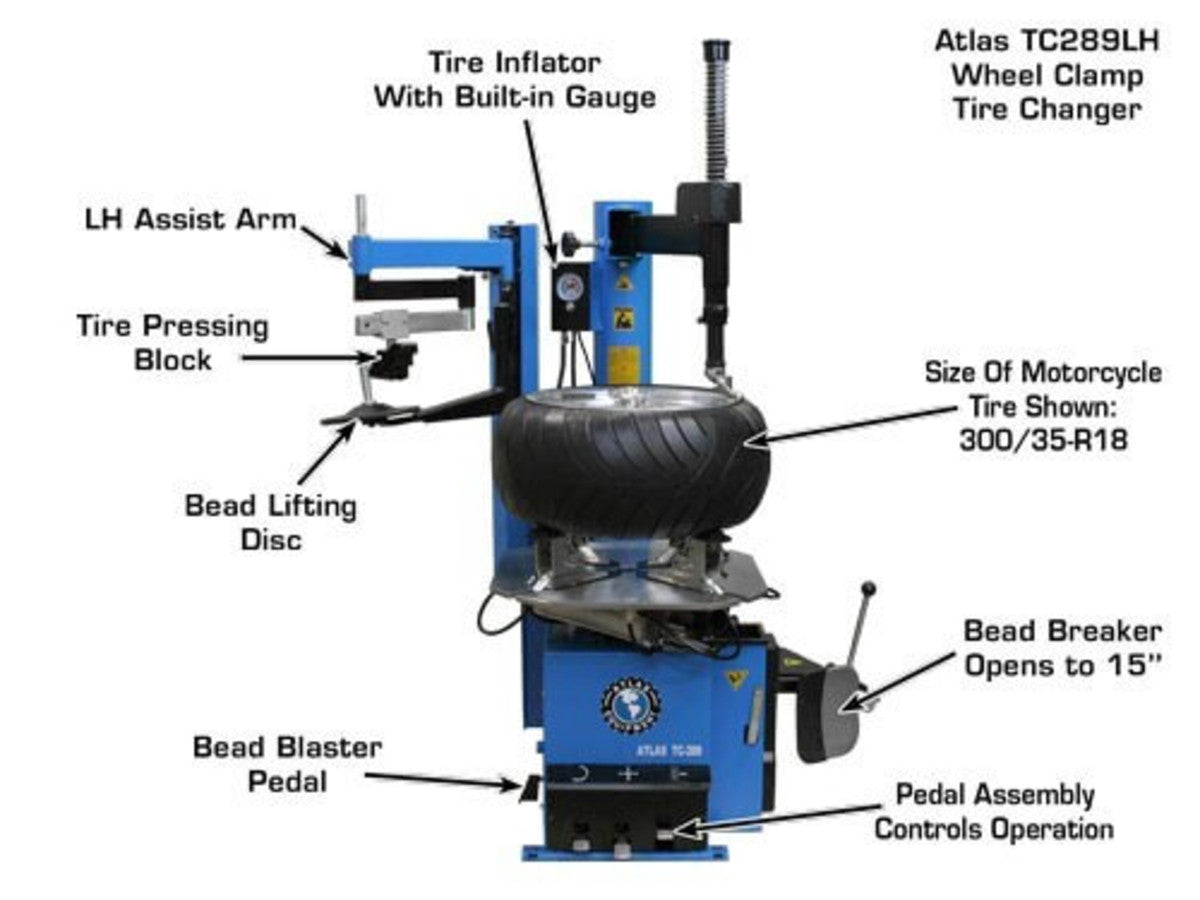

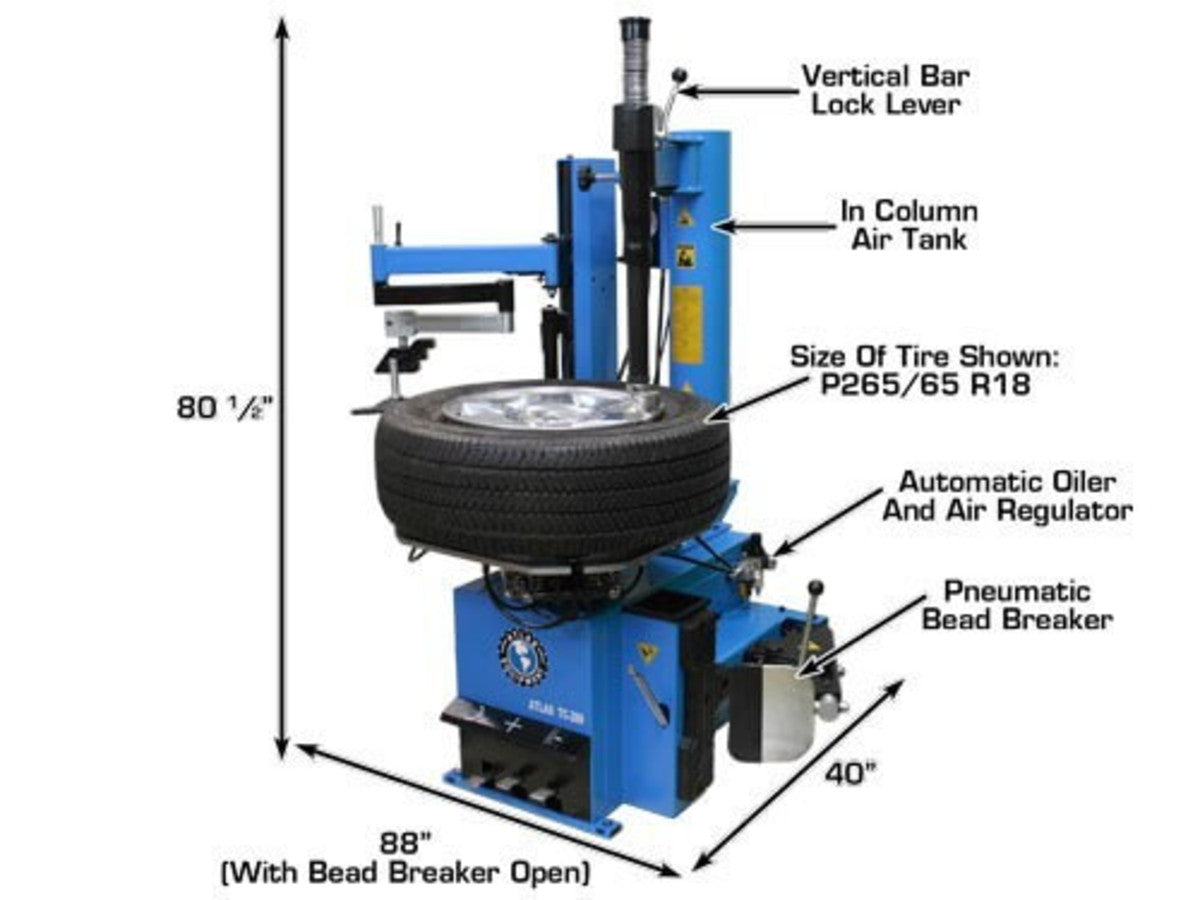

Atlas Automotive Equipment TC289LH Extra Large Rim-Clamp Tire Changer with Left Hand Assist Arm (Will Call)

Features and Benefits:

• Large Rim Clamp/Swing Arm Tire Changer
• Extra-Large turntable, more clearance

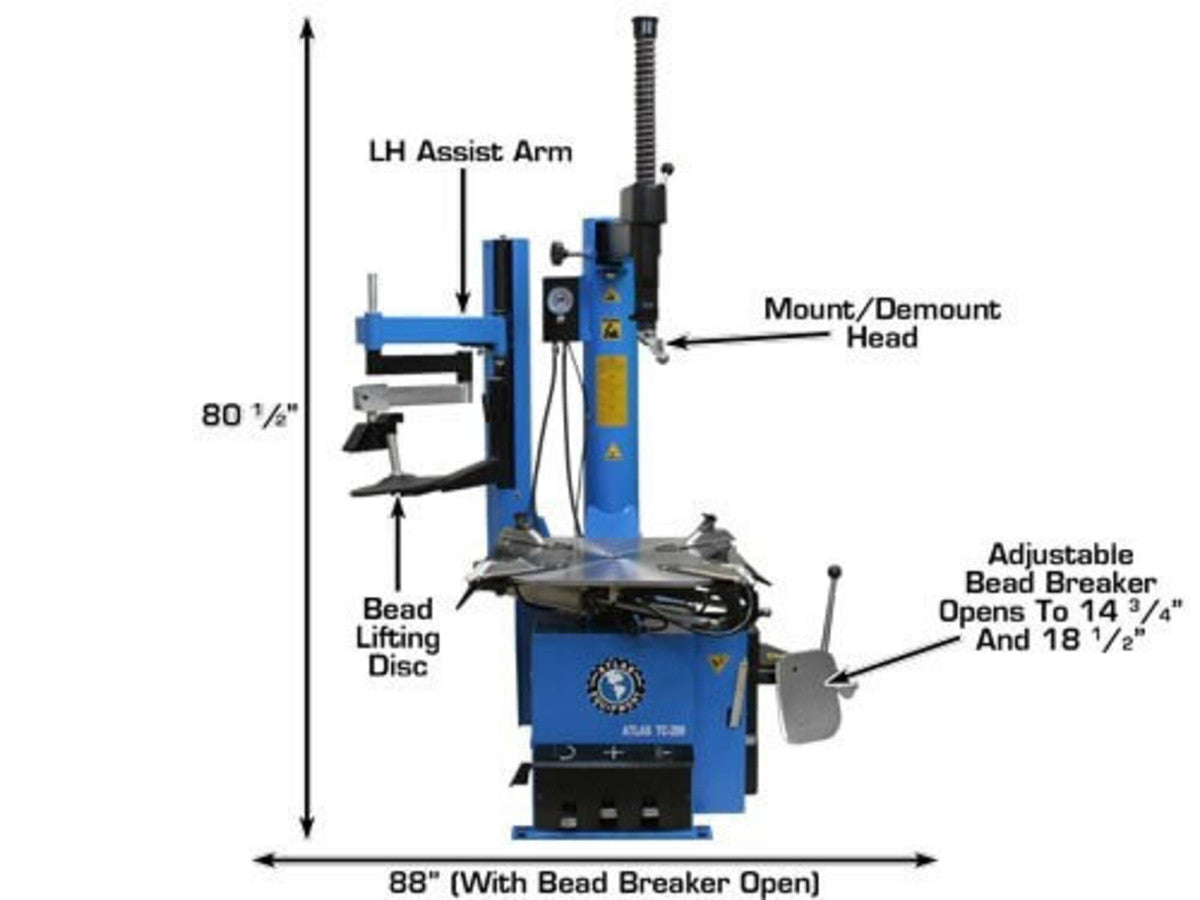

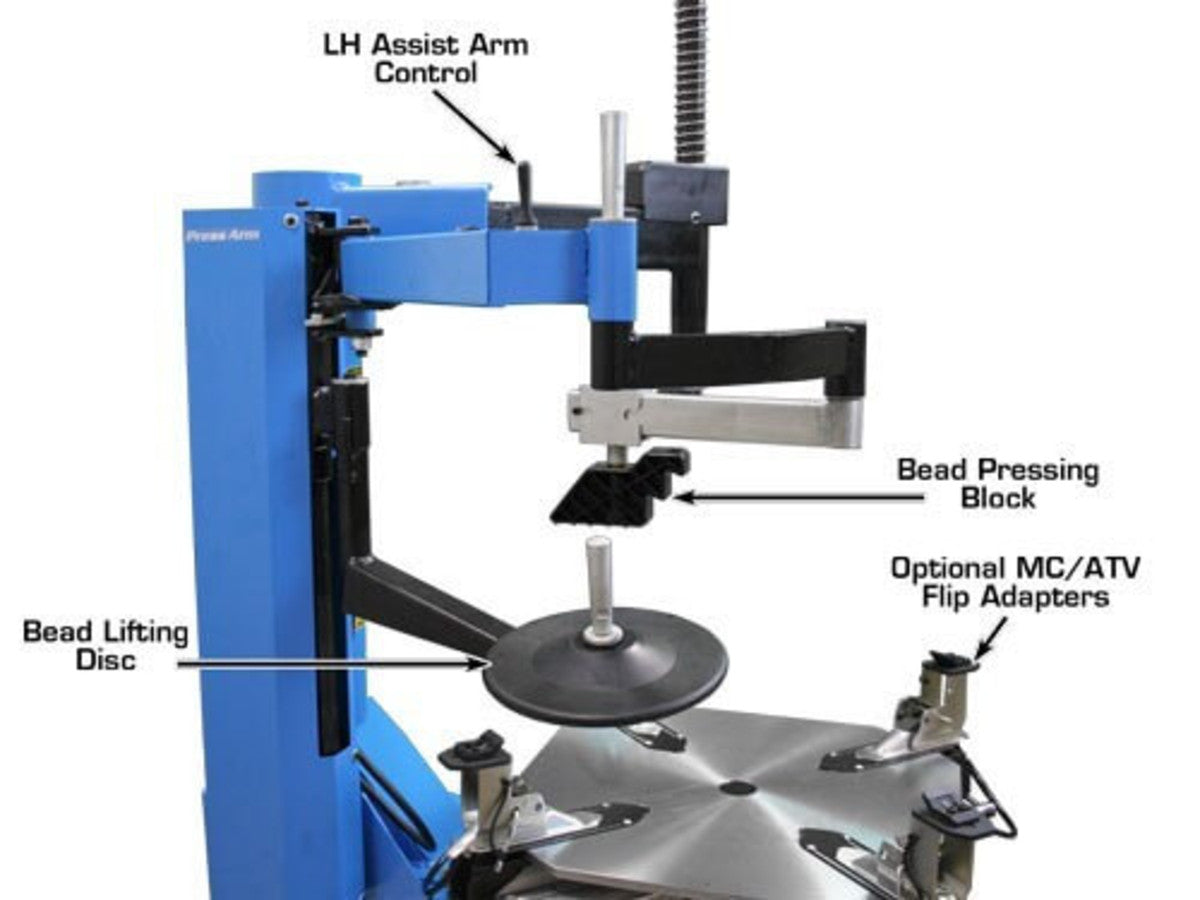

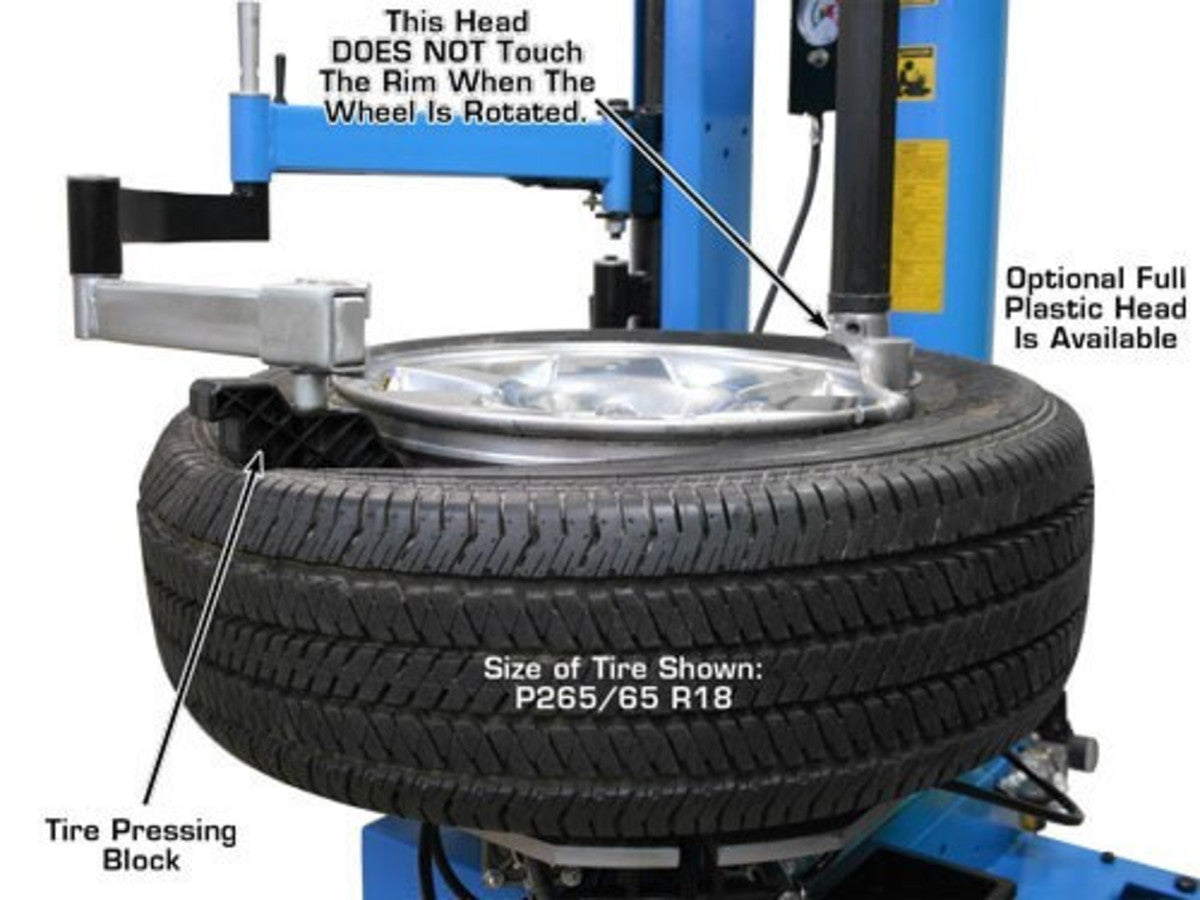

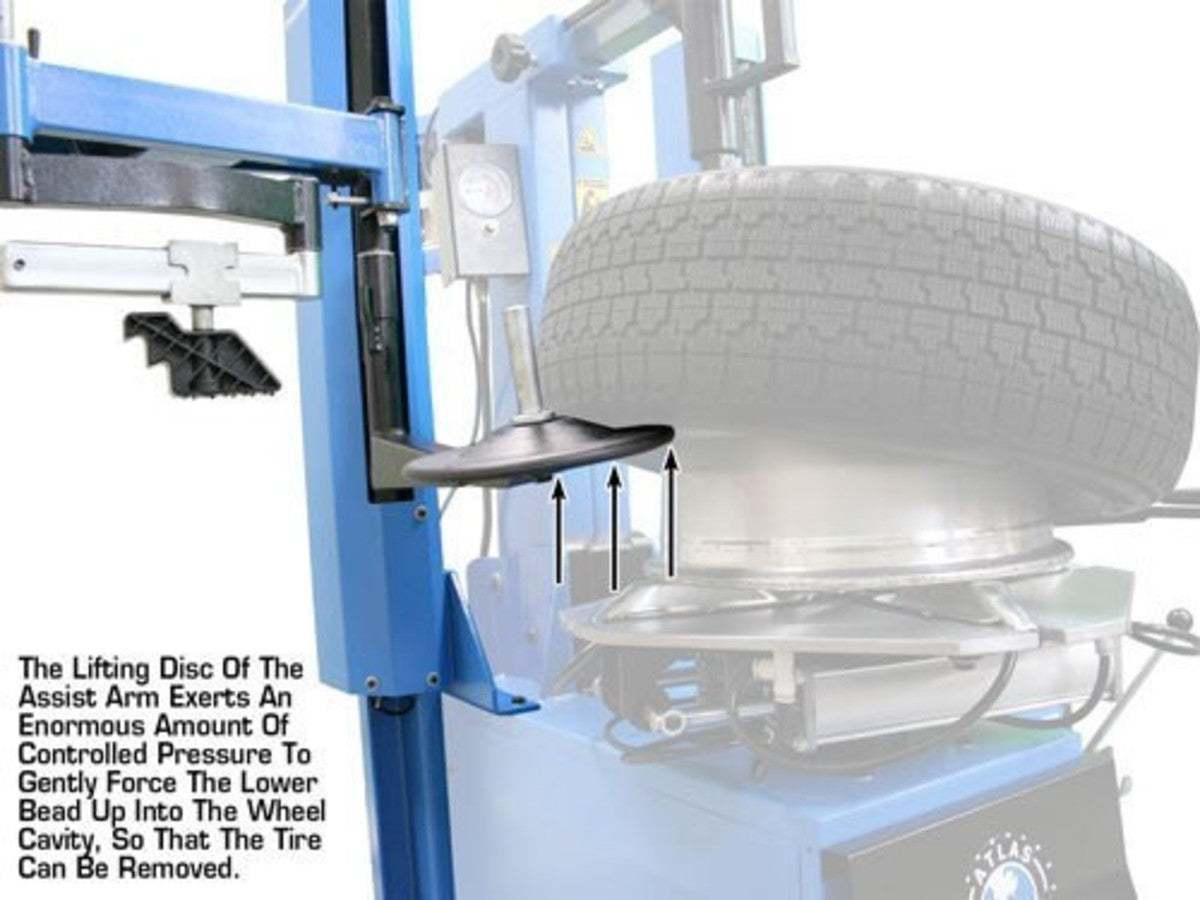

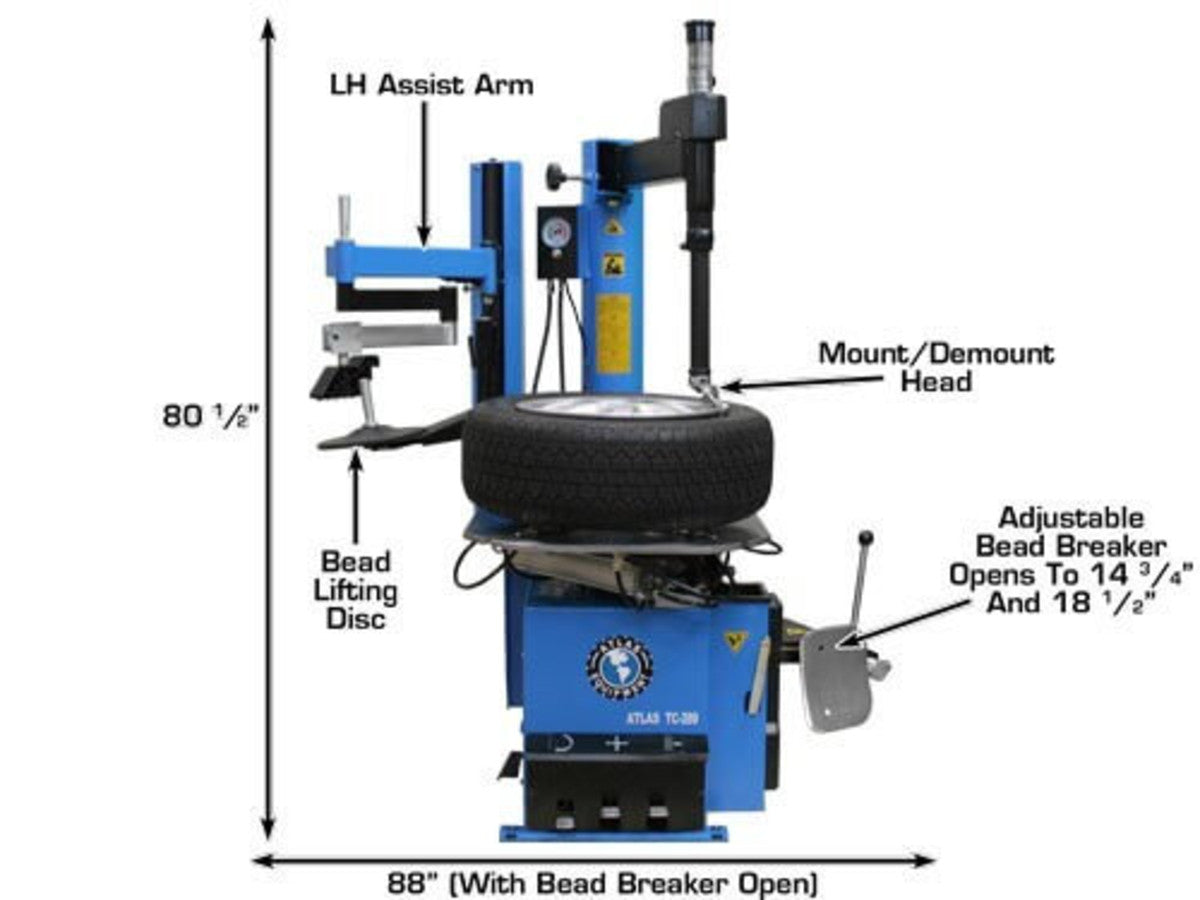

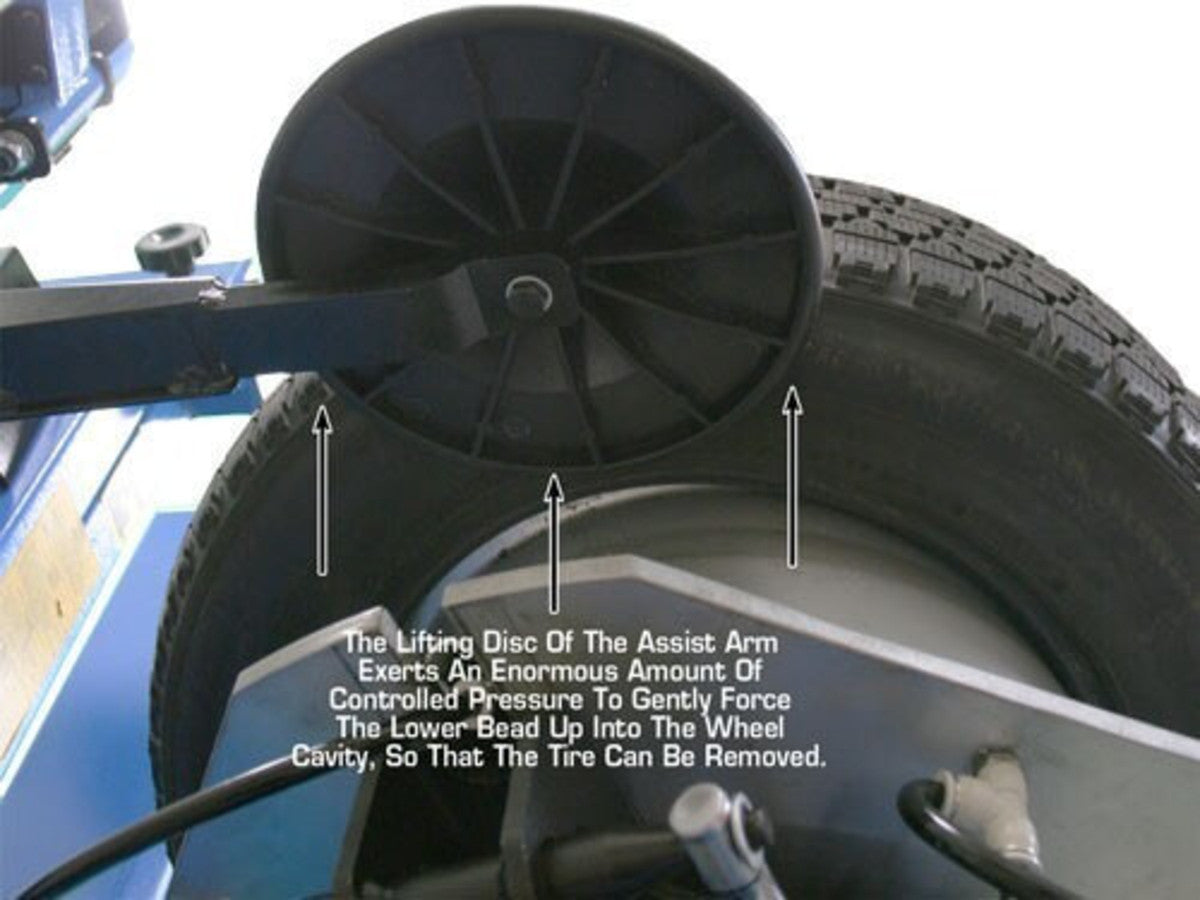

• Left Hand Assist Arm (pressing block/disk) Included
• Air operated jaws & bead breaker (external air supply required)

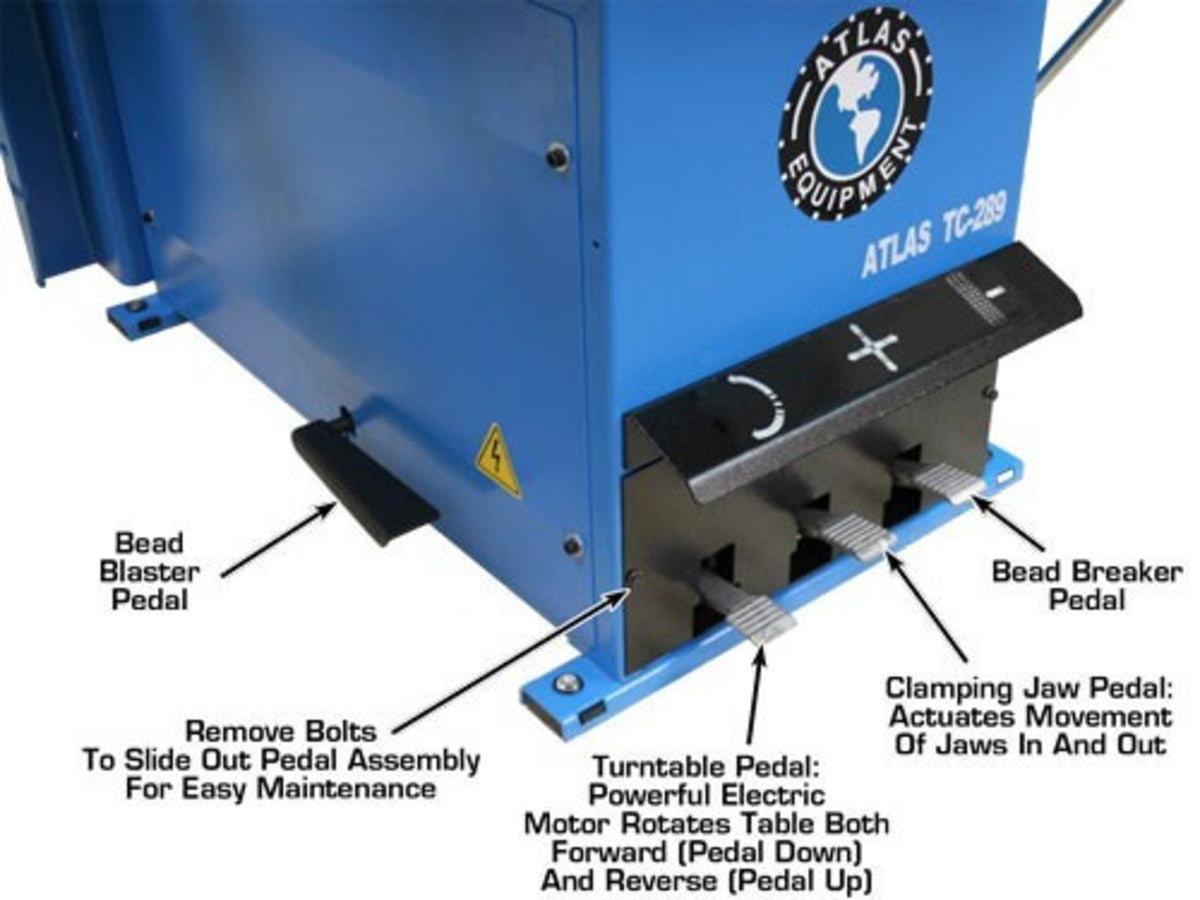

• Electric turntable

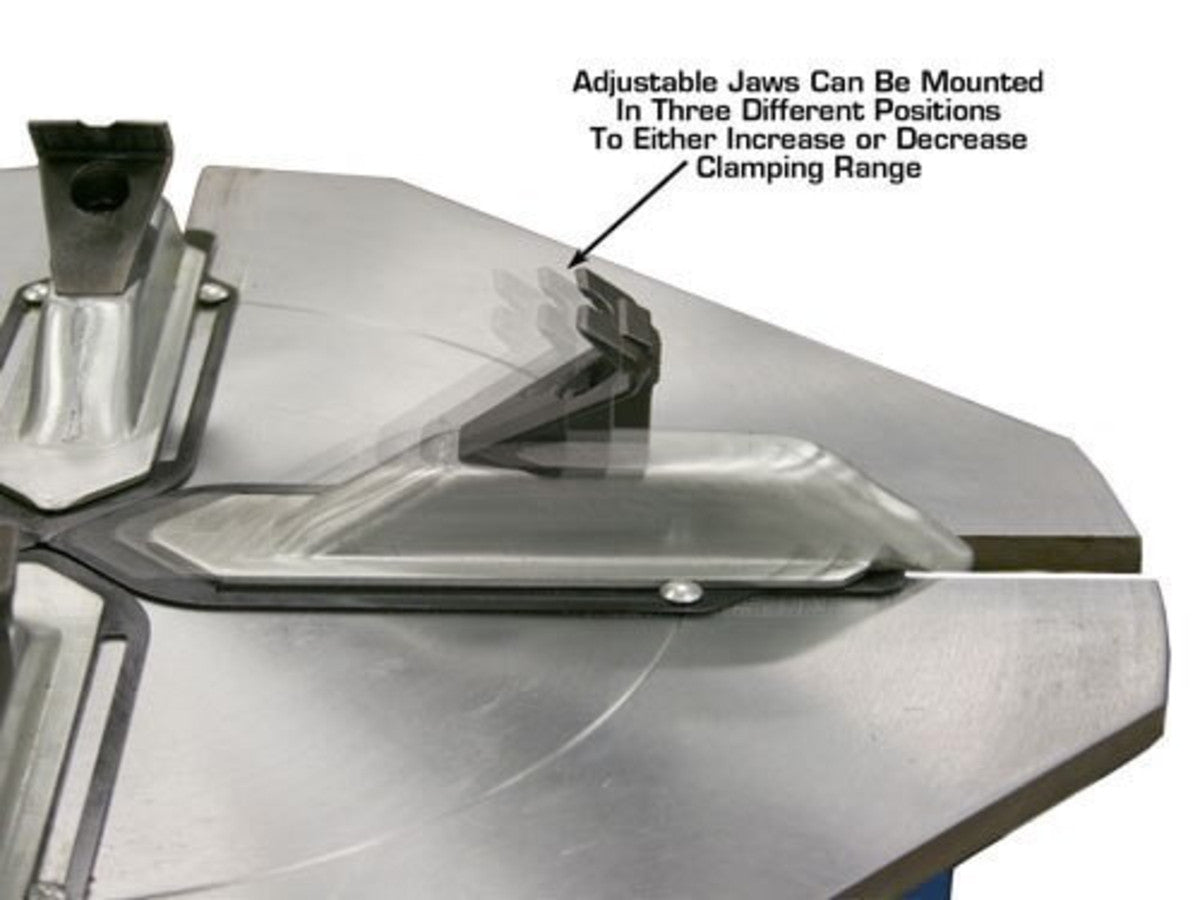

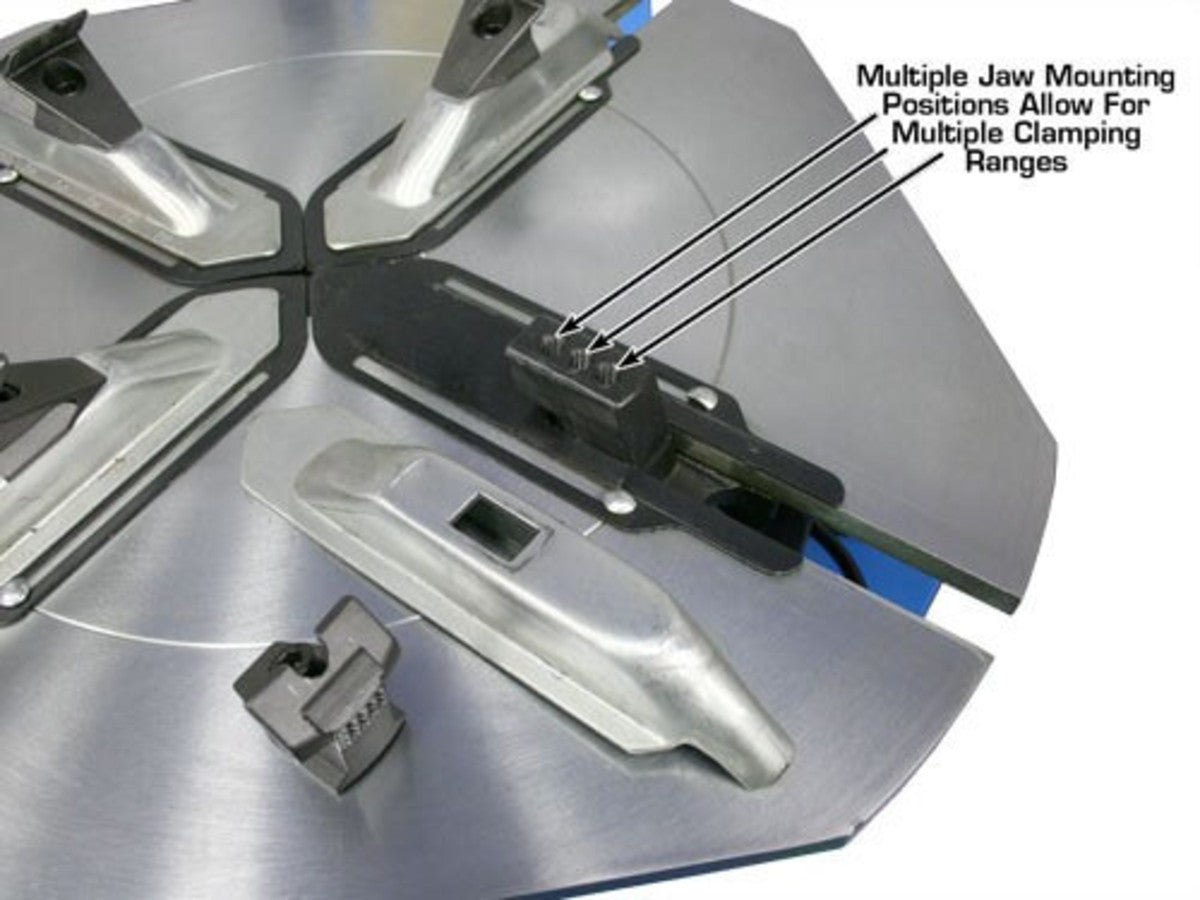

• Adjustable jaws, three mounting positions

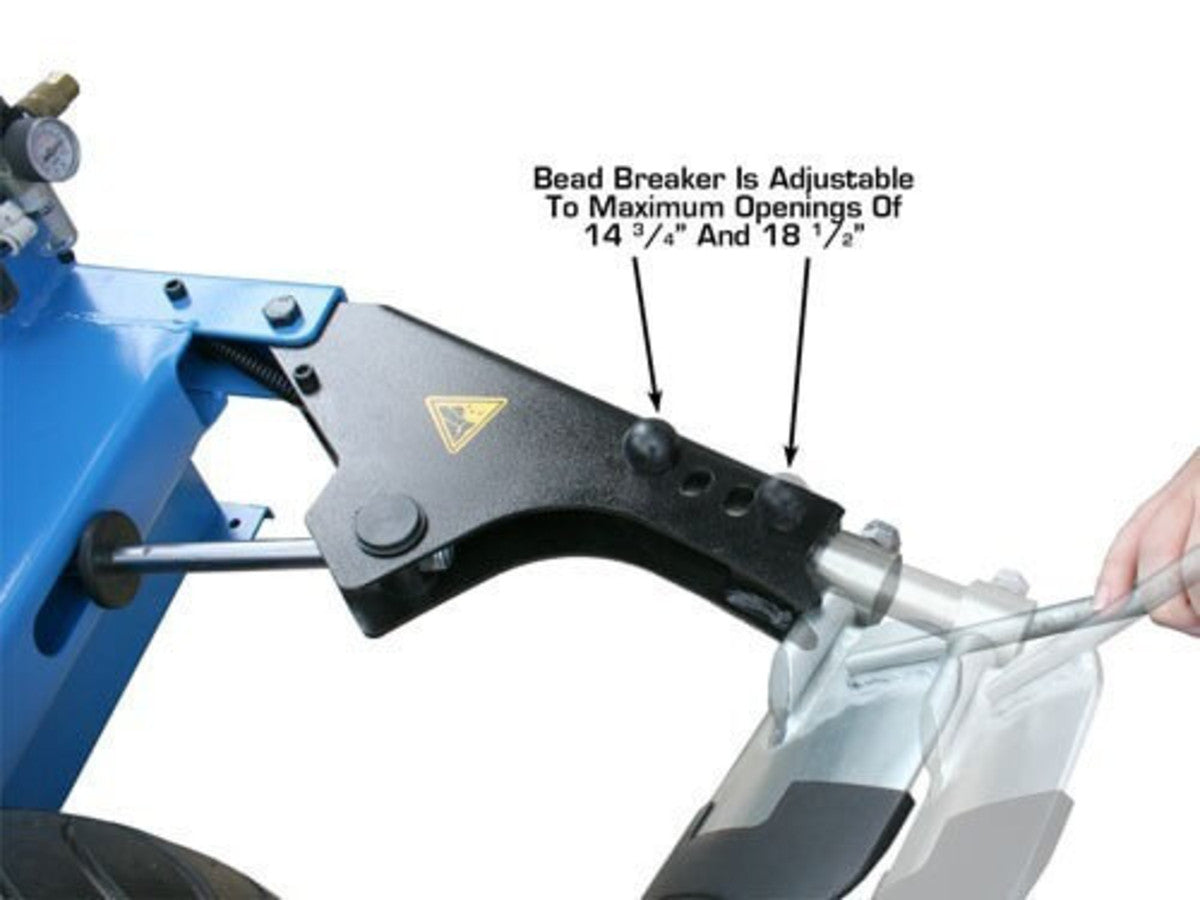

• Adjustable Bead Breaker Plate

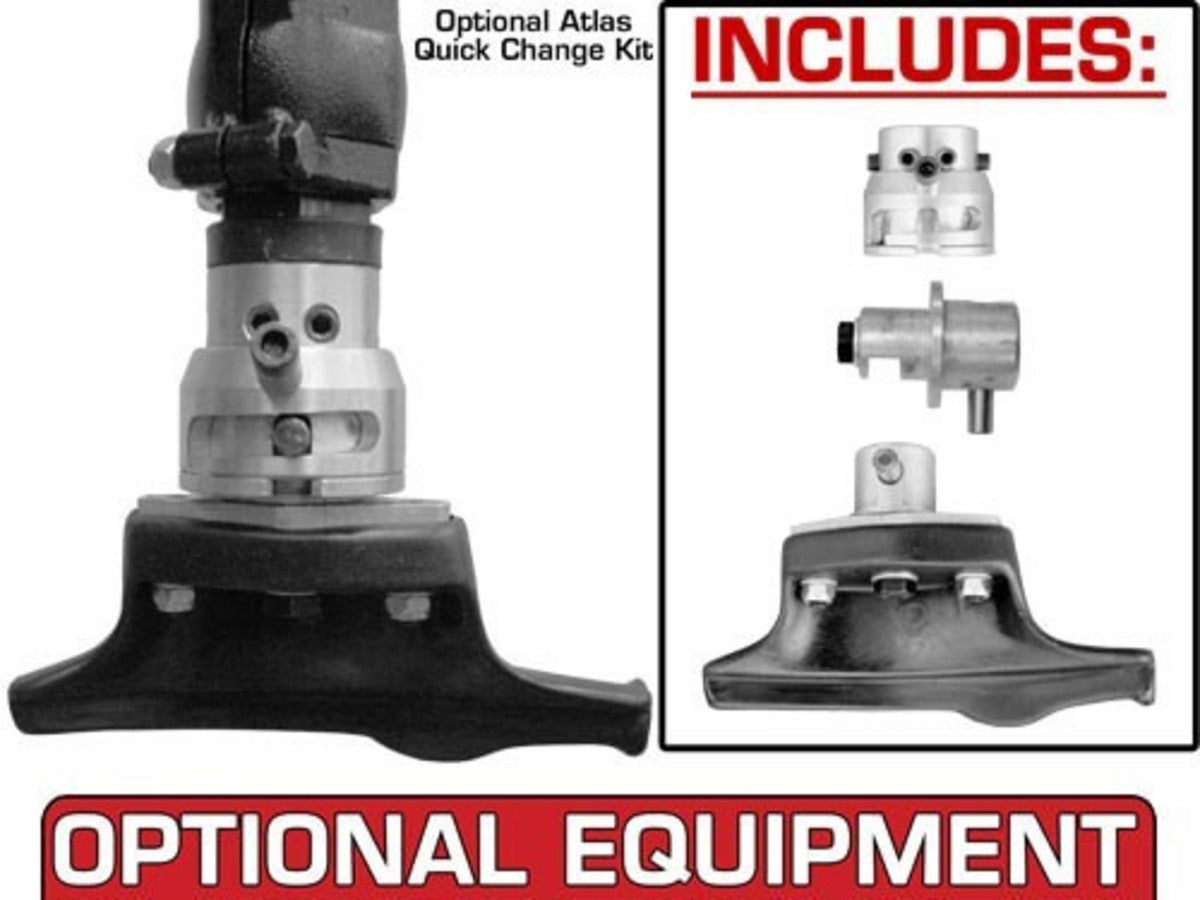

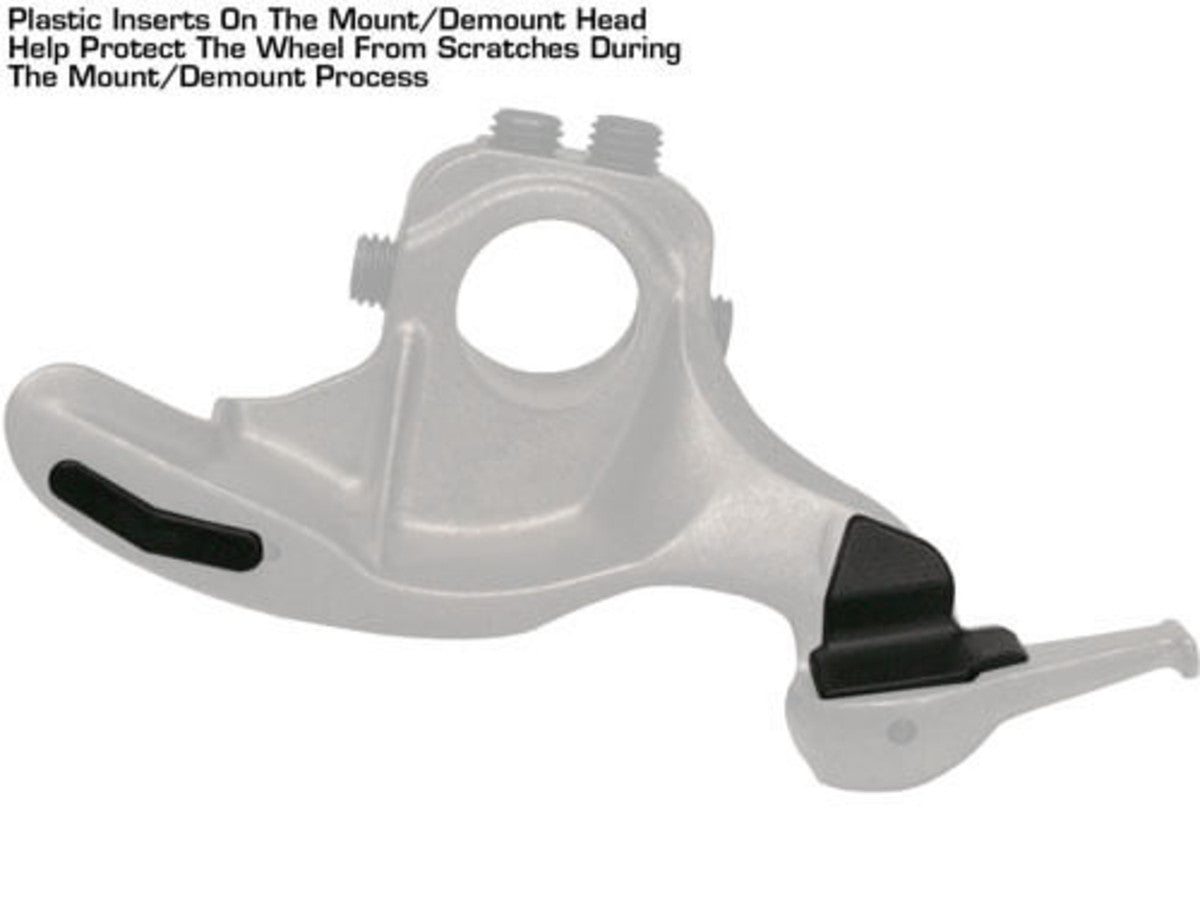

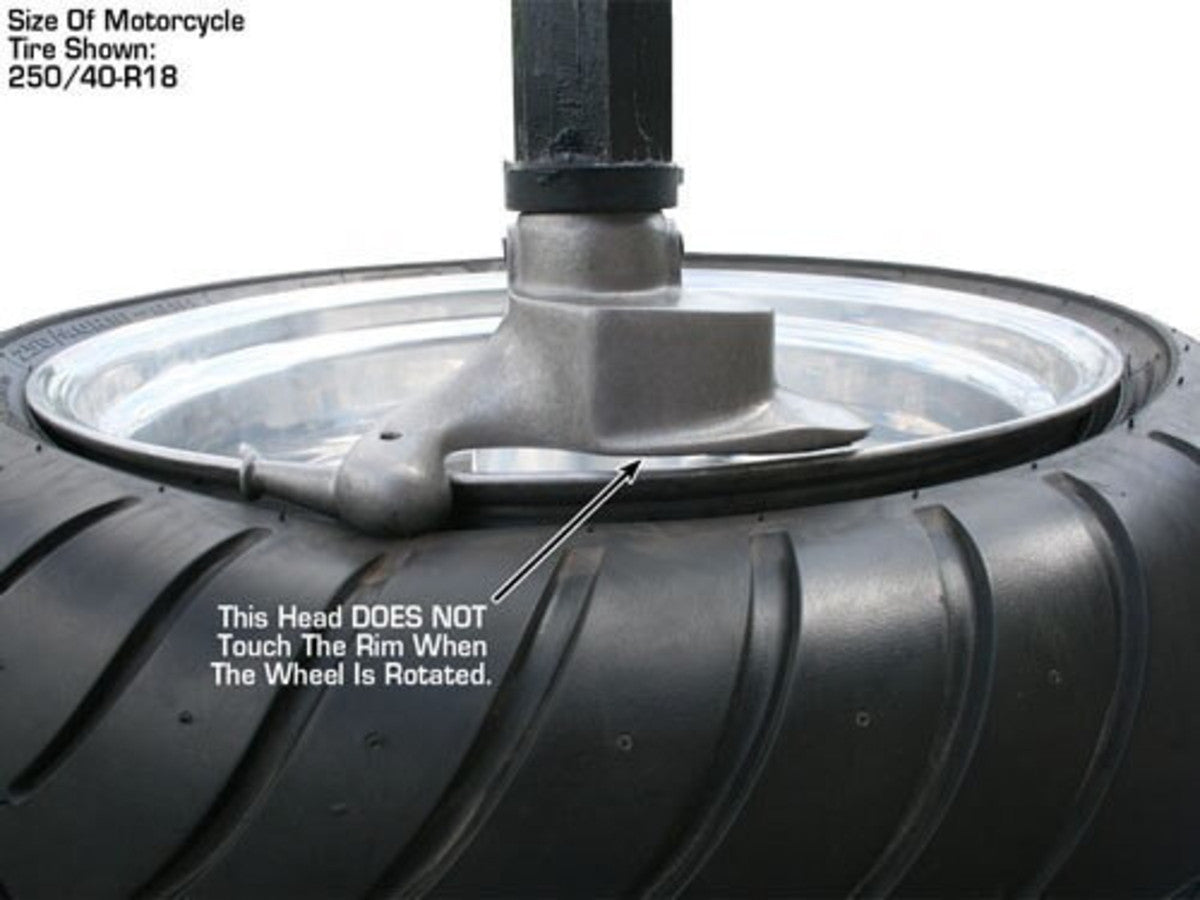

• Metal mount/demount head w/ metal roller or replaceable plastic inserts
• Column mounted inflator box w/ gauge Included

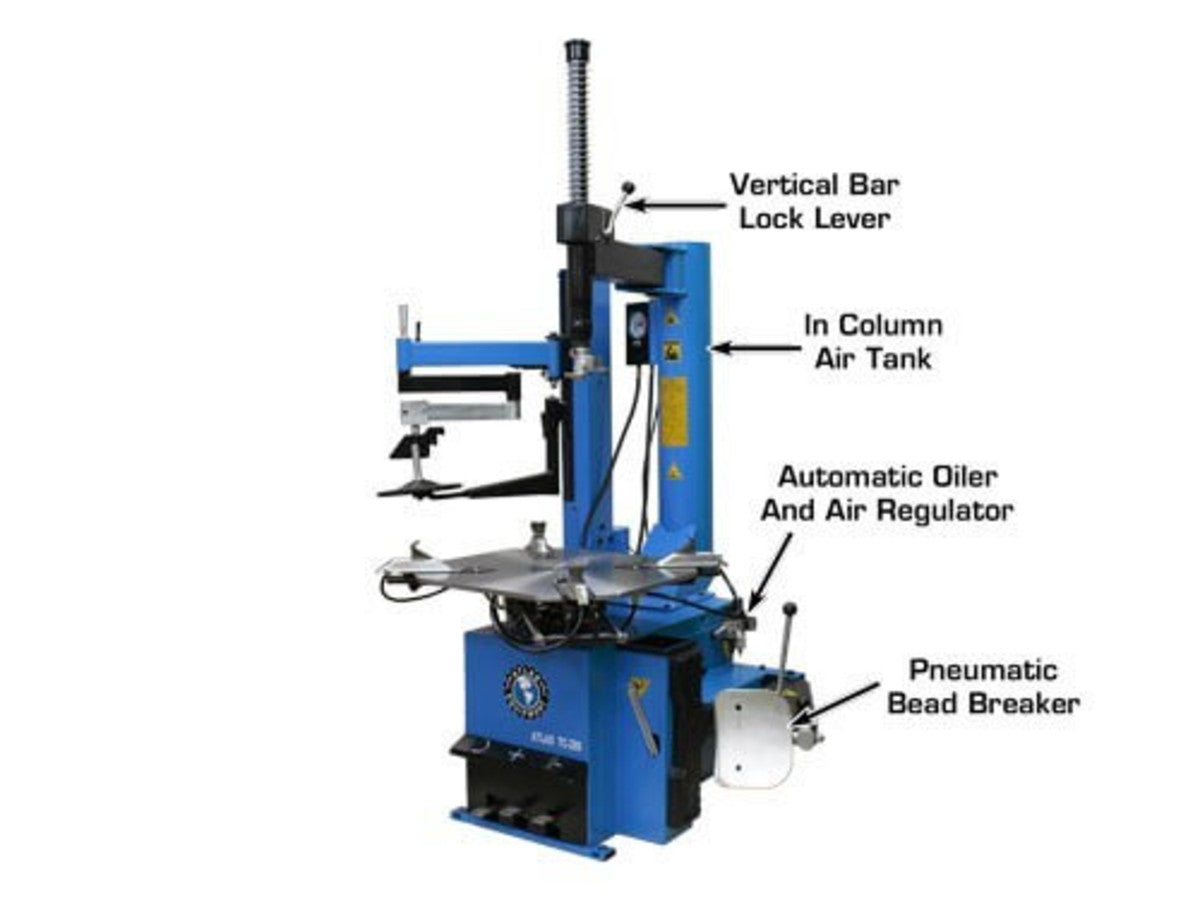

• Filter/Regulator/Lubricator Included

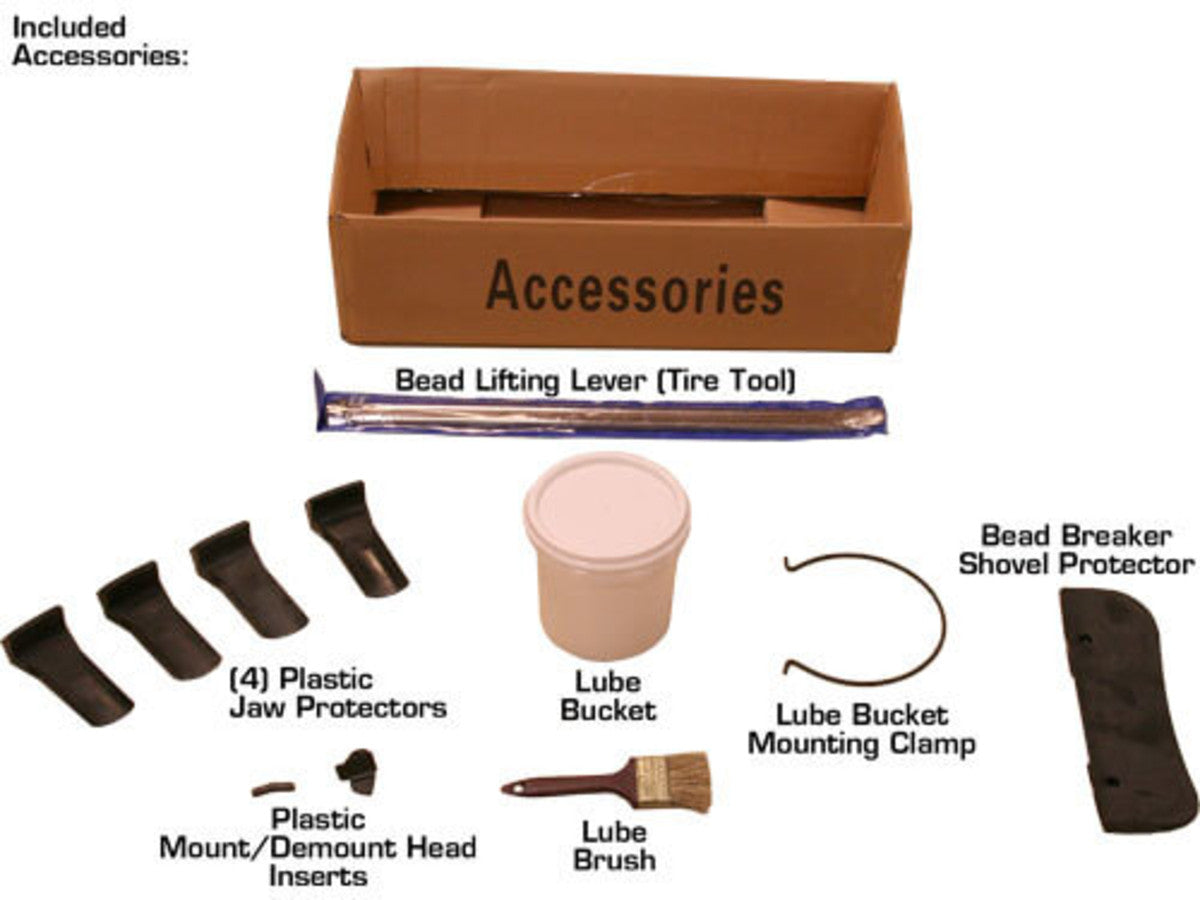

• 20" Tire Tool Included
• Lube Bucket with Brush Included
• Set of Large Plastic Jaw Covers Included
• Plastic Cover for Bead Breaker Shovel Included
• Multiple Replacement Plastic Inserts for M/D Head Included

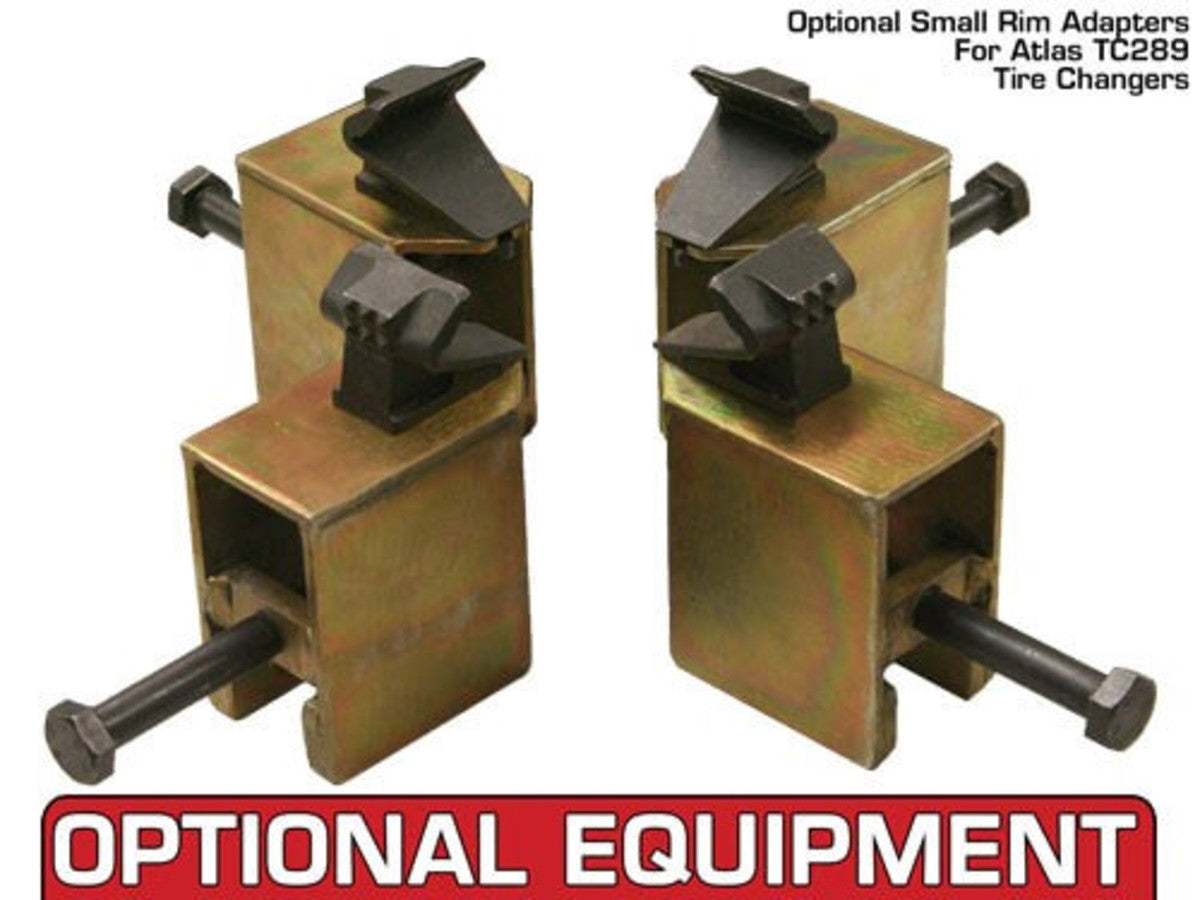

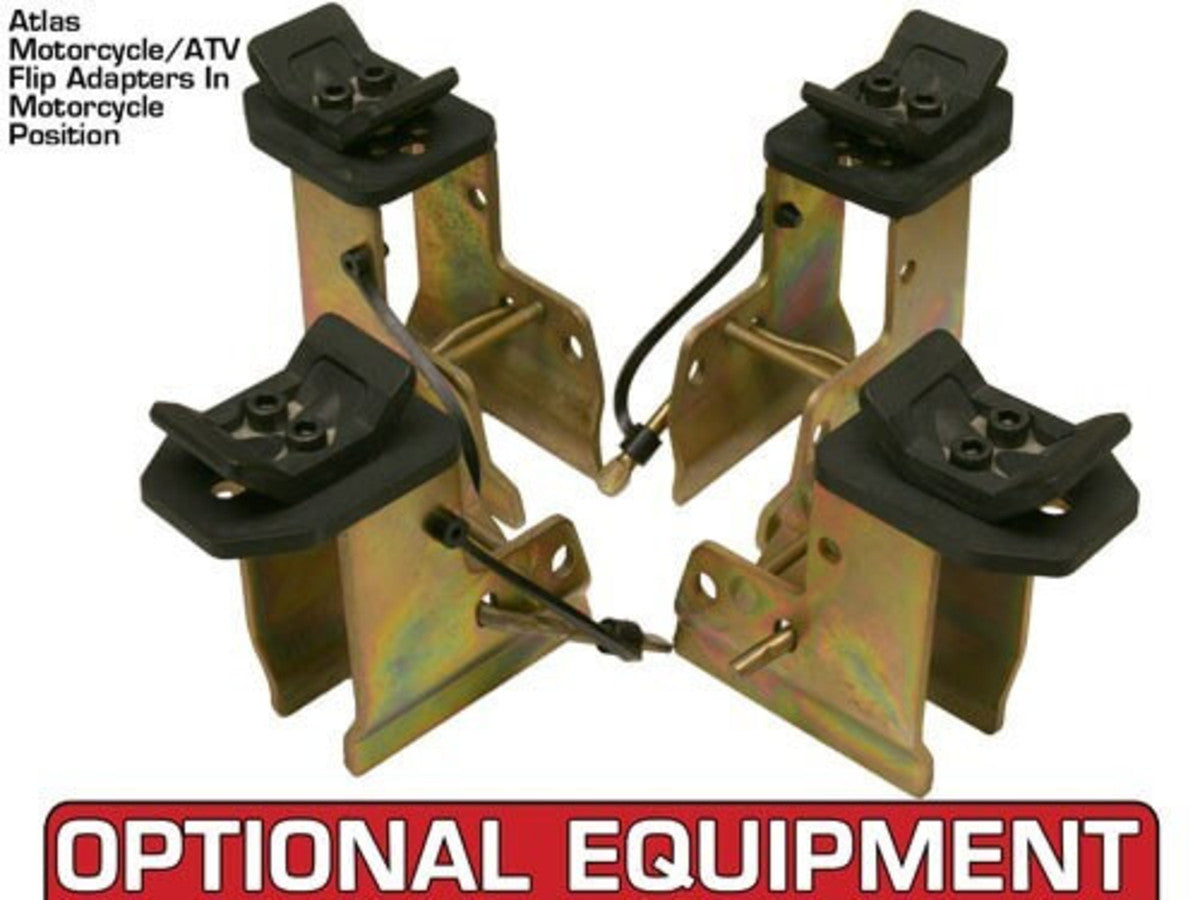

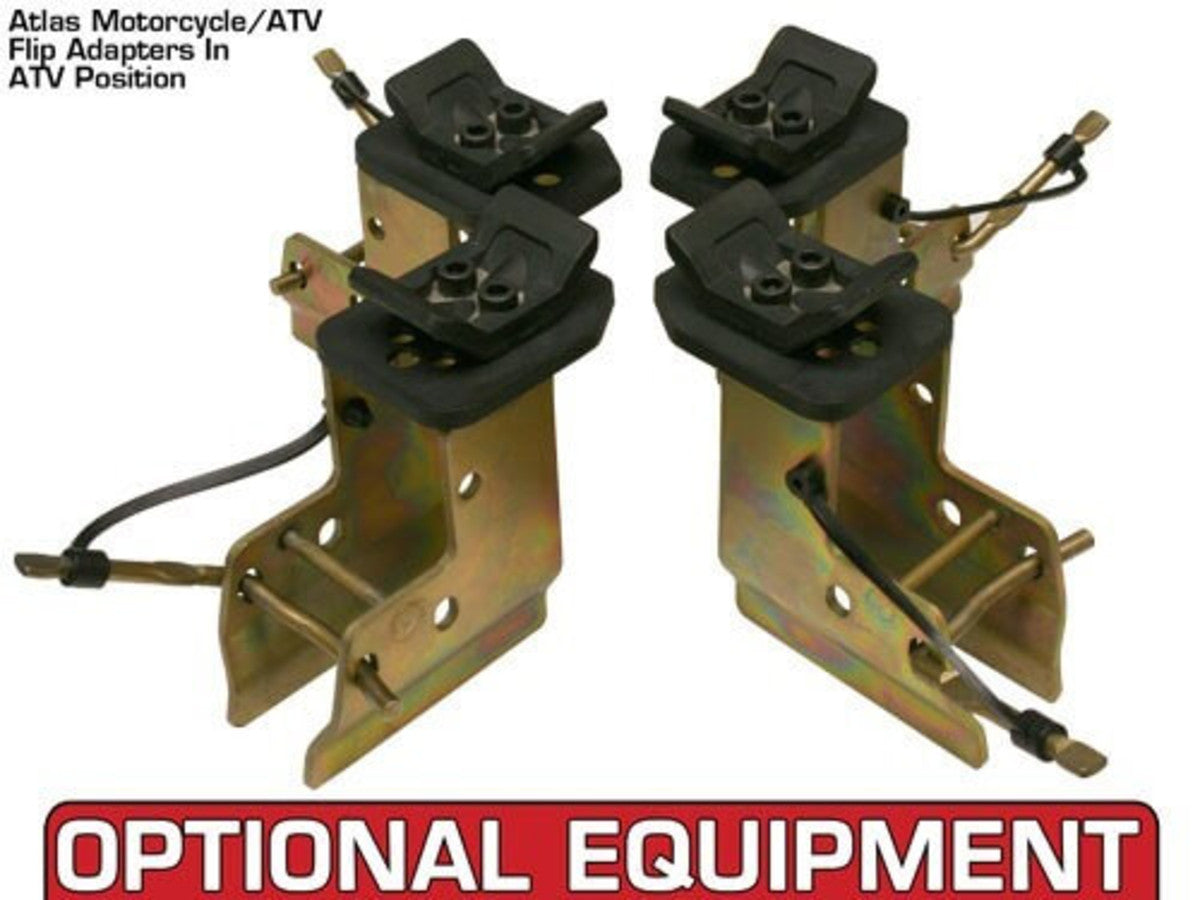

• Motorcycle and ATV adapters available (sold separately)

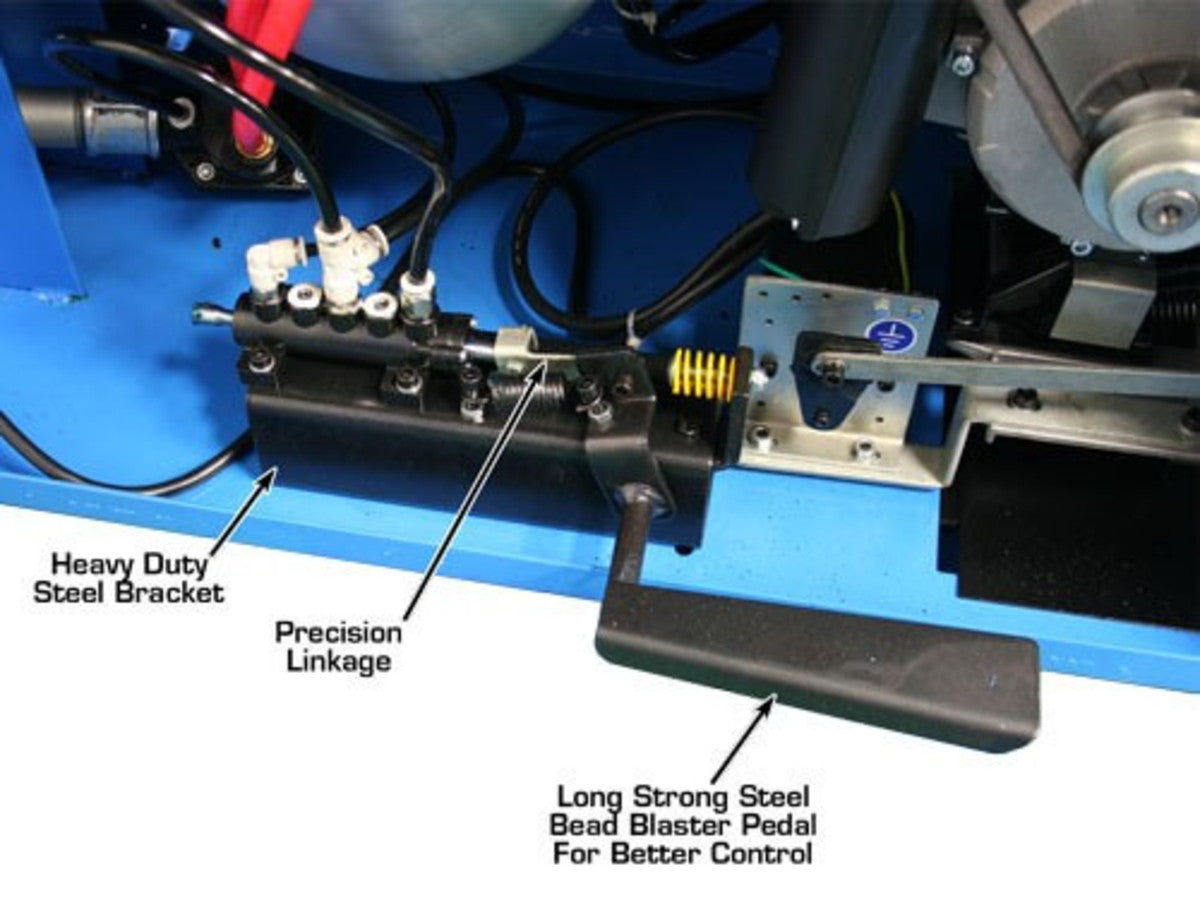

• Built in “Beadblaster”

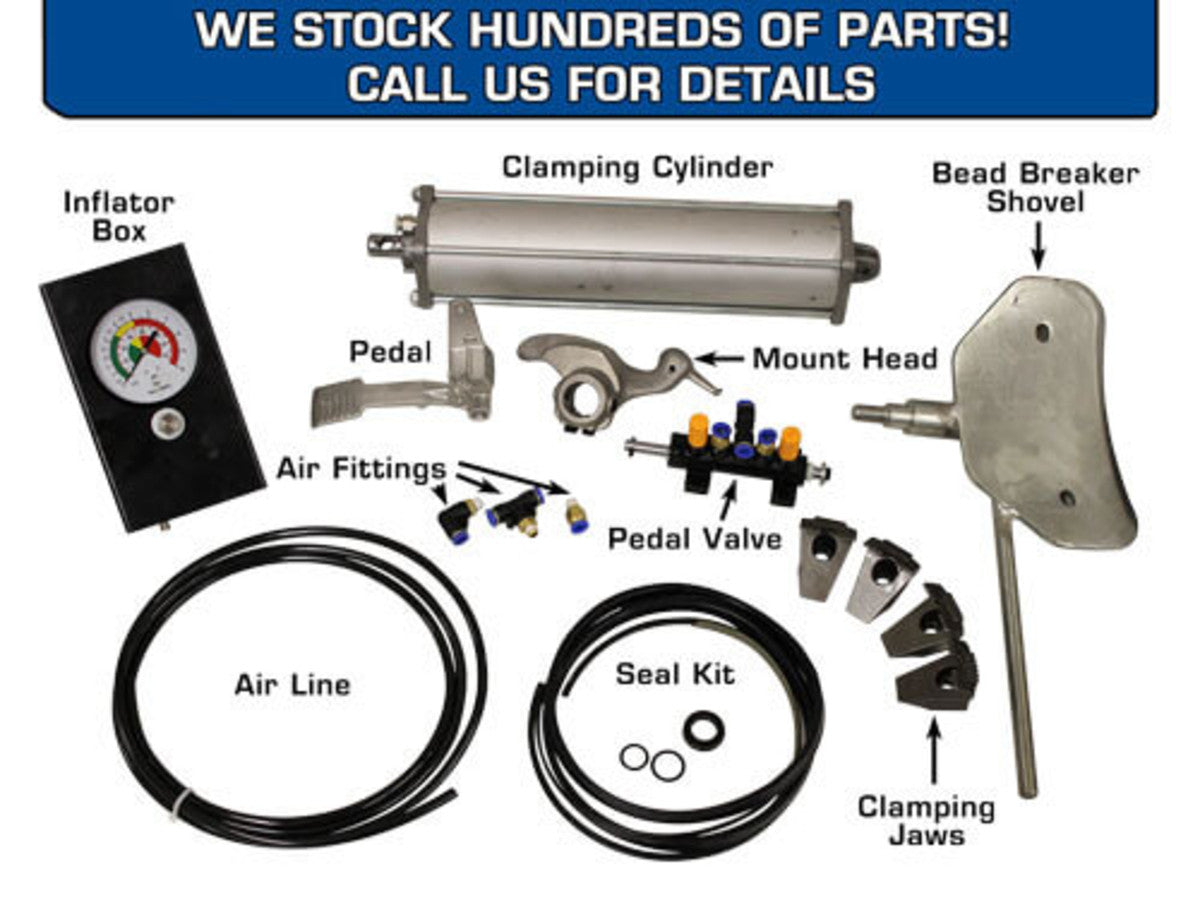

• Replacement Parts & Wear Items Always in Stock
• 1 Year Parts Only Warranty

Atlas TC289LH Specifications

• Rims: Steel, Aluminum, Alloy

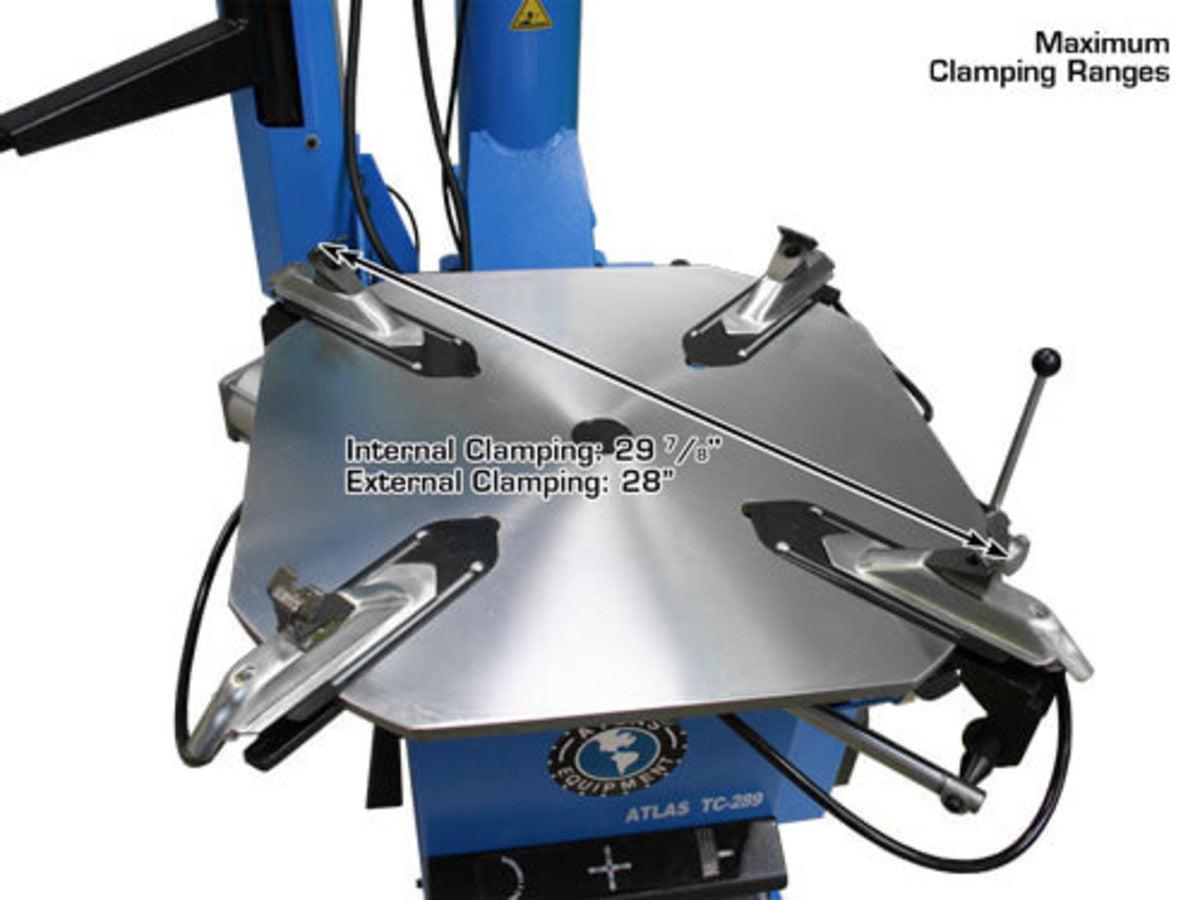

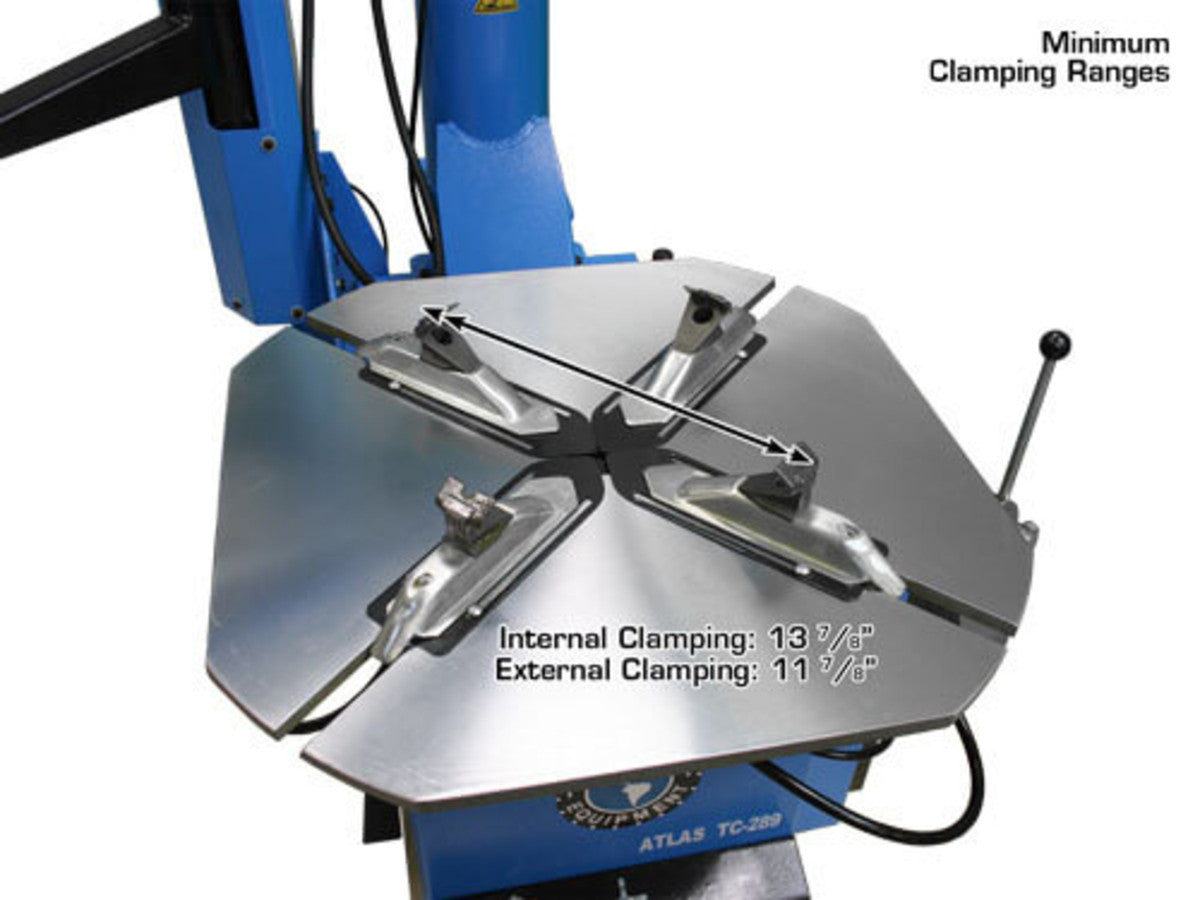

• External Locking Rim Dimension(3 Positions): 1) 11 7/8" - 26"2) 12 7/8" - 27"3) 13 3/4" - 28"
• Internal Locking Rim Dimension(3 Positions): 1) 13 7/8" - 27 7/8"2) 14 5/8" - 28 7/8"3) 15 5/8" - 29 7/8"
• Maximum Tire Diameter: 47"

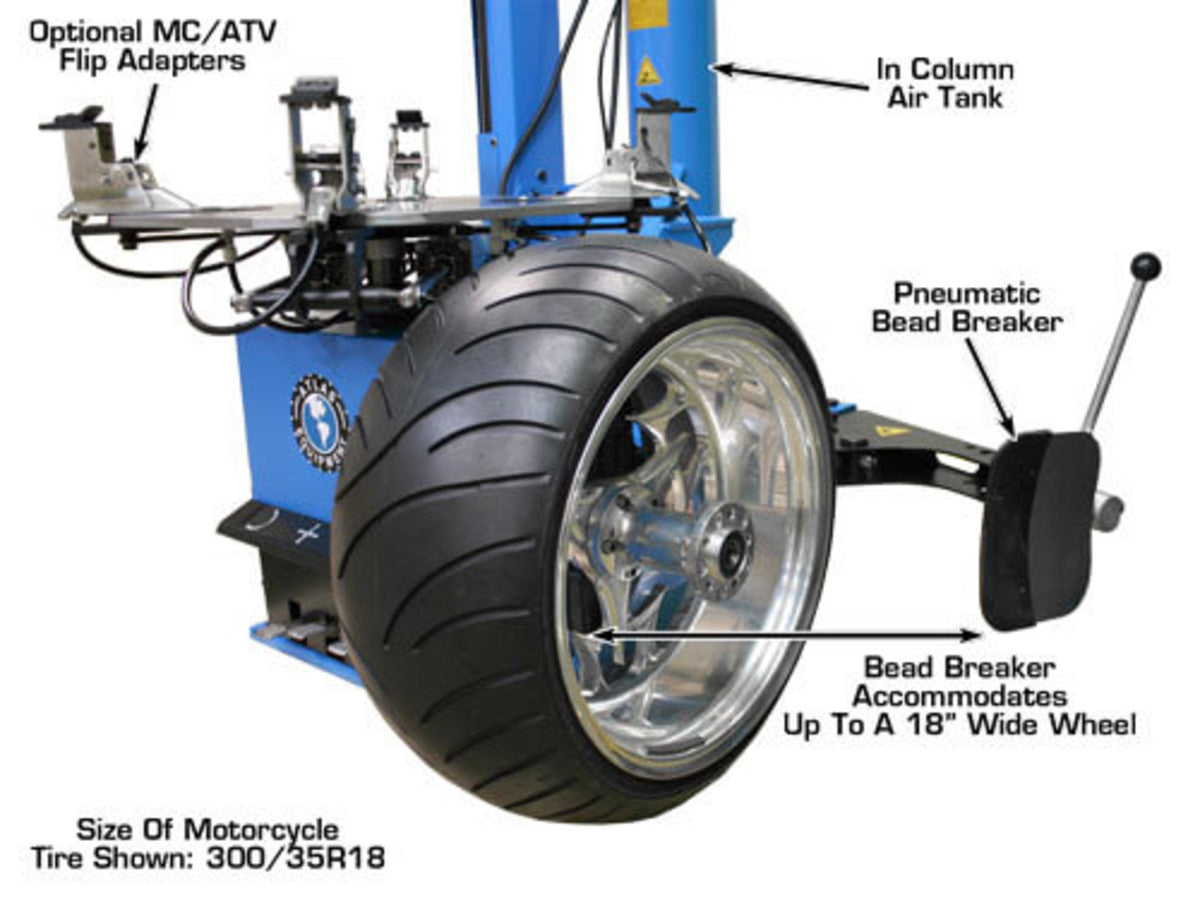

• Maximum Wheel Width (Bead Breaker): 18"
• Table Motor: 1 HP
• Turntable Rotating Torque: 885 ft/lbs
• Bead Breaker: 5,500 LB. Force
• Air Requirement: 90-110 PSI (MUST NOT EXCEED 140 PSI)
• Operating Voltage: 110volt

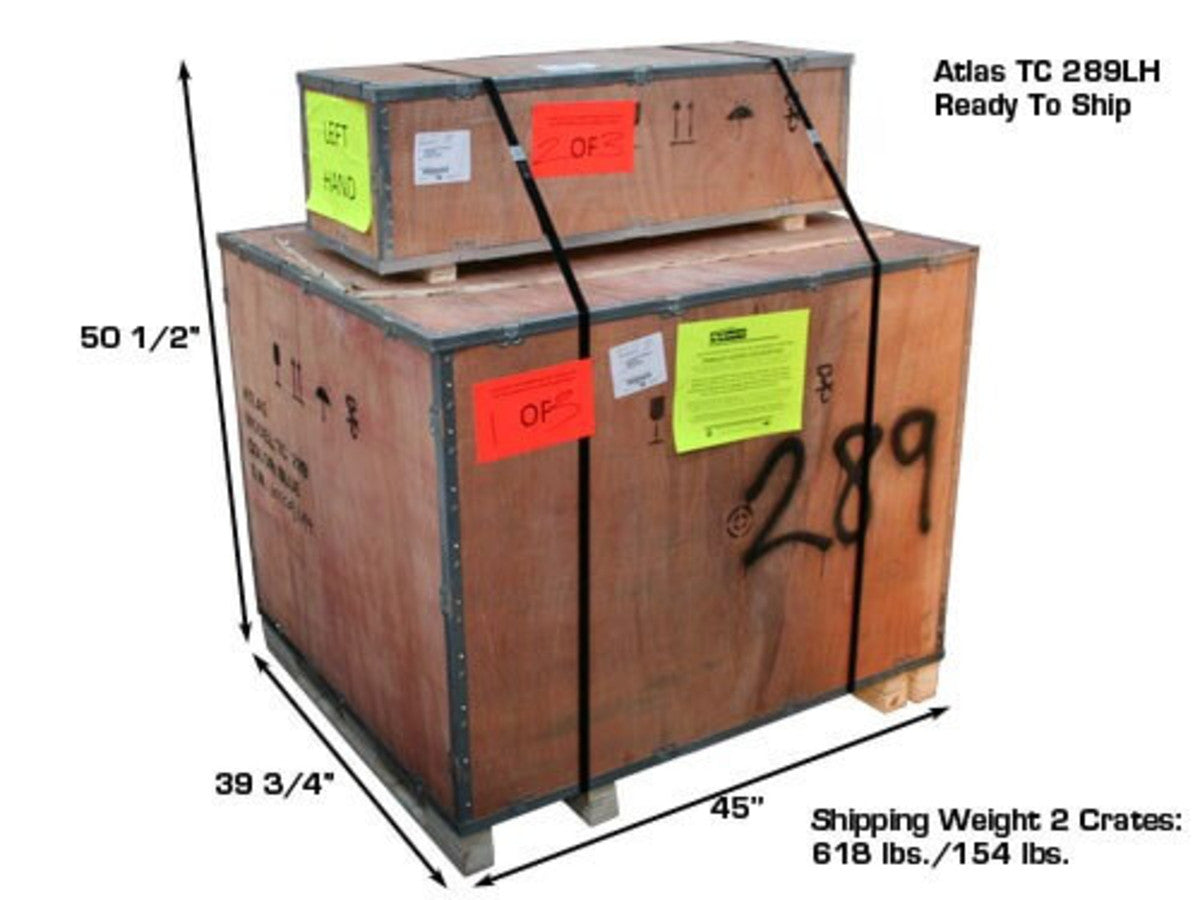

• Shipping Weight: 800 lbs.

The Atlas TC289LH rim clamp, swing arm tire changer is the perfect machine for most general automotive serivce departments and medium sized tire stores. The TC289 is also great for farm use and “Mr. Homeowner” looking to do larger tires.. This version of the TC289 comes with the Atlas LHA or “Left Hand Assist” arm. The LHA is a valuable tool in changing stiff sidewall, low profile style tires. It also acts as an extra set of hands saving a single user time and effort. The Atlas TC289LH machine features the biggest turntable and most clearance to handle the biggest diameter tires, and is perfect for changing the tires on large SUV's and one ton trucks. The TC289 features a built in “Beadblaster” system. The “Beadblaster” system helps inflate stiff sidewall or other “hard to inflate” tires. The Atlas wheel clamp tire changers are designed to change the tires on both high priced alloy wheels and steel wheels without damaging the rim or the tire. The Atlas TC289 has a powerful ADJUSTABLE bead breaker located on the side of the machine which is designed to break even the most stubborn and rusted beads without damage to the rim. The turntable jaws (which can be covered with plastic covers) hold the rim securely without damaging the surface of the rim. These jaws can be moved to three different positions along the slide of the turntable to either increase or decrease the clamping range, and to handle the widest variety of tires. The Atlas TC289LH requires some assembly after purchase.
