Atlas Equipment Platinum PWB50 Premium 2D Computer Wheel Balancer

Features and Benefits:

• Platinum Computer Controlled Motorized Spin Balancer
• Italian Engineering and Components

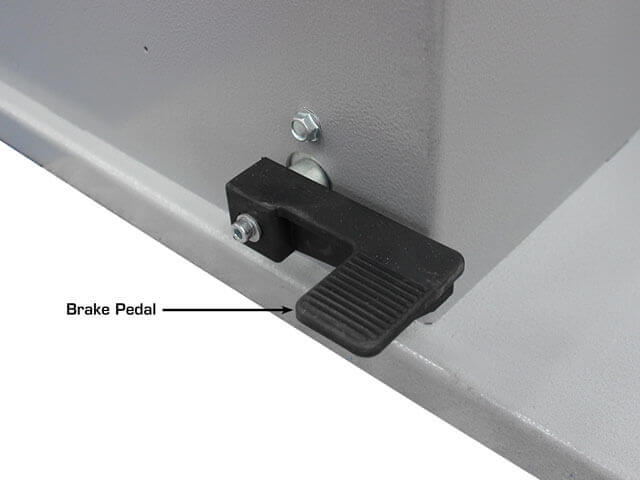

• Automatic and pedal operated brake.
• Automatic start/stop when hood is lowered/raised.
• Static and dynamic balancing modes.
• Optimatch, FES (Split), OPF (Opposite Position) Functions
• Special ALU-S and other ALU Programs
• Automatic 2D Data Entry
• NWN (no wheel need) System
• Self-Diagnosing and Self-calibrating
• USB hub for firmware update through PC/Notebook
• Exceptional stability in reading the unbalance between planes.
• Display in grams or ounces, and in mm or inches.
• No anchor-down installation needed

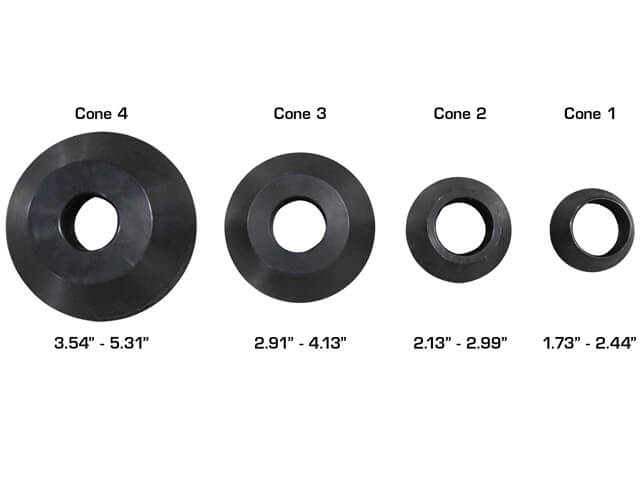

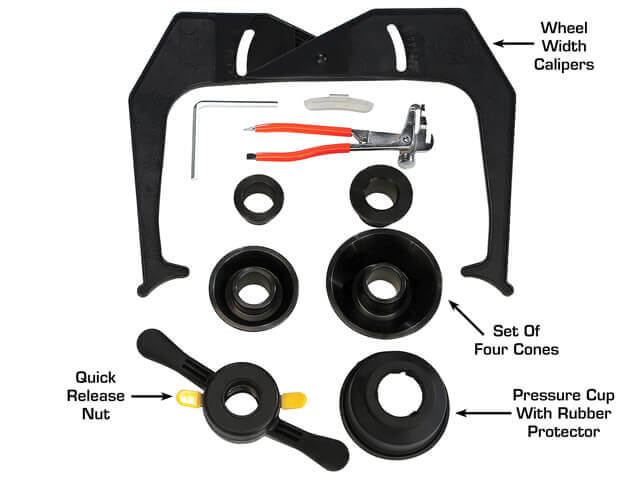

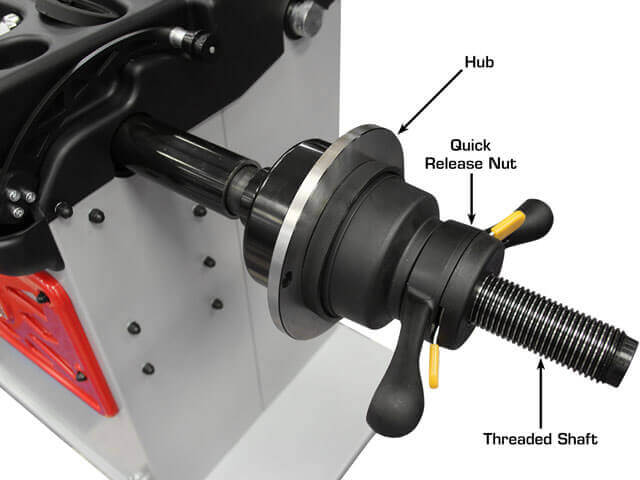

• Includes Plastic Quick-Release Nut, 4 Centering Cones, Wheel Weight Pliers, & Measuring Calipers
• Replacement Parts & Wear Items Always in Stock
• 2 Year Parts Only Warranty

Atlas Platinum PWB50 Specifications

• Max Tire Diameter: 43"
• Rim Sizes (Cars And Light Trucks): 10"-30"
• Rim Width: 1 1/2"-20"

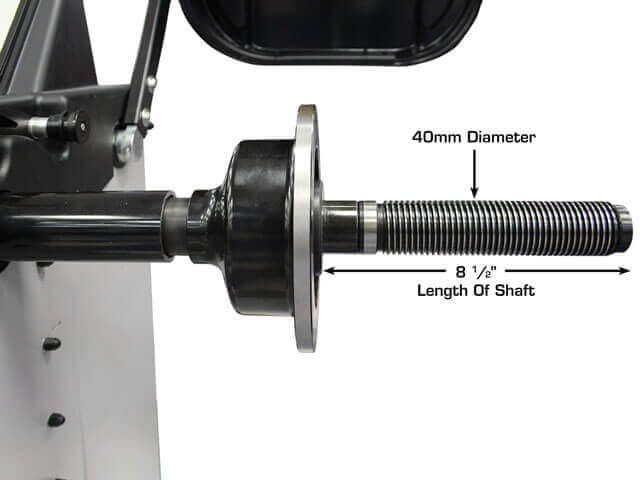

• Shaft Size: 40mm
• Max. Wheel Weight: 165 lbs.
• Balancing Speed: 130 rpm
• Data Entry: Automatic 2D
• Measurements: Standard Or Metric
• Accuracy: 1 gram
• Weight Position Resolution: 1.4 Degrees
• Self Calibration: Yes
• Cycle Time: 7 seconds
• Power Supply: 110volt
• Shipping Weight: 230 lbs.

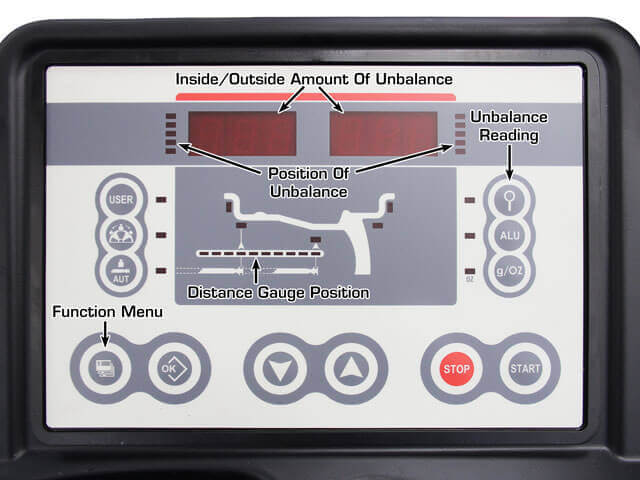

The Atlas Platinum PWB50 is an electronic wheel balancer with an easy to read LED display and that offers Automatic 2D Data Entry via a single data entry gauge. Whilst there are a multitude of ALU weight placement configurations, the weight placement arm actually enables the operator to choose the most convenient position for the weights, and the machine will guide the operator back to that exact position after the spin cycle, ensuring accurate dynamic adhesive weight application. The Fast & Easy Split function (FES) makes hiding adhesive weights behind the spokes a breeze and the Opposite Weight Function (OWF), allows an operator to change the weight application position from 12 o'clock to 6 o'clock for convenient access when applying adhesive weights. Optimization of tire and wheel unbalance (match mounting) is possible with the PWB50 via OPTIMATCH software and makes balancing even the most difficult assemblies easy and efficient. The Atlas Platinum PWB50 is a feature packed, high volume passenger vehicle wheel balancer that guarantees speed, accuracy, and a long life by combining Italian engineering and components with the Factory Direct Value that Atlas is known for around the World.
